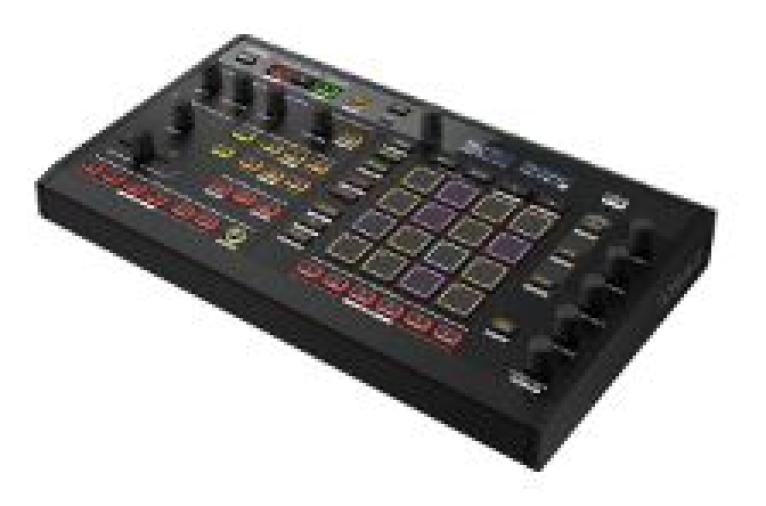

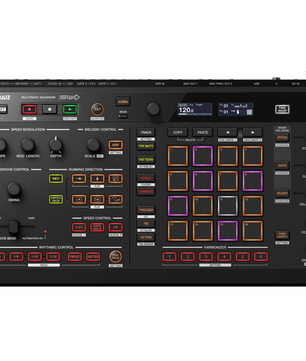

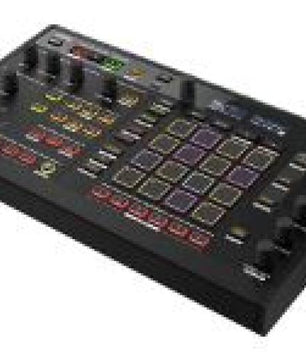

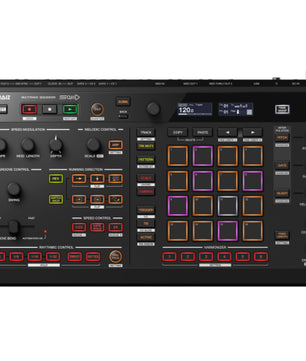

Pioneer DJ Toraiz Squid

THE HEARTBEAT OF YOUR SETUP
Unlock limitless creativity with the SQUID™ multitrack sequencer. Part of our TORAIZ™ series of musical instruments and production equipment, this inspiration tool will be the heartbeat of your studio and live setups. The SQUID will control your workflow and give you the chance to develop new styles of music as you create unique sequence patterns and phrases at the touch of a button. Connect, sync and simultaneously control up to 16 instruments via its multiple input/outputs. The terminals are compatible with various equipment, from your DAW and hardware instruments to modular synths, vintage synthesizers and drum machines.

Perfect for on-the-fly music production, the layout and controls are effortless to navigate so your ideas will come to life the moment inspiration strikes. This production tool enables you to randomize sounds, sequences, and drums – all in key. Access endless polyrhythmic-looping options and instantly change the playback direction and speeds. With the world-first* Groove Bend feature, you’ll really feel the groove as you generate original rhythms in real time. And by controlling everything in one place, you can focus on developing phrases.

* First slider-operated trigger timing feature in the music production category (according to research conducted by Pioneer DJ Corporation, as of April 18, 2019).

KEY FEATURES
INTUITIVE WORKFLOW

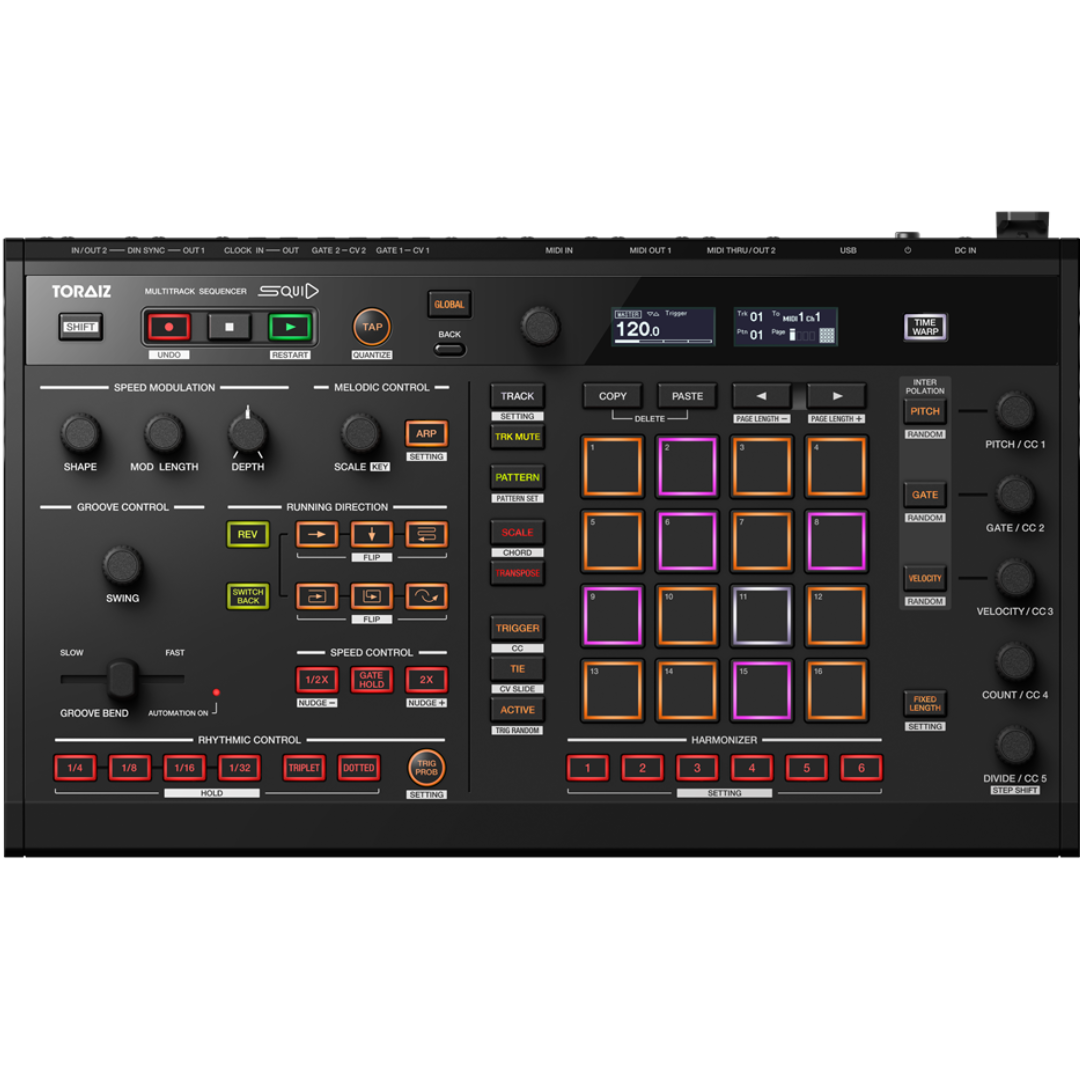

Have fun creating phrases by tapping the 16 multicolored LED rubber pads in the Step Edit section. Set step parameters and play live as if the pads were keys on a keyboard. Combine various sequence functions such as Interpolation and Harmonizer to help build your sounds.

LEARN MORE

ARRANGE PHRASES IN REAL TIME
Rearrange phrases you’ve created in the Step Edit section to craft your ideas the instant they spring to mind. Enhance your sounds with performance features, such as Running Direction, Speed Modulation, and Groove Bend.

LEARN MORE

SAVE YOUR “HAPPY ACCIDENTS”
The SQUID records performance information in the background so you’ll never lose phrases you create accidentally. When you’re experimenting and hear something you love, use the Time Warp feature to recall and save it as a sequence pattern for your next track.

CONNECT VARIOUS INSTRUMENTS

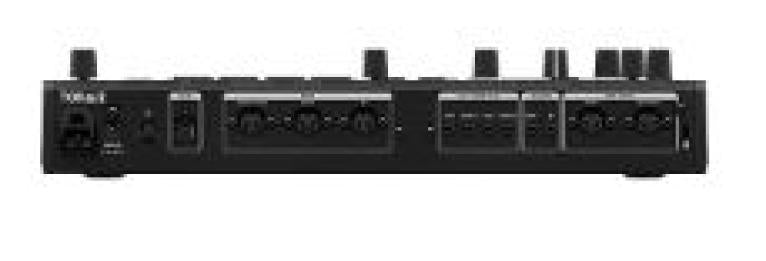

The SQUID has a USB B terminal, MIDI terminals, 2 sets of CV/Gate outputs, and Clock and DIN Sync input/output terminals. This means you can combine the power of your DAW with modern, modular and vintage synths, as well as drum machines. Signals are converted automatically.

IMPORT AND EXPORT FAST
Quickly transfer sequence patterns, projects and Midi clips between the SQUID and your PC or Mac with the SQUID Manager function. Easily import a sequence pattern created on your DAW to the SQUID, instinctively arrange it using the sequencer’s features, and return it to your DAW.

Specifications:

Width
374.8 mm

Height
223.9 mm

Depth
72.1 mm

Weight
1.9 kg

Included Accessories
AC adaptor
Power cord
Quick Start Guide

Sequencer
Maximum number of tracks
16 tracks

Maximum number of patterns per track
64 patterns

Maximum number of steps per track
64 steps

Step resolution
Quarter note
Eighth note
Sixteenth note
Twenty-fourth note
Thirty-second note

Maximum number of notes per step (polyphony)
8 notes

Maximum number of projects
128 projects

Terminals
MIDI
1 MIDI THRU / OUT
USB
1 USB B port
