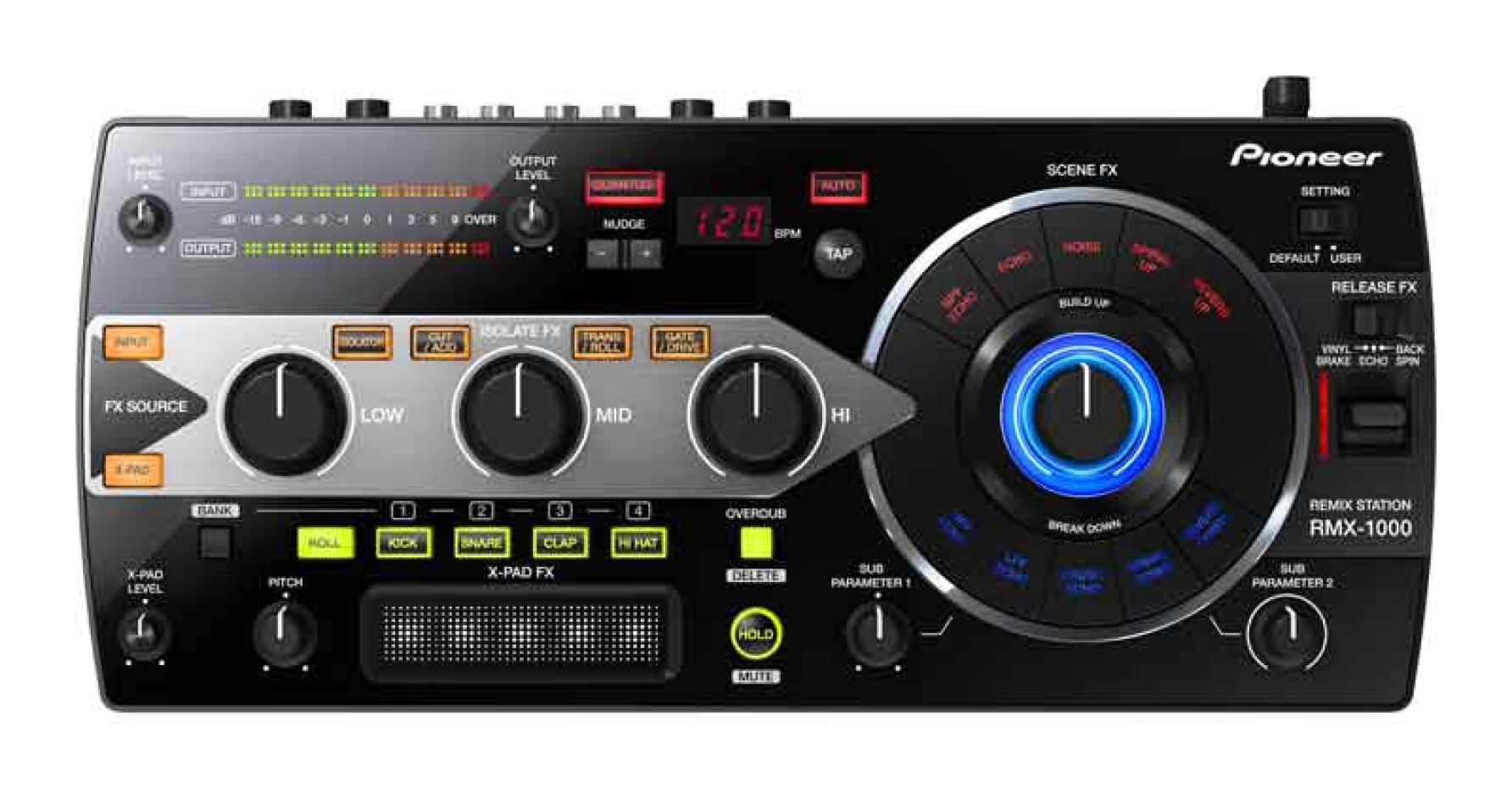

Pioneer RMX1000 (Pioneer Remix Station 1000 Black)
Remix Station
Scene FX allows users to choose 5 build up or break down effects
Isolate FX focuses on HI/LOW/MID frequency bands
X-Pad FX enables users to develop & add samples; also has Release FX lever
Remixbox software & RMX-1000Plugin VST/AU plug-in software
This Pioneer effector is available in Black or Pearl White
Incorporates 4 remixing functions: Isolate FX, Scene FX, X-Pad FX and Release
FX for simple musical arrangements with intuitive control
Scene FX allows users to choose 5 build up or break down effects
Isolate FX focuses on HI/LOW/MID frequency bands
X-Pad FX enables users to develop and add new sounds
Release FX lever eliminates current music and leaves only sound effects
Can also act as a USB controller when used with the included VST/AU plug-in
software
Includes Pioneer's remixbox™ editing software and plug-in software
The Pioneer Remix Station 1000 effector is an innovative technologically advanced device for enhancing DJ performances with its ability to create and add a variety of new and unique remix effects, as well as rhythmic sampling capabilities. This Pioneer effector incorporates four remixing functions: Isolate FX, Scene FX, X-Pad FX and Release FX for simple musical arrangements with intuitive control, all accessible at the user’s fingertips. The device includes Pioneer's remixbox™ editing software to enable users to customize almost every function and feature of the unit. The system can also act as a USB controller when used with the included VST/AU/Pro Tools RTAS Pioneer Remix Station 1000 Plug-in software.
The compact and portable Pioneer Remix Station 1000 effector allows users free control of musical developments with intuitive operation. Four sections of the device are arranged with easy-to-control knobs and buttons that control multiple effect parameters. By combining the effects from each section, wider arrangements with greater individuality can be performed with ease.
Scene FX
In the Scene FX section, users can choose between five Build Up effects and five
Break Down effects. The Build Up effects, consisting of BPF ECHO, ECHO, NOISE,
SPIRAL UP and REVERB UP, add sounds, while Break Down effects, consisting of HPF
ECHO, LPF ECHO, CRUSH ECHO, SPIRAL DOWN and REVERB DOWN, cut sounds. A large
knob increases or decreases the parameter of effects chosen by simply turning
the knob. Two sub-parameters knobs are also available for additional changes to
the effects being produced.
Isolate FX
The Isolate FX section, consisting of three individual knobs, processes the low,
mid and high frequency bands of the music passing through. The section is loaded
with three effects in addition to an Isolator, providing rhythm patterns,
timbre, etc., letting users freely modify the output for the HI/MID/LOW
frequency bands. In addition to the Isolator, three additional effects in the
section are available including CUT/ADD, TRANS/ROLL and GATE/DRIVE.
X-Pad FX
The device features a touch pad section called the X-PAD FX that enables users
to develop and add new sounds not found in the original music. In addition to
its four built-in audio samples, KICK, SNARE, CLAP and HI HAT, other audio
samples edited in Pioneer’s remixbox software can be loaded using an SD card
(not included) during DJ play.
Release FX
The system also includes a Release FX lever that allows you to re-set and
override current music playing. Release FX can also be used to create the
opposite effect: When the lever is released, all section effects are eliminated
while the original music continues to play. Three types of Release FX are
available including Vinyl Brake, Echo, and Back Spin.
Customization Using Remixbox Software
The included remixbox software allows the user to customize various settings of the Pioneer RMX-1000 effector on a computer, changing parameters such as volume output and values for different sections of the device. The customized settings can then be transferred using an SD card for use with other Pioneer Remix Station 1000.
Studio Music Production using Virtual Studio Technology/Audio Units/ Pro Tools
RTAS Plug-in
By using the included Pioneer Remix Station 1000 Plugin VST/AU/Pro Tools RTAS plug-in software, users can create the same type of music production and effects while DJing on a computer. In addition, connecting the device to a computer enables it to act as a controller for music production.
Pioneer Remix Station 1000 (Additional Features):
・ Excellent sound quality achieved through optimization of the audio circuit
design parts layout and circuit board pattern
・ QUANTIZE function enables real-time music analysis and synchronization of
effects along with the beat of the music
・ AUTO BPM function automatically measures and follows the tempo of music
・ Compact design for easy portability and convenience
・ USB-MIDI for use as a MIDI controller
Pioneer Remix Station 1000 Specifications:
Inputs
RCA x 1
Phono (1/4”) x 1
Outputs
RCA x 1
Phono (1/4”) x 1
Other ports
USB B port x 1
Sampling rate
48 kHz
A/D and D/A converter
24 bits
Frequency response
20 Hz – 20 kHz
Total harmonic distortion
Max. 0.005%
S/N ratio
When CONNECTION is set to “SEND/RETURN (-10dB)” 102dB
When CONNECTION is set to “MASTER(+4dB)” 98dB
Head room
20dB
Software
remixboxTM, RMX-1000Plugin
External dimensions
13.14” (W) x 6.18” (D) x 2.24” (H)
Weight
2.86 lbs
