Pioneer DJ Interface 2

Pioneer DJ INTERFACE 2
Audio Interface with rekordbox dj and dvs

USE REKORDBOX DVS WITH ANY SETUP
The INTERFACE 2 opens up rekordbox dvs to anyone, anywhere. This 2-channel audio interface allows you to scratch and control the music from your rekordbox library using your own preferred DJ equipment. Connecting it is quick and simple.

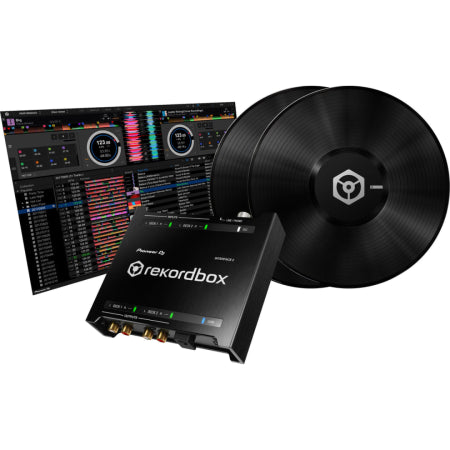

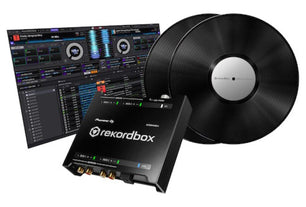

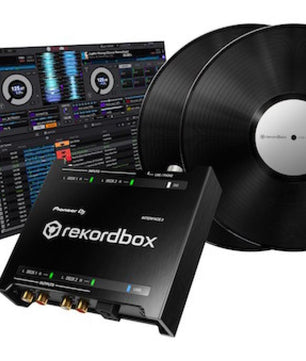

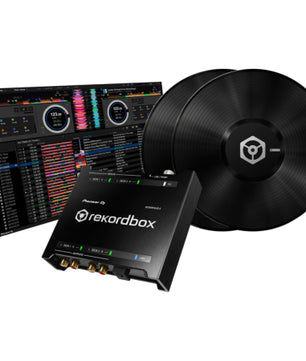

What’s in the box? The INTERFACE 2 audio interface comes bundled with license keys for rekordbox dj and rekordbox dvs, as well as 2 control vinyls (RB-VS1-K time coded vinyl records). So start scratching your digital tracks as soon as you unbox your gear.

High-quality sound
You can use the INTERFACE 2 at gigs thanks to its crystal-clear sound, inherited from our professional DJ gear. Supporting audio up to 96 kHz, it features a high-quality D/A converter and the S/N ratio exceeds 110 dB, so it's well suited for use in clubs.
Compact, robust chassis
Take the INTERFACE 2 out on the road with confidence. The unit is compact and portable, and its seamless aluminium casing makes it highly robust, while the extended edges protect the terminals.

LEDs indicate signal flow
Connect the INTERFACE 2 to any DJ set-up quickly and easily, even in a dark club. After plugging into your laptop via USB, LED indicators on the INTERFACE 2's top panel show signal flow, giving you a visual grasp of the setting status. You'll immediately see if there's a signal failure or a problem with a connection, or if the signal level is too low or high, for example, when a turntable is incorrectly connected to the line input. The LEDs flash if a signal is in mono only.
Includes control vinyl plus licences for rekordbox dj and rekordbox dvs

The INTERFACE 2 comes with bundled licence keys for our professional DJ performance application rekordbox dj and the rekordbox dvs Plus Pack, so you can control and scratch digital tracks stored on your computer. Using the engine of rekordbox dj, which uses the same audio signal processing in our professional DJ mixers and multiplayers, you can enjoy high-quality audio and low latency response.

Features:

Mains or USB power – choose your preferred source.
Stand-alone audio interface – use the INTERFACE 2 for recording audio to your computer or to send audio to speakers.
Large signal GND terminal firmly holds turntables' ground wires to reduce noise. The knob stays attached even when fully turned, so it can't be dropped.
Includes AC adapter.
High-quality audio – supports 44.1 kHz / 48 kHz / 96 kHz signals.
DVS options – use timecoded vinyl (included) or the custom control signal WAV file for use via CDs or USB drive (free download available).

Specifications:

Frequency response 20 Hz to 20 kHz
S/N ratio 112 dB (USB)
103 dB (LINE)
100 dB (PHONO)
Total harmonic distortion 0.002% (USB)
0.005% (LINE)
0.007% (PHONO)
Inputs RCA x2 (LINE/PHONO)
Outputs RCA x2 (LINE)
Other terminals USB-B port x1
Power AC 100 V to 240 V, 50 Hz/60 Hz
Power consumption DC 5 V, 600 mA
Maximum dimensions (WｘDｘH) 141 mm x 32.5 mm x 127.8 mm
5.5" x 1.2" x 5.0"
Weight 0.6 kg / 21.1 lb
Accessories Power cord, AC adaptor, USB cable, Quick Start Guide, Warranty, Licence key card (rekordbox dj, rekordbox dvs), Audio cable x4, Rubber feet x4, Control vinyl x2

SYSTEM REQUIREMENTS
Compatible OS Windows: Windows 10, Windows 8.1, Windows 7 (the latest service pack)

macOS Sierra 10.12 (updated to the latest version), OS X: 10.11, 10.10, 10.9 (updated to the latest version)
CPU Intel® processor Core™ i7, i5, i3
Intel® processor Core™ 2 Duo
2.0 GHz or above
