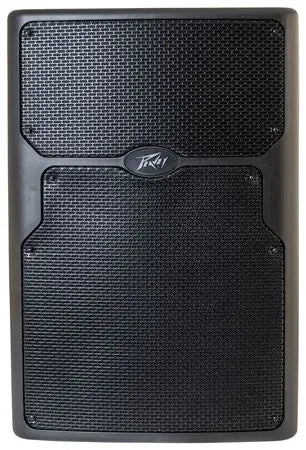

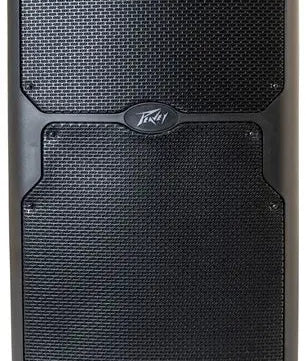

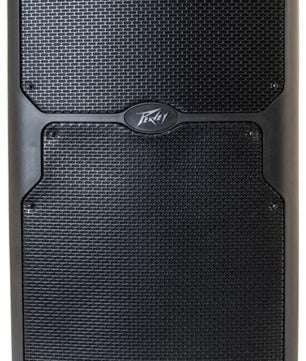

The PVXp™ 15 Bluetooth® features a reliable bi-amped power section that provides a total of 980 Watts of peak dynamic power with DSP-based compression and limiting. This enclosure features a 15" heavy-duty woofer with a 2 3/8 inch voice coil and 50 ounce magnet, and the RX14™ compression driver with a 1.4 inch titanium diaphragm on a 100 degree horizontal x 50 degree vertical pattern asymmetrical horn. The PVXp™ 15 Bluetooth® provides two channels with a balanced input via a combination jack that accepts balanced TRS 1/4 inch input as well as a balanced XLR input. A switch is provided to change between line level gain and mic level gain. A third channel is for a Bluetooth source, or alternatively a 1/8" AUX input jack. Each channel has an adjustable Level control and a three-band EQ section. There is a balanced output, a Male XLR, that can feed the mixed signals from the three channels out to another component. A front baffle LED indicator can be set to light when power is on, and when the "soft-limiting" DDT circuit is activated, or it can be turned off altogether. The LCD display and EQ presets, along with other DSP operating parameters, are accessed via a one-knob selector.
FEATURES:
RX14™ compression driver, with 1.4 inch titanium diaphragm
Reliable fan-cooled power amps with DSP protection
Total of 980W peak dynamic power
DSP control for precise crossover, EQ and limiting functions
Bluetooth input is via a dedicated input channel
Mix/Thru Output is via a male XLR jack

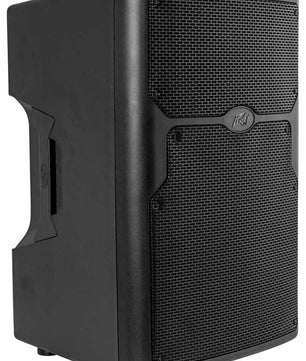

Durable plastic injection-molded trapezoidal enclosure
Extra angled section on right side allows floor monitor use
Pole mount molded-in for 1 3/8" diameter poles
Top, bottom and right side flying point inserts
15 heavy-duty woofer with 2 3/8" voice coil & 50 oz. magnet
Full-coverage heavy-duty perforated steel grilles, with powder coat finish
DSP I/O is at 48 kHz and 24 bits, internal processing is 56 bit double-precision
Peavey's Quadratic Throat Waveguide technology, 100 by 50 degree coverage
Asymmetrical horn aims the sound down 10 degrees, at the audience, not over their heads
Analog input is via a combo female XLR and 1/4" TRS phone jack with balanced input
Three channels in total, two for analog, and one for Bluetooth or AUX input via a 1/8" jack
Each channel has a level control and a 3-band EQ section to adjust and shape the input signals
SPECIFICATIONS:
Frequency Range, 1 meter on-axis, swept-sine in ½ Space environment:
53 Hz to 20 kHz
Frequency Response, 1 meter on-axis, swept-sine in anechoic
environment:
59 Hz to 20 kHz (±3 dB)
Usable Low Frequency limit (-10 dB point anechoic):
52 Hz
Nominal sensitivity (1W @1M, swept sine input in anechoic environment):
97 dB (average)
Maximum Sound Pressure Level (1 meter):
127 dB SPL peak with music
Radiation Angle measured at -6 dB point of polar response:
Nominal: 100 degrees horizontal X 50 degrees vertical
(Axis of the vertical main polar lobe is angled down 10 degrees, resulting in the
angular pattern with respect to straight ahead being +15, -35 degrees)
Transducer Complement:
Heavy-duty 15” woofer with 2 3/8” voice coil & 50 oz. magnet
RX14™ 1.4” titanium diaphragm dynamic compression driver
Box Tuning Frequency:
57 Hz
Electroacoustic crossover frequency: 1,800 Hz
Crossover type:
Advanced DSP based filter also providing driver EQ, level matching, bass boost,
limiting, compression and subsonic filtering.
Crossover Slopes:
Nominally 24 dB/octave (4th order) low pass, 24dB/octave (fourth order) high
pass, both with driver EQ incorporated.

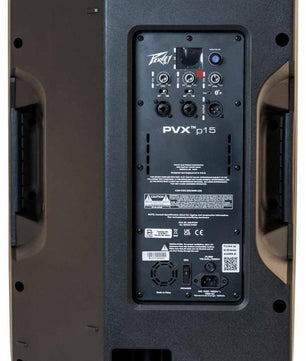

Input Connections (Each, Channels 1 and 2):
One combo female XLR and1/4" phone jack providing balanced line-level
operation. Mic/Line switch provides extra gain for microphone use.
Input Connections (Channel 3):
AUX is a 1/8" phone type jack. Channel 3 is nominally the Bluetooth® signal
source channel.
Output Connection:
One male XLR jack. This jack is intended for the use of linking multiple PVX™p
15‘s in a line or to provide a feed to a powered subwoofer, or other electronics
that needs to receive a full range version of the input signal.
Enclosure Materials & Finish:
Black injection-molded plastic with textured surface, black powder-coated
perforated grilles.
Mounting provisions:
Unit has two sets of two M10 inserts, one pair on the top, and one pair on the
bottom.
Additional mounting points are a set of four M8 inserts on the top, and a set of
four on the right side in the handle recess, and a set of four on the bottom, which
use the Peavey VersaMount™ 70 mounting bracket.
Four rubber feet provide vibration free floor or stage use, and a molded-in stand
mounting cup is on the bottom.
Dimensions (H x W x D):
Front:
28.25 in. x 18.90 in. x 18.71 in.
718 mm x 480 mm x 475 mm
Rear:
26.25 in. x 10.25 in. x 18.71 in.
667 mm x 260 mm x 475 mm
Net Weight:
50 Lbs. (22.7 kg)
