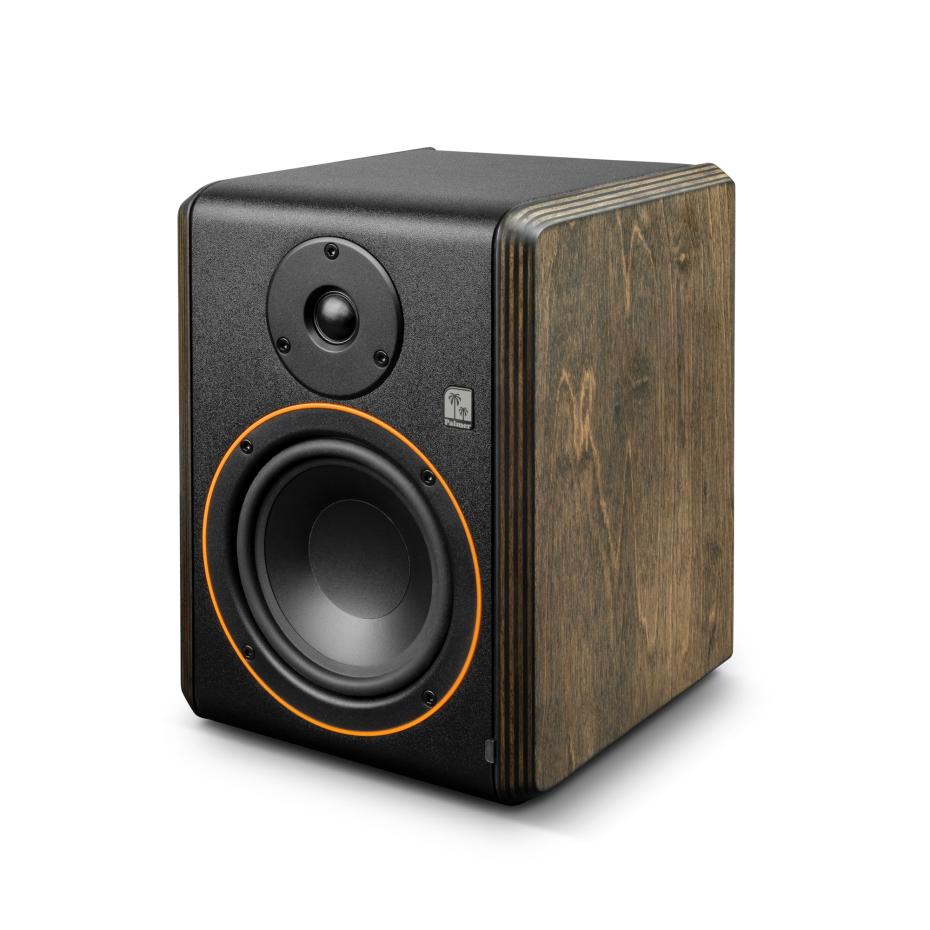

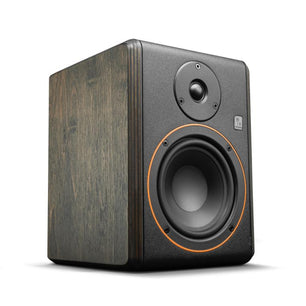

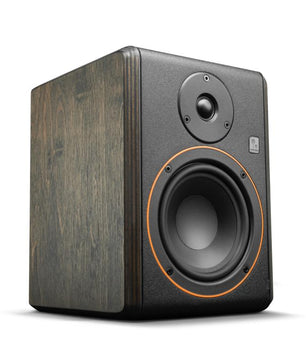

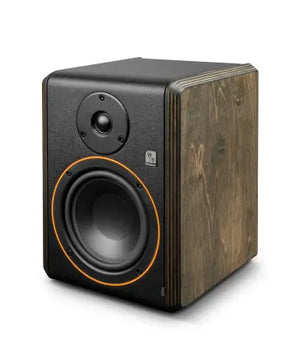

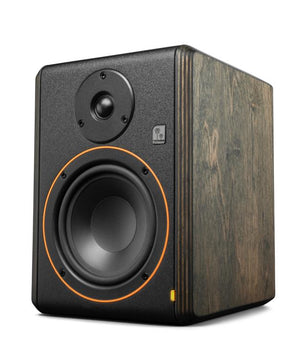

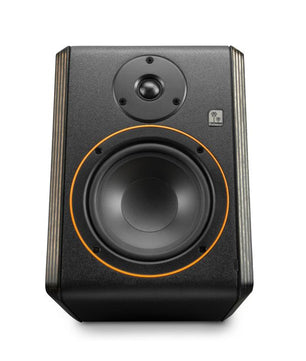

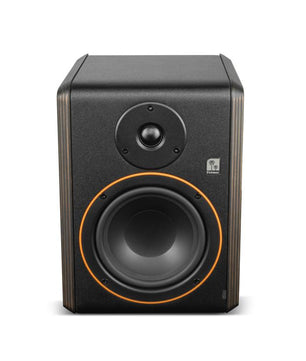

Palmer STUDIMON 5 | Powered 5" Nearfield Studio Monitor

When producing and mixing your music or editing your videos you’ll need studio monitors with absolutely honest sound reproduction where all elements can be heard separately from each other. The STUDIMON 5 nearfield studio monitors offer accurate sound reproduction, two powerful 30-watt class AB power bi-amplifiers and an elegant design that seamlessly complements every studio environment — even at home.

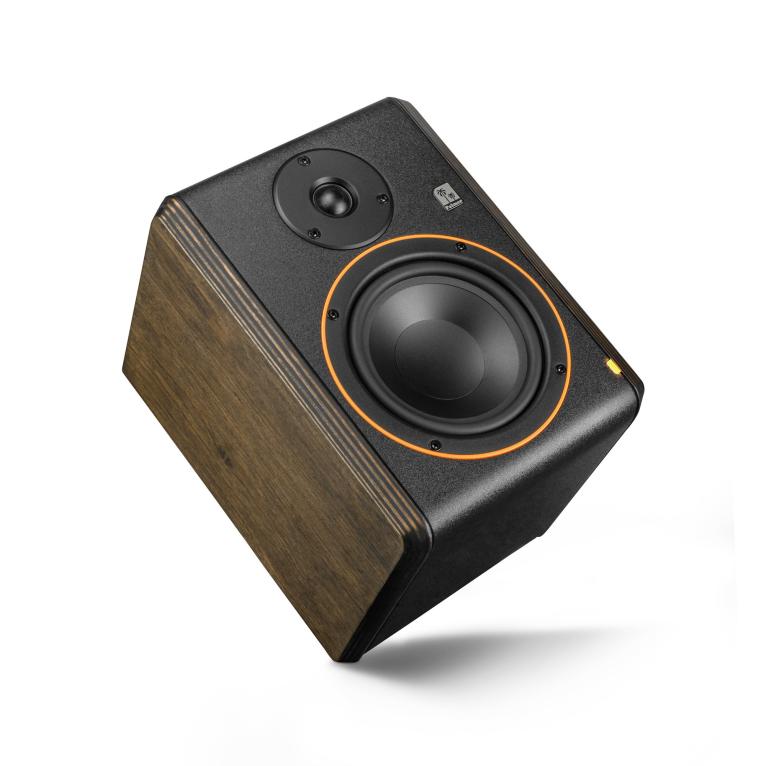

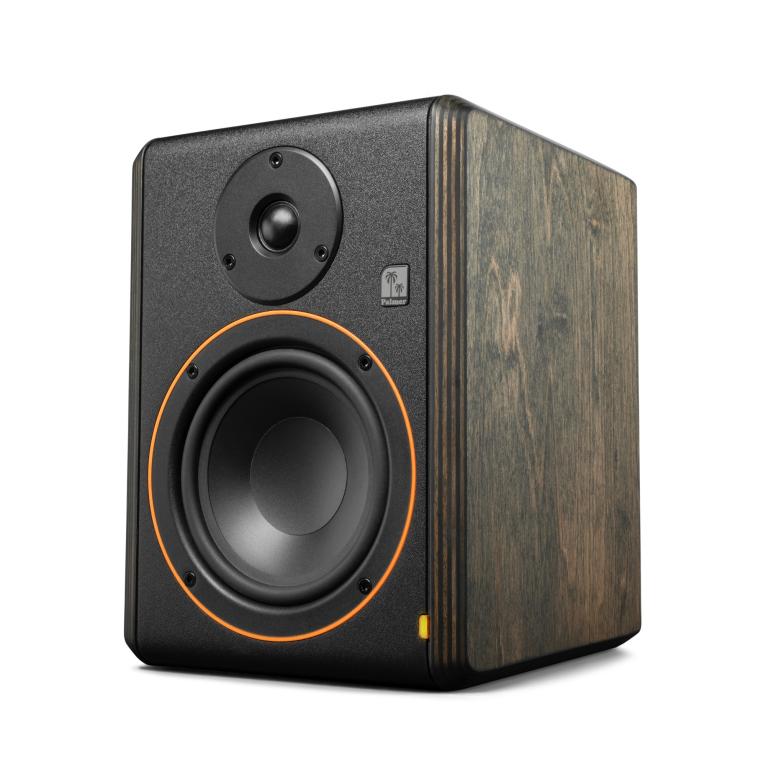

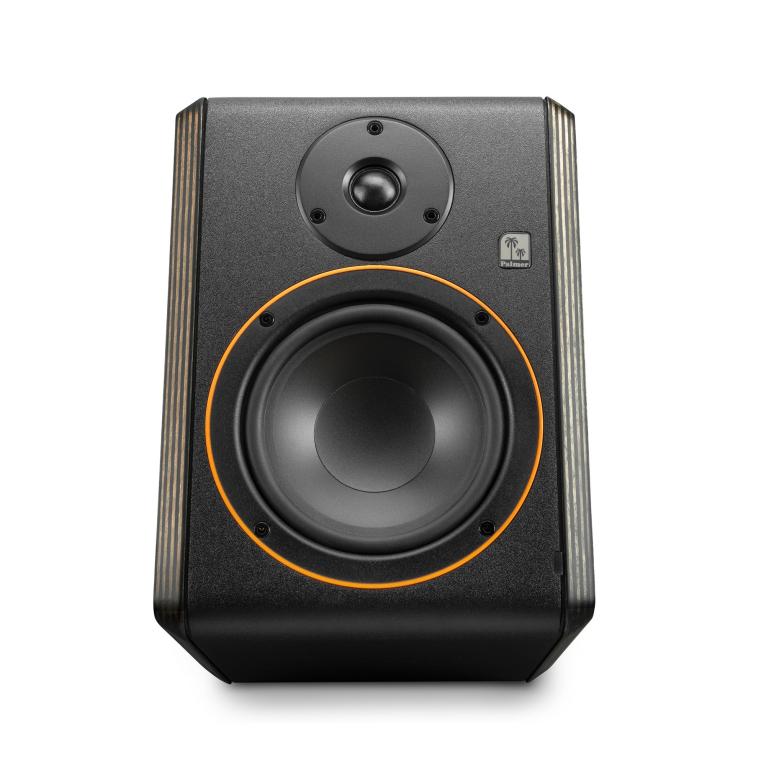

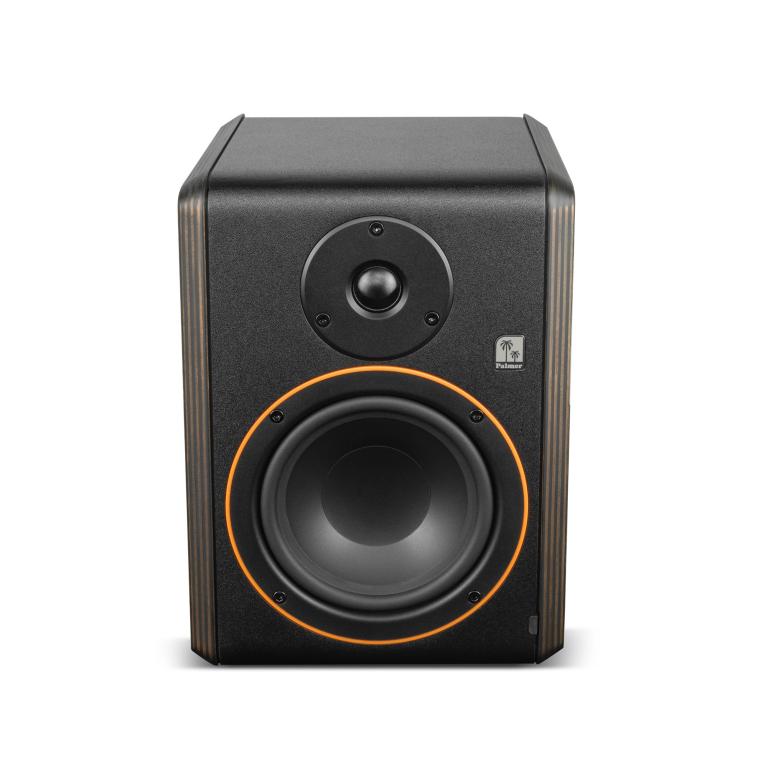

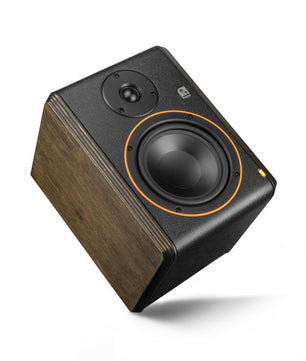

With its 3/4" silk dome tweeter, you’ll hear every detail in the stereo field of your mix up to 20 kHz. The magnetically shielded 5" woofer and, rear bass-reflex aperture will give you deep and defined bass frequencies down to 50 Hz. This is all you need to make your low end clear and pop out on most consumer systems, including smartphones.

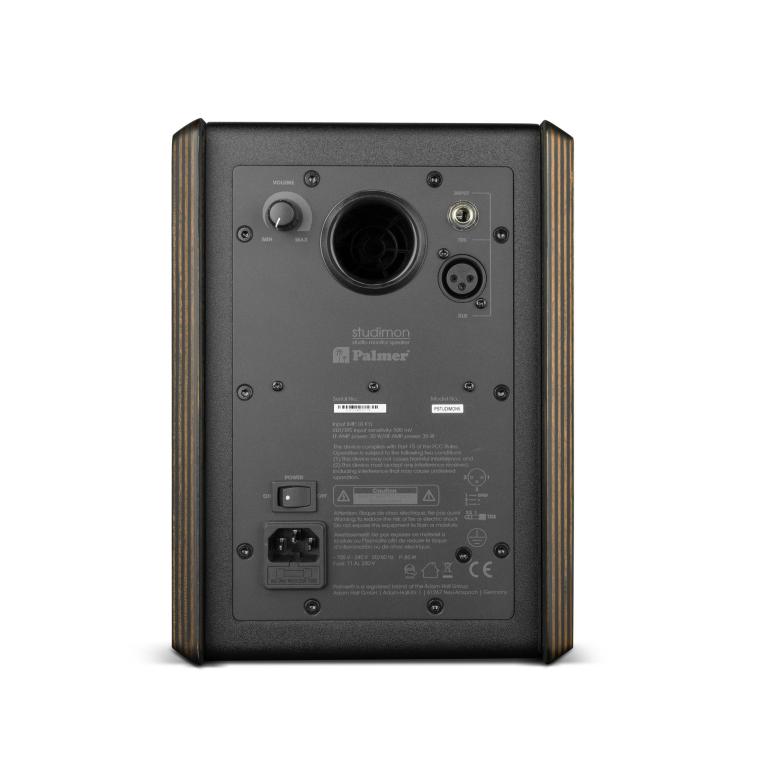

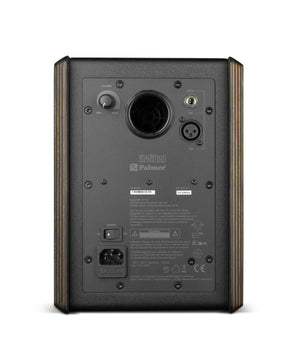

The back panel provides all needed connections in every Home- and professional Studio environment. Balanced XLR and 6.35 mm stereo jack inputs guarantee disruption-free signal transmission, while a practical volume controller rounds off the loudspeaker's features.

Whether you're making music, creating content or your next live stream, STUDIMON 5 ensures a true representation of your mix, so you can make confident mixing decisions to be true to your sound.

Features:
5" woofer and 0.75" soft dome tweeter
Bass reflex design
60-W RMS bi-amping power amplifier
Frequencyrange 50 Hz - 20 kHz
Balanced XLR and 6.35 mm stereo jack input
Compact design
Elegant and robust housing

Specifications:
Product type Other Studio and Recording Equipment
Type Studio monitor
Low/mid driver dimensions 5 "
Woofer size 127 mm
Woofer magnet 80 mm Ferrit
Woofer brand Custom-made
HF driver dimensions 0.75 "
HF driver size 19 mm
HF driver magnet 28 mm Neodym
HF driver brand Custom-made
Amplifier Class A/B
Dispersion (H x V) 120 ° x 120 °
System Power (RMS) 2 x 30 W
Frequency response 70 - 20000 Hz (-3dB)
Frequency range 50 - 20000 MHz
Crossover frequency 2500 Hz
Max. SPL 103 dB
Signal-to-noise ratio 85 dB
Protection circuits Overtemperature, short circuit
Input impedance 10,000 Ohm(s)
Controls mains switch (on/off), volume control
Indicators orange (LED)
Line input connectors 6.3 mm stereo jack (balanced), XLR (balanced)
Operating voltage Switching power supply
Operating voltage 100 V AC - 240 V AC, 50 - 60 Hz
Cabinet material Birch Plywood, MDF
Housing Wall Strength 15 mm
Cabinet surface Laminated, stained
Cabinet colour Black
Cabinet construction Bass Reflex
Width 190 mm
Height 268 mm
Depth 215 mm
Weight 3,95 kg
Accessories (included) Power cord
