Obsidian NX SYNC

$400.00

Order within [hour] to get by [date_end]

Quantity

Call For More Details

Call us at 123-456-7890

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

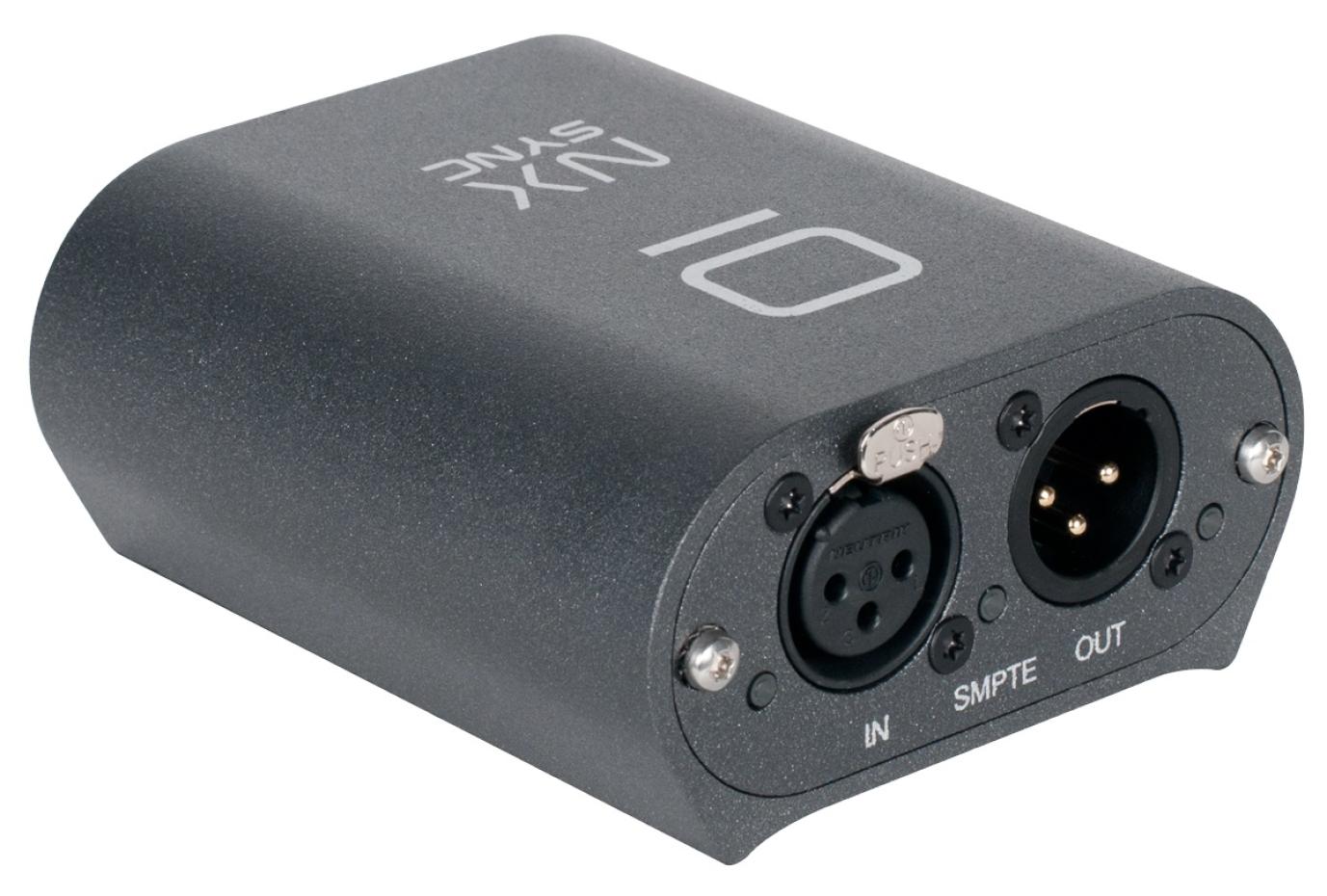

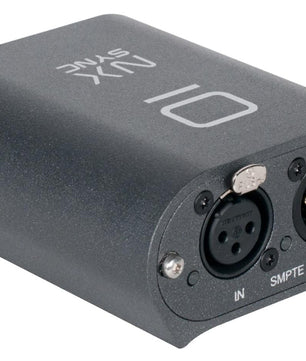

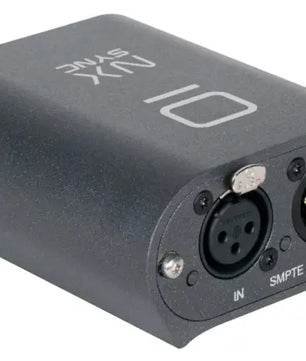

The NX SYNC captures timecode in various SMPTE formats from its 3-pin XLR connection and converts it to a MIDI Timecode (MTC) stream, where it can be read into ONYX or any other MIDI Timecode compatible software. Additionally, it also has the power to take MTC and send it back out as SMPTE.

The NX SYNC contains a powerful hardware architecture for instant processing and minimal frame delays. It allows the ONYX software to read Linear Timecode (LTC) signals for perfect cue synchronization with external devices like sound or video playback systems.

The NX SYNC does not require custom drivers, and in addition to working with ONYX, it can be used as a SMPTE to MTC/ MTC to SMPTE device for both Windows 10 and MAC OS software applications.

Features:
Two 3-pin XLR connectors for LTC Timecode In/Out
SMPTE Timecode @ 24, 25, 29.97 and 30 frames per second
Native Plug-and-Play USB Connection for ONYX, PC and MAC (no custom drivers required)
USB Powered
Convenient, space-saving, stackable design
Rugged impact-resistant housing

Connections:
Timecode In: 3-pin locking XLR, female
Timecode Out: 3-pin locking XLR, male
USB In: USB 2.0 B

Requirements:
SMPTE (LTC) 24, 25, 29.97 and 30 frame/sec.
Windows 10
MAC OS 10.13 or higher

Specifications:
Physical:
Length: 92 mm (3.7 in.)
Width: 82 mm (3.3 in.)
Height: 41mm (1.7 in.)
Weight: 245g (0.6 lbs.)
Electrical:
5V over USB
