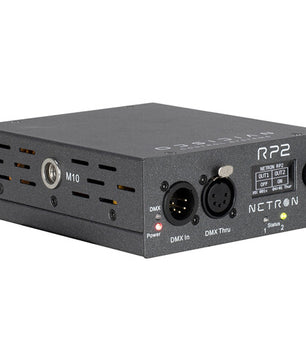

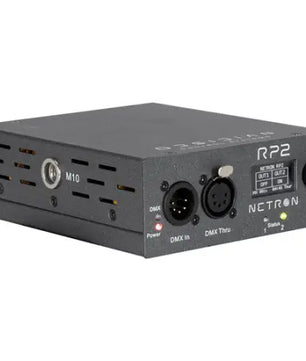

The ideal tool for protecting the fixtures of your lighting system, the NETRON RP2 DMX/RDM Power Relay from Obsidian is a compact DMX device with two 5-pin DMX ports and RDM support. It features instant control, optional smart power sequencing, DMX traffic detection, and two independent power outputs. Simply turn the console on/off and the system will follow along. The RP2 conveniently features a 1.3" OLED display and encoder with real-time status and power consumption feedback. The powder-coated metal housing is designed for surface, truss mount, DIN rail, and standalone installations to cover any situation.

Benefits

• RDM support
• High current dual pole relays
• Support for 208V and Delta power systems
• Event scheduler
• DMX signal sensing for automated relay control
• Auto power sequencing with adjustable time delay

Mounting

• Standalone

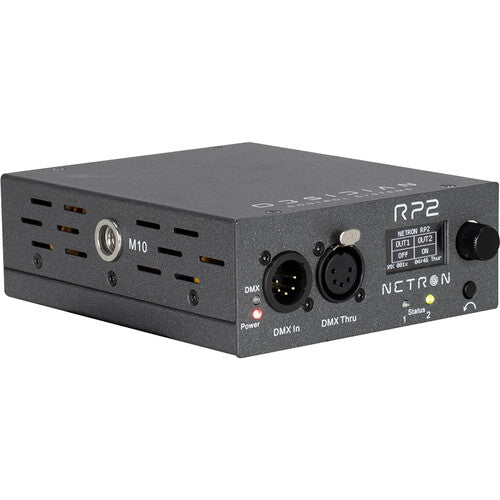

• Truss mount (M10 and M12 mounting hole)
• Wall mount horizontal or vertical (included)
• DIN rail horizontal or vertical (included)

Connections

• Two 5-pin DMX/RDM in and thru ports
• Single IP65 locking power in
• Two IP65 switched locking power out

FEATURES:

• Two 5-Pin DMX/RDM Ports
• RDM Support
• Two Independent Power Outputs
• Instant Control or Power Sequencing
• DMX Signal Sensing for Relay Control

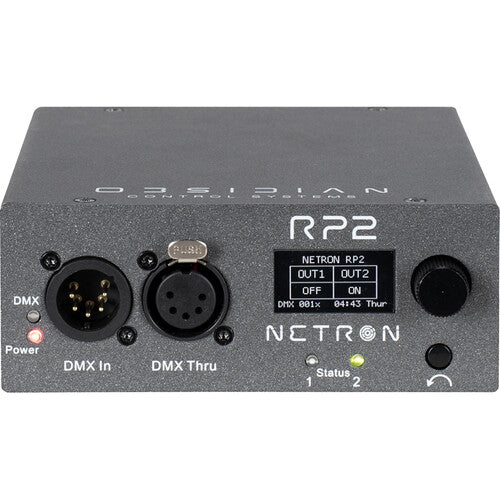

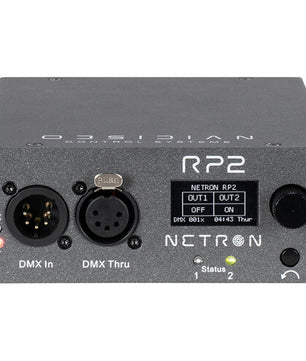

• Integrated 1.3" OLED Display
• Compact Design
• Metal Housing

SPECIFICATIONS:

Inputs/Outputs

• 1x XLR 5-Pin (DMX) Male Input
• 1x XLR 5-Pin (DMX) Female Throughput

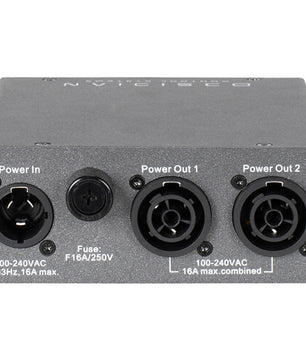

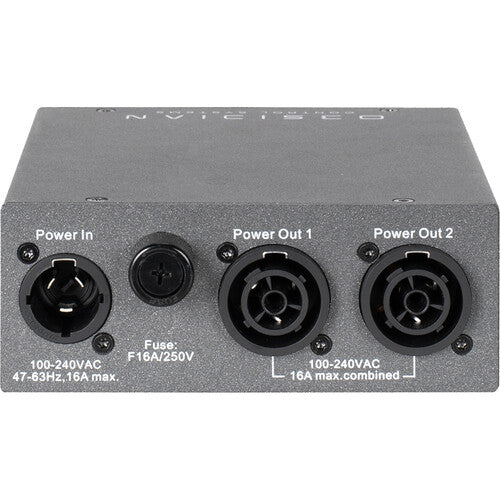

• 1x (Power) powerCON Input
• 2x (Power) powerCON Output

Channels

• 2 (DMX)

Power Source

• AC Power

Protocol

• DMX512

General

• Inputs/Outputs:
• 1x XLR 5-Pin (DMX) Male Input
• 1x XLR 5-Pin (DMX) Female Throughput
• 1x (Power) powerCON Input
• 2x (Power) powerCON Output
• Channels: 2 (DMX)
• Dimming: Optional

Power

• Power Source: AC Power
• Input Power: 100 to 240 VAC, 50 / 60 Hz at 16 A
• Fuse: 16 A 250 V

Compatibility

• Protocol: DMX512

Physical

• Material of Construction: Metal
• Dimensions: 5.2 x 6.8 x 1.9" / 13.2 x 17.3 x 4.8 cm
• Weight: 1.32 lb / 0.6 kg

Packaging Info

• Package Weight: 3.44 lb
• Box Dimensions (LxWxH): 13.4 x 10.6 x 3.6"
