Obsidian EN12i | 12-Port Art Net & sACN DMX Gateway with RDM and Flexible Connectivity

High-Density Art-Net & sACN DMX Gateway for Professional Installations

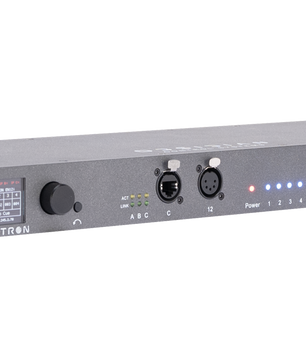

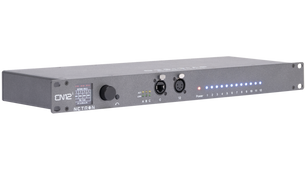

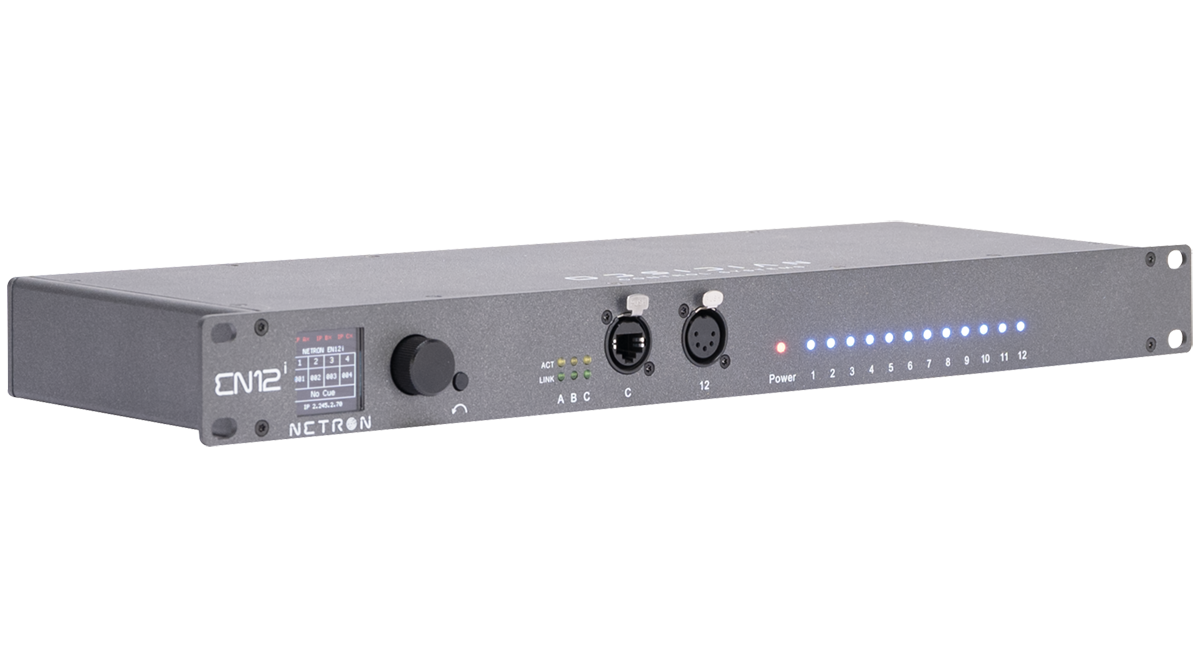

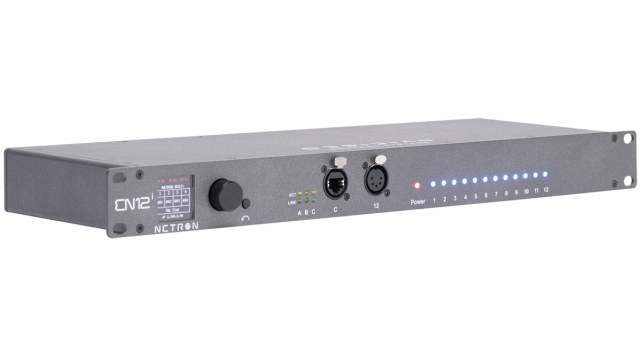

The Obsidian Netron EN12i is a robust, high-density Art-Net and sACN to DMX gateway with twelve RDM-compatible outputs, ideal for installations demanding extensive DMX connectivity. With integrated presets, customizable routing, and merging capabilities, the EN12i provides efficient and reliable control for professional lighting systems.

Obsidian Netron EN12i Competitive Differences

• Supports 12 RDM-compatible DMX outputs with RJ45, screw terminal, or IDC connectivity options
• Front access network and DMX ports for easy configuration and adjustments
• 99 internal cues with customizable fade and delay times
• Analog contact closures and optional remote button station for recall of presets and cues
• Dual power options: line voltage or PoE for flexible installation needs
• Rugged, powder-coated aluminum rackmount housing designed for permanent installations

Obsidian Netron EN12i Description

The Obsidian Netron EN12i is engineered for sophisticated DMX control with twelve RDM-compatible outputs, supporting Art-Net, sACN, and DMX protocols. With exchangeable backplates, this gateway allows multiple connection configurations, including RJ45, screw terminals, or IDC connectors, to suit a wide range of setups. Designed for rack installations, the EN12i has an OLED display with rotary control for easy navigation, along with a user-friendly web-based interface for remote management. Equipped with front-facing Ethernet and DMX ports, the EN12i provides convenient access for adjustments, while its 99 internal cues enhance control flexibility. Its durable IP20-rated aluminum construction ensures long-term reliability, making it perfect for demanding applications in professional environments. The EN12i also unlocks the ONYX NOVA 4 Universe License, adding advanced functionality to lighting setups.

EN12i Features

• 12 DMX/RDM-compatible outputs with RJ45, screw terminal, and IDC connectivity
• Front-mounted 5-pin DMX and RJ45 Ethernet ports
• 1.8” OLED display with rotary knob for navigation
• 99 internal cues with fade and delay timing options
• Supports Art-Net, sACN, DMX512-A, and RDM protocols
• Remote configuration via integrated web interface with HTTP commands
• Analog contact closures and remote button station support for preset recall
• Dual power options: PoE or line voltage with IP65 locking connectors
• Sturdy powder-coated aluminum rackmount housing

EN12i Specifications

• Front Connectors: 1x 5-pin XLR DMX/RDM port, 1x locking RJ45 Ethernet
• Back Connectors: 2x RJ45 Ethernet ports, 2x 6-port DMX plates (RJ45 or Terminal Block), 10 contact closures (2x 10-pin Terminal Block), RJ45 port for remote button station
• Supported Protocols: sACN (E1.31), Art-Net, DMX512-A (E1.11), RDM (E1.20)
• Ethernet Port Speed: 10/100/1000Mbps with VLAN support and MDI/MDIX port sensing
• Physical Dimensions: 6.5 in (165.8 mm) x 19 in (482.5 mm) x 1.7 in (44 mm)
• Weight: 4 lbs (1.8 kg)
• Power: AC 100-240V, 50/60 Hz, PoE (802.3af)
• Power Consumption: 9W
• Certifications: cETLus, CE, FCC, IP20

What's In The Box

• 1.5m IP65 Locking power cable (EU or US version)
• (2) 6-port RJ45 ESTA DMX Connection plates
• (2) 6-port Terminal Block Connection plates
• (12) Screw Terminal connectors with security screws
• (12) IDC Connectors with security screws
• (2) 10-port Terminal Blocks for Contact Closures
