Obsidian DMX10-5 | Netron 10 Output 5-Pin DMX Isolated Splitter

Obsidian DMX10-5 | Netron 10 Output 5-Pin DMX Isolated Splitter

$460.00

Order within [hour] to get by [date_end]

Quantity

Call For More Details

Call us at 123-456-7890

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

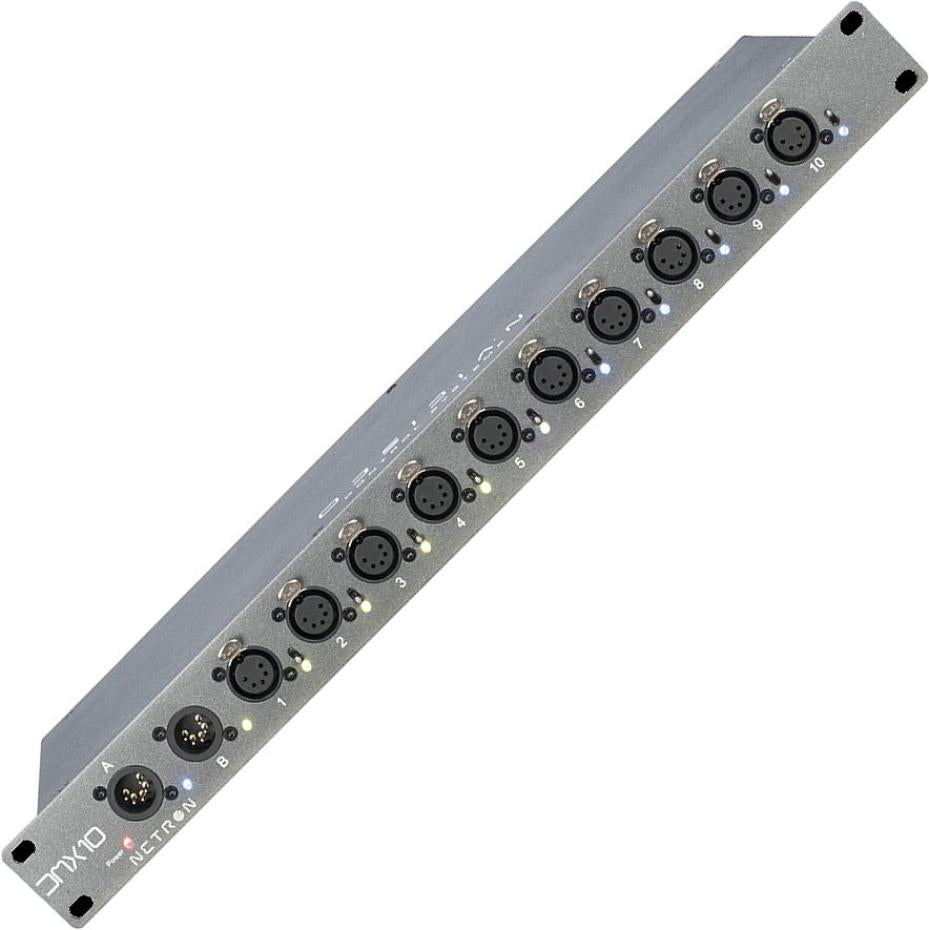

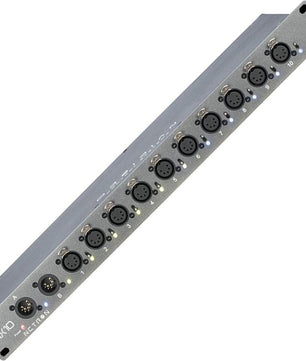

The Obsidian DMX10-5 is a rackmount 10-port DMX Splitter with dual inputs and freely assignable 5pin XLR DMX outputs.

Utilizing long life toggle switches every port is routed to either the A or B input, providing flexibility to accommodate any situation. The NETRON DMX10 is made from a rugged metal chassis featuring impact resistant paint and a lightweight yet solid construction. The DMX10 is ideally suited for installations and touring applications that do not require RDM communication. This is a 5 pin XLR configuration.

Features:

Dual A/B 5pin XLR DMX Input
10 isolated 5pin XLR DMX Outputs
A/B routing per output port
LED feedback for In/Out/A/B/Power
Industrial strength powder-coated finish
Lightweight and rugged rackmount housing
Specs:

Mounting: Rackmount
Length: 482.5 mm (19 in.)
Width: 146 mm (5.7 in.)
Height: 44 mm (1.7 in.)
Weight: 1.82kg ( 4.0 lbs)
Electrical: 100-240 V nominal, 50/60 Hz
Approvals / Ratings: cETLus / CE / IP20 (pending)
Connections

Front: (2) 5pin DMX Input, (10) 5pin Opto-Isolated DMX Outputs
Back: Locking Power In
This is the 5 pin XLR model.
