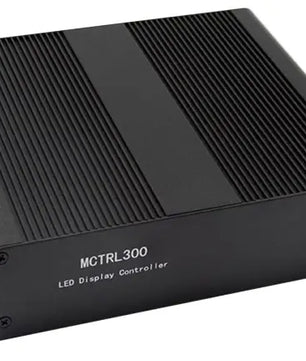

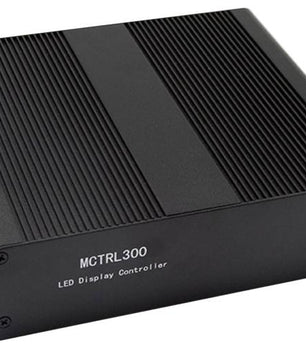

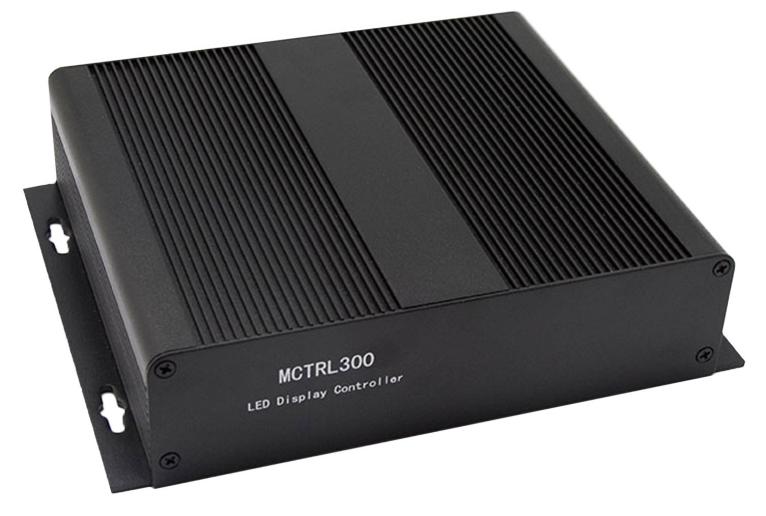

MCTRL300
Independent Controller
1280×1024 Resolution

MCTRL300 is NovaStar’s independent control card from the M3 Series, and supports audio and video input. The M3 undertakes encoding and data processing, sending the audio and video to the display. A single card supports maximum loading capacity of 2048×668@60Hz. It communicates with PC via USB port for convenience.

1 × DVI input
1 × audio input
1 × type-B USB control port
UART control ports to cascade devices for uniform control.
Dual Ethernet outputs.
Supports the new generation of NovaStar calibration technology, which is fast and efficient.
1 × light sensor connector.
Supports resolutions up to 2048×668@60Hz and downward compatibility.
Supports a variety of video formats.

DVI video input
Audio transmission
Dual-Ethernet output, with dual-Ethernet cable hot backup and multiple controller hot backup
USB port control, for cascading and control of multiple units
1.3 million pixel loading capacity, with resolutions of 1280×1024@60Hz, 1024×1200@60Hz, 1600×848@60Hz, 1920×712@69Hz, 2048×668@60Hz and Maximum height: 3840; Maximum height:3840

1 light sensor interface, adjust the screen brightness automatically

Independent power supply

Certifications: CE, RoHS, EAC, FCC, IC

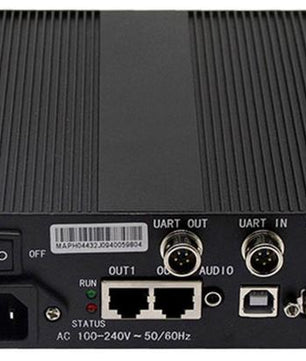

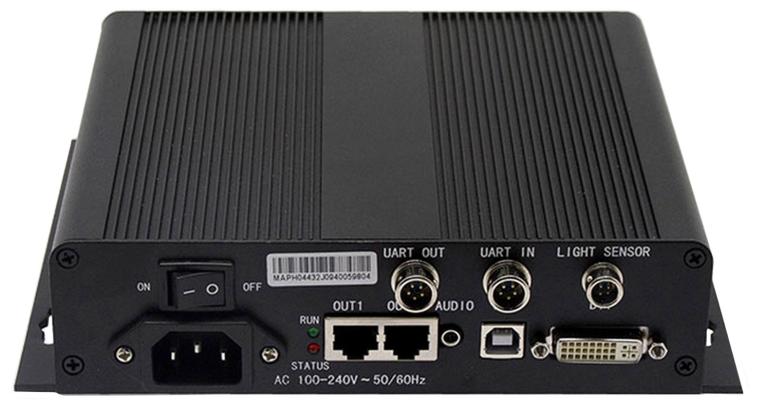

Input

DVI IN
Single-link DVI connector
Resolution up to 1920×1200@60Hz and downward compatible
Custom resolutions supported:
Resolution with maximum width: 3840×600@60Hz Resolution with maximum height: 800×2560@60Hz

AUDIO
Audio input connector

Output
RJ45 × 2
2 Gigabit Ethernet outputs
Maximum loading capacity of a single Ethernet port: 650,000 pixels
Support redundancy between Ethernet ports.

Function
LIGHT SENSOR
Connect to light sensor to monitor ambient brightness to realize automatic screen brightness adjustment.

Control
UART IN/OUT
Input and output ports for cascading devices
USB
Type-B USB control port for connecting to PC

Power
AC 100V-240V~50/60Hz

Indicators

RUN
Device operating indicator. Working status:
Flashing slowly: Video input unavailable
Flashing normally: Video input available
Flashing rapidly: The screen is displaying startup image.
Breathing: Ethernet port redundancy has taken effect.

STATUS
Device power indicator. Working status:
On: The power supply is normal.
Off: The power is not supplied, or the power supply is abnormal.
