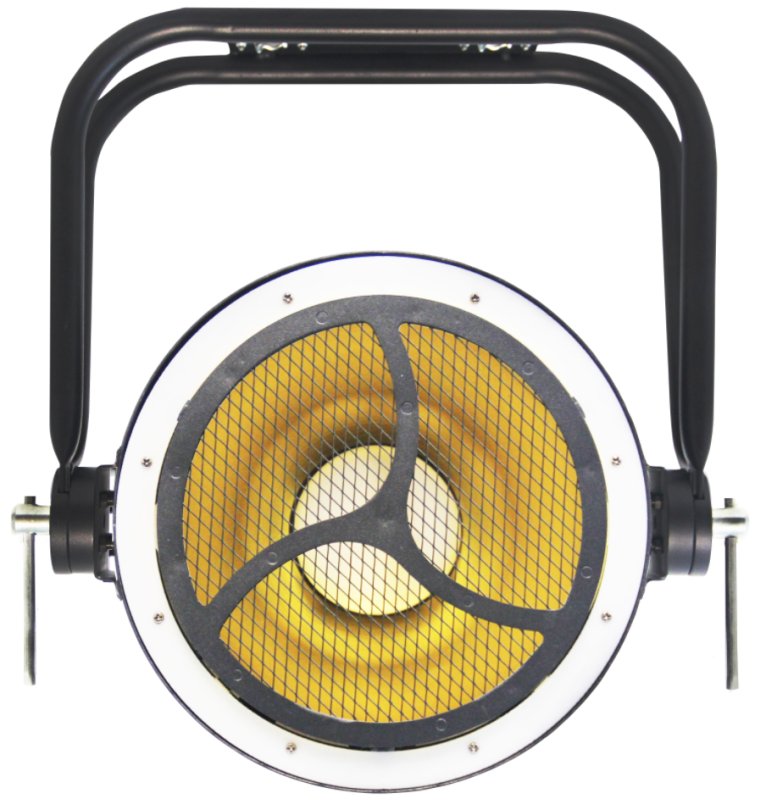

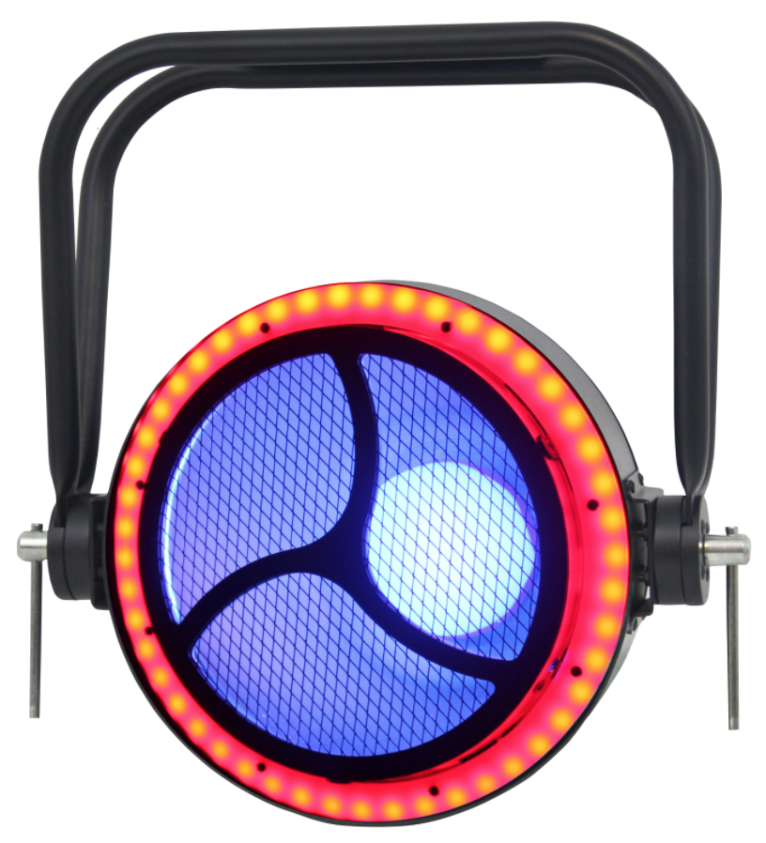

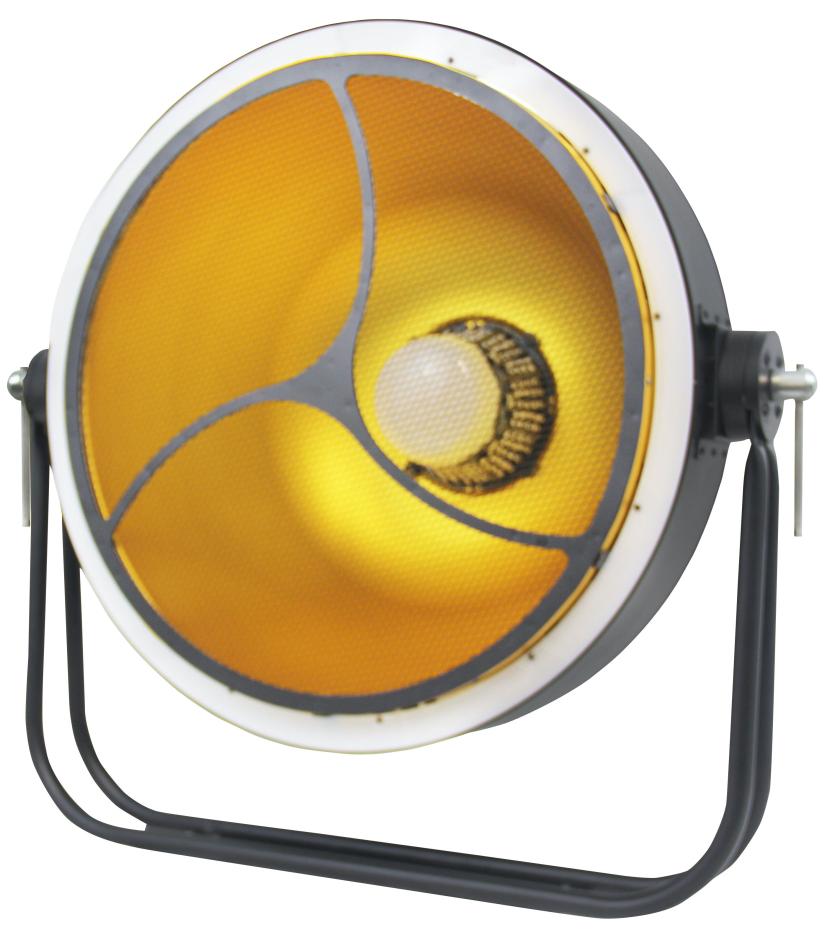

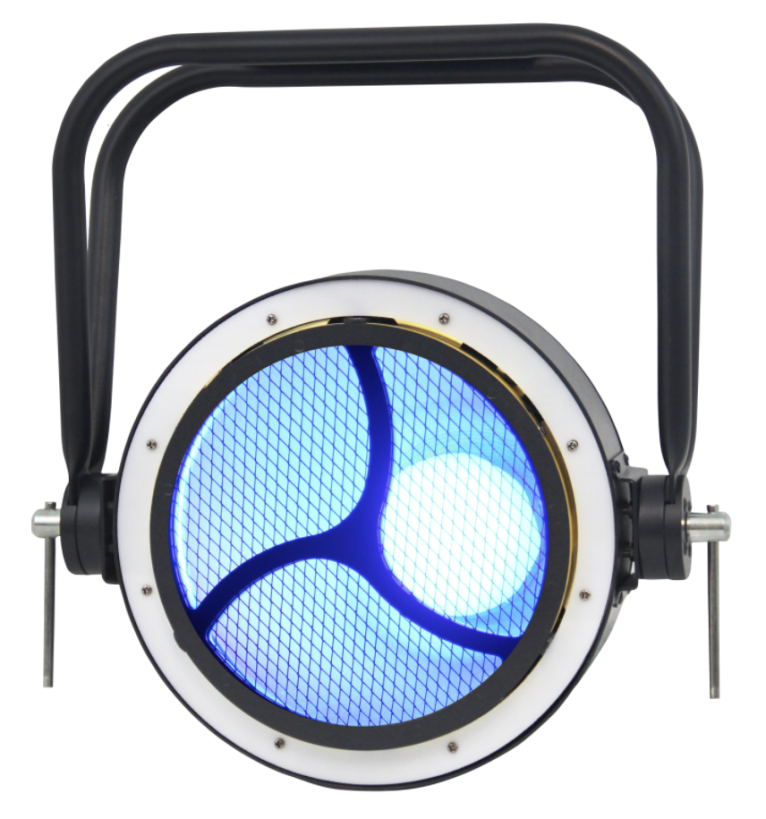

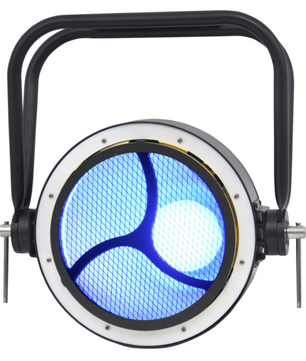

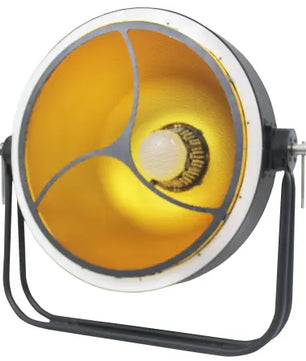

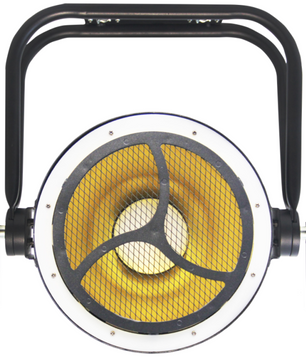

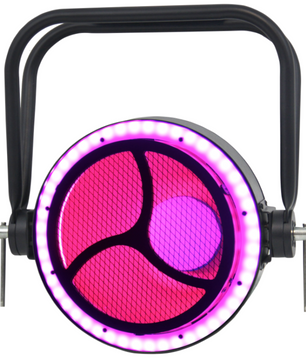

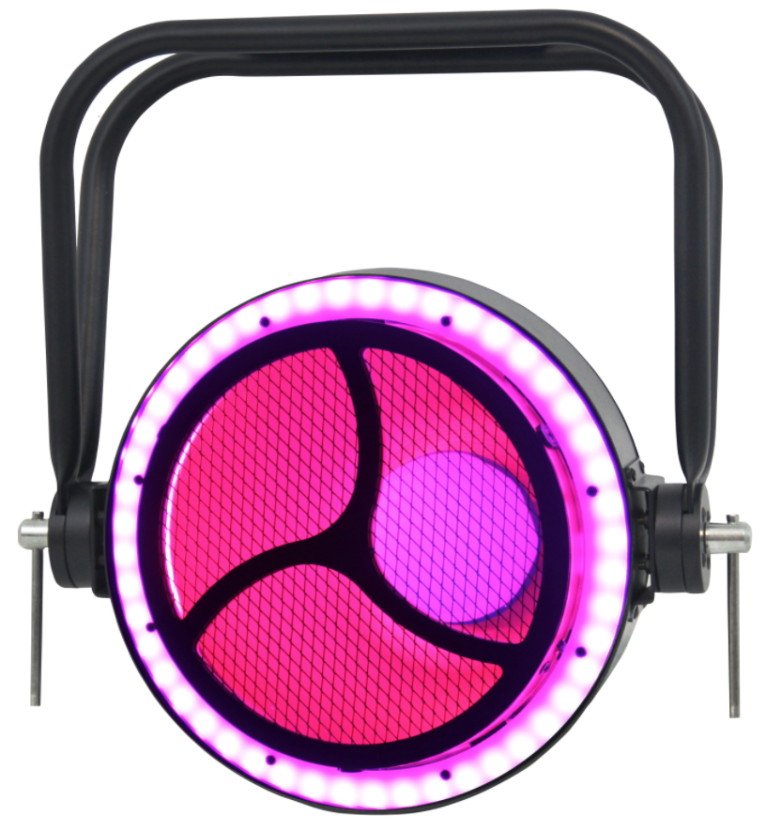

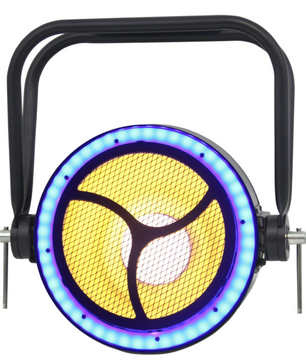

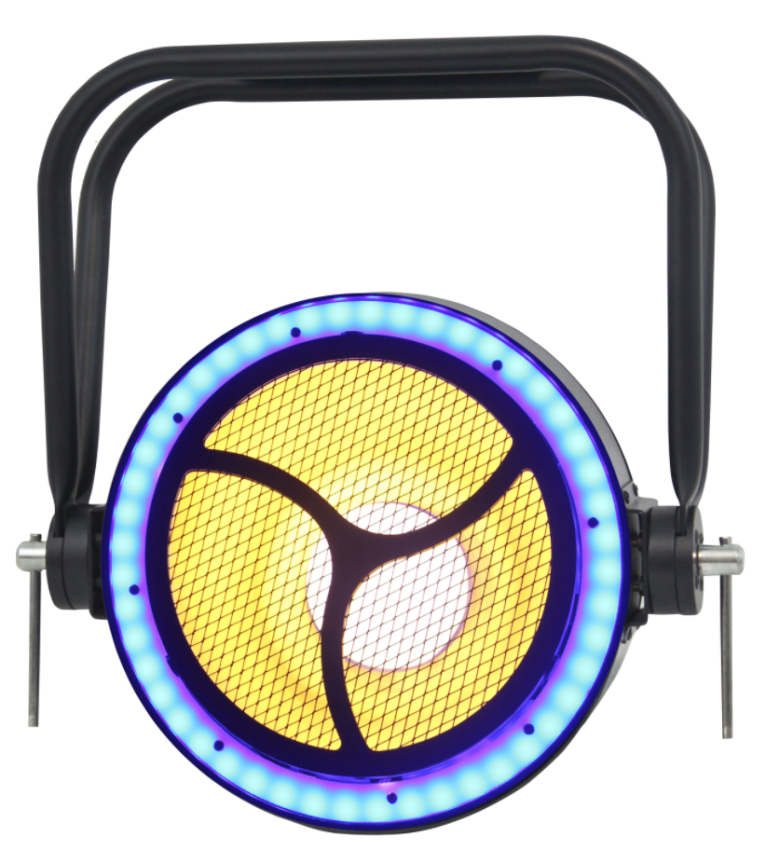

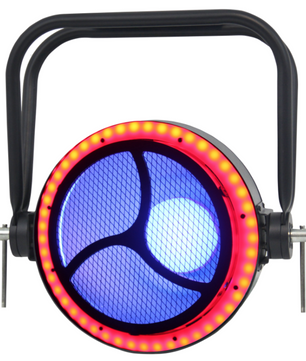

MEGA-Lite presents a new addition to the Circa Scoop LED Series. This is a smaller next-level unit designed with different elements that can be used in multiple applications. It features a variety of technological components that add a one of a kind look to any concert, church, theater or club. The Circa XS Scoop LED isn’t like any other fixture, with a retro look and modern twist it is an upscale unit designed to liven up any setting it is used in. Whether placed on the floor, rigged or in the different Unit Mounting Frame accessories, this unique fixture can make any setting stand out from the rest. It has the design and effects you’ve been looking for, let its multiple elements make you stand out!
SPECIFICATIONS:
ITEM ID:5199

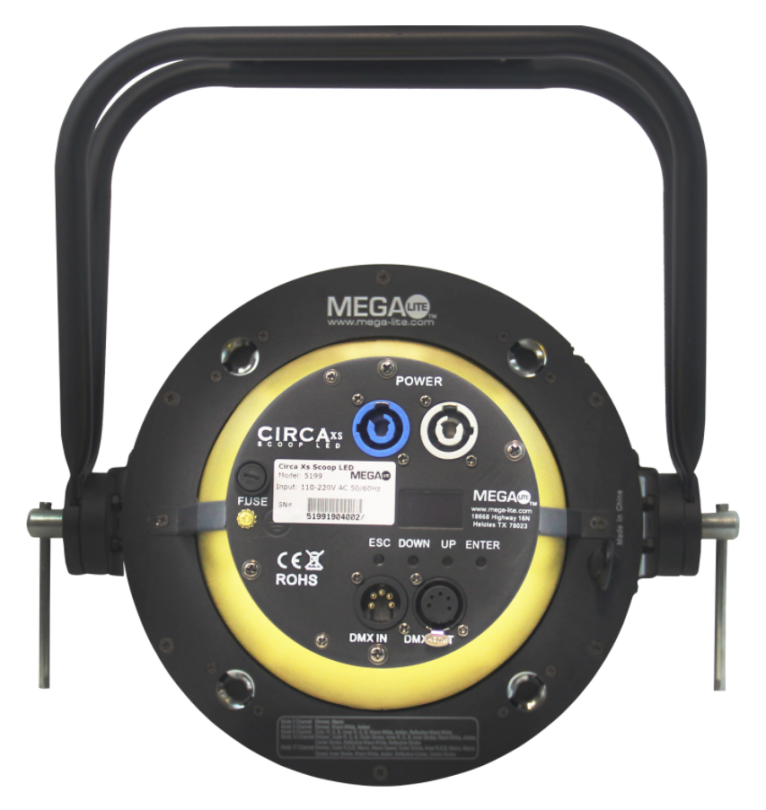

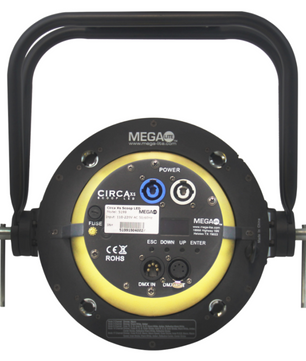

DMX CONNECTORS:5-PIN XLR CONNECTORS
POWER CONNECTION:POWER CON TYPE IN AND OUT

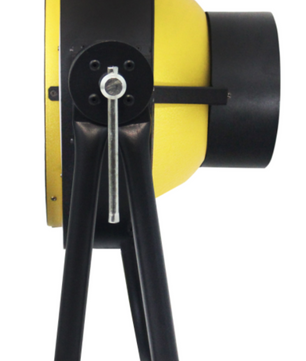

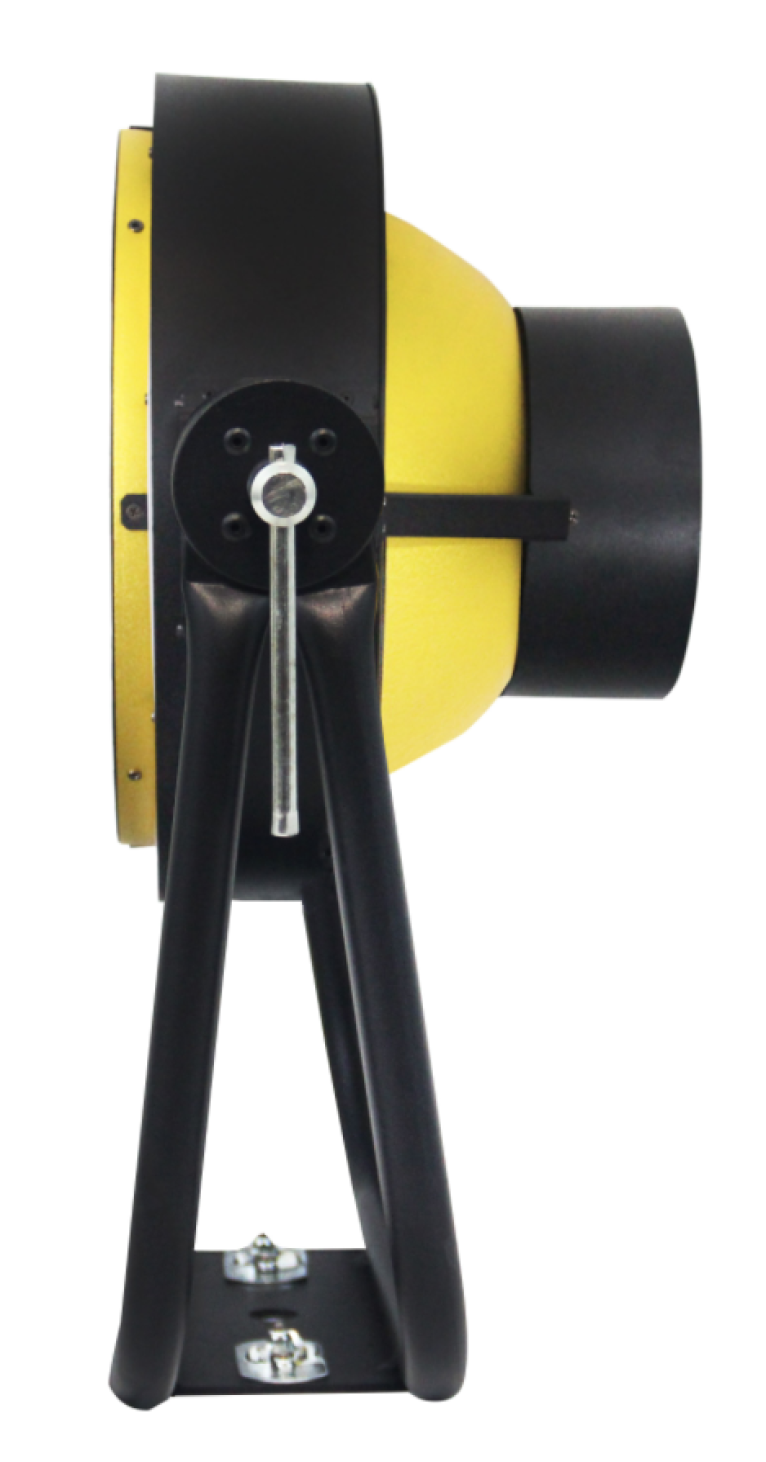

MOUNTING YOKE:SQUARE YOKE
FASTENING SYSTEM:SINGLE QUICK RELEASE CLAMP MOUNTS
LED QUANTITY:84 RGB, 12 WARM WHITE, 45 WARM WHITE + AMBER
SMD LEDS WATTS:0.8W EACH
THERMAL:MAXIMUM AMBIENT TEMPERATURE 110º F MAXIMUM SURFACE TEMPERATURE 140º F
FUSE:5 X 20 F5AL250V
LED ANGLE:140º (OUTER RING)
POWER SUPPLY:110V≈240V 50/60HZ
BALLAST:ELECTRONIC AUTO SWITCHING
POWER CONSUMPTION:WATTS: 93W / AMPS: 1.30
LED LIFETIME:60 TO 100,000 HOURS
SCAN RATE:7000 HZ
PROTOCOL:DMX 512 PROTOCOL
DMX MODE 1:2 CHANNELS DIMMER, MACRO
DMX MODE 2:3 CHANNELS DIMMER, WARM WHITE, AMBER
DMX MODE 9:9 CHANNELS OUTER R, G, B, WARM WHITE, REFLECTIVE WARM WHITE
DMX MODE 4:14 CHANNELS DIMMER, OUTER R, G, B, OUTER STROBE, INNER R, G, B, INNER STROBE, WARM WHITE, AMBER, CENTER STROBE REFLECTIVE CENTER, REFLECTIVE STROBE
DMX MODE 5:17 CHANNELS DIMMER, OUTER R, G, B, MACRO, MACO SPEED, OUTER STROBE, INNER R, G, B, MACRO SPEED, INNER STROBE, WARM WHITE, AMBER, REFLECTIVE CENTER, CENTER STROBE
CONTROL OPTIONS:DISPLAY CONTROL
