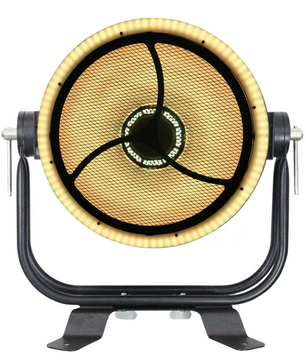

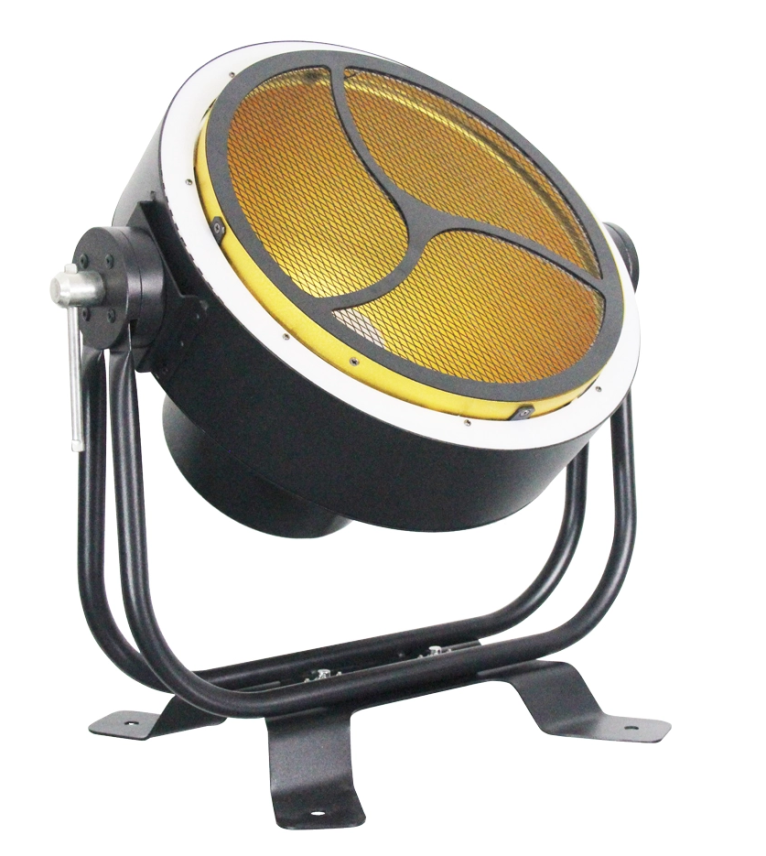

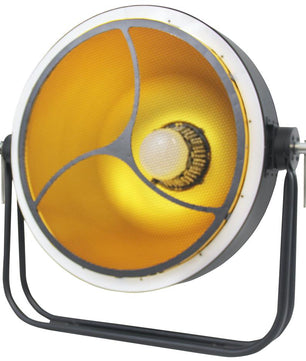

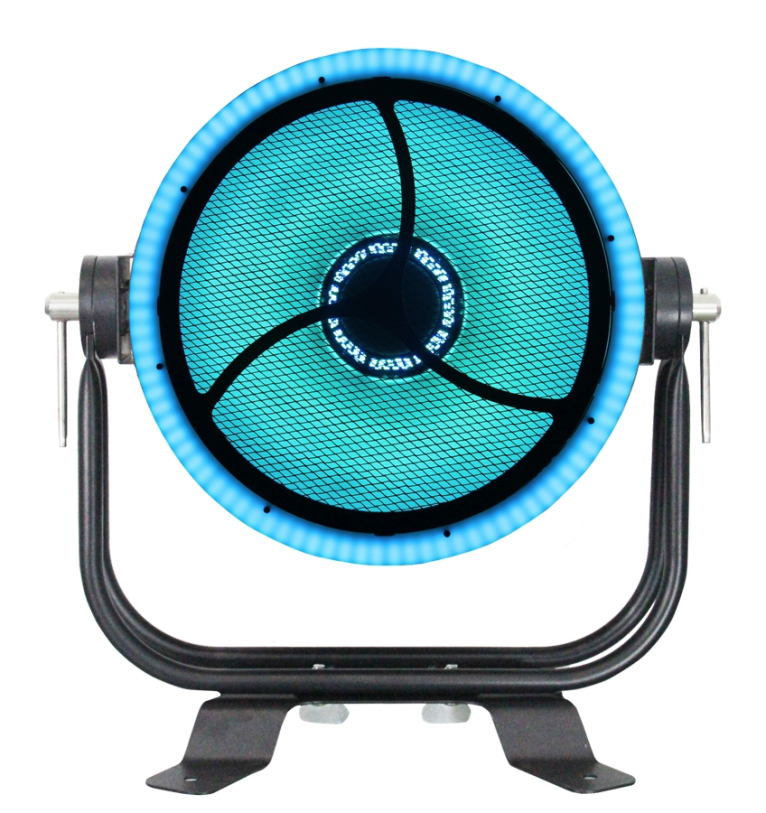

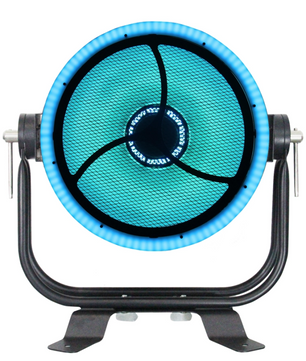

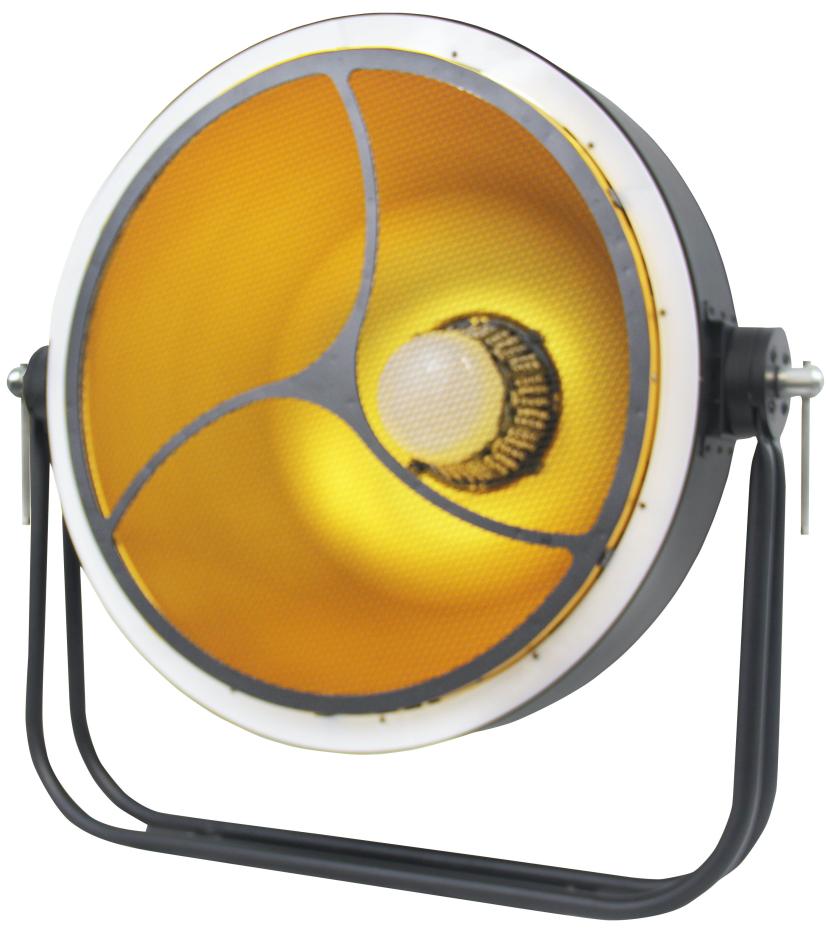

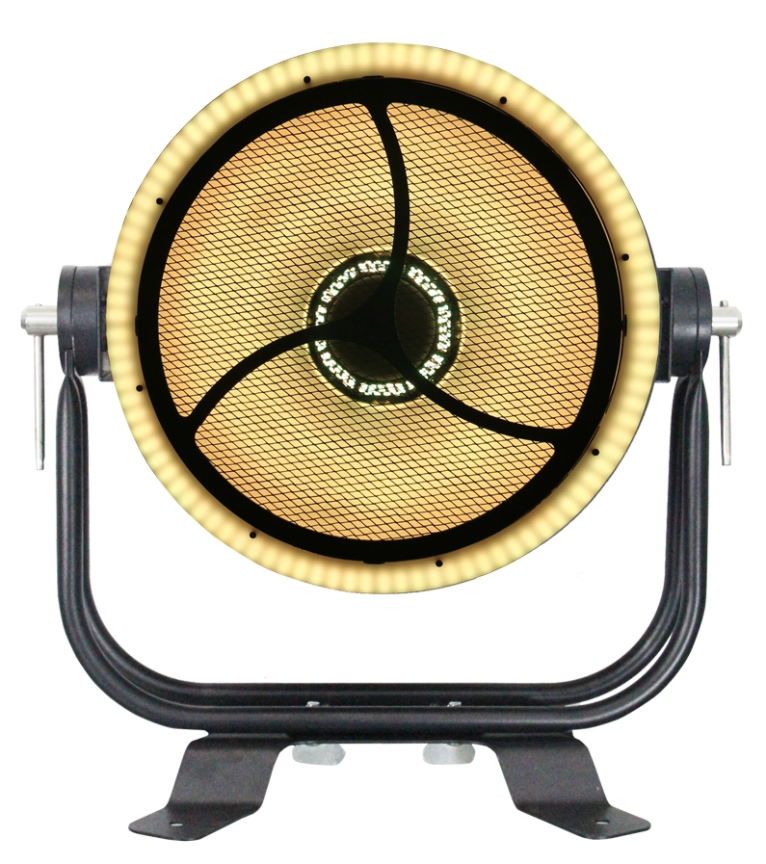

MEGA-Lite presents a new addition Circa Scoop LED series. This is a larger next-level unit designed with four different elements that can be used in multiple applications. Built with a lightweight housing, the Circa XL features a variety of technological components that add a one of a kind look to any concert, church, theater or club. The Circa Scoop XL LED isn’t like any other fixture, with a retro look and modern twist it is an upscale unit designed to liven up any setting it is used in. Whether placed on the floor or rigged, this unique fixture can make any band or performer stand out from the rest. The Circa Scoop LED has the design and effects you’ve been looking for, let its multiple elements make you stand out!
SPECIFICATIONS:
ITEM ID:5201

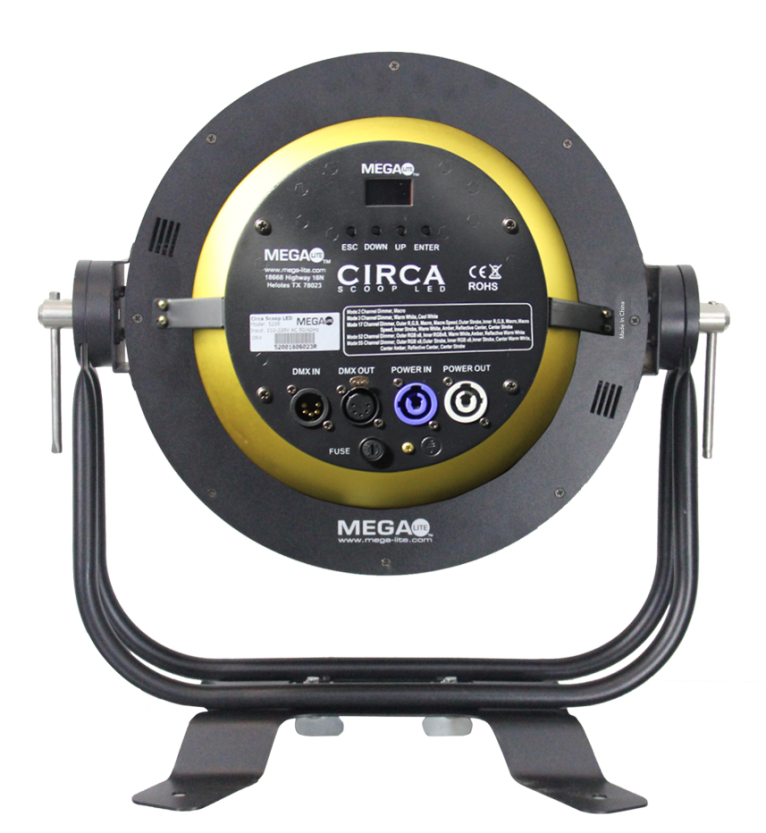

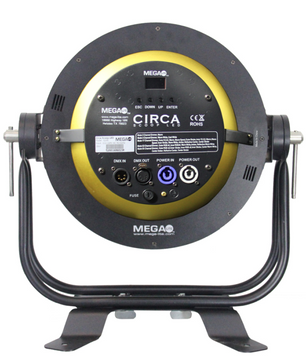

DMX CONNECTORS:5-PIN XLR CONNECTORS
POWER CONNECTION:POWER CON TYPE IN AND OUT

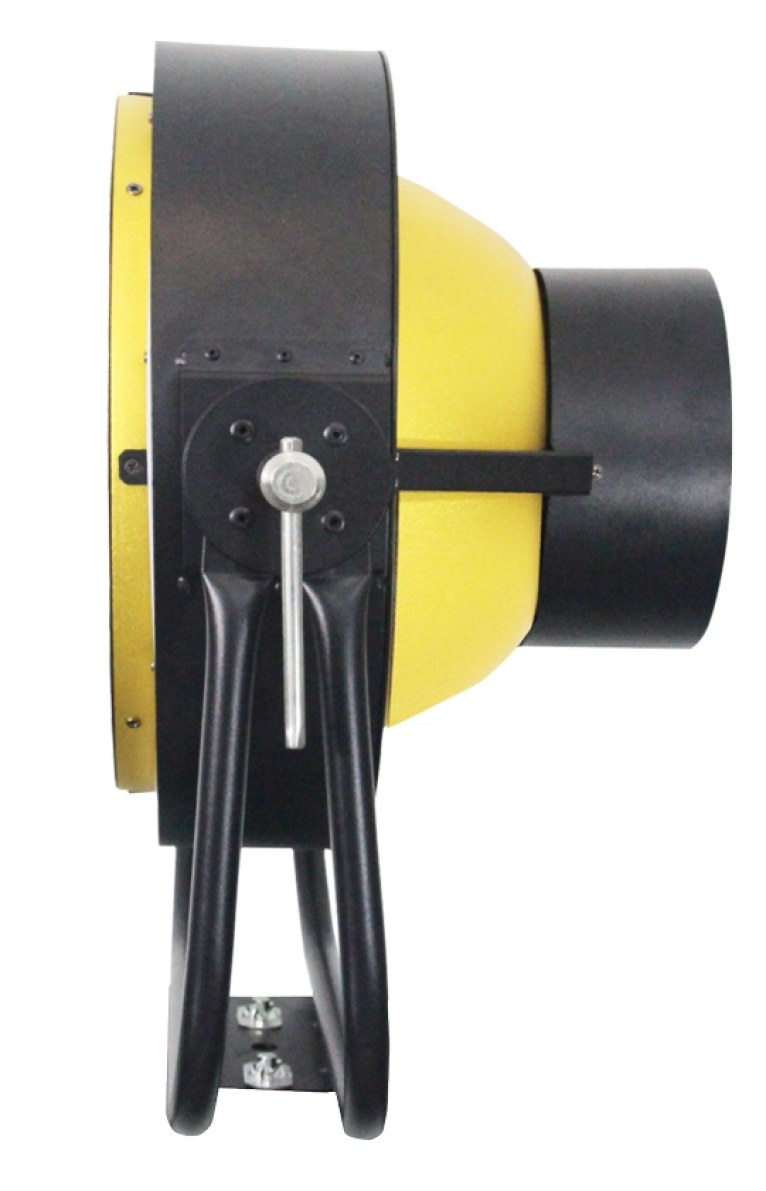

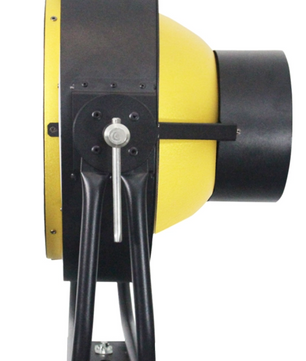

MOUNTING YOKE:SQUARE YOKE
FASTENING SYSTEM:2 QUICK RELEASE CLAMP MOUNTS
LED QUANTITY:464 RGB, 108 WARM WHITE, 60 WARM WHITE + AMBER
SMD LEDS WATTS:0.8W EACH
THERMAL:MAXIMUM AMBIENT TEMPERATURE 110º F MAXIMUM SURFACE TEMPERATURE 140º F
FUSE:5 X 20 F5AL250V
LED ANGLE:140º (OUTER RING)
POWER SUPPLY:110V≈240V 50/60HZ
BALLAST:ELECTRONIC AUTO SWITCHING
POWER CONSUMPTION:WATTS: 528W / AMPS: 4.57
LED LIFETIME:60 TO 100,000 HOURS
SCAN RATE:7000 HZ
PROTOCOL:DMX 512 PROTOCOL
DMX MODE 1:2 CHANNELS DIMMER, MACRO
DMX MODE 2:3 CHANNELS DIMMER, WARM WHITE, AMBER
DMX MODE 3:17 CHANNELS DIMMER, OUTER R, G, B MACRO, MACRO SPEED, OUTER STROBE, INNER R, G, B, MACRO, MACRO SPEED, INNER STROBE, WARM WHITE, AMBER, REFLECTIVE CENTER, CENTER STROBE
DMX MODE 4: 52 CHANNELS DIMMER, OUTER, RGB X 8, INNER RGB X 8, WARM WHITE, AMBER, REFLECTIVE WARM WHITE
DMX MODE 5:55 CHANNELS DIMMER, OUTER, RGB X 8, OUTER STROBE, INNER RGB X 8, INNER STROBE, WARM WHITE, AMBER, REFLECTIVE WARM WHITE, CENTER STROBE
CONTROL OPTIONS:DISPLAY CONTROL
