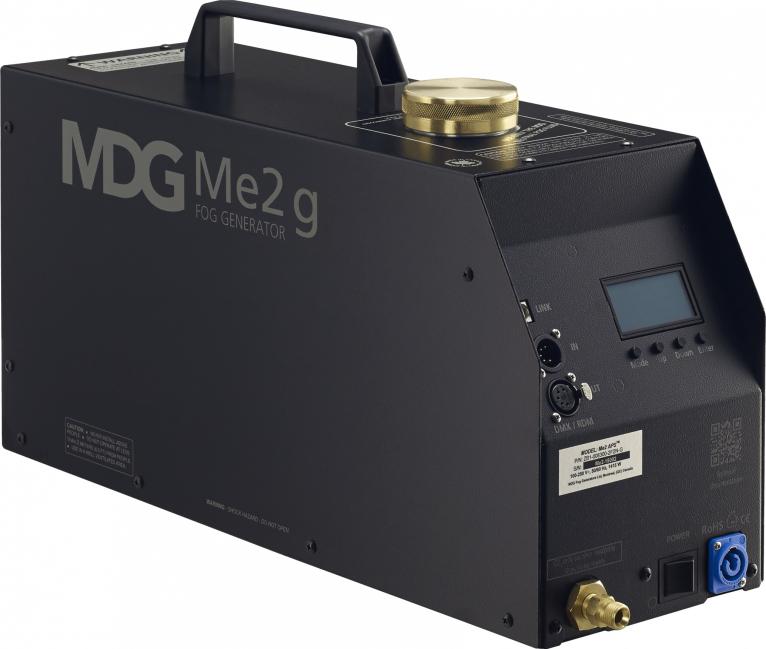

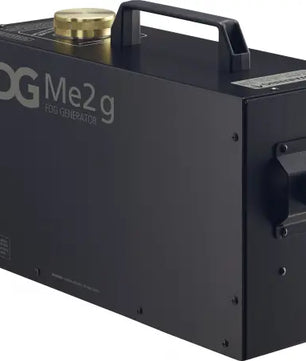

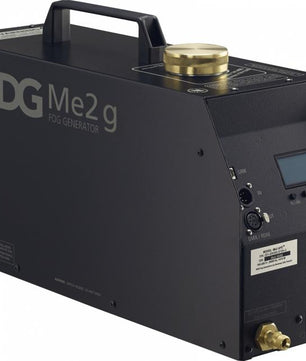

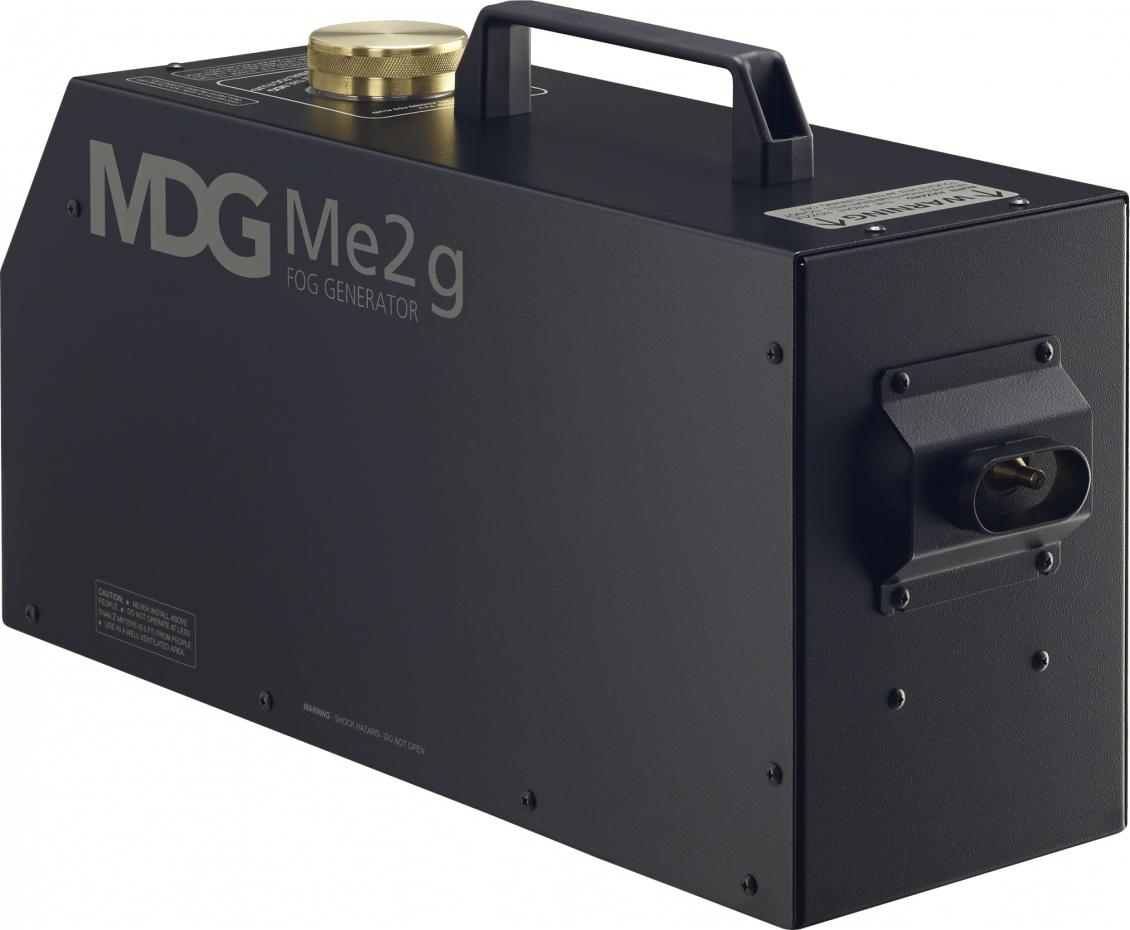

MDG Me2 | Dual High Output Fog Generator

Me2 is the more powerful twin of the Me1, housed in the same size chassis but with twice the power and two nozzles!

Features:
VARIABLE FOG OUTPUT
0-100% fog output control from your DMX/RDM device, or direct local control.

FLUID CONSUMPTION
At maximum output (2.76 bar / 40 psi) Me2 uses only 2 L (0.53 US gallon) of fluid per hour.

100% DUTY CYCLE
At all output levels Me2 produces a high-quality, consistent fog as long as there is fluid and gas.

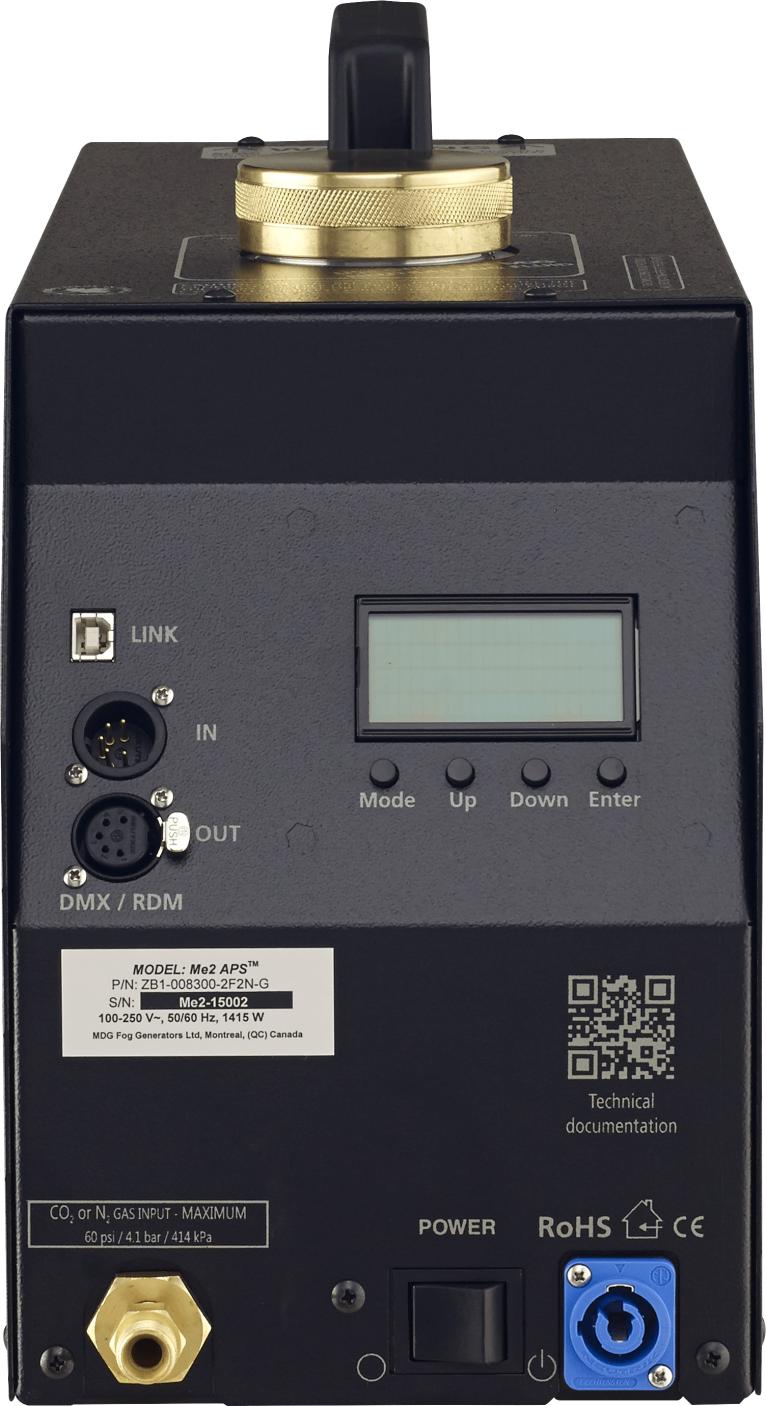

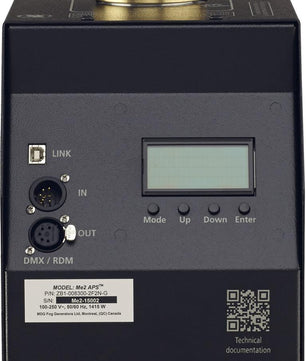

NUMEROUS CONTROL OPTIONS
4-button LCD user interface, 3 standard USITT DMX512 channels, XLR-5 connectors, RDM compliant.

APS™ (AUTOMATIC PURGING SYSTEM)
This system purges the heating module after the first heating cycle and after every emission of fog preventing residual build up and clogging.

DUAL FOG OUTPUT
With its two nozzles, the maximum fog output is 200 m3 (7,063 ft3) per minute.

Specifications:
Maximum fog output
200 m3 (7,063 ft3) per minute

Fluid consumption
2 L (0.53 US gallon) per hour at 2.76 bar/40 psi

Gas type
CO2 or N2

Gas consumption
2.68 kg (5.90 lb) per hour at 2.76 bar / 40 psi

Control
4-button LCD user interface, 3 standard DMX512 channels, XLR-5 connectors, RDM compliant.

Reservoir capacity
2.5 L (0.66 US gallon)

APS™ (Automatic Purging System)
Standard feature

Fog colour
Pure white

Particle size
0.5 - 0.7 micron

Warm-up time
8 minutes (maximum)

Fluid type
MDG Neutral

Voltage
100 - 250 VAC, 50/60 Hz single phase

Power consumption
1,415 W

DIMENSIONS
Length
61 cm (24”)

Width
18 cm (7”)

Height
30 cm (12”)

Weight
16.62 kg (35 lb)

Shipping weight
30.12 kg (64 lb) with flight case

Approval
CE certified, CSA and UL approved
