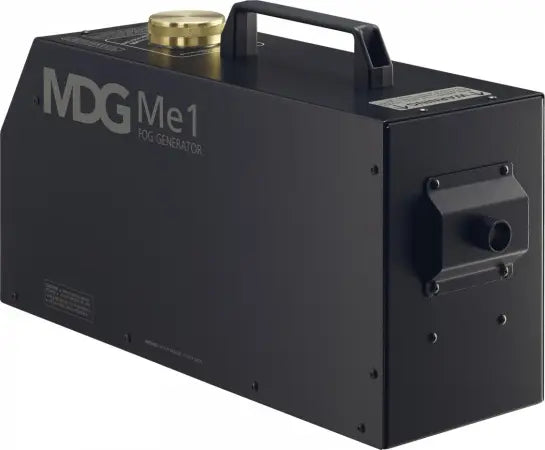

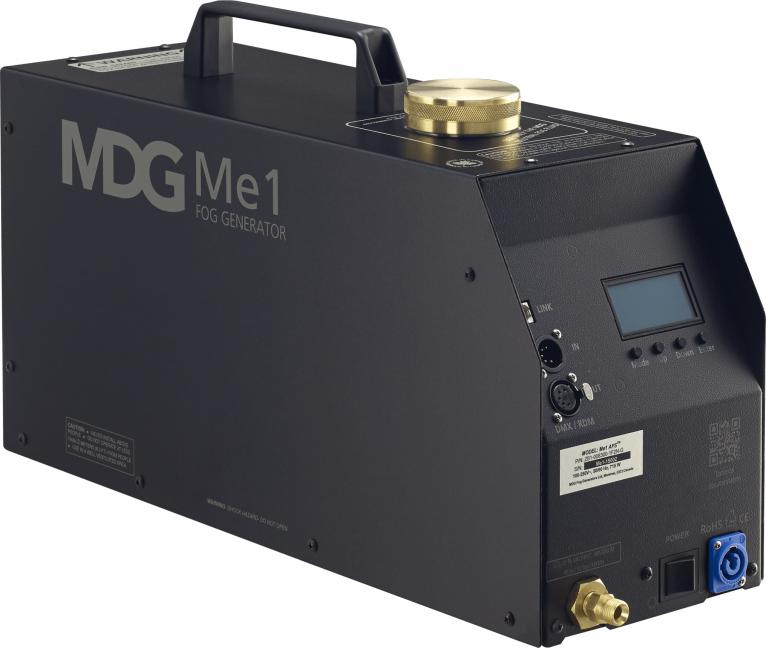

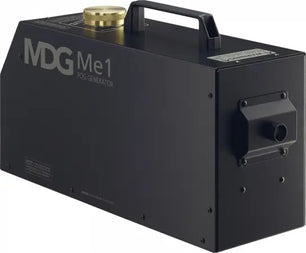

MDG Me1 | Single High Output Fog Generator

Me1 is the first and smallest in the powerful Me family of fog generators

Features:
VARIABLE FOG OUTPUT
0-100% fog output control from your DMX/RDM device, or direct local control.

SECOND PERSONALITY
MAX 3000APS configuration setting.

FLUID CONSUMPTION
At maximum output (2.76 bar / 40 psi) Me1 uses only 1 L (0.26 US gallon) of fluid per hour.

NUMEROUS CONTROL OPTIONS

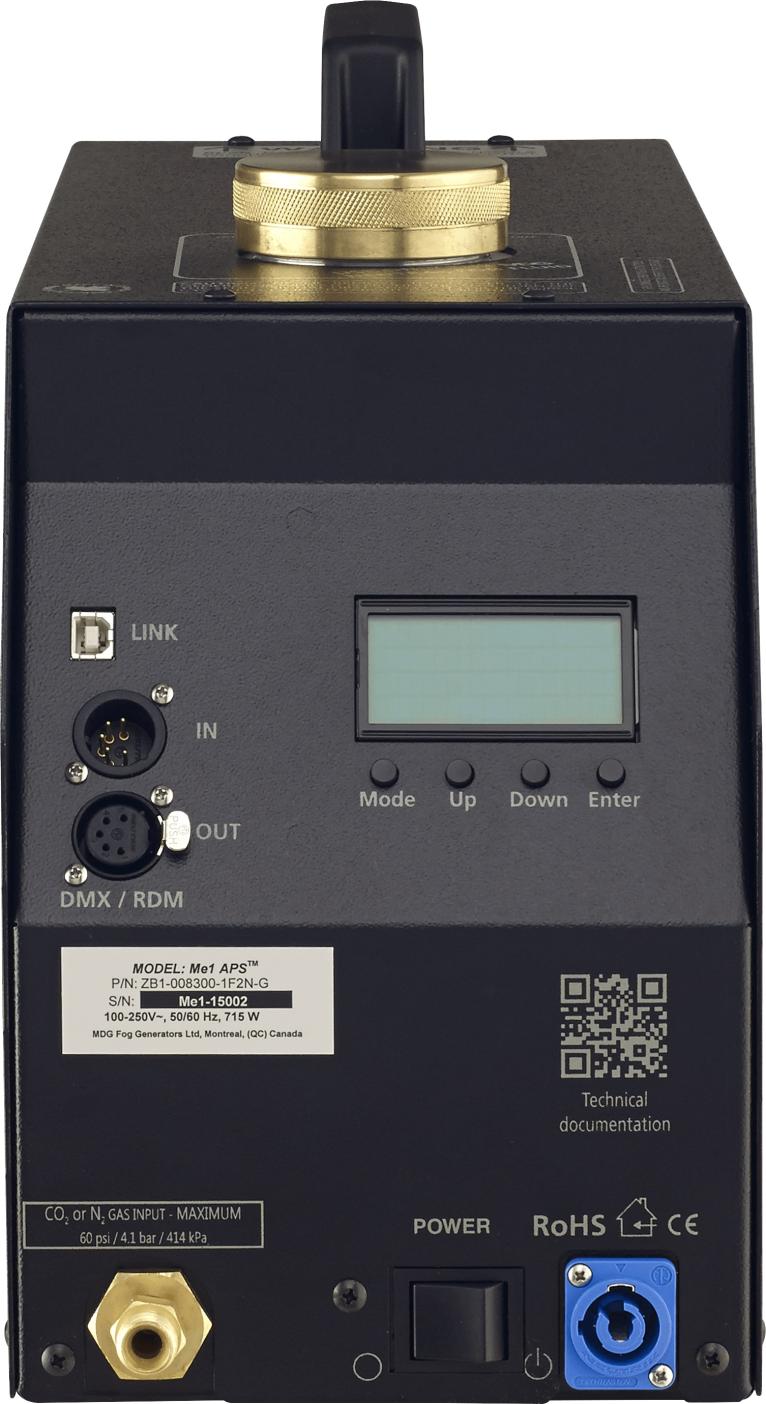

4-button LCD user interface, 3 standard USITT DMX512 channels, XLR-5 connectors, RDM compliant.

100% DUTY CYCLE
At all output levels Me1 produces a high-quality, consistent fog as long as there is fluid and gas.

APS (AUTOMATIC PURGING SYSTEM)
This system purges the heating module after the first heating cycle and after every emission of fog preventing residual build up and clogging.

SINGLE FOG OUTPUT
With its single nozzle, the maximum fog output is 100 m3 (3,531 ft3) per minute.

Specifications:
Maximum fog output
100 m3 (3,531 ft3) per minute

Fluid consumption
1 L (30 oz / 0.26 US gallon) per hour at 2.76 bar / 40 psi

Gas type
CO2 or N2

Gas consumption
1 kg (2.2 lb) per hour at 2.76 bar / 40 psi

Control
4-button LCD user interface, 3 standard DMX512 channels, XLR-5 connectors, RDM compliant.

Reservoir capacity
2.5 L (0.66 US gallon)

APS™ (Automatic Purging System)
Standard

Fog colour
Pure white

Particle size
0.5 - 0.7 microns

Warm-up time
8 minutes (maximum)

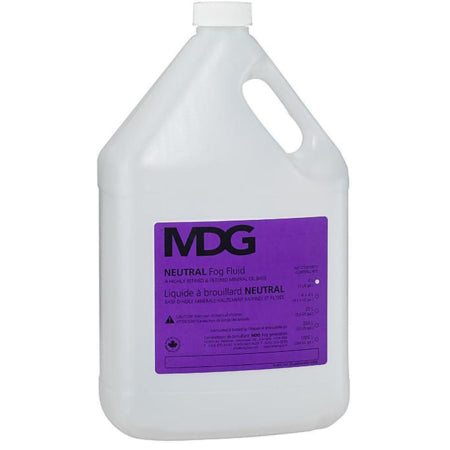

Fluid type

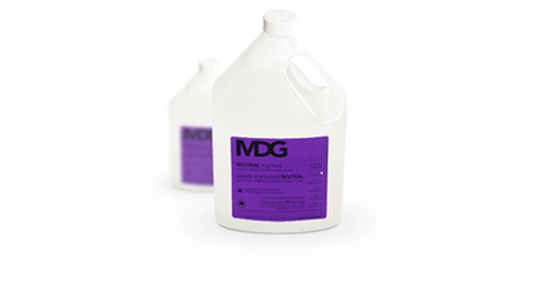

MDG Neutral

Operating voltage
100 - 250 VAC, 50/60 Hz single phase

Power consumption
715 W

DIMENSIONS
Length
61 cm (24”)

Width
18 cm (7”)

Height
30 cm (12”)

Weight
15.62 kg (35 lb)

Shipping weight
29.12 kg (64 lb) with flight case

Approval
CE certified, CSA and UL approved
