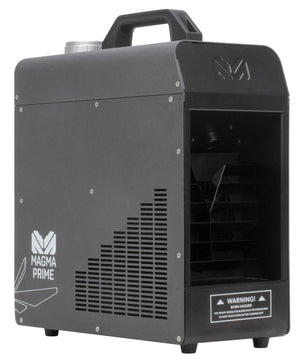

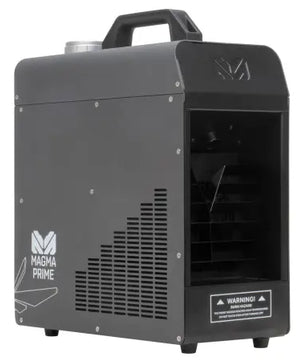

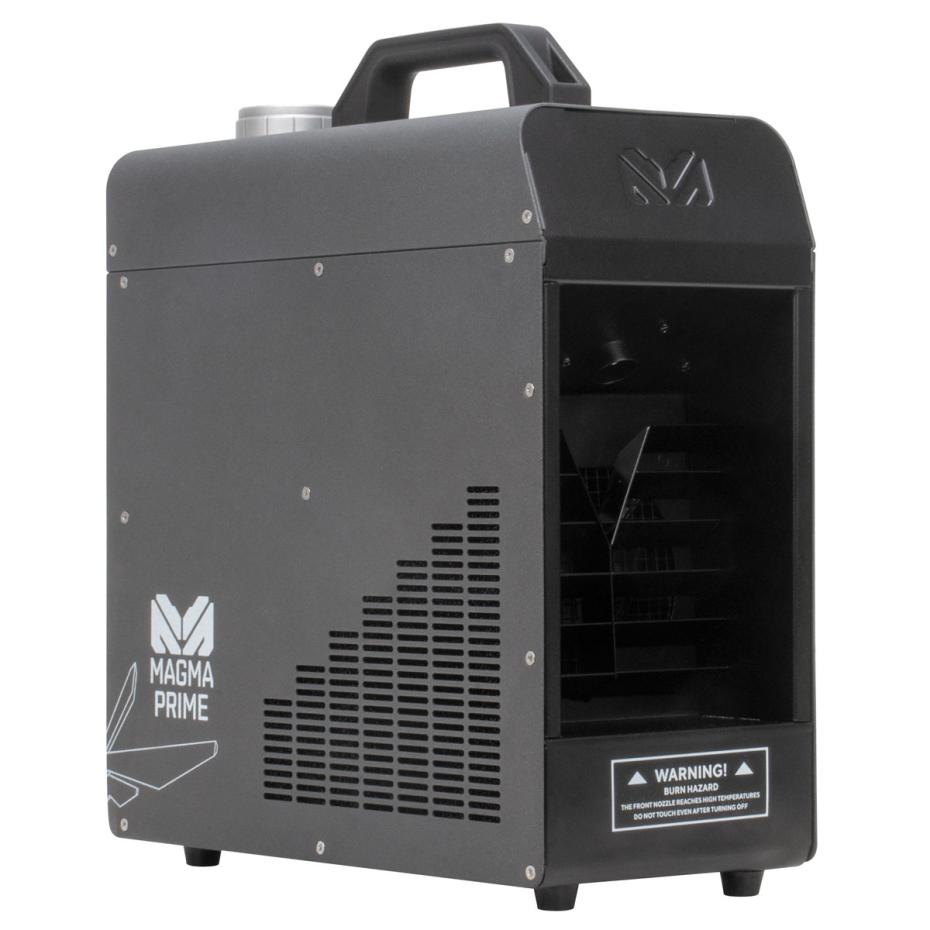

Magmatic Magma Prime

MAGMA PRIME™ is a water-based hazer with advanced technology providing a high volume dry haze effect with low fluid consumption. The new HPA (high pressure air) pump technology reduces the risk of heater clogging. Features includes a self-cleaning and energy-saving “Sleep” mode, an easy to use onboard LCD touch screen control panel, intuitive DMX-512 and RDM control, a durable aluminum housing, and optional wired and wireless remote control options.

Features:
700W Water-Based Hazer
4,000 CFM* (cu ft/min.) (113 m3/min*) Output
Advanced HPA (high pressure air) Pump Technology
Energy Saving Mode with Auto-Clean Process
Compact Light Weight Robust Design
Onboard LCD Touch Control Panel
Optional E-FLY Wireless DMX Transceiver
Optional RF Wireless and Wired Remotes
*approximate

Specifications:
PERFORMANCE
Rated Power: 700W
Max Output: 4,000 CFM* (cu ft/min.) (113 m3/min*)
Ready Time: Initial = 6 Minutes*
Fluid Capacity: 0.345 gallons (1.3 liters)
Fluid Consumption: 0.115 oz/min (3.4 ml/min)
*approximate

COMPATIBLE FLUID
Atmosity Extreme Filtered Fog Fluid (AEF-4L)

CONSTRUCTION
Thermally Protected Heat Exchanger
Advanced HPA (high pressure air) Pump Technology
Energy Saving Mode with Auto-Clean Process
Sealed Fluid Reservoir
External Visual Fluid Level Detection
Compact Light Weight Mobile Design

CONTROL
3 DMX Channel Modes (1 / 3 / 5)
Onboard LCD Touch Control Panel
DMX-512 and RDM Protocol Support
Optional E-FLY Wireless DMX Transceiver
Optional RF Wireless and Wired Remotes

CONNECTIONS
Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 13.3 in. (356mm)
Width: 6.29 in. (160mm)
Height: 15.91 in. (404mm)
Weight: 22.48 lbs. (10.2kg)

ELECTRICAL
AC 100-120V - 50/60Hz
9A (NFB)
Max Power Consumption: 720W

THERMAL
Maximum Ambient Temperature (Ta max) 104°F (40°C)
Exterior Surface Temperature, Steady State: 122°F (50°C)

APPROVALS / RATINGS
CE | cETLus (pending) | IP20
