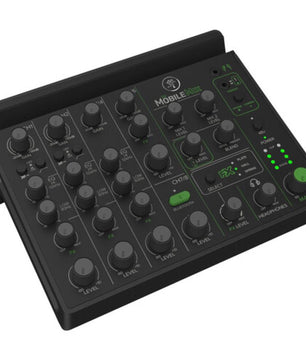

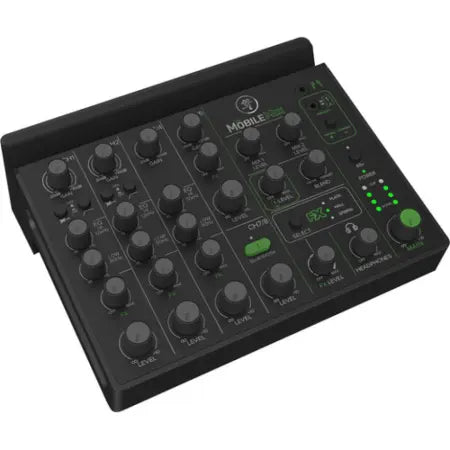

Mackie MobileMix | 8-Channel Battery Mixer

Providing content creators and musicians with an easy way to get quality sound from live shows and streams, the MobileMix from Mackie is an 8-channel portable mixer that delivers pro-quality audio in a compact, battery or bus-powered form factor. With plenty of I/O geared towards live mixing and a plethora of hands-on control, you can capture or stream your live performances wired or wirelessly with ease.

The MobileMix is equipped with a bidirectional Bluetooth channel that sports mix-minus for easy caller integration. Two 3.5mm TRRS input/output jacks are offered for dedicated smartphone or camera connections. You also get two individually adjustable 1/4" Mix outputs for sending custom mixes to headphones, plus a front-panel 3.5mm headphone output. The XLR-1/4" combo mic/line inputs with phantom power let you handle everything from high-quality condenser mics to DI instruments, and you also have a stereo line input channel and variable FX send options. The MobileMix not only sports a highly portable, low-profile design, it also features a dock for smart devices like phones and tablets, making it easier to integrate your mobile setup into one convenient system.

For Musicians and Technical Content Creators
Live stream or record via tablet using multiple mics and inputs
Capture audio and video on the go with no need for wall power or bulky laptops
Record audio into your favorite music production app on mobile
Add a caller or stream backing tracks via Bluetooth

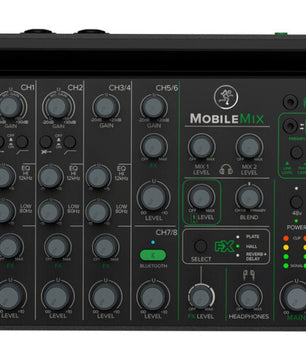

Powerful Control Options
MobileMix provides users with tons of options for mixing and controlling their content, including:
2-band channel EQ and variable FX send
3 selectable reverb FX: plate, hall, and spring
Blend knob for overdubs
Phone or camera selection for dedicated TRRS outputs
Two dedicated headphone mix controls for separate headphone mixes
Bluetooth channel level control
Buttons for phantom power, Hi-Z, and low-end cutoff on channels 1 and 2

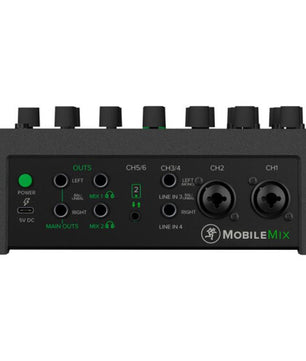

All the I/O You Need
Two XLR-1/4" combo input jacks with mic preamps and Hi-Z selection
1/4" stereo pair input for stereo channel (channel 3/4)
Two 1/4" headphone outputs with dedicated mix controls, one 3.5mm headphone output
Stereo 1/4" mix output (one stereo pair)
Dedicated 3.5mm TRRS input/output jacks for cameras and smartphones

SPECIFICATIONS:

Number of Analog Input Channels
8 (2 Mono / 3 Stereo)
Number of Mic Preamps
2
Analog Output Channels
1 x Stereo Master Output
3 x Stereo Headphone Output
1 x Stereo Aux Send Output
1 x Stereo Direct Output
Show Less
Mix Routing
1 x Stereo Main Mix
1 x Stereo FX Bus per Input Channel
3 x Stereo Bus/Subgroup
EQ
Input Channels:
2-Band EQ/Shelving
Built-In Effects
3 x Stereo Reverb
USB I/O
1x USB-C (Device Charging)
Wireless
Bluetooth
*Built-In
Rack Mountable
No
Mixer
Max I/O Capacity
8 x Input / 8 x Output
Number of Analog Input Channels
8 (2 Mono / 3 Stereo)
Number of Mic Preamps
2
Analog Output Channels
1 x Stereo Master Output
3 x Stereo Headphone Output
1 x Stereo Aux Send Output
1 x Stereo Direct Output
Mix Routing
1 x Stereo Main Mix
1 x Stereo FX Bus per Input Channel
3 x Stereo Bus/Subgroup
Faders & Level Adjustment
19 x Channel Knob
3 x Master Knob
2 x Bus/Subgroup Knob
1 x FX Knob
Meters
1 x 8-Segment LED
Signal Processing
Gain/Trim Range
Line/Mic Input:
-20 dB to +30 dB
Stereo Line Input:
-20 dB to +20 dB
Input Polarity
Fixed
Dynamic Processing
No
Sidechain Filters
No
EQ
Input Channels:
2-Band EQ/Shelving
EQ Parameters
High: at 12 kHz (Shelving)
Low: at 80 Hz (Shelving)
Graphic EQ
No
Filters
Mono Channels:
2 x High-Pass
Solo/Mute
No
Channel Output/Source Monitoring
AFL, Post-Preamp
Built-In Effects
3 x Stereo Reverb
Connectivity
Analog Inputs
2x Combo XLR-1/4" 3-Pin Balanced Mic/Line Input (Pre-Fader, Pre-EQ)
2x 1/4" Line Input (1 Stereo Pair, Pre-Fader, Pre-EQ)
1x 1/8" / 3.5 mm TRRS Stereo Line Input (Pre-Fader, Pre-EQ)
Analog Outputs
2x 1/4" Mix Output (1 Stereo Pair, Post-Fader)
2x 1/4" TRS Stereo Headphone Output (Post-Fader)
1x 1/8" / 3.5 mm TRS Stereo Headphone Output (Post-Fader)
1x 1/8" / 3.5 mm TRS Stereo Line/Direct Output (Pre-Fader)
Phantom Power
+48 V, Selectable On/Off (on 2 Channels)
Digital I/O
No
MIDI I/O
No
USB I/O
1x USB-C (Device Charging)
Wireless
Bluetooth
*Built-In
Mobile App Compatible
No
OS Compatibility
No
Power
DC Input Power
5 VDC (USB Bus Power)
Physical
Rack Mountable
No
