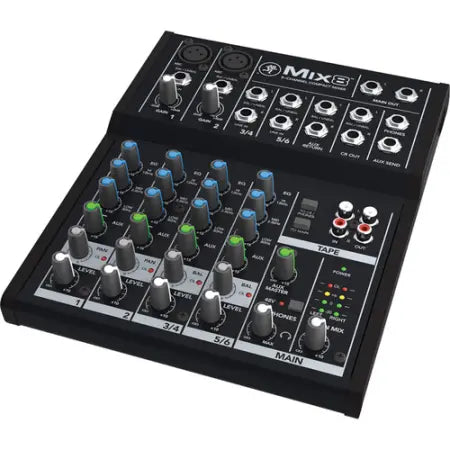

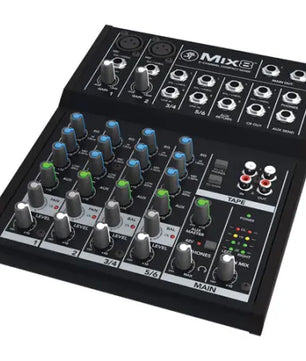

Mackie Mix8 | 8-Channel Compact Mixer

Take control of your audio with the Mackie Mix8 compact mixer. Despite its small size, this versatile 8-channel mixer is loaded with premium features, including two microphone inputs with our studio-quality preamps, a 3-band EQ for each channel, an RCA I/O path for recording and more.

Mackie has brought professional-level compact mixers to the masses since we debuted the LM-1602 in 1988. The Mix8 is an 8-channel mixer that expands on our heritage of designing great gear that isn’t unattainable for real working musicians and content creators. Featuring our low-noise preamps, a 3-band EQ and aux sends for each channel, an RCA I/O path for recording and separate volume controls for headphones and the main monitor, the Mix8 is a versatile workhorse for creators who need more control over their audio.

FEATURES:

Dual Mic/Line Inputs
Dual Stereo Line Inputs
Phantom Power
3-Band EQ
Aux Send and Return
Headphone Output
Rugged and Portable

SPECIFICATIONS:

Number of Analog Input Channels
8 (2 Mono / 2 Stereo)
Number of Mic Preamps
2
Analog Output Channels
1x Stereo Master Output
1x Stereo Control Room/Monitor Output
1x Mono Aux Send Output
1x Stereo Tape/Record Output
1x Stereo Headphone Output
Show More
Mix Routing
Main Mix per Mono Input Channel, Stereo Input Channel
Stereo Aux Bus/Subgroup per Stereo Input Channel
EQ
3-Band EQ
Built-In Effects
No
Wireless
No
Rack Mountable
No
Mixer
Number of Analog Input Channels
8 (2 Mono / 2 Stereo)
Number of Mic Preamps
2
Analog Output Channels
1x Stereo Master Output
1x Stereo Control Room/Monitor Output
1x Mono Aux Send Output
1x Stereo Tape/Record Output
1x Stereo Headphone Output
Mix Routing
Main Mix per Mono Input Channel, Stereo Input Channel
Stereo Aux Bus/Subgroup per Stereo Input Channel
Faders & Level Adjustment
4x Channel Knob
1x Bus/Subgroup Knob
1x Master Knob
Meters
1x 4-Segment LED
Signal Processing
Gain/Trim Range
Up to +10 dB
Sidechain Filters
No
EQ
3-Band EQ
EQ Parameters
High: ±15 dB at 12 kHz (Shelving)
Mid: ±15 dB at 2.5 kHz (Notch/Peak)
Low: ±15 dB at 80 Hz (Shelving)
Graphic EQ
No
Filters
Low-Pass: 75 Hz, 18 dB/Octave
Solo/Mute
No
Built-In Effects
No
Performance
Frequency Response
Mic Input to Output:
20 Hz to 30 kHz +0/-1 dB (Unity Gain)
Max Input Level
XLR Mic Input:
+19 dBu
Aux Return:
+16 dBu
Line Input:
+21 dBu
I/O Impedance
Mic Input:
3.8 Kilohms
Line Input:
≥ 10 Kilohms
Tape Output:
1 Kilohms
Headphone Output:
22 Ohms
Main Output:
120 Ohms (Unbalanced)
240 Ohms (Balanced)
Crosstalk
Input to Output:
-85 dB at 1 kHz (20 Hz to 20 kHz)
Master Fader Off:
-75 dB at 1 kHz
CMRR
> -70 dB at Max Gain (1 kHz, Mic In to Insert Send Out)
EIN
-125 dBu at Max Gain
Noise Floor
All Outputs:
-100 dBu (Master Level at -∞, Channel Levels at -∞)
-90 dBu (Master Level at Unity, Channel Levels at -∞)
-85 dBu (Master Level at Unity, One Channel Level at Unity)
THD+N
Mic Input to Main Output:
< 0.25% (+4 dBu)
Connectivity
Analog Inputs
2x XLR 3-Pin Balanced/Unbalanced Mic Input
2x 1/4" TRS Balanced/Unbalanced Line Input
4x 1/4" TRS Balanced/Unbalanced Stereo Line Input (2 Stereo Pair)
2x 1/4" TRS Balanced/Unbalanced Aux Return
1x Stereo RCA Coaxial Unbalanced Tape Input (1 Stereo Pair)
Analog Outputs
2x 1/4" TRS Balanced/Unbalanced Stereo Main Output (1 Stereo Pair)
1x 1/4" TRS Mono Aux Send
1x 1/4" TRS Stereo Headphone Output
1x Stereo RCA Coaxial Unbalanced Stereo Tape Output (1 Stereo Pair)
1x Stereo RCA Coaxial Unbalanced Stereo Tape Output (1 Stereo Pair)
Phantom Power
No
Digital I/O
No
Wireless
No
Power
AC Input Power
120 VAC, 60 Hz
230 VAC, 50 / 60 Hz
Power Supply Output
18 VAC at 1000 mA
Physical
Rack Mountable
No
Dimensions
2.1 x 7.8 x 9.6" / 53 x 198 x 244 mm
Weight
2.5 lb / 1.1 kg
Packaging Info
Package Weight
3.285 lb
Box Dimensions (LxWxH)
13.4 x 9.3 x 3.4"
