Mackie 402VLZ4 | Ins: 2 Mic, 1 Line

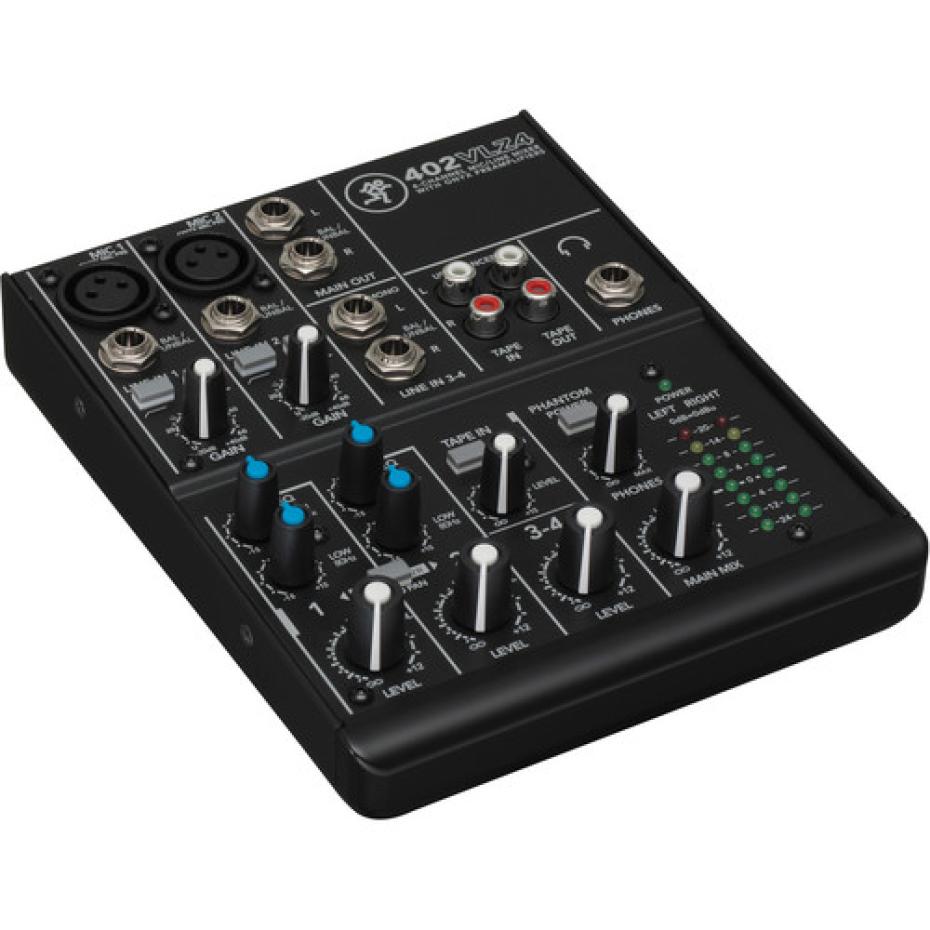

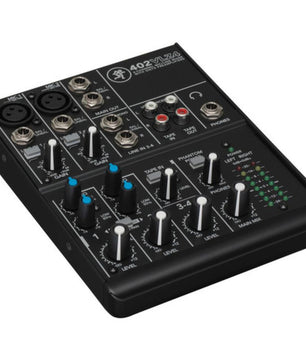

Mackie 402VLZ4 4-Channel Ultra-Compact Mixer | High-Performance Audio Solution

Professional Compact Mixer with Onyx Preamps

The Mackie 402VLZ4 is a 4-channel ultra-compact mixer that delivers superior sound quality with its Boutique-Quality Onyx microphone preamps and a high-headroom, low-noise design . Ideal for professional low-input applications, the 402VLZ4 offers a rugged build, high-contrast controls, and flexible options for various live sound and recording environments.

Competitive Differences

• Onyx preamps offer wide 60 dB gain range and ultra-low distortion for clean, professional audio.
• Instrument inputs on channels 1 and 2 eliminate the need for DI boxes.
• Built-like-a-tank design with a solid-steel chassis ensures durability for tough environments.
• Compact form factor with universal power supply for worldwide usage.

Full Description

The Mackie 402VLZ4 Mixer is a professional-grade solution for users who need maximum performance in a compact design. With high-headroom, low-noise circuitry , it ensures pristine signal integrity from every input to output. It’s built tough with a steel chassis and sealed rotary controls that resist dust and grime, making it a reliable option for live performances, recording, and multimedia applications. The mixer’s 2-band EQ provides flexibility in shaping the sound, while the instrument inputs on the first two channels simplify your setup by eliminating the need for a DI box. It also features phantom power for condenser microphones and level metering for precise control. Its ultra-compact size and optional mic stand adapter make it versatile for a wide range of audio setups.

Features

• 4-channel ultra-compact mixer with Boutique-Quality Onyx Microphone Preamps
• 2 Onyx preamps with wide 60 dB gain range and 128.5 dB dynamic range
• Low distortion under 0.0007% (20 Hz to 50 kHz)
• Phantom power for condenser microphones
• Selectable instrument inputs on the first 2 channels
• 2-band EQ (80 Hz and 12 kHz)
• High-resolution 8-segment stereo meters
• Rugged steel chassis with sealed rotary controls
• Universal power supply for worldwide use

Specifications

• Noise (Main Mix at Unity, Channels at Unity): -92 dBu
• Signal-to-Noise Ratio: 102 dB
• THD: <0.005% (20 Hz to 80 kHz)
• Crosstalk/Attenuation: -70 dBu (Main Mix Knob Down)
• Frequency Response: +0, -1 dB (20 Hz to 50 kHz)
• Maximum Input Levels: Microphone In: +21 dBu , Tape In: +24 dBu
• Equalizer: High Shelving: ±15 dB at 12 kHz , Low Shelving: ±15 dB at 80 Hz
• Power Consumption: 8 W , Universal Power Supply
• Dimensions: 7.3 x 5.8 x 1.6 inches (186 x 147 x 41 mm)
• Weight: 3.0 lbs (1.4 kg) with power supply

What's in the Box

• Mackie 402VLZ4 Mixer
• External Power Supply
• Owner’s Manual
