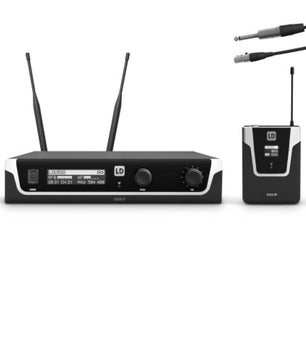

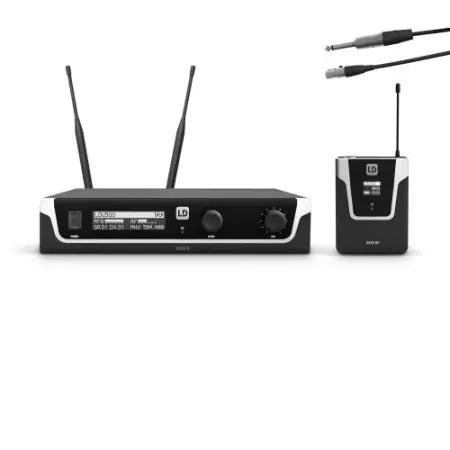

LD Systems U505 BPG

U505 BPG
Wireless Microphone System with Bodypack and Guitar Cable - 584 – 608 MHz.

Whether you play guitar, bass or a wind instrument, the U500® wireless systems were developed in Germany to bring you affordable professional technology and sound quality. The instrument sets deliver impressive performance and high reliability, which will certainly exceed your expectations. We have designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience. Selectable transmit power up to 30 mW provides the U500® instrument sets with a free-field range of over 100 meters. 12 systems can be operated simultaneously. The Bodypack’s gain control allows attenuation of up to 27 dB to suit both active and passive guitars and basses or high sound pressure wind instruments, thus ensuring a distortion-free audio signal. Even the lowest bass notes are cleanly transmitted, thanks to the frequency response which extends down to 30 Hz. In addition, output impedance and level are switchable on the receiver to facilitate direct connection to guitar and bass amplifiers.

The U500® True Diversity UHF wireless systems feature an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronisation of transmitter and receiver to facilitate easy set-up. High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the Bodypack’s silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present. The U500®’s efficient technology and high-quality components provide clear, distortion-free transmission without latency or artefacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries.

The U500® Series instrument sets are available in two versions: for wind instruments with a clip-on microphone or for guitars and basses with a double-shielded, low-capacitance cable to protect against interference.

Features:

True diversity UHF wireless system
Shock-mounted dynamic and condenser microphone capsules
Automatic channel scan
Easy one-touch infrared frequency syncing
Pilot tone squelch circuit prevents noise
Switchable RF transmitter output (2, 10 or 30 mW)
Rugged enclosures
High-contrast OLED display

Specifications
Product type Wireless Microphone Systems
Type Set
Transmission frequency range 584 - 608 MHz
Weight 2,46 kg

LDU505R - LD Systems U505 BPG Receiver
Product type Wireless Microphone System Accessories
Type Receivers
Modulation Type FM
Channels 96 (8 groups of 12 channels)
Groups 8
Weight 0,85 kg
Antenna inputs 2
Antenna connector BNC
Frequency response 30 - 16000 Hz
Signal-to-noise ratio > 100 dB
Noise reduction Squelch
Total Harmonic Distortion (THD) < 0.3 %
Controls volume
Audio output, balanced XLR
Audio output, unbalanced 6.3 mm jack
Operating voltage 12 - 18 V DC
Width 212 mm
Height 44 mm
Depth 159 mm
Max. output level +10 dBu
Other features Pilot tone
Indicators OLED Display
Operating voltage 12 V DC, 500 mA
Accessories (included) power adapter

LDU505BP - LD Systems U505 BPG Bodypack transmitter
Type Bodypack
Inputs Mini-XLR (3-pin)
Weight 0,09 kg
Signal-to-noise ratio >90 dB
Rated HF output power Variable (2mW, 10mW, 30mW)
Controls Set
Operating voltage 2 x AA battery
Operating time >10 h (with alkaline batteries)
Width 65 mm
Height 86 mm
Depth 23 mm
Other features switchable RF power

LDU500GC - LD Systems U505 BPG Instrument cable for U500® series bodypack
Type Guitar Cables
Connector 1 Mini-XLR (3-pin, female)
Connector 2 6.3 mm jack
Length 0.8 m
Weight 0,045 kg
