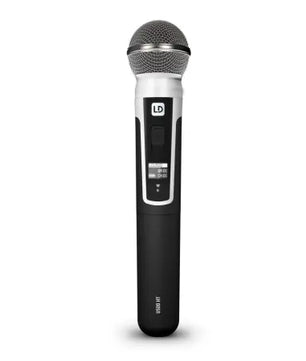

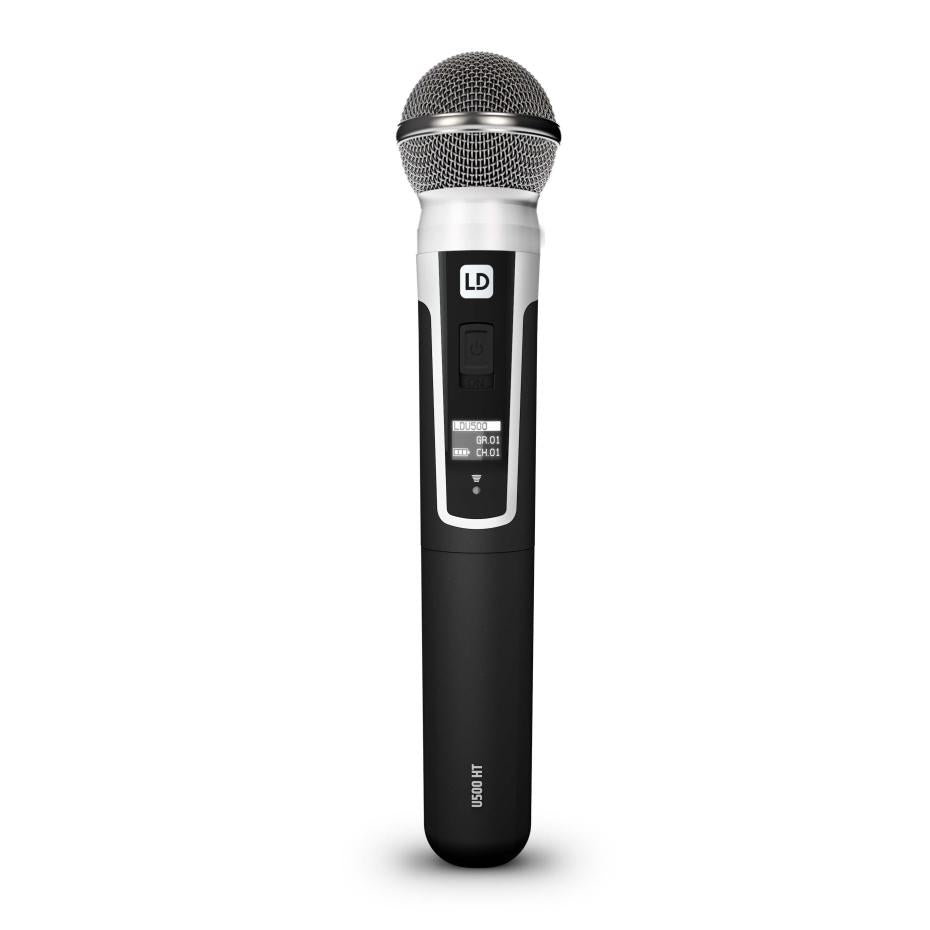

LD Systems U504.7 MD | 470 - 490 MHz

LD Systems U504.7 MD | 470 - 490 MHz

The LD Systems U504.7 MD | 470 - 490 MHz combines professional-grade dynamic and condenser microphone capsules for superior audio performance. It features automatic channel scanning, infrared frequency syncing, and a pilot tone squelch circuit to prevent unwanted noise. Designed with a rugged enclosure and a high-contrast OLED display, this microphone ensures reliable and easy operation for any event.

Competitive Differences

• Dual dynamic and condenser microphone capsules
• Automatic channel scan and infrared frequency syncing
• Pilot tone squelch to eliminate noise interference
• Switchable RF output power for versatile performance

Full Product Description

The LD Systems U504.7 MD | 470 - 490 MHz is engineered to deliver high-quality sound in any environment. Equipped with shock-mounted dynamic and condenser microphone capsules, it captures audio with precision while minimizing handling noise. The microphone operates within a frequency range of 470 to 490 MHz and offers 96 selectable channels, ensuring a clear signal in crowded RF environments. The rugged design and intuitive OLED display make it suitable for both professional and live sound applications.

This microphone system includes advanced features such as pilot tone squelch, which eliminates unwanted background noise, and switchable RF output power (2mW, 10mW, 30mW) to accommodate different range requirements. The automatic channel scan and one-touch infrared frequency syncing make setup quick and easy, while the interchangeable capsule design allows for flexibility depending on the application.

Features

• UHF wireless microphone with dynamic and condenser capsules
• Shock-mounted capsules to reduce handling noise
• Automatic channel scan and one-touch infrared frequency syncing
• Pilot tone squelch circuit to prevent noise
• Switchable RF transmitter output (2, 10, or 30 mW)
• Rugged enclosure with high-contrast OLED display

Specifications

• Transmission Frequency Range: 470 - 490 MHz
• Channels: 96 (8 groups of 12 channels)
• Microphone Type: Dynamic
• Directivity: Cardioid
• Frequency Response: 60 - 16,000 Hz
• Signal-to-Noise Ratio: >95 dB
• RF Output Power: Variable (2mW, 10mW, 30mW)
• Controls: Arrow keys (up/down), menu, Power On/Off, select
• Indicators: OLED Display
• Operating Voltage: 2 x AA battery
• Operating Time: >10 hours (with alkaline batteries)
• Dimensions: Length 257 mm, Diameter 51 mm
• Weight: 0.25 kg
• Other Features: Interchangeable capsule, IR frequency synchronization, pilot tone squelch, switchable gain, switchable RF power
