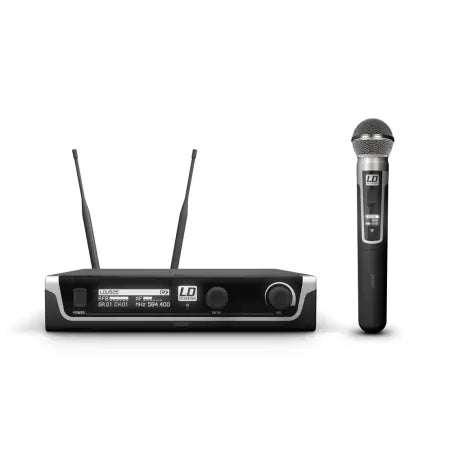

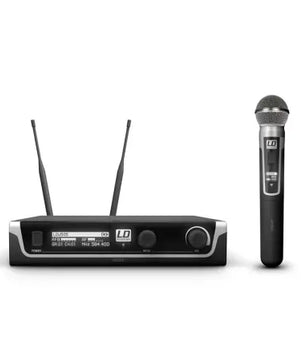

LD Systems U504.7 HHD | Wireless Mic Handheld System

LD Systems U504.7 HHD
Wireless Microphone System with Dynamic Handheld Microphone, 470 - 490 MHz

The U500® Series vocal sets were developed in Germany to bring you affordable professional technology and sound quality. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations. We have designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience.

Selectable transmit power up to 30 mW provides the U500® vocal sets with a free-field range of over 100 meters. 12 systems can be operated simultaneously. The True Diversity UHF wireless systems are equipped with an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronization of transmitter and receiver to facilitate easy set up.

High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the transmitter’s silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present. The U500®’s efficient technology and high-quality components provide clear, distortion-free transmission without latency or artefacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries.

The U500® Series vocal sets are available with hand-held transmitters, headsets, lavalier microphones and single or double receivers. The hand-held transmitters feature interchangeable microphone capsules to suit singing or speaking.


Product number: LDU505HHD
Product type: Wireless Microphone Systems
Type: true diversity, Handhelds
Transmission frequency range: 470-490 MHz
Weight: 2.7kg, 1.1kg
LDU505R - Receiver
Product type: Wireless Microphone System Accessories
Type: Receivers
Modulation Type: FM
Transmission frequency range: 470MHz
Channels: 96 (8 groups of 12 channels)
Groups: 8
Antenna inputs: 2
Antenna connector: BNC
Frequency response: 30Hz
Noise reduction: squelch
THD: <0.1 %
Signal-to-noise ratio: > 100dB
Audio output, balanced: XLR
Audio output, unbalanced: 6.3 mm jack
Max. output level: +10dBu
Controls: digital encoder, Power On/Off, volume
Indicators: OLED Display
Operating voltage: 12 - 18 V DC, 12 V DC, 500 mA
Width: 212mm
Height: 44mm
Depth: 159mm
Weight: 0.85kg
Accessories (included): power adapter, 2 x antenna, Audio cable
Other features: pilot tone, IR frequency synchronisation, channel search function
LDU505MD - Dynamic handheld microphone
Product type: Wireless Microphone System Accessories
Type: Microphones
Transmission frequency range: 470MHz
Channels: 96 (8 groups of 12 channels)
Groups: 8
Microphone type: dynamic
Directivity: cardioid
Frequency response: 60 - 16,000Hz
Signal-to-noise ratio: >95dB
Rated HF output power: Variable (2mW, 10mW, 30mW)
Controls: Power On/Off, menu, arrow keys (up/down value entry), select
Indicators: OLED Display
Operating voltage: 2 x AA battery
Operating time: >10 h (with alkaline batteries)
Length: 257mm
Diameter: 51mm
Weight: 0.25kg
Other features: Pilot tone squelch, switchable gain, interchangeable capsule, switchable RF power, switchable gain, IR frequency synchronization
