LD Systems U504.7 BPH | 470 - 490 MHz

$379.99

Order within [hour] to get by [date_end]

Title

Quantity

Pickup available at NJ Warehouse.

Usually ready in 1 hour

LD Systems U504.7 BPH | 470 - 490 MHz

Title: New

NJ Warehouse

Pickup available, usually ready in 1 hour

238 U.S. 206
Byram Township NJ 07821
United States

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

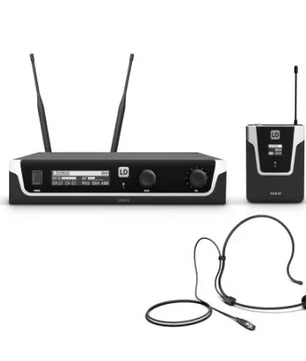

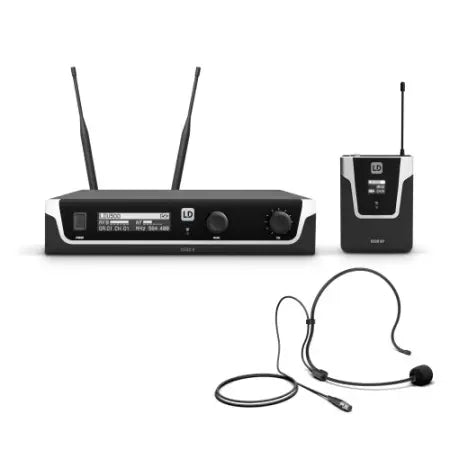

U505 BPH - Wireless Microphone System with Bodypack and Headset, 470 - 490 MHz, US Power

The U500® Series vocal sets were developed in Germany to bring you affordable professional technology and sound quality. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations. We have designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience.

Selectable transmit power up to 30 mW provides the U500® vocal sets with a free-field range of over 100 metres.12 systems can be operated simultaneously. The True Diversity UHF wireless systems are equipped with an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronization of transmitter and receiver to facilitate easy set up.

High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the transmitter’s silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present. The U500®’s efficient technology and high-quality components provide clear, distortion-free transmission without latency or artifacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries.

The U500® Series vocal sets are available with hand-held transmitters, headsets, lavalier microphones and single or double receivers. The hand-held transmitters feature interchangeable microphone capsules to suit singing or speaking.

Features:

Item No.: LDS-U5047BPH(US)
True diversity UHF wireless system
Shock-mounted dynamic and condenser microphone capsules
Automatic channel scan
Easy one-touch infrared frequency syncing
Pilot tone squelch circuit prevents noise
Switchable RF transmitter output (2, 10 or 30 mW)
Rugged enclosures
High-contrast OLED display

Specifications:

Product type Wireless Microphone Systems
Type Set
Transmission frequency range 470 - 490 MHz
Weight 2,46 kg

LDU505R - LD Systems U505 BPH Receiver
Product type Wireless Microphone System Accessories
Type Receivers
Modulation Type FM
Frequency response 30 - 16000 Hz
Channels 96 (8 groups of 12 channels)
Groups 8
Antenna inputs 2
Antenna connector BNC
Signal-to-noise ratio > 100 dB
Noise reduction Squelch
Total Harmonic Distortion (THD) < 0.3 %
Controls volume
Audio output, balanced XLR
Operating voltage 12 - 18 V DC
Audio output, unbalanced 6.3 mm jack
Width 212 mm
Accessories (included) power adapter
Height 44 mm
Depth 159 mm
Weight 0,85 kg
Max. output level +10 dBu
Other features Pilot tone
Indicators OLED Display
Operating voltage 12 V DC, 500 mA

LDU505BP - LD Systems U505 BPH Bodypack transmitter
Type Bodypack
Inputs Mini-XLR (3-pin)
Signal-to-noise ratio >90 dB
Rated HF output power Variable (2mW, 10mW, 30mW)
Controls Set
Operating voltage 2 x AA battery
Operating time >10 h (with alkaline batteries)
Width 65 mm
Height 86 mm
Depth 23 mm
Weight 0,09 kg
Other features switchable RF power
