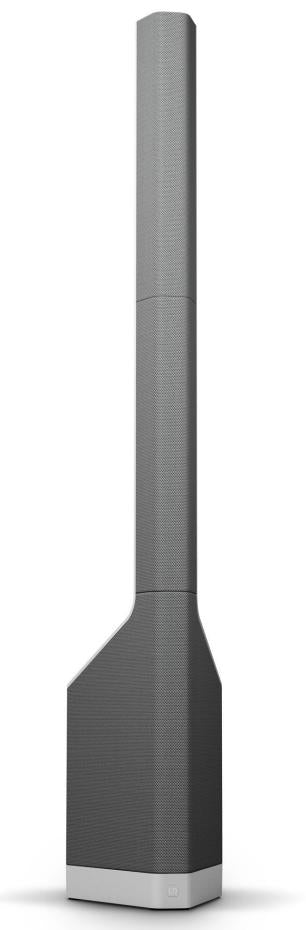

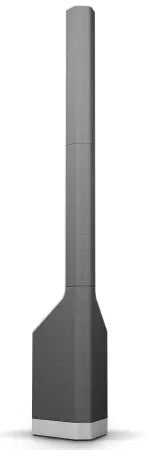

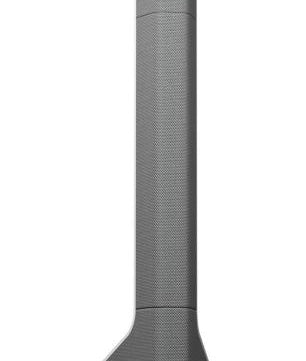

LD Systems Maui P900 G

MAUI P900 G
Powered Column PA System by Porsche Design Studio in Platinum Grey
Item No.: LDMAUIP900G

Powered column PA system for live events and install

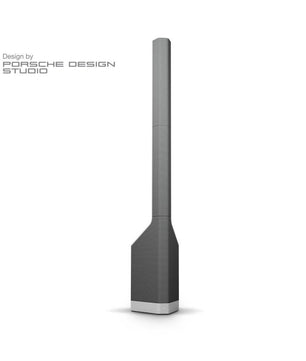

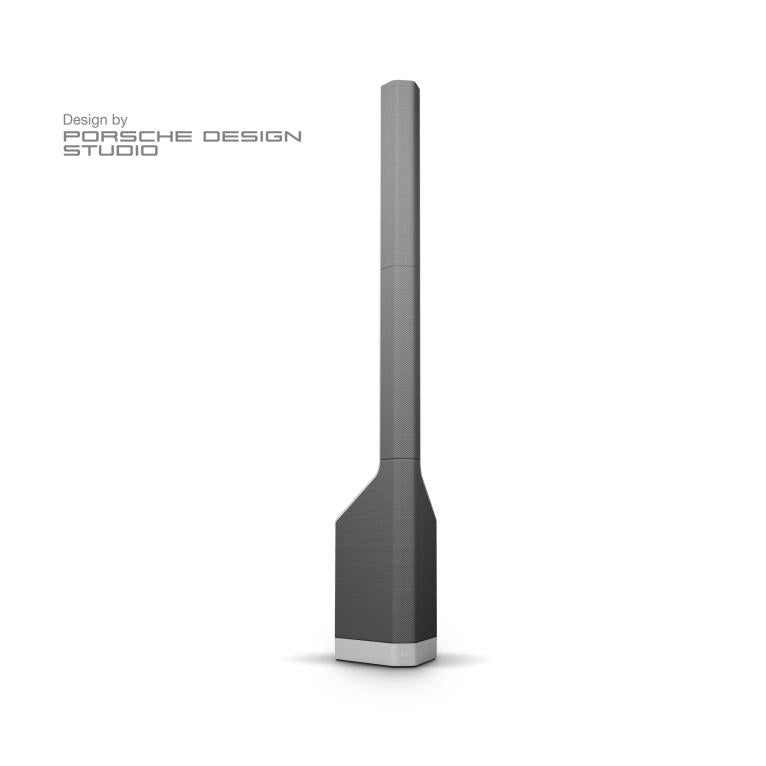

Award-winning design by Porsche Design Studio
Durable aluminium body
1,400 watts RMS system power and 131 dB maximum SPL
50 premium transducers for monumental clarity
SonicGuide® and WaveAhead® technology for coherent wavefront
DynX® DSP for distortion free sound
aptX™ and AAC coding for HD Bluetooth® streaming
TrueWireless Stereo™ for wireless stereo pairing

Developed in collaboration with Porsche Design Studio, the LD Systems MAUI® P900 provides excellent reproduction clarity and outstanding high-definition sound. Combining state-of-the-art audio technology and eye-catching elegance, the MAUI® P900 is the perfect choice when your live events and installation environments call for stellar sonic performance and style. With a total of 50 neodymium transducers and 1,400 watts RMS of class D power, this groundbreaking column system delivers a maximum sound pressure of 131 dB and 42 to 20,000 Hz frequency response.

The MAUI® P900 incorporates both our SonicGuide® waveguide technology and WaveAhead® tweeter arrangement to deliver a coherent wavefront. Combining 140° dispersion on the horizontal axis and tightly focused vertical dispersion, the system provides an ultra-long throw and even coverage. Our DynX® 24-bit digital processing results in detailed, dynamic sound reproduction that remains distortion-free even at the highest volume levels. The use of aptX™ and AAC coding ensures high-definition full bandwidth audio over Bluetooth® with a range of 70 m (230 ft.), and the integration of TrueWireless Stereo™ technology enables wireless stereo sound from two MAUI® P900 with up to 40 m (130 ft.) distance between left and right channel systems.

Constructed of high-strength aluminium with a multilayer mesh grille, the unique three-piece MAUI® P900 body features proprietary multi-pin connectors for instant cableless setup. The minimalist connector panel provides main and sub level controls plus XLR stereo line inputs and outputs for wired stereo operation of two systems.

Merging distinctive aesthetics and outstanding audio performance, the MAUI® P900 comes in Cocoon White, Platinum Grey or Graphite Black to elegantly integrate into virtually any ambience.

To facilitate transport and protect the MAUI® P900 from damage, padded carrying bags for the column elements and subwoofer and a dedicated road case are available as accessories.

Specifications:

Product type PA Complete Systems
Type active
Color Platinum Grey
Max. SPL (continuous) 121 dB
Max. SPL (peak) 131 dB
Frequency response 42 - 20.000 Hz
Dispersion (H x V) 140 x 15 °
Total Height 2173 mm
Weight 46 kg
Features Bluetooth Audio Streaming , DSP-based Signal Processing , Excellent Sound Dispersion , Mono/ Stereo Application

Subwoofer
Woofer dimensions 2 x 10 "
Woofer size 2 x 254 mm
Woofer magnet Neodymium
Woofer brand Custom-made
Woofer voice coil 3 "
Woofer voice coil (mm) 76.2 mm
Cabinet construction vented
Housing material 15 mm Plywood
Cabinet surface HD coated aluminum , multi layer mesh (cloth)
Dimensions Subwoofer (W x H x D) 400 x 745 x 470 mm
Subwoofer weight 30.6 kg

Mid/Hi System
Midrange size 16 x 2.8 "
Midrange size 16 x 71,1 mm
Midrange magnet Neodymium
Midrange brand Custom-made
Midrange voice coil 0.75 "
Midrange voice coil 20 mm
Tweeter dimensions 32 x 1 "
Tweeter dimensions (mm) 25.4 mm
Tweeter magnet Neodymium
Tweeter brand Custom-made
Tweeter voice coil 1 "
Tweeter voice coil (mm) 25.4 mm
Wave Guide SonicGuide® Technology
MF / HF Transducer Arrangement Patented WaveAhead® Technology
Loudspeaker inputs 1
Speaker input connections Custom-made multipin
Cabinet construction mid/high Closed
Mid/Hi system cabinet material Aluminum
Mid/Hi system cabinet surface HD coated aluminum , multi layer mesh (cloth)
Mid/Hi system width 157 mm
Mid/Hi system height 1428 (2 x 714) mm
Mid/Hi system depth 91 mm
Mid/Hi system weight 2 x 7.7 kg

Amplifier module (integrated in subwoofer)
Amplifier 3 x class D
System output (RMS): 1400 W
System output (Peak) 2800 W
Protection circuits DC protection , Multiband limiter , short circuit , thermal protection
Cooling Convection
Controls Bluetooth HOLD TO LINK button , Bluetooth STEREO LINK button , Main level , Power On/Off , Sub level
Indicators Bluetooth , Bluetooth STEREO LINK , Limit , Power , Protect (protection circuit engaged) , Signal
Mains connector IEC power cable (included)
Operating voltage 100 V AC - 120 V AC, 50 - 60 Hz , 200 V AC - 240 V AC, 50 - 60 Hz (Automatic conversion) , Switching power supply
Power Consumption (On / Off / Max.) 0 W / 11 W / 1000 W
Ambient temperature (operating) 0 - 40 °C
Relative Humidity 10 % - 80 %
Line Inputs 1 x stereo
Line Input Connectors Neutrik XLR
Line Outputs 1 x Stereo Thru
Line Output Connectors Neutrik XLR
Number of speaker outputs 1
Loudspeaker Output Connectors Custom-made multipin
Bluetooth Standard A2DP
Bluetooth Audio Decoder AAC , aptX , SBC

DSP characteristics
Bit depth AD/DA converter 24 bit
Sampling frequency 48 kHz
Signal-to-noise ratio 106 dB
