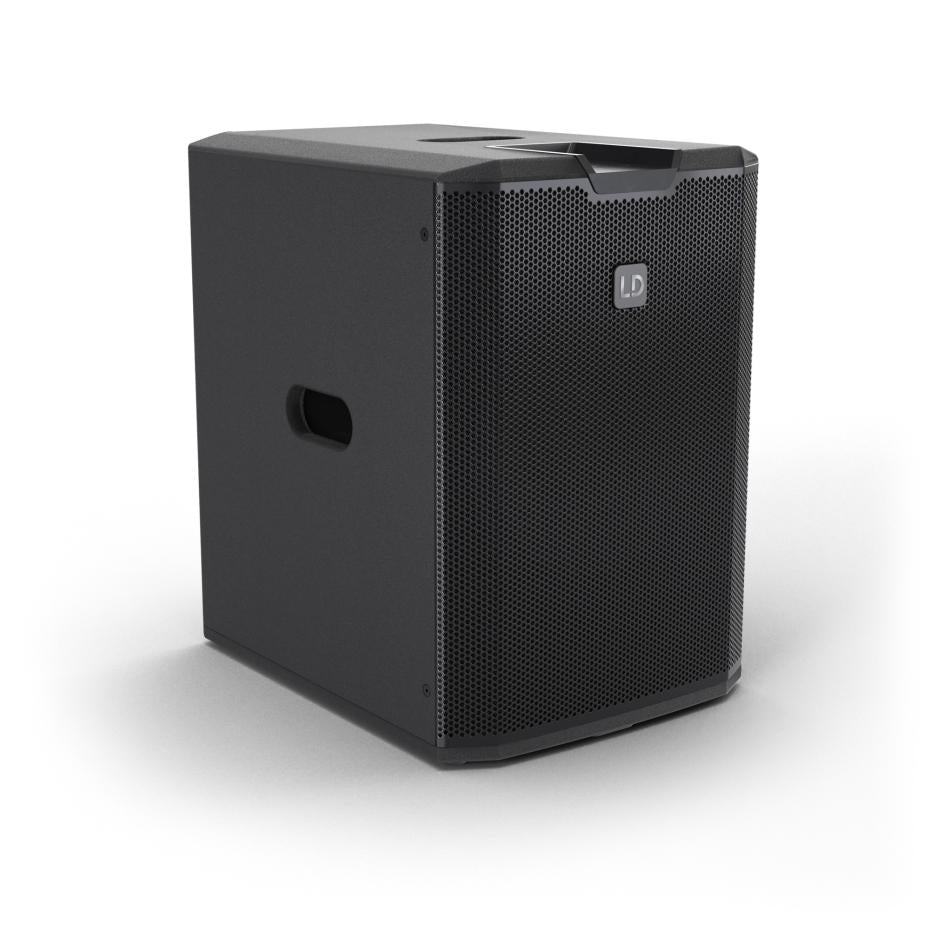

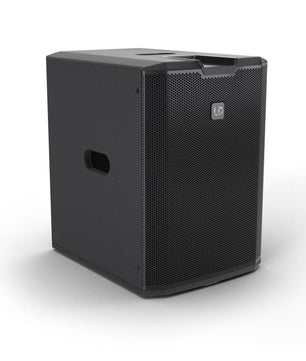

LD Systems Maui 28 G3 SUB | 12in - 127dB (Subwoofer only)

Crisper and more powerful bass with additional LD MAUI 28 G3 SUB subwoofer.
With the MAUI 28 G3 SUB subwoofer, you extend the cardioid characteristics of our professional column speaker series right into the bass range.

What does this mean?
Simply position the SUB next to your MAUI® 28 G3 facing the rear direction, switch on the Cardioid preset and you will have a quieter and controlled Low-End on the back while still keeping the punch on the front. Low-End frequencies on the back of the system will be dampened by -15 dB. For extra Bass, keep the SUB in the same direction as your MAUI® 28 G3 and switch off the Cardioid preset.

Setting up the SUB with your MAUI® 28 G3 is straight forward and fast. Thanks to its automatic set-up detection system the SUB immediately switches to FOLLOWER mode as long as no column is attached.

Also recommendable is the protection cover and castor board to make transportation easy and keep the SUB as long as possible free of any touring-damage.

The MAUI® 28 G3 SUB Wfeatures the same design construction as the MAUI® 28 G3 W subwoofer and will be the perfect addition to get your Low-End in control.

FEATURES:

Powered 12" subwoofer with flow-optimised bass-reflex ports
12" custom-designed woofer with deep bass down to 37 Hz
Preset for cardioid subwoofer configuration
DynX® DSP (Gen.2) technology for distortion-free sound at maximum volume
Automatic set-up detection (MAIN / FOLLOWER)
Rugged subwoofer housing made out of polyurea-coated birch plywood
Shockproof front grille for ultimate speaker protection
Four ergonomic handles for easy handling

SPECIFICATIONS:

General
Product type
PA subwoofer
Type
Subwoofer
Color
Black
Max. SPL (Peak)
127 dB
Frequency response (-10dB)
37 Hz - 200 Hz
Weight
22,8 kg
Features
Bluetooth Audio Streaming, DSP-based Signal Processing, Excellent Sound Dispersion, Mono/ Stereo Application
Subwoofer
Woofer dimensions
12 "
Woofer dimensions (mm)
305 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
Woofer voice coil
3 "
Woofer voice coil (mm)
76.2 mm
Cabinet construction
Bass Reflex
Housing material
15 mm Multiplex
Cabinet surface
Polyurea
Dimensions Subwoofer (W x H x D)
370 x 527 x 472 mm
Subwoofer weight
22.8 kg
Amplifier module (integrated in subwoofer)
Amplifier
Class D
System output (RMS)
1030 W
System output (Peak)
2060 W
Protection circuits
DC protection, Multiband limiter, Short circuit, Thermal protection
Cooling
Convection
Controls
Bluetooth HOLD TO LINK button, Cardioid On/Off, Main level, Power On/Off, Sub level
Indicators
Bluetooth, Cardioid On/Off, Follower mode, Limit, Power, Protect (protection circuit engaged), Signal, Subwoofer Mode
Mains connector
IEC power cable (included)
Operating voltage
100 V AC - 120 V AC, 50 - 60 Hz, 220 V AC - 240 V AC, 50-60 Hz
Fuse
T 5AL / 250 V
Power consumption
400 W
Ambient temperature (operating)
0 - 40 °C
Relative Humidity
< 80% (non-condensing)
Line Inputs
2
Line Input Connectors
Combo XLR / TRS
Line Outputs
1 x Sub OUT, 2 x THRU
Line Output Connectors
XLR male
Number of speaker outputs
1
Loudspeaker Output Connectors
Custom-made multipin
Bluetooth Standard
A2DP
Bluetooth Audio Decoder
AAC, SBC
DSP characteristics
Bit depth AD/DA converter
24 bit
Sampling frequency
48 kHz
