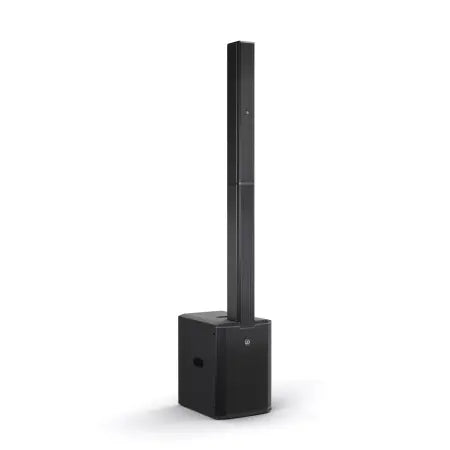

LD Systems Maui 28 G3 | Dual 12″ Woofers - 127 dB | Portable Column PA

DJs, singer-songwriters, and smaller bands in need of an all-in-one PA package that sounds great and is easy to transport will appreciate the black LD Systems MAUI 28 G3, a compact column array well suited for concerts, mobile DJs, and as a public address system at weddings, corporate events, and more. The MAUI 28 G3 delivers a powerful and precise sound, thanks to the 1000W RMS power (2000W peak) Class-D amplifier that's housed in the 12" subwoofer module. The columns are equipped with 12 x 3.5" midrange drivers and 2 x 0.5" tweeters, providing an even sound distribution with constant horizontal dispersion in combination with the innovative phase plug design. Additionally, the curved waveguide ahead of the tweeters carries the high frequencies evenly to the very rear audience areas.

The LD Systems engineers fine-tuned the system to reduce harmonic distortion and interference and make the sound even more transparent, vibrant, and powerful, resulting in a highly precise reproduction of vocals and instruments across the entire 120 x 30° dispersion field. The MAUI 28 G3 is capable of cardioid subwoofer operation with the use of an additional subwoofer (separately sold). Simply press the Cardioid button to enable the onboard DSP's cardioid mode, which can lower the rear volume up to 18 dB. In addition, the ultra-durable polyurea coating of the subwoofer easily withstands even the toughest demands on the road.

FEATURES:

Powerful and deep bass reproduction with 12” subwoofer
Balanced mids thanks to 12 x 3.5” full-range speakers
Precise and silky highs with 2 x 1“ high-frequency drivers
Cardioid column for controlled low-mid and midrange sound dispersion
BEM optimized HF waveguide and midrange phase plugs for homogeneous dispersion
Optimized bass-reflex design improves bass response and reduces air flow noise
Can be combined with an additional subwoofer for increased low end or for cardioid subwoofer setups
Dynx DSP for distortion-free sound even at maximum volume
AAC coding for HD Bluetooth 5.0 streaming
Automatic setup detection for quick and easy operation
Fast and simple assembly without stands or cables
Rugged birch plywood subwoofer housing with durable polyurea-coating
Lightweight, powder coated aluminum column housing

SPECIFICATIONS:

Portable PA System
Speaker Configuration 1 x 3-Way Speaker Column with Subwoofer
Number of Input Channels 2 (2 x Mono)
Amplifier Power Rating 1000 W RMS
Amplifier Class Class-D
Speakers
Enclosure Type Bass-Reflex
HF Driver 2 x 0.5" / 12.7 mm Horn-Loaded Tweeter
HF Voice Coil 1" / 25.4 mm
MF Driver 12 x 3.5" / 88.9 mm
MF Voice Coil 0.75" / 19.05 mm
Subwoofer Driver 1 x 12" / 304.8 mm Woofer
Subwoofer Voice Coil 3" / 76.2 mm
Magnet HF Driver:
Neodymium
MF Driver/Subwoofer:
Ferrite
Signal Processing
Input Pad None
EQ None
Semi-Parametric EQ None
Effects None
DSP 24-Bit DSP at 48 kHz
Dynamic Processing Multiband Limiter
Performance
Frequency Response 37 Hz to 20 kHz
Maximum SPL 127 dB
Coverage Angle 120° H x 30° V
Protections DC Fault, Output Limiter, Short Circuit, Thermal
Connectivity
Audio I/O 2 x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Line Input
2 x XLR 3-Pin Male Balanced Line Thru
1 x XLR 3-Pin Male Balanced Subwoofer Output
USB None
Mobile App Compatible No
*As of March, 2023: Check with manufacturer for the most up-to-date compatibility
Network I/O None
Wireless Connectivity Bluetooth
Wireless
Bluetooth 5.0
Bluetooth Profiles A2DP
Power
AC Input Power 100 to 120 VAC, 50 / 60 Hz (T 5 A L 250 V)
220 to 240 VAC, 50 / 60 Hz (T 5 A L 250 V)
Power Consumption 400 W
AC Power I/O 1 x IEC Input
Physical
Transport Options Subwoofer:
1 x Handle (Top)
Cooling Convection
Construction Material Aluminum, Plywood, Polyurethane
Environmental Protection None
Dimensions System:
80.8" / 2052 mm (Full Assembly)
Subwoofer:
20.7 x 18.6 x 14.6" / 527 x 472 x 370 mm
Top Speaker:
60.6 x 5.3 x 4.1" / 1540 x 135 x 103 mm
Weight System:
78 lb / 35.4 kg (Full Assembly)
Subwoofer:
50.3 lb / 22.8 kg
Top Speaker:
27.8 lb / 12.6 kg
