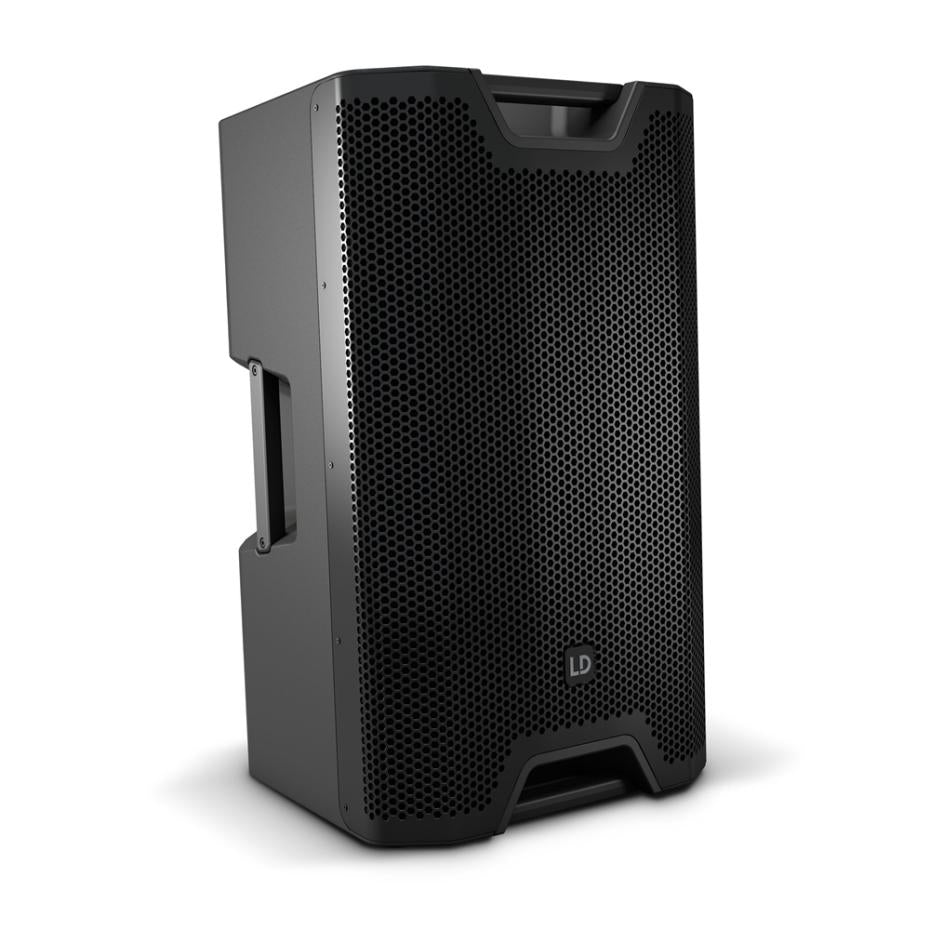

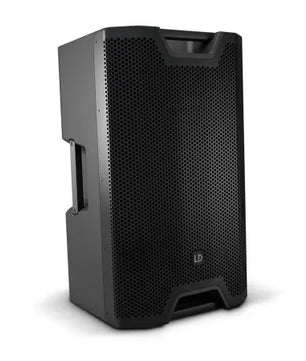

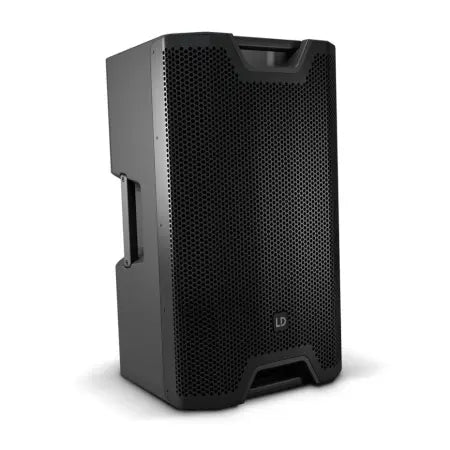

LD Systems ICOA 15A | 15in - 128dB

$530.00
Order in the next [hour] to get it between [date_start] and [date_end]
Title
  • New Product

Call For More Details

Call us at 123-456-7890

Returns & Exchanges Policy
When you buy directly from us, we want you to be 100% happy with your purchase experience. We hope you love everything you receive from us, but if you’re less than 100% satisfied, you may return or exchange any item(s) within 30 days after your purchase. Please a contact customer service team member if your order is unsatisfactory or doesn’t suit your needs. We want to make it right for you, as quickly and easily as possible
  • Step 1
    Fill out the return info on the back of your order form. Can’t find your order form? Download a copy of the return form. Want to exchange it for a different product? Let us know within 30 days of your purchase.
  • Step 2
    Return the order yourself via USPS, FedEx or any other traceable method. We encourage you to insure your package. Please send it to: Gaiam Attention: Returns 9107 Meridian Way, West Chester, OH 45069
Please allow 14 days for us to receive and process your return. Original shipping and handling fees are not refundable. We'll credit or refund the value of the items returned and any taxes you were charged less the original shipping charges. Please contact Customer Relations for more information regarding our return policies. Credit card adjustments should appear within two billing cycles.

  • Guarantee Safe
    Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Description

Shipping

Return Policies

The ICOA 15 A by LD Systems is a genuine all-rounder for full-range, satellite and monitor applications. This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this active 15" loudspeaker exceptionally flexible.

Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 15 A is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.

Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.

Features:

128 dB max. SPL and 1200 W peak power
Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimized CD horn (Patent Pending)
Horn-loaded woofer
DynX DSP with 4 presets, 3-band EQ and delay function
2 line/mic input channels with individual gain controllers plus mono mix output; Bluetooth® streaming with the BT model
36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand
Shock-resistant front grille for optimal protection of the speaker
4 aluminum grips with ergonomic, rubber surface
Extensive, optionally available accessories for installation and transport
The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 15 A the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 128 dB max. SPL and 300 W RMS performance. Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected.

Specifications:

Product Type: PA Loudspeaker
Type: Actives
Low/Mid Driver Dimensions: 15 "
Woofer Size: 381 mm
Woofer Magnet: Ferrite
Woofer Brand: Custom-made
Horn: BEM optimized CD Horn
HF Driver Dimensions: 1 "
HF Driver Size: 25.4 mm
HF Driver Magnet: Ferrite
HF Driver Brand: Custom-made
HF Driver Voice Coil: 1 "
HF Driver Voice Coil: 25.4 mm
Amplifier: Class D
Dispersion (H x V): 90 ° x 50 °
RMS: 300 W
Peak Power: 1200 W
Frequency Response: 48 - 20000 Hz
Crossover Frequency kHz: 2 kHz
Max. SPL (peak): 128 dB
Protection Circuits: Multiband limiter, over voltage, over-current, thermal overload
Controls: 2 x gain, On / off switch, Rotary/push encoder
Indicators: LC Display
Mic/ Line Inputs: 2
Mic-/ Line Input Connectors: 6.3 mm jack Combination sockets (symmetrical), XLR
Line Inputs: 1
Line Input Connectors: 3.5 mm TRS
Line Outputs: 1
Line output Connectors: XLR
Operating Voltage: SMPS
Power Consumption: 150 W
Ambient Temperature (In Operation): 0 - 40 °C
Operating Voltage: 100 V - 240 V AC / 50 - 60 Hz
Relative Humidity: < 80 %, not condensing
Fuse: T4AL 250 V
Cabinet Material: Polypropylene
Cabinet Construction: Bass Reflex
Tripod Flange: 32 °F, 36mm flange, 5°
Monitor Angle: 55 °
Width: 416 mm
Height: 695 mm
Depth: 415 mm
Weight: 24,3 kg
Accessories (Included): Power cord
