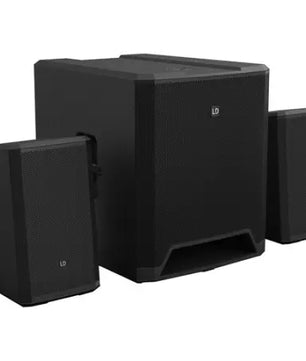

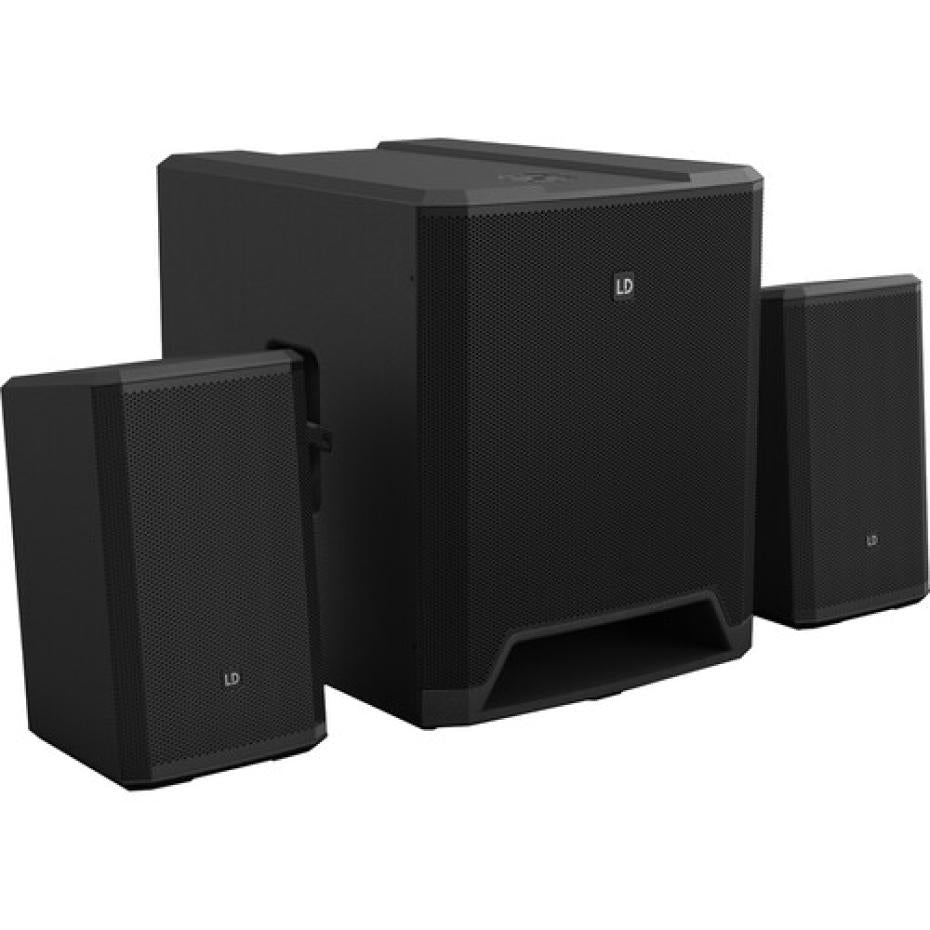

LD Systems DAVE 18 G4X | 18in - 134dB

Audio professionals, musicians, and mobile entertainers in need of a compact 2.1 PA system will be impressed with the LD Systems DAVE 18 G4X, a powered 2.1 sound system with a 18" subwoofer and two 8" satellites that's well suited for a variety of applications, including live bands, DJs, backyard parties, singer/songwriters, bars, clubs, cafes, and more. The integrated 4000W peak amplifier powers the 18" woofer and the two satellites, which contain an 8" midrange driver and two 0.5" tweeters, providing a 30 Hz to 20 kHz (-10 dB) frequency response and a max SPL of 134 dB, plenty of volume to reach the back of the room.

Inputs 1-2 feature combo XLR-1/4" connectors that are switchable between mic, line, and instrument, while inputs 3 and 4 are a stereo pair of combo XLR-1/4" and stereo RCA connectors. Inputs 5-6 feature an optical SPDIF input that's switchable to the built-in Bluetooth receiver. There are two speakON connectors (L, R) for connecting the satellites. Channels 1 and 2 features gain controls, 2-band EQ, and a reverb send with a choice of 3 reverb presets. Channel 3-4 and 5-6 have gain controls. There is a main level control as well as a sub volume control and a high-frequency volume control. The DAVE 18 G4X includes a power cord.

FEATURES:

2.1 Portable PA System
4000W Peak Power
Integrated 6-Ch Mixer with EQ + Reverb
18" Subwoofer + DynX DSP
8" + Dual 0.5" Satellite Speakers
Waveguide for Homogeneous Dispersion
Two Mic, Line, Inst Inputs
Two Line Inputs + SPDIF/Bluetooth Inputs
Selectable Presets for Stereo or Cluster
Includes Power Cord

SPECIFICATIONS:

Portable PA System
Speaker Configuration 2 x 3-Way Loudspeaker with Subwoofer
Number of Input Channels 6 (2 x Mono, 2 x Stereo)
Amplifier Power Rating Subwoofer:
1000 W RMS (AC Power)
2000 W Peak (AC Power)
Speakers:
2 x 500 W RMS (AC Power)
2 x 1000 W Peak (AC Power)
Amplifier Class Class-D
Impedance HF Driver/MF Driver:
4 Ohms
Speakers
Enclosure Type Speaker:
Bass-Reflex
Subwoofer:
Bass-Reflex
HF Driver 2 x 0.5" / 1.3 cm Tweeter (per Speaker)
HF Voice Coil 1" / 2.5 cm
MF Driver 1 x 8" / 20.3 cm Cone (per Speaker)
MF Voice Coil 1.5" / 3.8 cm
Subwoofer Driver 18" / 457.2 mm Woofer
Subwoofer Voice Coil 4" / 101.6 mm
Magnet MF Driver/LF Driver:
Ferrite
HF Driver:
Neodymium
Signal Processing
Crossover 105 Hz
Input Pad None
EQ Yes
Semi-Parametric EQ None
Effects 3 x Reverb
Dynamic Processing Peak Limiter
Frequency Response 30 Hz to 20 kHz -10 dB
Maximum SPL 126 dB (Continuous)
134 dB (Peak)
Coverage Angle 90° H x 30° V
I/O Impedance speakON Output:
4 Ohms
Protections Output Limiter, Overload, Short Circuit
Connectivity
Audio I/O 2 x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Mic/Line/Hi-Z Input
2 x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Line Input
1 x Stereo RCA TS Female Unbalanced Line Input
1 x TOSLINK Optical Female S/PDIF Input
2 x speakON NL4 Female Speaker Output
USB None
Mobile App Compatible No
*As of February, 2023: Check with manufacturer for the most up-to-date compatibility
Network I/O None
Wireless Connectivity Bluetooth
Bluetooth Yes
Bluetooth Profiles A2DP
Pairing Manual
Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz (T 3.15 A L 250 V)
Power Consumption 600 VA (Max)
AC Power I/O 1 x IEC Input
Physical
Transport Options Subwoofer:
1 x Handle (Each Side)
Speaker:
1 x Handle (Rear)
Mounting Subwoofer:
1 x M20 Pole Socket (Top)
Speaker:
1 x 0.6" / 16 mm Pole Socket (Dual Angle, Bottom)
Cooling Heat Sink
Construction Material Plywood
Environmental Protection None
Dimensions Subwoofer:
26.2 x 25.2 x 21.5" / 665 x 640 x 545 mm
Speaker:
18.5 x 10.8 x 10.2" / 470 x 275 x 260 mm (without Stand)
Weight Subwoofer:
96.6 lb / 43.8 kg
Speaker:
21.4 lb / 9.7 kg
