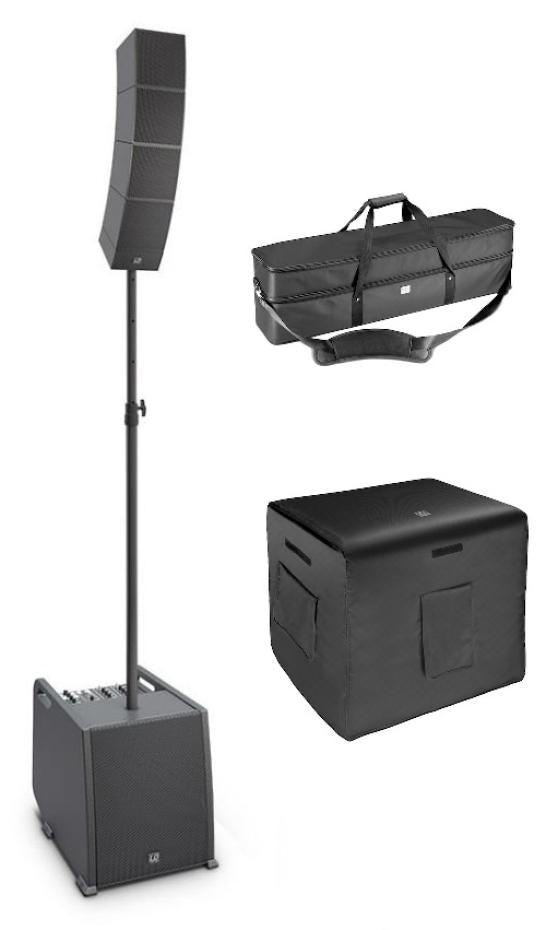

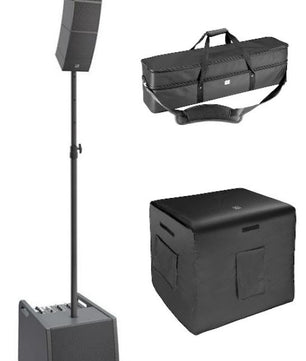

LD Systems Curv 500 ES w/ Bags

PACKAGE:
(1) LD Sys CURV-500 ES Powered System
(1) LD Sys CURV-500 SAT-BAG
(1) LD Sys CURV-500 SUB-PC

CURV 500 ES

PORTABLE ARRAY SYSTEM ENTERTAINER SET INCLUDING DISTANCE BAR & SPEAKER CABLE
The Entertainer Set consists of a high-performance 10" bass reflex subwoofer and an easily configurable array system with four satellites. Featuring a power of 460 watts RMS and a maximum sound pressure level of 128 dB, the CURV 500 ES Set is the ideal sound system for small events or conferences and meetings.

The compact, transport-friendly CURV 500 is an array system with 4 interlocking satellites, which are operated via a SmartLink® adapter. The elements, only 12 x 12 cm in size, are equipped with LD System's own WaveAhead® technology. A 4" and three 1" drivers provide a coherent and extremely detailed playback with high pressure and dynamics.

The 10" bass-reflex subwoofer houses the Class D power amplifier and includes a limiter, protection against short circuit, overheating, over-voltage, as well as a 4-channel mixer with 16 digital effect presets and Bluetooth®. Combo, and Speakon- compatible sockets offer extensive connectivity options, and the subwoofer features four digital system presets, an M20 threaded flange and three ergonomic carrying handles.

The CURV 500 Entertainer Set includes a subwoofer with a mixer unit, four satellites, SmartLink® adapters, extension tube and speaker cables. With the Power Extension set, the Entertainer Set can provide even more power, at any time, thus expanding to a high-performance Power Set.

Specifications:

Product number: LDCURV500ES
Product type: Portable Array System
Type: active
System output (RMS):: 460W
Color: black
Number of array satellites: 4
Number of Smartlink adapters: 1
Number of subwoofers: 1
Max. SPL (continuous): 122dB
Max. SPL (peak): 128dB
Frequency response: 47 - 20000Hz
Dispersion (H x V): 110° horizontal, vertical (each satellite) 10°
RMS: Subwoofer: 300 W , Array Satellites: 2 x 160W
Peak power: Subwoofer: 1200 W , Array Satellites: 2 x 640W
Amplifier: Class D
Protection circuits: thermal overload, overload, short circuit, DSP-based multiband limiter
Weight: 24kg
Accessories (included): Power cord, Speaker cable (2.2 m), Distance bar

Subwoofer
Low/mid driver dimensions: 10"
Low/mid driver dimensions (mm): 254mm
Cabinet construction: vented
Cabinet material: plywood
Cabinet surface: PA painting
Dimensions Subwoofer (W x H x D): 325 x 383 x 491mm
Subwoofer weight: 16.5kg
Subwoofer features: 4 System DSP Presets, 16 DFX Presets, Bluetooth, 4 channel mixer, 3 ergonomic handels, Threaded flange M20

Array Satellites
Mid/Hi system: MF: 1 x 4" / HF: 3 x 1" with WaveAhead® Technology / 16 ohms
Array Satellite Features: internal crossover, metal grille, WaveAhead® Technology
Array Satellite Material: die-cast aluminium
Array Satellite Surface:: powder coated
Array Satellite Dimensions (W x H x D): 122 x 122 x 122mm
Array Satellite Weight: 1.7kg

Smartlink® Adapter
Smartlink Adapter Features: 2 x 16 mm pole mount socket, 2x M6 thread for optional wall mount
Smartlink Adapter Connectors: 1x Phoenix, 1 x Speakon-compatible
Smartlink Adapter Material: die-cast aluminium
Smartlink Adapter Surface: powder coated
Smartlink Adapter Dimensions (W x H x D): 122 x 57 x 122mm
Smartlink Adapter Weight: 0.6kg
