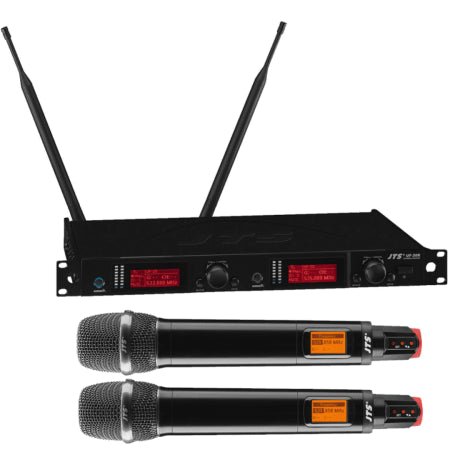

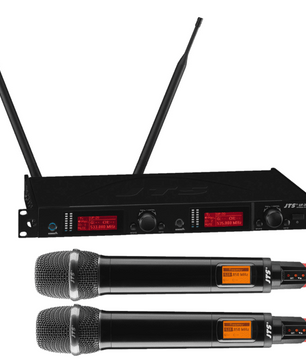

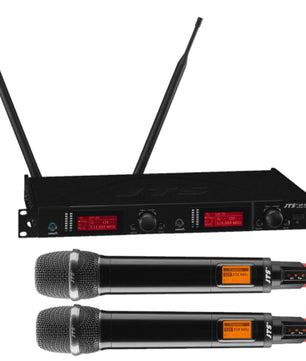

JTS UF-20R/JSS-20 | Dual Handheld Wireless Mic System

$1,499.00

Order within [hour] to get by [date_end]

Quantity

Pickup available at NJ Warehouse.

Usually ready in 1 hour

JTS UF-20R/JSS-20 | Dual Handheld Wireless Mic System

NJ Warehouse

Pickup available, usually ready in 1 hour

238 U.S. 206
Byram Township NJ 07821
United States

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

UF-20R/JSS-20 System
Professional Dual Channel Wideband True Diversity System

* UHF True diversity technology renders 200-480 meters of operation distance
* Maximum 2400 to 3000 selectable frequencies across 60 to 75 MHz
* Preset 15 groups each of up to 63 compatible channels
* User programmable 6 groups each of 64 channels
* Free space scan function
* JTS Patented obstacle-free RF
function synchronizes a transmitter by pushing a
button
* JTS LCX circuit design technology minimizes companding noise
NEWEST FEATURE:
* The is now not only sends the frequency data but also transmitter’s RF power,
sensitivity, low cut, key lock and user's name.
* RF “NO SIGNAL” alert function.
* AF “MUTE” alert function.
* Transmitter “LOW BATTERY” alert function.
* Built in equalizer
* Power / Antenna cascading output provided.

Specifications:

UF-20R
Frequency Preparation
PLL Synthesized Control
Frequency Setting JTS patented obstacles-free RF REMOSET
Carrier Frequency Range UHF 530-605 MHz
Channel Dual
Bandwidth 60~75MHz Wideband
S / N Ratio > 108dB (A)
T.H.D <0.5% @ 1KHz
Chassis 1U standard metal chassis
Preset Channels / Group
* From group 1 ~ 15 up to 63 interference-free compatible channels.
* 690 preset channels / group and 3000 selectable frequencies across 60 to 75 Hz Bandwidth.
* User programmable from U1 ~ U6 each of 64 channels reserved.
Display LCD
Display Contents Group, Channel, Frequency, Antenna A / B, RF / AF Level Meter, Mute Display, Transmitter Battery Status, REMOSET ID Number, User Name, Squelch
Sensitivity 6dBμV, at S / N> 80dB
Receiving Mode True diversity
Audio Output Level Maximum 6dBu
Receiving Mode True diversity
Audio Output Level Maximum 6dBu
AF Output Impedance 600Ω
Frequency Response 50Hz ~ 18kHz, with high-pass filter
Squelch Pilot Tone & Noise Mute
Power Supply 100 ~ 240V or 12V DC
Output Connector 2 XLR Balanced Socket
2 Ø6.3mm Unbalanced phone jack
Dimension (m / m) 480mm (W) 45Mmm (H) 260mm (D)
Notes Actual product specifications may vary depending on model and region.

2x JSS-20
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range UHF 530-605 MHz
Bandwidth 60~75MHz Wideband
RF Outputs Low / High
Stability < ±10KHz
Frequency Deviation ±48KHz (Peak)
LCD Display Group, Channel, Frequency, Battery Status, User Name, GAIN Adjust
Controls Power ON / OFF, AF Level, Frequency (Up / Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
Spurious Emissions <-50 dBC
Audio Frequency Response 50Hz ~ 18k Hz
Capsule Module Interchangeable
Battery AA NiMH x2
Dimensions 50mm (W) x253mm (H) x35.5mm (D)
Weight 350g
Notes Actual product specifications may vary depending on model and region.

Shipping

We only list in stock items on TheDJHouse.com.

Orders ship from our northern NJ warehouse the same day if ordered by 3:30PM EST. Transit time ETA's are listed in the image below:

Return Policies

All orders come with our industry leading 90-Day return policy.

Cash Back or Store Credit available for returns within 30 days.
Store Credit available for returns within 31-90 days.

Restocking fees

Unopened Items: 5%
Opened but Mint Condition: 15%
Blemished, Missing/Damaged Packing or Accessories: 25%

Shipping Costs

Buyer is responsible for return shipping costs
If "Free" or discount shipping was provided with original order, our actual shipping cost will be deducted from the amount refunded/credited

Damages & Defects

We will swap any item reported as damaged or defective within 7 days of delivery for free. All transportation and replacement costs will be covered by us (within US48 states).
