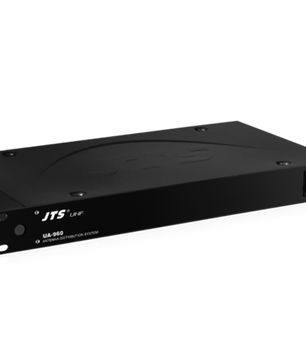

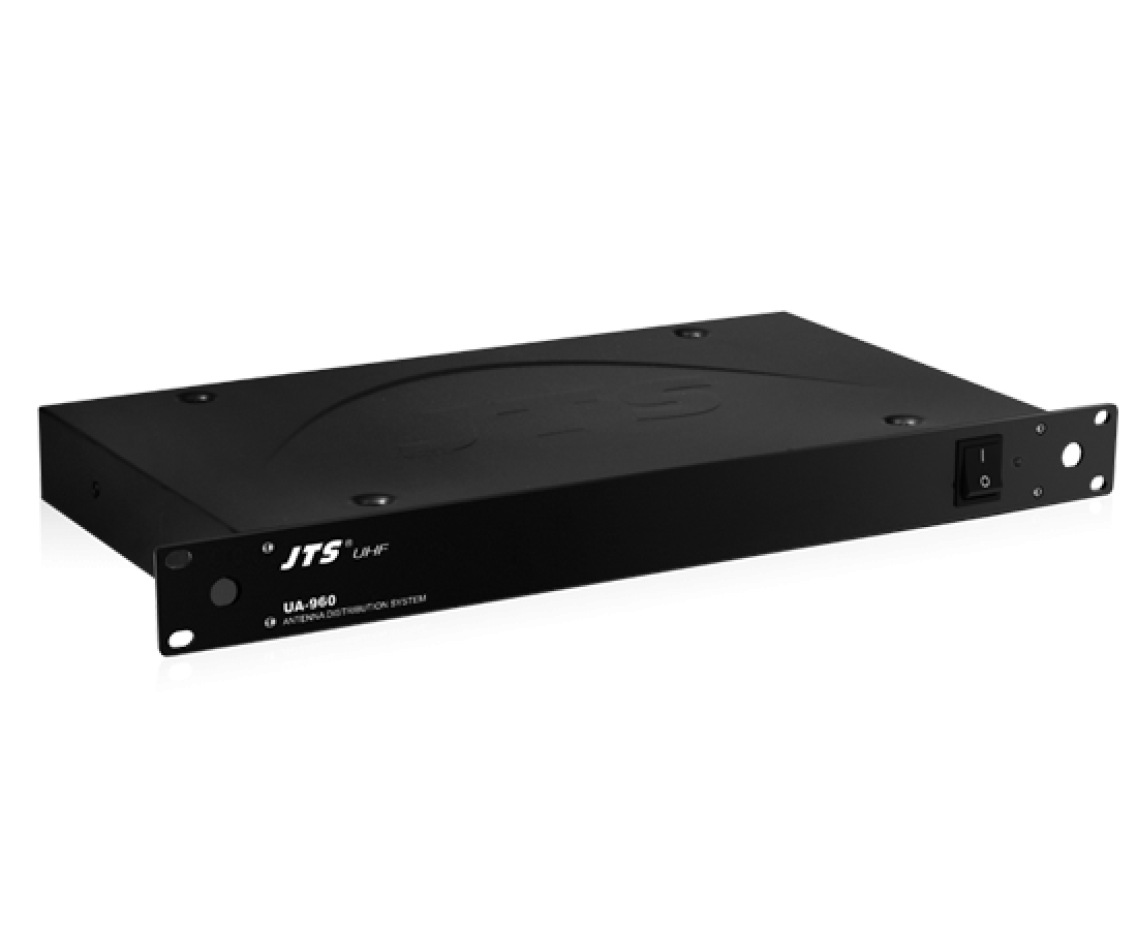

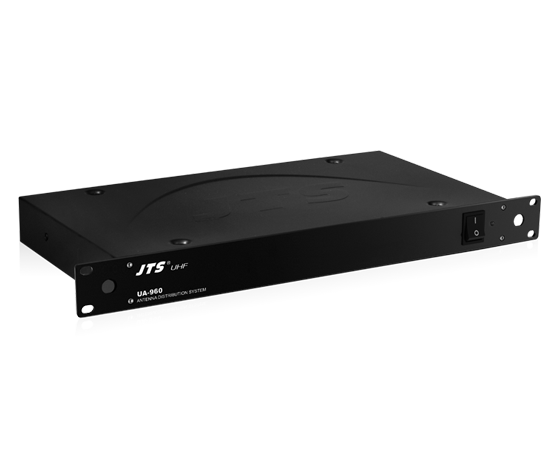

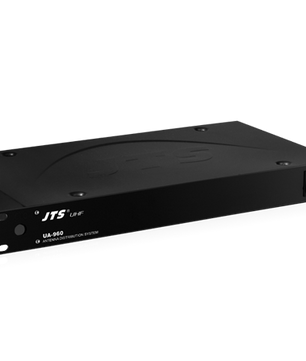

JTS UA-960 | UHF Antenna Splitter / Distributor

JTS UA-960 | UHF Antenna Splitter / Distributor

$751.00

Order within [hour] to get by [date_end]

Quantity

Call For More Details

Call us at 123-456-7890

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

UA-960
The JTS UA-960 is a full range UHF antenna splitter that routes antenna signals from a pair of antenna to several receivers in a multi-channel system. The UA-960 also amplifies the RF signals to compensate the loss incurred from splitting signal power. Bulit-in DC distribution provides four DC 12V power supply for receivers. A single UA-960 can support up to four wireless receiver. Multiple UA-960 can be cascaded for more wireless receivers. * 1 extra BNC socket that can be easily cascaded with another antenna distributor.

SPECIFICATIONS
UA-960
Frequency Range 470-960 MHz
RF Output Level(Gain) 3 dB ± 2
Cascade output level 0dB ~ +2dB
Output Connection Isolation ≥ 25 dB
Third Order Intercept Point 24 dBm
Impedance 50 Ohm
Power Consumption 60W
Input AC Voltage 100 ~ 240 V switching power
Output DC Voltage +12V ---1A x 4
Antenna Booster DC Voltage 12V
Dimension 480(W)*45(H)*250(D) mm(standard
19" and 1 U case)
Net Weight 2.15 Kgs
