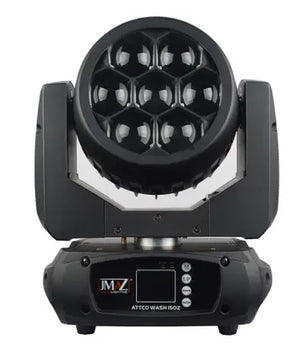

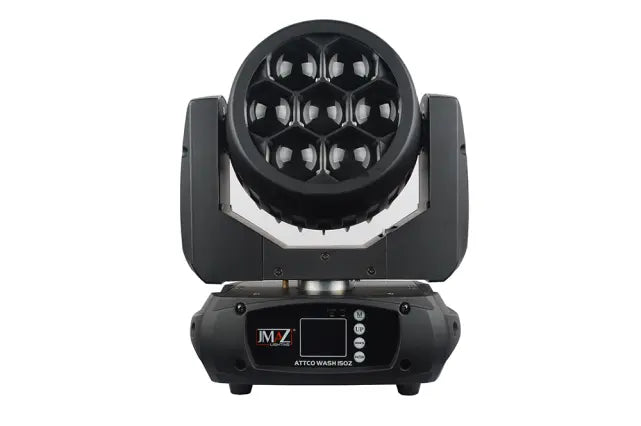

JMAZ ATTCO Wash 150Z | 210 Watts - 6-60 Degrees
The JMAZ ATTCO WASH 150Z is a compact and versatile moving head wash fixture, perfect for professional stages, nightclubs, and mobile performances. With its powerful 7 x 30W RGBW LEDs, the ATTCO WASH 150Z delivers a vibrant and dynamic light show, featuring a smooth, fast, and quiet motorized zoom ranging from 6° to 60°. This fixture is designed to provide even, soft-edge, and pure color mixing coverage, making it an ideal choice for creating stunning visual effects.
Main Features
- 7 x 30W 4-IN-1 RGBW LEDs
- Beam angle: 6°-60°
- 0-100% Linear LED dimmer
- DMX512, master-slave, sound activated, and auto operation (9 built-in programs)
Technical Specifications
-
Light Source: 7 x 30W RGBW LEDs
-
Color System: RGBW LEDs
-
Body: High Temperature Engineered Plastic and Cast Aluminum Casing
-
Pan Angle: 630°
-
Tilt Angle: 270°
-
Pan/Tilt Resolution: 8 / 16 Bit
-
Dimmer: 0-100% Linear Dimmer
-
Strobe/Shutter: 25 T/sec
-
Operating Temperature: -20°C to 45°C
-
Mains Power Supply: AC Mains
-
Max Power Consumption: 240W
-
Input Voltage: AC 90-260V 50/60Hz
-
Zoom: 6° to 60°
-
Dynamic Effect: Flat Beam Field, Strobe Effect, Zoom Wash Effect
-
Control Protocols: DMX512, W-DMX, Wi-MAZ Wireless DMX
-
DMX Channels: 13/15 Channel Modes
-
Wireless Control: Wi-MAZ Wireless DMX, W-DMX, RF Remote
-
Display: 2.4″ TFT LCD Display
-
IP Rating: 20
-
Cooling: Fan
-
Pan/Tilt: 8/16 bit smooth
-
Data Connection: DMX, Wireless DMX
-
Power Connection: Power-CON
-
Dimensions: 11.1″ x 6.7″ x 13.2″
-
Weight: 14.6 lbs
What's in the Box
- 1 x ATTCO Wash 150Z
- 1 x User Manual
- 2 x Omega Brackets
- 1 x 3ft 3-pin DMX Chord
- 1 x 3ft PowerCON Chord
- 1 x RF Remote
