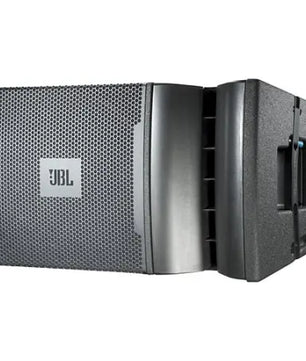

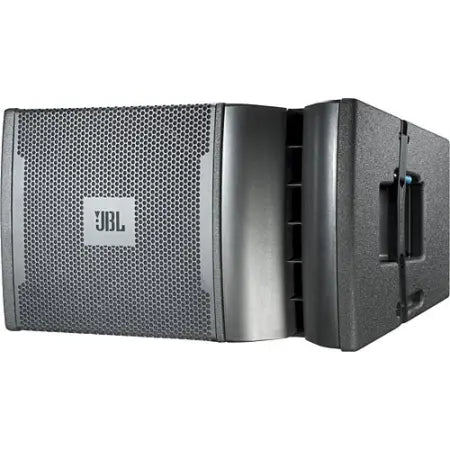

JBL VRX932LAP

Features:
Active Loudspeaker System
1750W of Peak Power
Extensive DSP

The black JBL VRX932LAP 12" Powered 2-Way Line Array Loudspeaker System is designed for playback and sound reinforcement in small to mid-sized venues.

The built-in JBL DrivePack DPC-2 amplifier module by Crown provides a whopping 1750W of peak power while the DSP-based resident input module provides system optimization and EQ. The Differential Drive woofer gives you high power while still maintaining a lightweight profile. Three 2408J annular ring diaphragm HF drivers incorporate the latest in JBL Professional compression driver design.

The VRX932LAP can be used in arrays of up to five units and works perfectly for entertainers and A/V professionals. If you're in a venue that requires a line array but not very long-throw characteristics, then this fast and easy setup is perfect for your presentation.

Crown Technology
JBL and Crown worked together to create the built-in DrivePack DPC-2 amplifier so you get 1750W of power, system optimization and EQ functionality.
JBL Differential Drive
JBL's exclusive neodymium Differential Drive woofer gives you high-power capacity and still remains its lightweight profile.
Latest Compression Drivers
Three 2408J Annular Ring Diaphragm HF drivers are the latest in JBL technology.
Array Coherence
With the constant curvature waveguide, you get unprecedented array coherence.
Easy Configuration
If you're looking to add speakers to form an array, the integral rigging hardware provides you with an incredibly simple connection of enclosures and optional array frame.

JBL VRX932LA Specs:
PA Speaker
Configuration Active 2-Way
Total Power Capacity 1750 W Peak
875 W RMS
Amplifier Power Rating LF:
1 x 750 W RMS
HF:
1 x 125 W RMS
Amplifier Class Class-D
Drivers
HF Driver 3 x 1.5" / 38.1 mm Horn-Loaded Compression Driver
LF Driver 1 x 12" / 304.8 mm Woofer
LF Voice Coil Dual
Magnet HF:
Neodymium
LF:
Neodymium
Performance
Frequency Range 57 Hz to 20 kHz -10 dB
Frequency Response 75 Hz to 20 kHz ±3 dB
Maximum SPL 136 dB
Coverage Angle 100° H x 15° V
Connectivity
Audio I/O 1 x XLR 3-Pin Female Balanced Line Input
1 x XLR 3-Pin Male Balanced Line Thru
Power
AC Input Power User Selectable:
120 to 240 VAC, 50 / 60 Hz
AC Power Connector 1 x powerCON Input (Locking)
1 x powerCON Output (Locking)
Current Consumption 120 VAC:
6 A (Max)
240 VAC:
3 A (Max)
Physical
Mounting 1 x 1.42" / 36 mm Pole Socket (Dual Angle, Bottom)
2 x Fly Point
Cooling Heatsink
Construction Material Plywood
Dimensions 13.8 x 23.5 x 17.5" / 34.9 x 59.7 x 44.4 cm
Weight 52 lb / 24 kg
Packaging Info
Package Weight 63.4 lb
Box Dimensions (LxWxH) 26 x 21.5 x 18"
