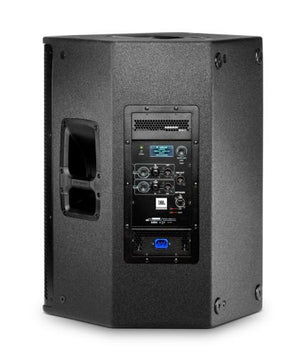

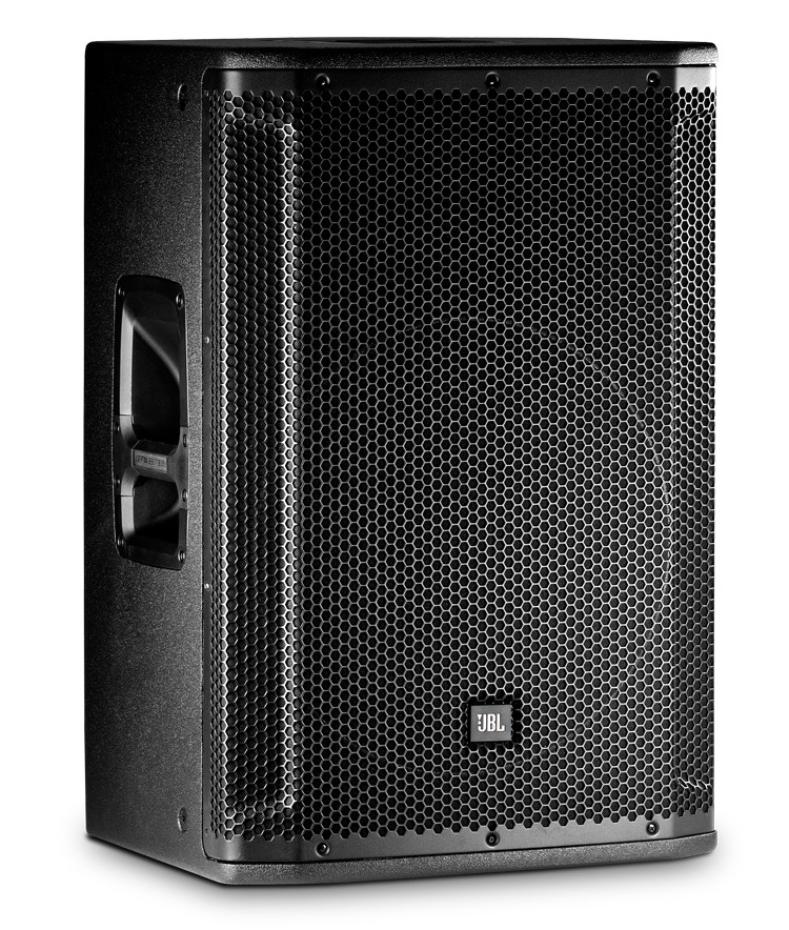

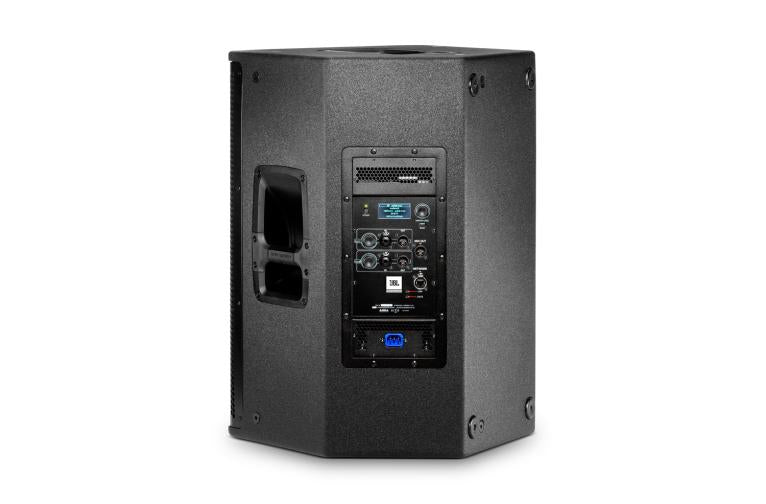

JBL SRX815P
15" 2-Way Powered Speaker with 2000W Peak Crown Amplifier
The full range 15" two-way JBL SRX815P features legendary JBL Drivers, proprietary 2,000 Watt Crown amplification, Crown Front-End DriveCore Technology, premium JBL user-configurable DSP, V5 Tunings compatible with Vertec and VTX touring systems, and HiQnet Network control options via iOS and Android applications. Drawing on JBL’s long history of groundbreaking technology and loudspeaker design, this JBL 2-way speaker meets the needs of touring houses, installations, and the most demanding live sound applications ensuring they can deploy a no-compromise, all-in-one solution featuring legendary JBL sound and performance, a wide array of configurability, and compatibility with JBL’s flagship touring systems.
Unprecedented Control
A full suite of User Controllable DSP driven by the JBL SRX815P powerful onboard 400mHz Sharc DSP includes 20 PEQ’s, 2 seconds of delay, signal generators, Input mixing, amplifier monitoring, and 50 User Presets. In addition, the system can incorporate V5 JBL Tunings providing compatibility with their flagship Vertec and VTX touring systems. An integrated LCD screen supports fast setup and configuration.
Purposeful Design
Every detail in the JBL SRX815P was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.
Transducer Technology
JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.
DriveCore by Crown
Each model is powered by Crown proprietary front-end DriveCore technology featuring a massive 2000W Power Rating, the highest power rating in this class of loudspeakers. With an outstandingly low 103dB signal- to-noise ratio, the SRX800 Series is capable of massive sound pressure levels with exceptional headroom, very low distortion and absolute clarity throughout its frequency range.
HiQnet Network Control
With full HiQnet Network Integration, configuring an SRX800 system is dramatically simplified, saving time while fully automating the control interface configuration. Simple wired control is provided via Ethercon connector and third party wireless router capability is included. Control options include Audio Architect, HiQnet Motion ControlTM iOS app, and standalone applications for iOS and Android. Order today and experience the quality of the JBL SRX815P 2000w 15" Powered Speaker.
JBL SRX815P Specifications:
System Type: Self powered 15”, two-way, bass-reflex
Max SPL Output: 137 dB
Frequency Range (-10 dB): 36 Hz - 21 kHz
Frequency Response (-3 dB): 44 Hz - 20 kHz
Coverage Pattern: 90° x 50°
Amplifier Design: Class D
Power Rating: 2000 W Peak
Dimensions (HxWxD): 27.20" x 18.03" x 18.82" (691mm x 458mm x 478mm)
Net Weight: 63 lbs (28.6 kg)
