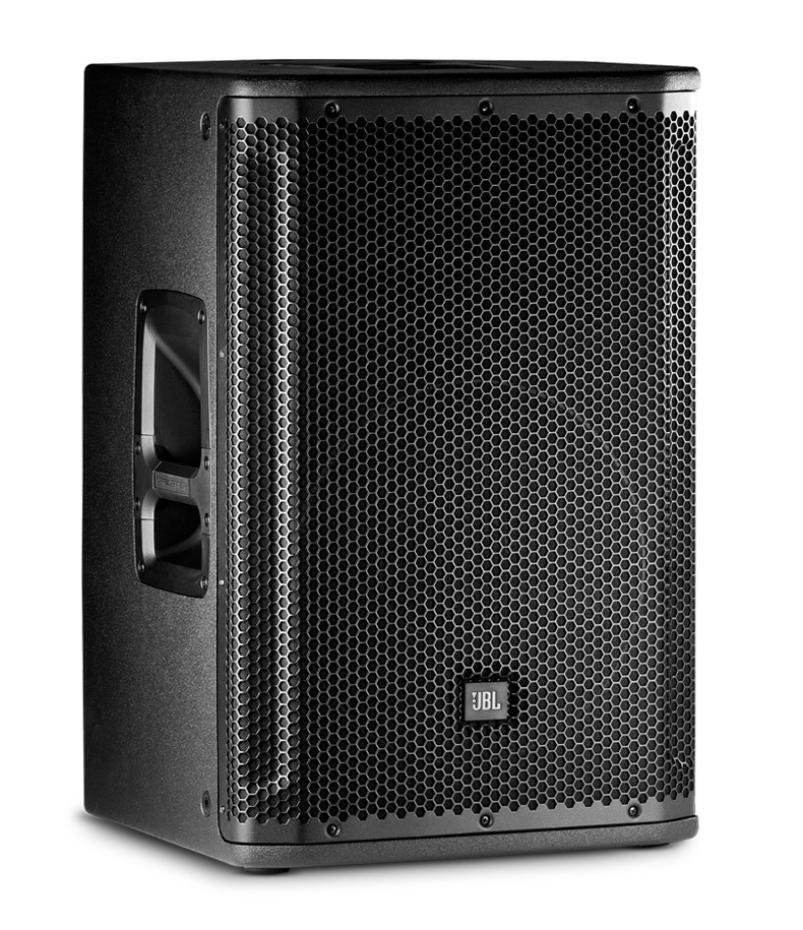

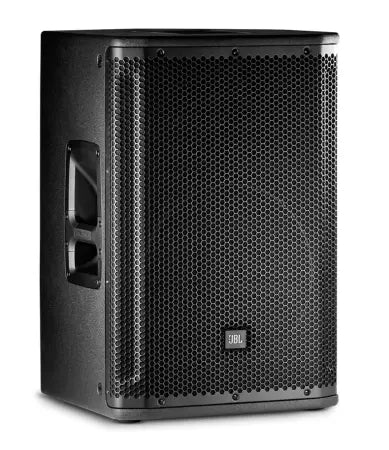

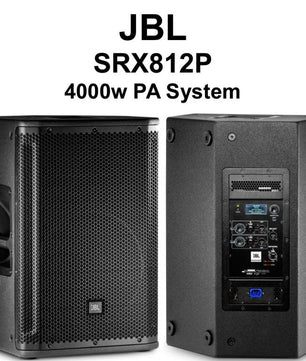

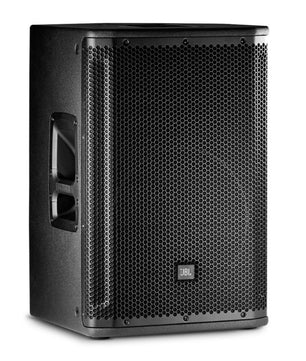

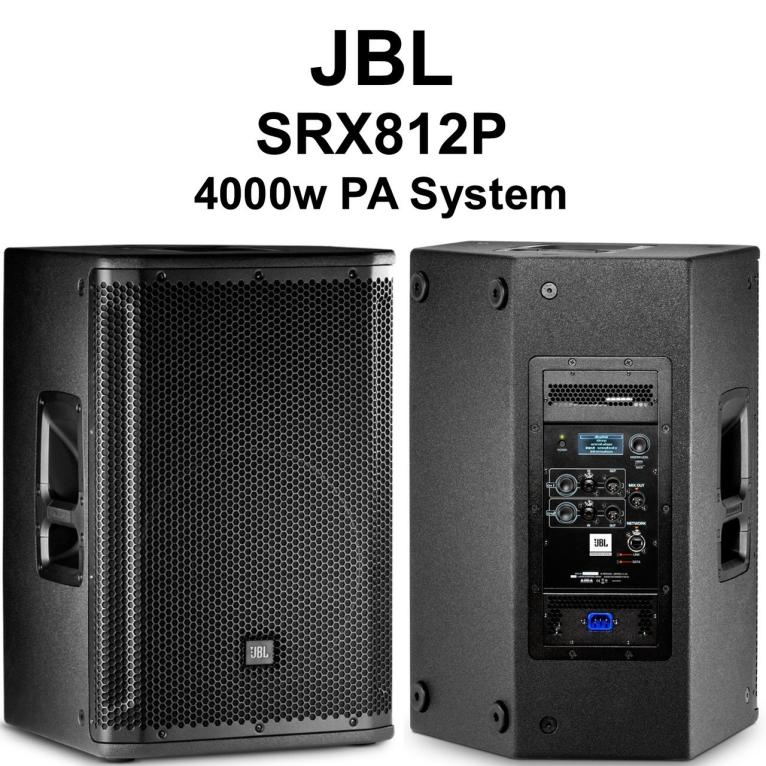

JBL SRX812P | 12" 2000W Powered Speaker
The JBL SRX812P is a high-performance 12" two-way powered speaker, part of the SRX800 series. Equipped with JBL’s legendary drivers, a 2000W Crown amplifier, and advanced DSP, it ensures superior sound quality and flexibility for live sound applications, touring, and installations.
Unprecedented Control
The SRX812P features a 400mHz Sharc DSP, offering 20 PEQs, 2 seconds of delay, signal generators, input mixing, amplifier monitoring, and 50 user presets. It supports V5 JBL Tunings for compatibility with Vertec and VTX systems.
Purposeful Design
Ergonomically designed with handles, M10 suspension points, indexed feet, and pole/tripod mounts, the SRX812P provides easy handling and flexible configurations.
Transducer Technology
Utilizing JBL’s Differential Drive® Technology and the 2432H neodymium compression driver, this speaker delivers high power levels, low distortion, and extended low-frequency response.
DriveCore by Crown
Powered by Crown’s front-end DriveCore technology, the SRX812P boasts a 2000W power rating, 103dB signal-to-noise ratio, and exceptional sound clarity across its frequency range.
HiQnet Network Control
Featuring full HiQnet Network Integration, the SRX812P simplifies system configuration with wired and wireless control options via Audio Architect, HiQnet Motion ControlTM iOS app, and standalone applications for iOS and Android.
Specifications
-
System Type: Self-powered 12”, two-way, bass-reflex
-
Max SPL Output: 136 dB
-
Frequency Range (-10 dB): 40 Hz - 21 kHz
-
Frequency Response (-3 dB): 48 Hz - 20 kHz
-
Coverage Pattern: 90° x 50°
-
Amplifier Design: Class D
-
Power Rating: 2000 W Peak
-
Dimensions (HxWxD): 25.11" x 16.31" x 16.87" (638mm x 415mm x 429mm)
-
Net Weight: 58 lbs (26.4 kg)
