Professional Column PA System with Built-In Mixer, DSP, and Bluetooth Control
The

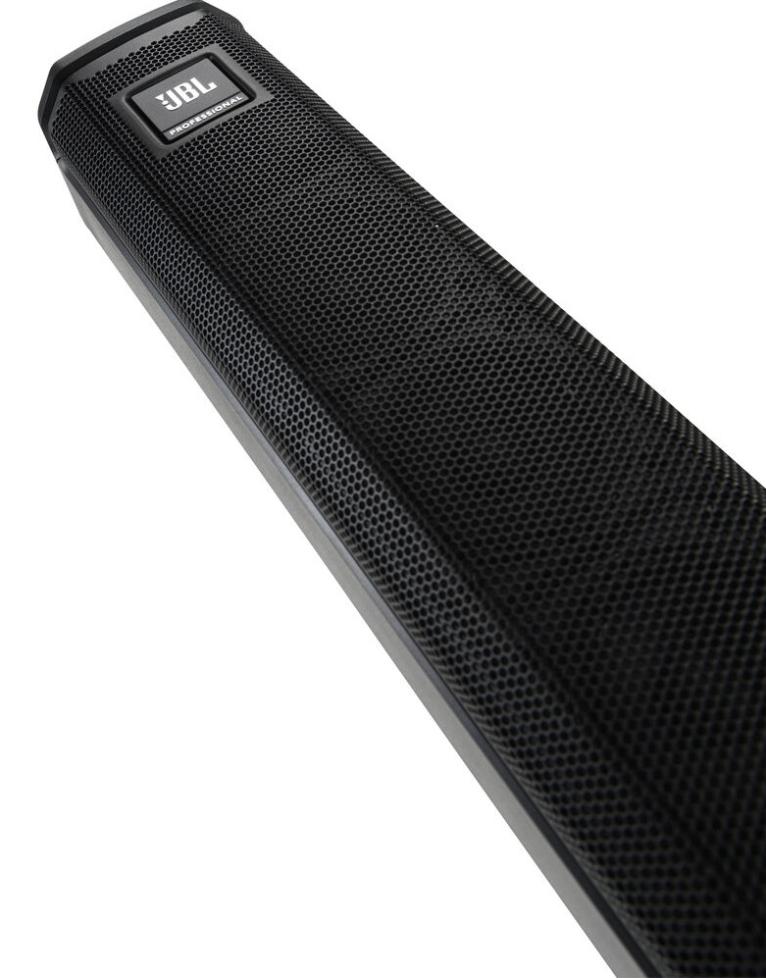

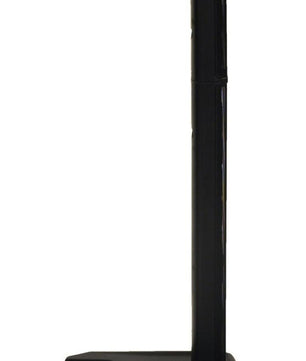

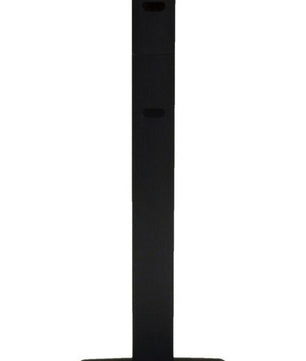

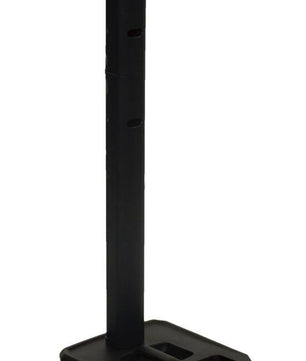

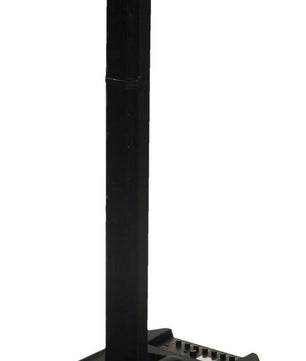

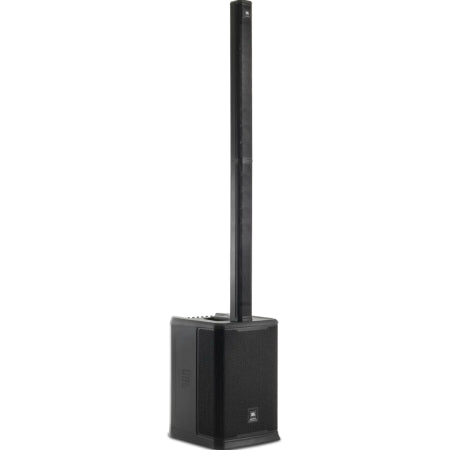

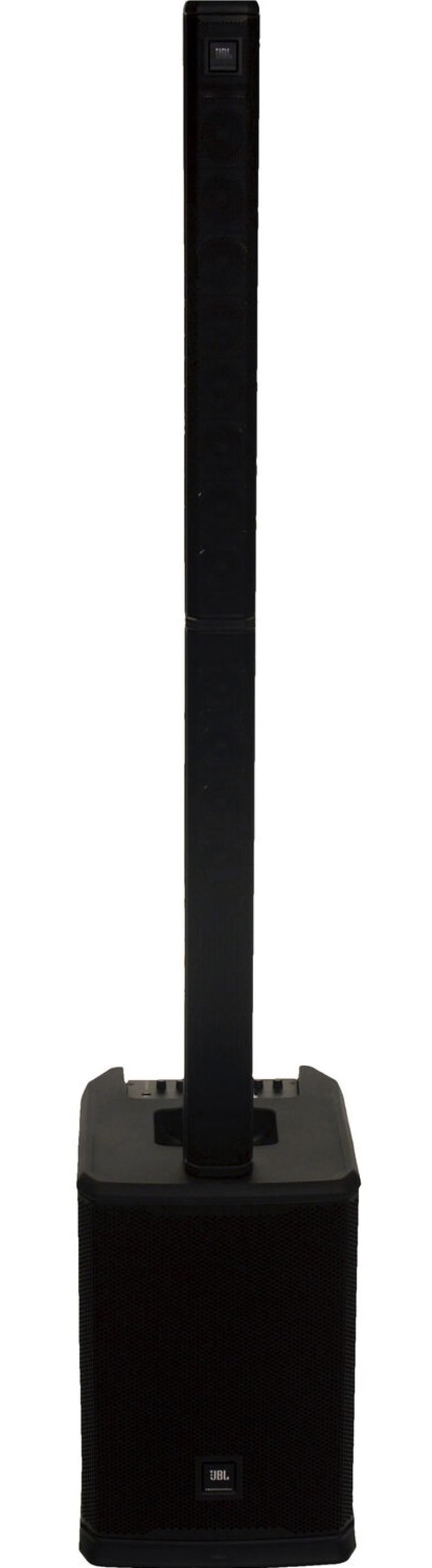

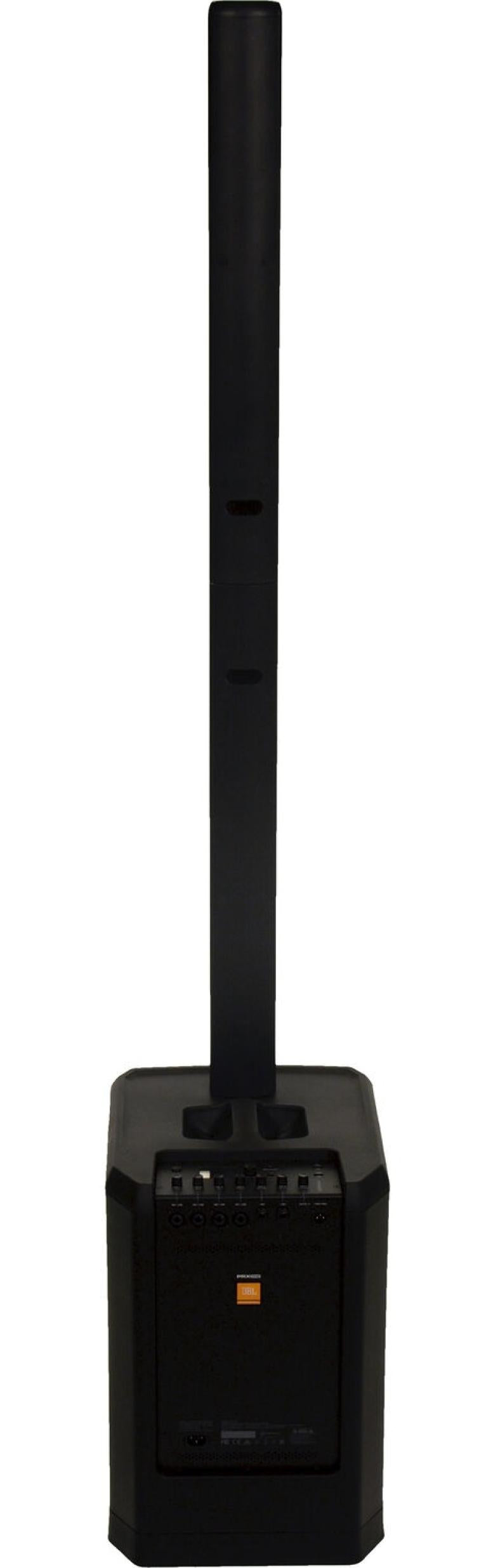

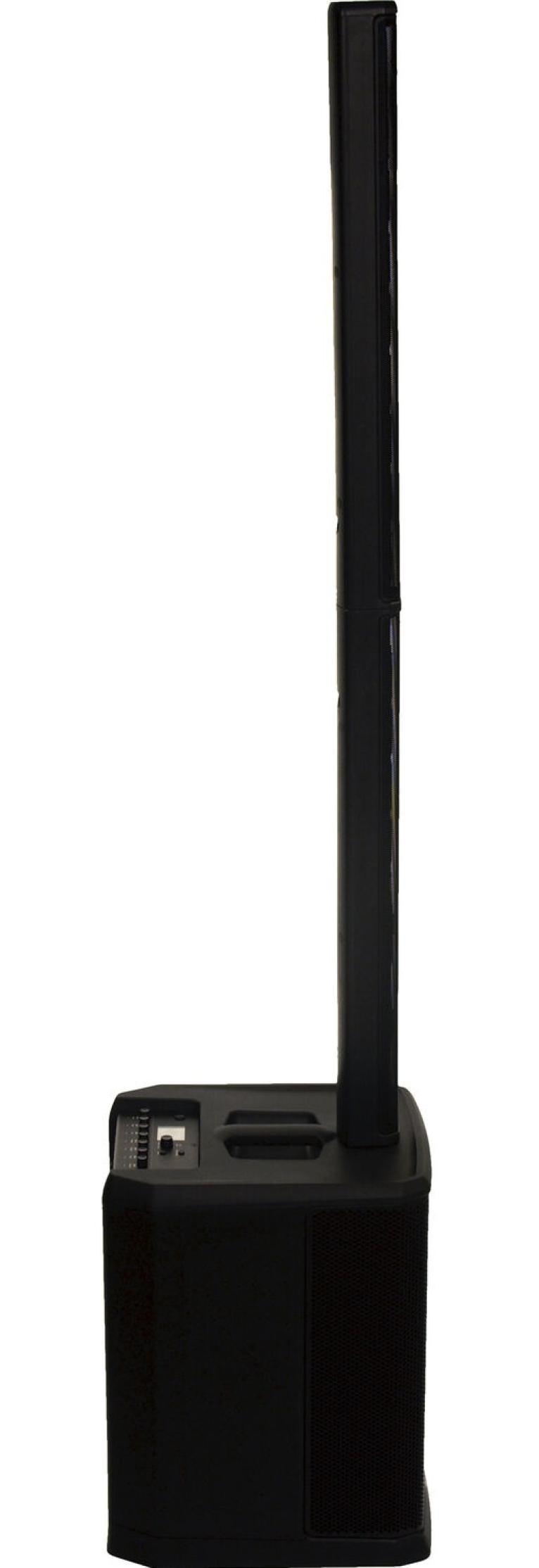

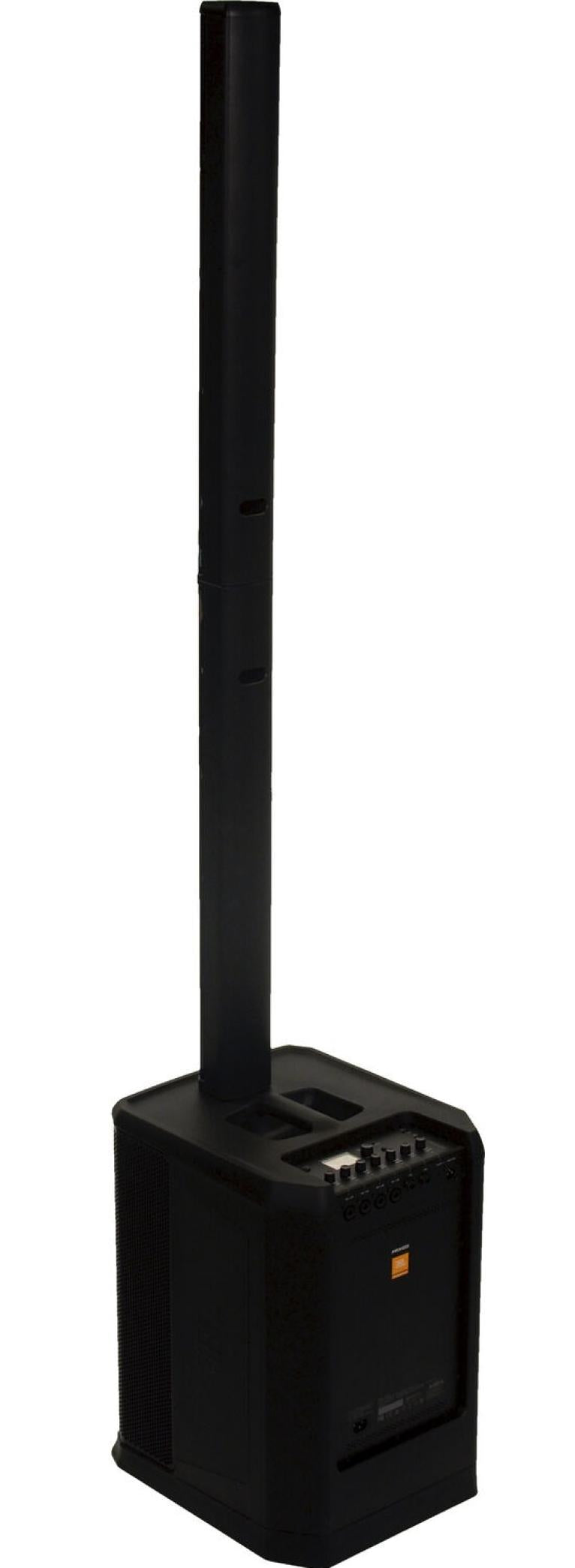

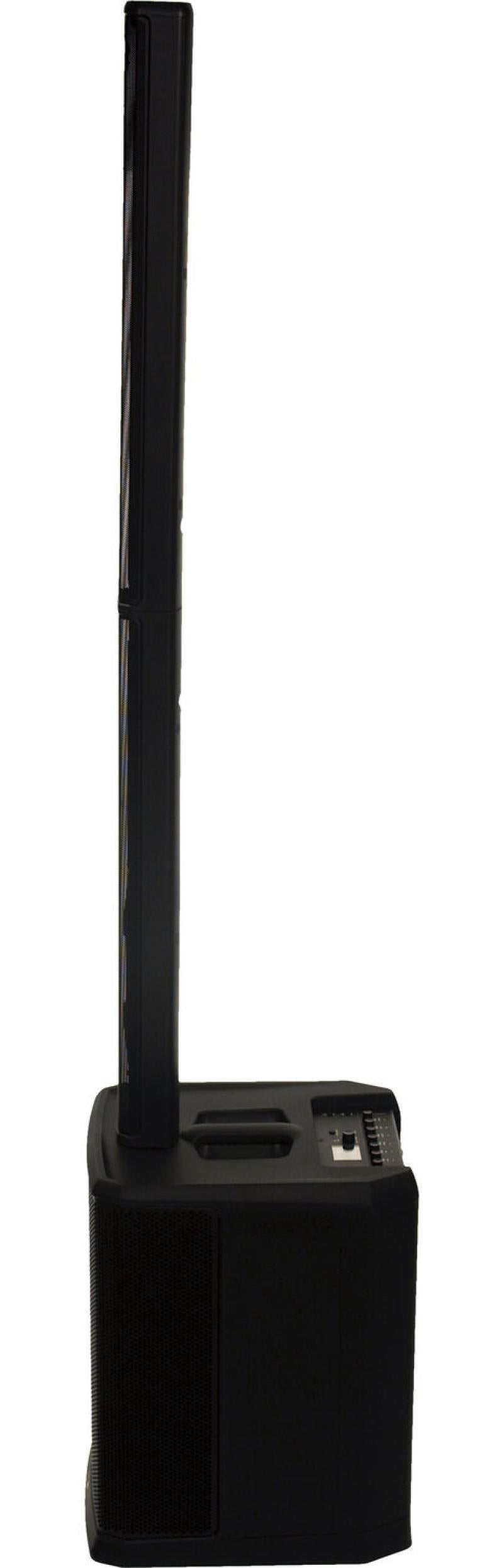

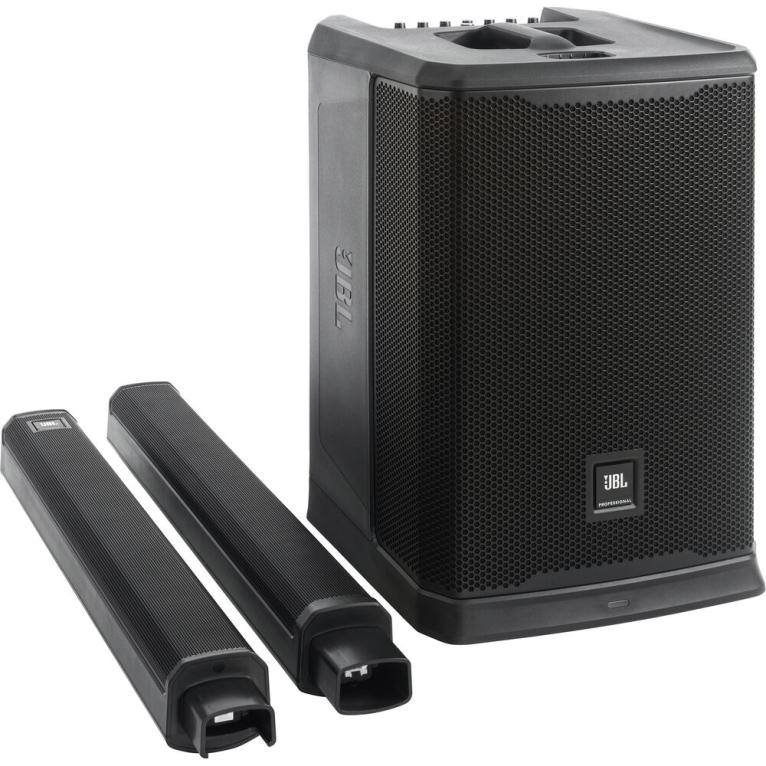

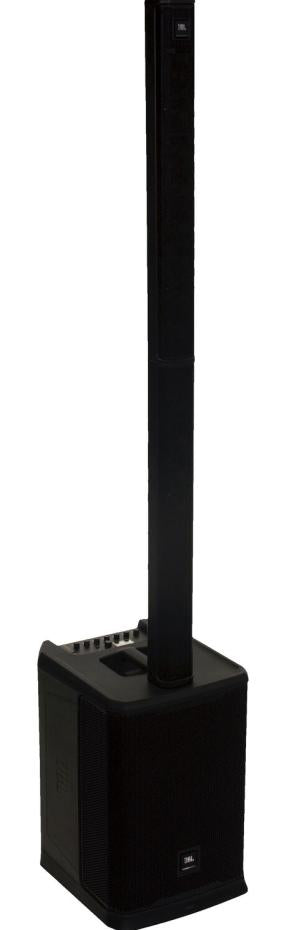

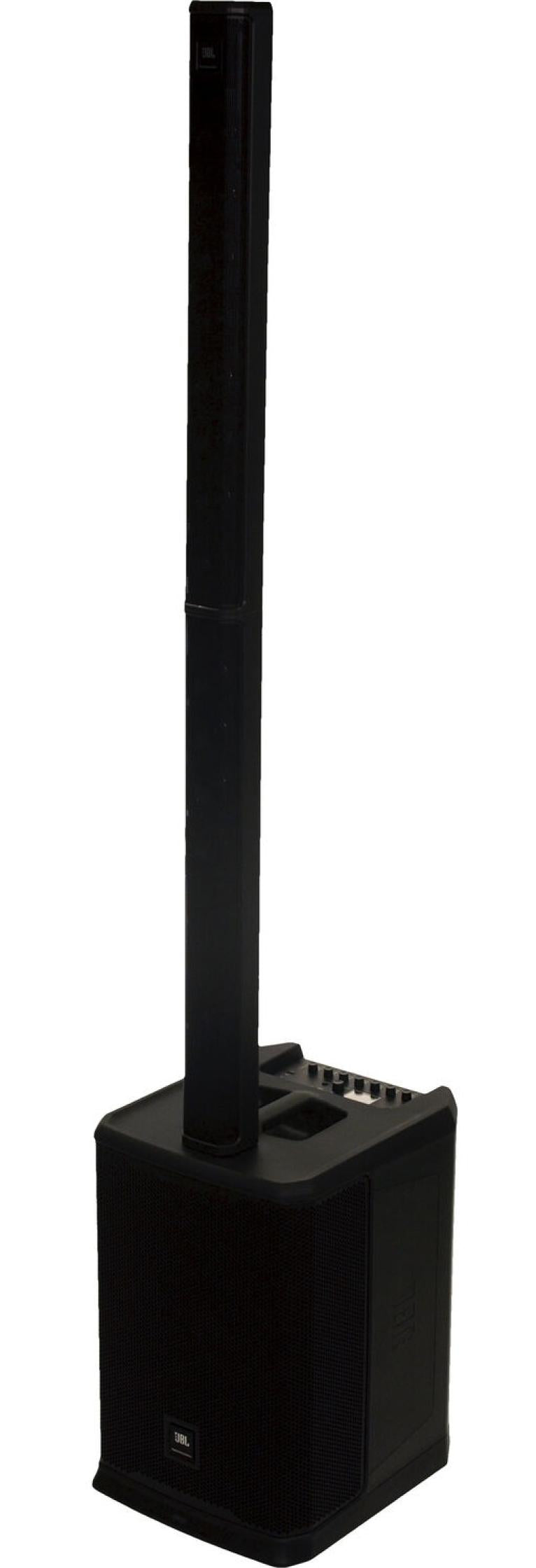

JBL PRX ONE is a complete, all-in-one powered column PA system designed for performers, presenters, and venues who demand high-output performance, full-range clarity, and complete mixing control in a sleek and portable design. Featuring a 12-tweeter vertical array, 12-inch subwoofer, integrated 7-channel mixer, and 2,000W Class D amplification, PRX ONE is built to deliver stunning, room-filling sound with intuitive wireless and app-based control.
JBL PRX ONE Competitive Differences
-
12-driver vertical array with JBL A.I.M. technology for even, front-to-back coverage
-
130 dB max SPL with ultra-low distortion and 35Hz extended bass response
-
7-channel digital mixer with dual operating modes and full-color LCD screen
- Built-in Lexicon & dbx DSP including reverb, delay, compression, ducking & feedback suppression
-
Bluetooth 5.0 streaming and control of up to 10 units via JBL Pro Connect app
- Four console-grade mic preamps with +48V phantom power
-
XLR Thru output with time alignment for speaker expansion
-
Optional array mounting bracket for fixed installs

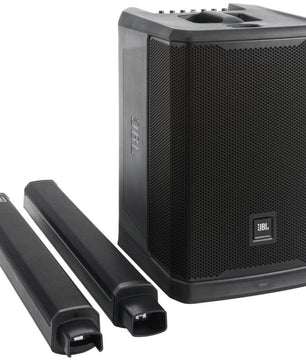

- Durable, portable enclosure with integrated carry handle and included array bag
JBL PRX ONE Description
The
JBL PRX ONE redefines portable sound systems with an acoustically optimized column array delivering wide, consistent coverage and 130 dB SPL. Its 12 custom-designed tweeters utilize JBL’s A.I.M. (Array Inumbration Mechanics) for precise horizontal (130°) and vertical (30°) dispersion, ensuring every corner of your venue hears balanced sound. A 12-inch bass-reflex subwoofer adds punch down to 35Hz, all powered by a 2,000W Class D amplifier with power factor correction and high-linearity inductors for maximum headroom and clarity.

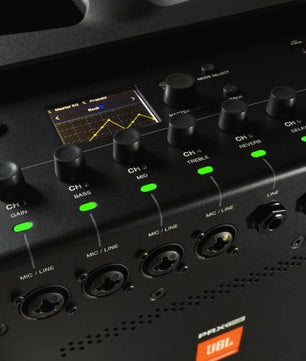

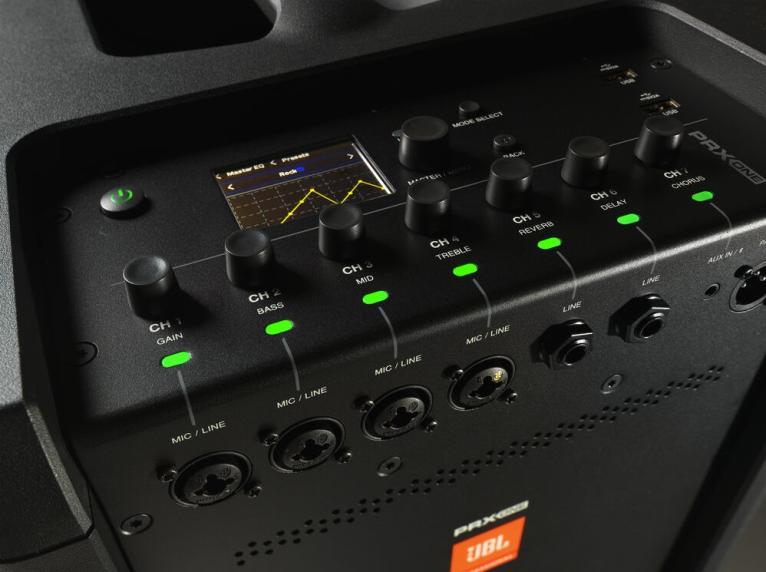

This fully integrated system includes a 7-channel Soundcraft-designed digital mixer, featuring dual-mode control for easy operation and complete signal management. Whether you’re a DJ, musician, worship leader, or corporate presenter, you’ll benefit from a full suite of
Lexicon and dbx effects—reverb, chorus, echo, delay, ducking, compression, and AFS Pro automatic feedback suppression—right out of the box.
With

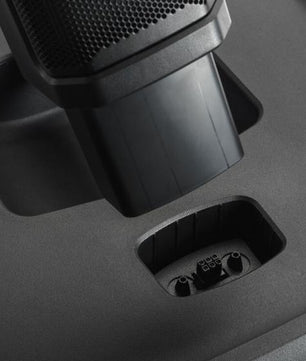

Bluetooth 5.0 streaming and remote control via the JBL Pro Connect app, you can manage levels, effects, and EQ from anywhere in the room. The PRX ONE also includes two USB ports to charge mobile devices or power AKG wireless receivers. For installations, the column array can be wall or truss mounted separately using an optional bracket.
JBL PRX ONE Features

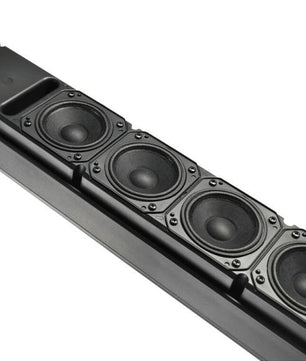

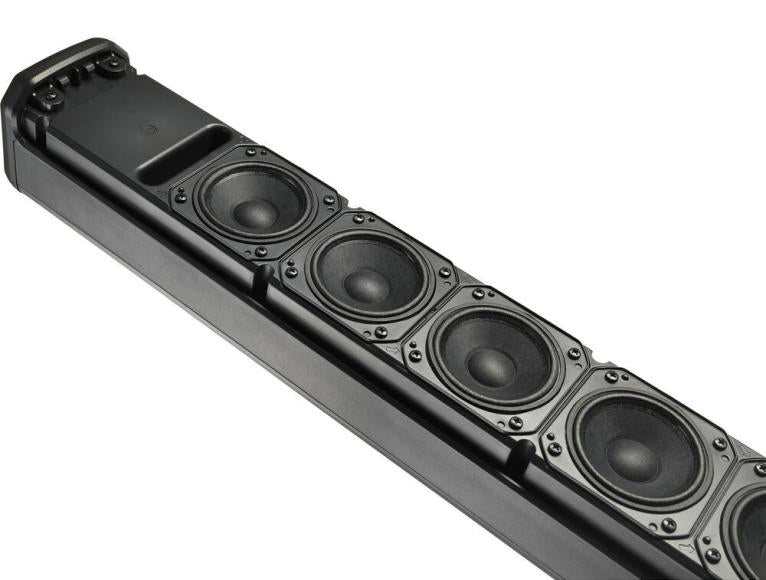

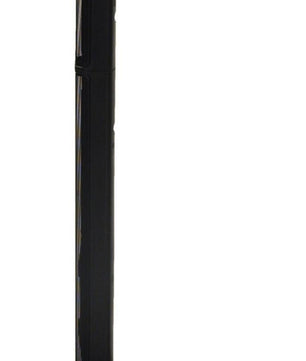

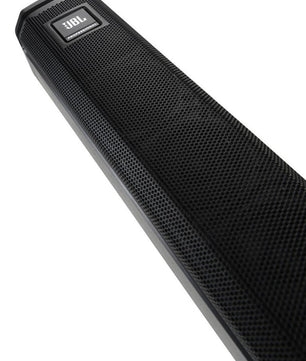

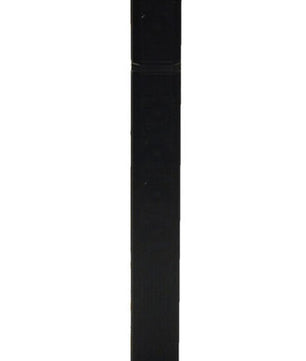

- Vertical array with 12 x 2.5” tweeters and JBL A.I.M. array-shading tech

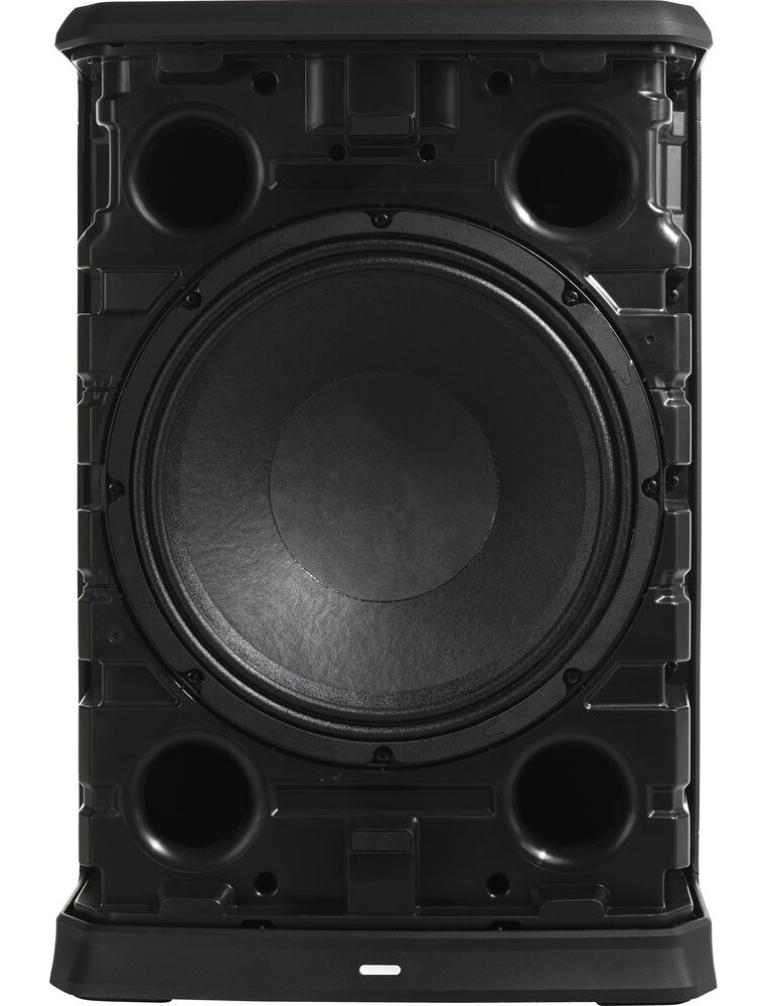

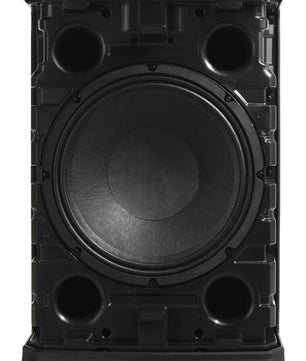

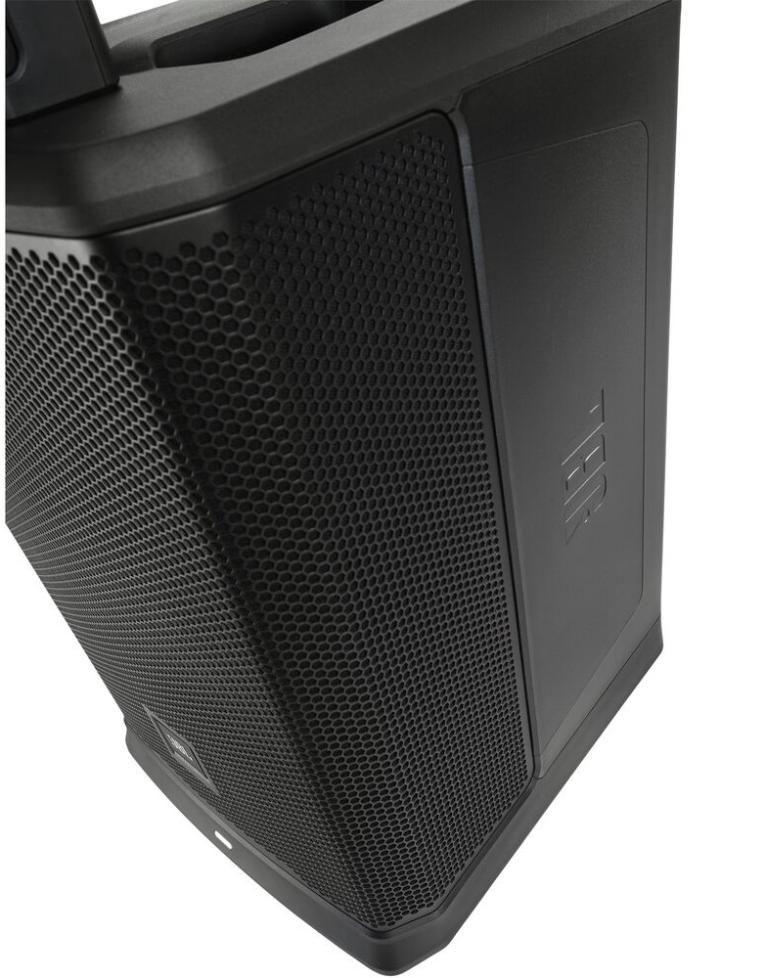

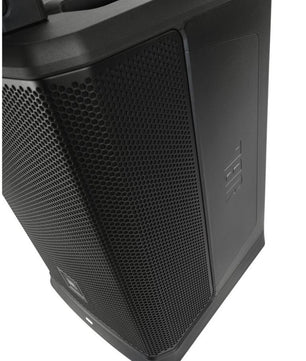

- 12” bass-reflex woofer delivers deep low-end down to 35 Hz
- 2,000W peak Class D amplifier with PFC and low THD
- 130 dB max SPL output

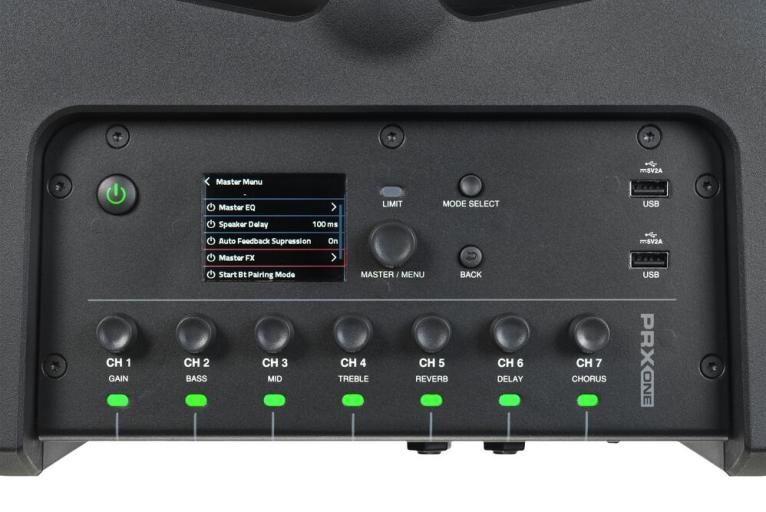

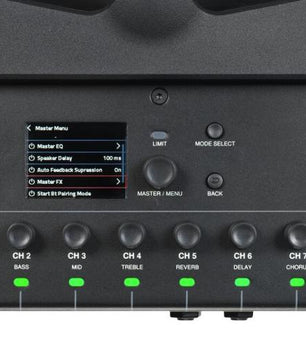

- 7-channel digital mixer with dual-mode operation and LCD control
- Lexicon effects: reverb, delay, chorus, echo, sub synth
- dbx DSP with DriveRack, AFS Pro feedback suppression, EQ, compressors, limiters
- Triple-tier DSP interface: Beginner, Intermediate, and Expert control layers
- Bluetooth 5.0 audio streaming and wireless app control (up to 10 units)
- XLR Thru with time alignment (up to 100ms delay)
- Two USB 2.0 ports for device charging and powering wireless systems
- +48V phantom power on two mic channels
- One-touch ducking and speaker presets
JBL PRX ONE Specifications
- System Type: Powered Column PA
- Woofer: 12” bass-reflex
- Tweeters: 12 x 2.5”
- Frequency Response (-10 dB): 35 Hz – 20 kHz
- Max SPL: 130 dB
- Dispersion: 130° (H) x 30° (V)
- Power: 2,000W Peak / 1,000W RMS
- Inputs: 4 x XLR Combo, 2 x 1/4” Hi-Z, 1 x 1/8” Aux/BT, 1 x XLR Pass Thru
- Outputs: 1 x XLR Thru
- USB Ports: 2 x USB 2.0 (charging/power)
- Phantom Power: +48V (2 channels)
- Control: Full-color LCD, JBL Pro Connect App, Bluetooth 5.0
- Cabinet Material: Polypropylene
- Net Weight: 25.7 kg (56.6 lbs)
- Dimensions (H x W x D): 33.4" x 18.9" x 25.4" (850 x 482 x 647 mm)
What's In The Box
- 1 x JBL PRX ONE Powered Column PA System
- 1 x Power Cable
- 1 x Nylon Carry Bag for Array
- User Documentation
The JBL PRX ONE is your all-in-one sound solution—compact, powerful, and intelligently designed for professionals on the move or in fixed installations.
