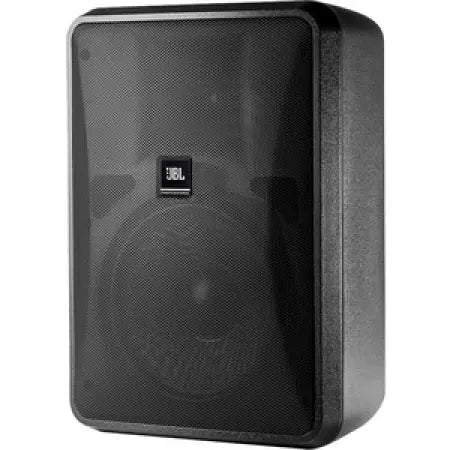

JBL Control 28-1 | 8" 2-Way Indoor/Outdoor Loudspeaker with InvisiBall Mounting (Single)

High-Performance Indoor/Outdoor Loudspeaker

The JBL Control 28-1 loudspeaker delivers powerful, natural sound for both indoor and outdoor installations. Featuring an 8" fiberglass woofer and a 1" PEI diaphragm tweeter, this passive 2-way monitor provides a wide 100° x 100° coverage pattern and smooth frequency response. Designed for venues, restaurants, cafes, fitness centers, and theme parks, the Control 28-1 offers reliable audio reproduction with rugged weather resistance and easy installation using JBL's proprietary InvisiBall mounting system.

JBL Control 28-1 Competitive Differences

• 8" fiberglass cone woofer with smooth, extended low-frequency response
• 1" PEI diaphragm tweeter with fluid cooling for clear high frequencies
• Weather-resistant enclosure with IP44 dust and water protection
• Built-in InvisiBall mounting system for streamlined installation
• Multi-tap transformer supports 70V/100V distributed audio or 8-Ohm bypass
• Handles up to 240W program power at 8 Ohms
• Wide 100° x 100° coverage for uniform sound distribution

JBL Control 28-1 Description

The Control 28-1 is part of JBL’s renowned Control Contractor Series, designed for high-output sound reinforcement in a compact and weather-protected package. Capable of handling up to 240W of program material at 8 Ohms, this speaker delivers an SPL of up to 112 dB for clear and powerful audio even in large spaces. Its fiberglass woofer ensures strong bass response down to 45 Hz, while the PEI diaphragm tweeter provides smooth and natural highs.

The enclosure is constructed from high-impact polystyrene with JBL’s WeatherEdge rubberized extensions, protecting components against heat, moisture, and wind. The IP44-rated design makes the Control 28-1 suitable for both indoor and outdoor installations, from background music to full foreground audio systems.

Installation is simple thanks to the InvisiBall mounting system, which allows easy angle adjustment through a hidden access point behind the JBL logo badge. For maximum flexibility, the built-in transformer supports both 70V/100V distributed audio systems and direct 8-Ohm connections.

Control 28-1 Features

• Passive 2-way loudspeaker system
• 8" woven fiberglass cone woofer
• 1" PEI diaphragm tweeter with fluid cooling
• Handles up to 240W program power at 8 Ohms
• Built-in multi-tap transformer for 70V/100V distributed systems
• 100° x 100° coverage for wide sound dispersion
• JBL InvisiBall mounting hardware included
• Weather-resistant design for indoor/outdoor use

Control 28-1 Specifications

• System Type: Passive 2-way
• Power Handling: 90W RMS (100 hrs), 120W RMS (2 hrs), 240W Program, 480W Peak
• Transformer Taps: 70V: 60/30/15/7.5W + 8 Ohm bypass; 100V: 60/30/15W + 8 Ohm bypass
• Impedance: 8 Ohms
• LF Driver: 8" (20 cm) fiberglass woofer
• HF Driver: 1" (25 mm) PEI diaphragm tweeter
• Frequency Response: 45 Hz – 20 kHz (±10 dB), 62 Hz – 16 kHz (±3 dB)
• Sensitivity: 91 dB
• Maximum SPL: 112 dB
• Crossover: Low-pass 12 dB/octave, High-pass 6 dB/octave
• Cable Connections: Screw terminal, accepts up to 12 AWG (2.5 mm)
• Coverage Pattern: 100° H x 100° V
• Enclosure: High-impact polystyrene with metal grille
• Environmental Rating: IP44 weather-resistant
• Certifications: RoHS, UL
• Dimensions (H x W x D): 15.2 x 11.1 x 8.6 in (386 x 282 x 219 mm)
• Weight: 15 lb (6.8 kg)
• Shipping Dimensions (Single): 22 x 17 x 13.5 in (559 x 432 x 344 mm)
• Shipping Weight (Single): 16.75 lb (7.6 kg)

What's In The Box

• 1 x JBL Control 28-1 Loudspeaker (Black)
• InvisiBall mounting hardware
• User documentation
