Global Truss Mini 360 QR | Quick-Release Clamp for 50mm Truss | 220lb Load, Lightweight Design

Quick-Release Truss Clamp

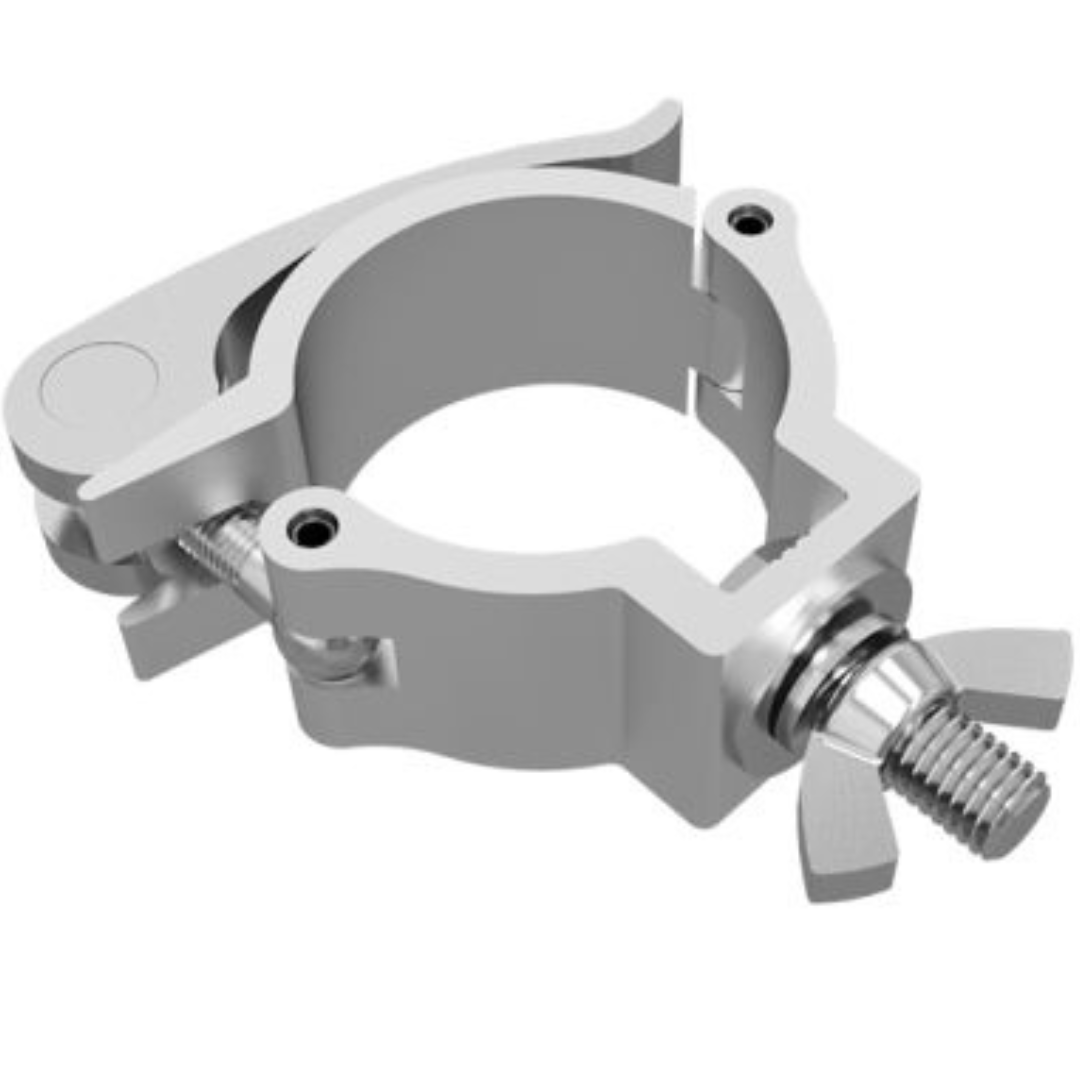

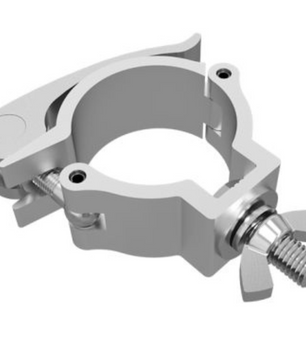

Global Truss Mini 360 QR is a lightweight, quick-release clamp designed for fast and secure mounting of lighting fixtures and accessories to standard 50mm truss. Ideal for mobile DJs, installers, and production crews, it combines strength, speed, and compatibility in one compact form.

Global Truss Mini 360 QR Competitive Differences

• Quick-release design speeds up setup and teardown
• 220 lb (100 kg) load capacity with only 0.4 lb of weight

Global Truss Mini 360 QR Description

The Mini 360 QR is purpose-built for efficient rigging on the go. Its compact design fits 48mm to 51mm tubing and supports up to 220 pounds of load, making it perfect for mounting lightweight fixtures, effects, or accessories to Global Truss F31, F32, F33, and F34 systems. This clamp features a 30mm profile width and includes an M10x30mm bolt with a 1.5 coarse pitch thread, providing secure attachment to a wide range of devices. Its quick-release mechanism allows for rapid mounting and removal, saving time during event setup and breakdown. Weighing just 0.40 lbs, the Global Truss Mini 360 QR offers an excellent strength-to-weight ratio — a smart choice for portable and professional setups where efficiency and reliability matter.

Model Features

• Quick-release clamp for fast fixture mounting
• Supports up to 220 lb (100 kg) load capacity
• Compatible with 48–51mm (2") tubing
• Fits F31, F32, F33, and F34 Global Truss systems
• Includes M10x30mm bolt (1.5 pitch, coarse thread)

Model Specifications

• Minimum Tube Size: 48 mm
• Maximum Tube Size: 51 mm
• Profile Width: 30 mm
• Bolt Size: M10x30 mm
• Thread Pitch: 1.5 (coarse)
• Max Load Capacity: 220 lb (100 kg)
• Unit Weight: 0.40 lb (0.18 kg)
• Case Quantity: 70 units
