Furman P3600 ARG | 30A Advanced Global Voltage Regulator

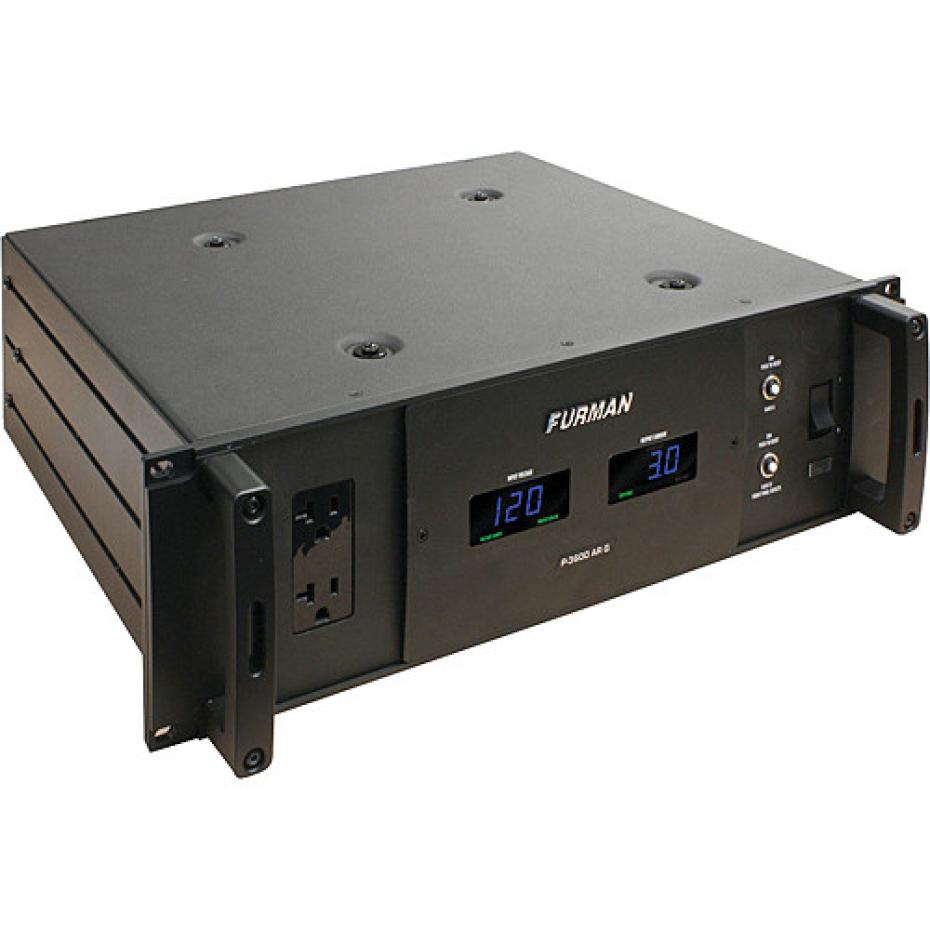

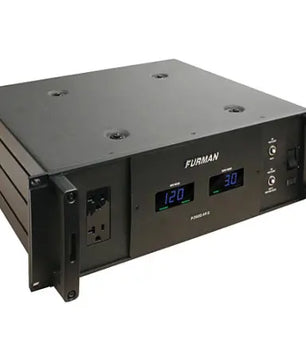

Furman P-3600 AR G
The Prestige Series P-3600 AR G is a 3RU power conditioner/True RMS voltage regulator that offers a one-of-a-kind power management solution for A/V professionals around the globe. The P-3600 AR G ensures stable 120V power delivery from any input voltage source between 100V to 127V or 208V to 240V.

The unit provides connected 120V equipment with stable voltage, power protection, and AC line filtration, ideal for use with 120V A/V gear when travelling to countries with 100V, 220V, 230V, or 240V services.

The P-3600 AR G's predecessor, the Furman AR-PRO, has been an indispensable product for many professional users. The updated model features Furman's True RMS Regulation Technology (utilizing an ultra-low-noise torroidal isolation transformer/autoformer, high-current switching TRIACs, and micro-processing control) to step-down or step-up input voltages. The unit also offers Furman's exclusive LiFT/SMP/EVS technologies for professional-level protection and linear AC noise filtration.

These features, along with the P-3600 AR G's 30A output capacity and wide input voltage capture range, make it a unique solution among other portable power conditioner/voltage regulators and a reliable, application-specific alternative to typical step-up/step- down transformers.

Features:

Global True RMS Voltage Regulation
Delivers a stable 120 volts of AC power (from any voltage source between 88V-134V and 170V-265V) to protect equipment from problems
Surge Protection
Furman’s exclusive SMP technology provides the highest level of surge & spike protection available.
Noise Filtration
LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.
Voltage Protection
Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.
Diagnostic Lights
LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.
Large LED Voltmeter
Large LED voltmeter displays incoming line voltage.
Large LED Ammeter
Large LED ammeter displays output current draw.
30 Amp Rating
30 Amp rating featuring a high inrush magnetic circuit breaker for added protection.
11 Total Outlets
11 total outlets (nine rear panel outlets and two front panel convenience outlet).

Specifications:

Maximum Current 30 Amps
Voltage 120VAC (+/- 4%)
In Regulation Range:
(Low) 88-133 VAC @ 50/60Hz
(High) 170-265 VAC @ 50/60Hz
Circuit Protection Spike Protection Modes: Line to neutral, zero ground leakage
Spike Clamping Voltage 191V Peak @ 3,000 Amps
Response time: 1 nanosecond
Maximum surge current: 6,500 amps
Noise Attenuation 10dB @ 10kHz, 40dB @ 100 kHz, 55dB @ 500 kHz
Connections Front: Two 120V 20A Edison Spec Grade NEMA-20 outlets
Rear: One 120V L-5 30A female, Eight 120V 20A Edison Spec Grade NEMA-20 outlets
Line Cord: L-14 male twistlock inlet (twistlock cable-mount connector included)
Dimensions 5.25 x 19 x 14.25" (133 x 483 x 305mm)
Weight 98 lbs (44.5 kg)
