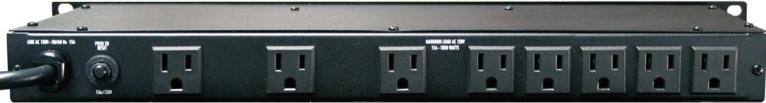

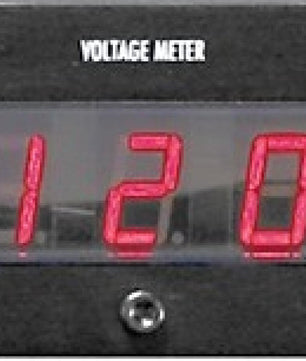

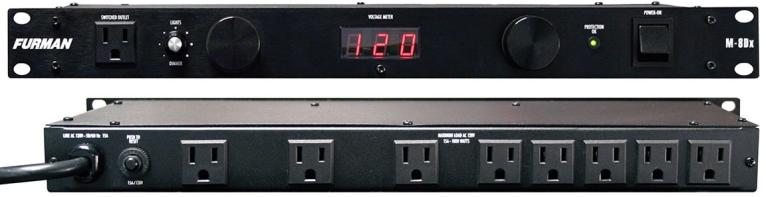

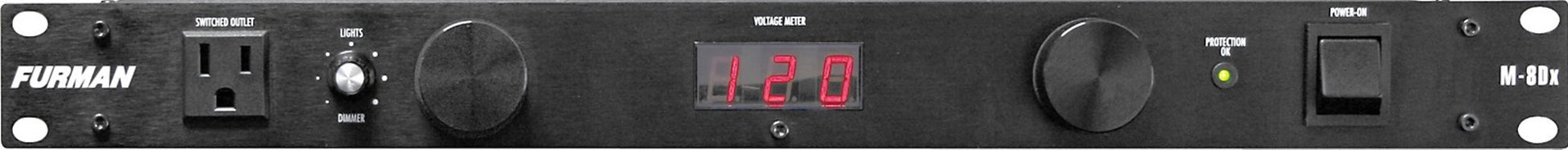

Furman M8DX (Furman M-8 DX)A Merit Series Power Conditioner is the perfect low-cost AC power solution for any rack mount system. Install an M-8Dx into the top slot of your rack, and the eight switched outlets in the rear panel will power up and protect all your equipment up to a 15-amp load. The M-8Dx features two slide out, swiveling light fixtures to provide discreet illumination of your equipment on stages, in studios, and in other dark places. A dimmer knob lets you adjust the lamp brightness to just the right level.The M-8Dx also features a bright red, three-digit LED voltmeter that displays incoming voltage.
Maximum Output Current: 15 amps
Line Cord: 6 ft., captive, 14 AWG, with 3-conductor Edison plug
Lamps: Two 120V incandescent bulbs, 4 watts each
Operating Voltage: 120VAC 60Hz
Spike Protection Mode: Line to neutral
Energy Dissipation: 170 joules
Peak Impulse Current: 12,000 amps
Maximum Continuous Opterating Voltage: 130 VAC RMS
Let Through Voltage (@ 125 amps, 8/20uS waveform) 400 volts
Noise Attenuation: Transverse mode: Greater than 26dB, 200Khz to 10 Mhz
Dimensions: 1.75” H x 19” W x 7.5” D
Weight: 5.8 lbs.
Safety Agency Listing: cTUVus
Warranty: Merit Series units are protected by a limited three year warranty
covering defects in materials and workmanship.
INSTRUMENT RIGS
You've got a rack for your effects, preamps, tuner...You're going to plug that
into the wall? One big spike and your rig is up in smoke. Furman's standard
level surge/spike protection defends your gear from the spikes and surges that
are so common at gigs and practice spots. With Furman's standard level RFI/EMI
filtration, you'll get a quieter tone without pops, crackles, and the local
radio station coming out of your amp. Plus, dual pull-out lamps let you see your
rack without turning the house lights on, while the digital voltmeter lets you
monitor incoming voltage.
RECORDING
Can't track down where that noise is coming from? Your mix sounding flat? With
Furman's standard level RFI/EMI filtration you'll lower the noise floor caused
by the dirty AC power coming into your console or DAW. Furman's standard level
surge and spike protection keeps your sensitive digital equipment from acting
funny or burning up due to everyday spikes and surges. You can even monitor
voltage changes, as the digital meter allows you to keep an eye on the incoming
line voltage. With a 15A capacity and nine total outlets, it's enough to power
your whole home studio.
DJ EQUIPMENT
Bars, clubs and other event venues have some of the worst power out there - from
air compressors turning on and off to light shows pulling current loads up and
down, the AC power can be a strain on the circuits in your rig. Furman's
standard level protection and filtration keeps the bad stuff out. The dual
pull-out front panel lights also let you discreetly see your board and gear
without distracting from the show on the dance floor.
PRO AUDIO
When you're out there gigging, you never know what kind of power you're going to
get. The wear and tear on mobile rigs eventually takes it toll - that's why it's
smart to plug into Furman's standard level protection and RFI/EMI filtration. It
keeps your equipment safe and sounding clean. It keeps your equipment safe and
sounding clean, while the digital voltmeter lets you monitor incoming voltage.
Whether you're setting up a show at the local club or powering up the church
band for their next service, make sure you give them power they can trust.
