FBT MUSE 218 SND/SN | Dual 18in - 148.5dB

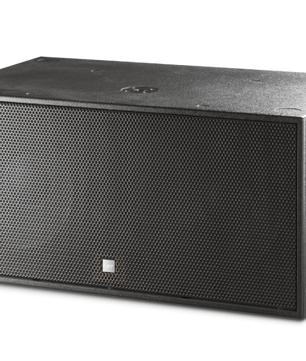

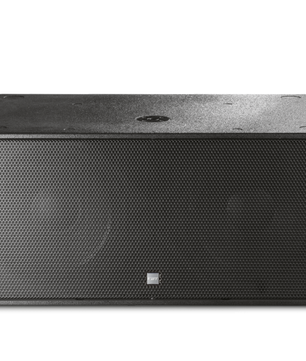

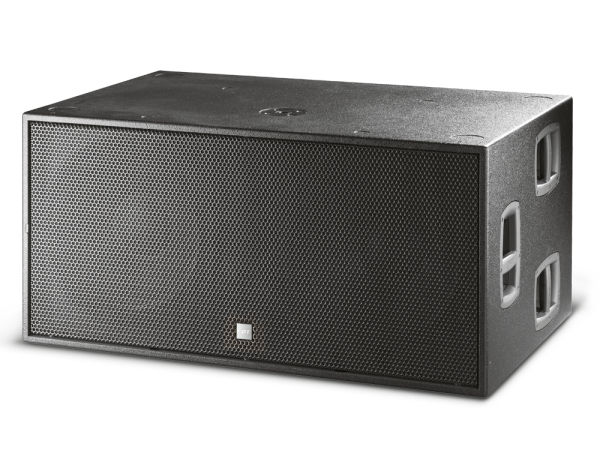

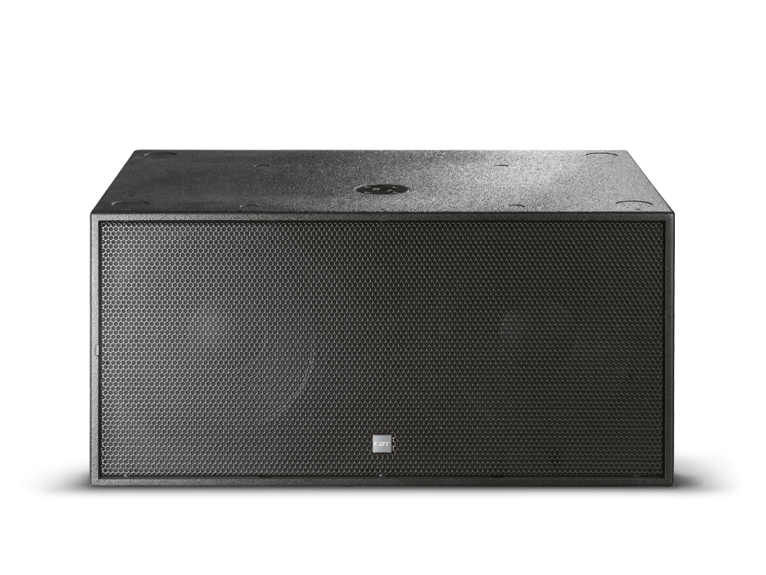

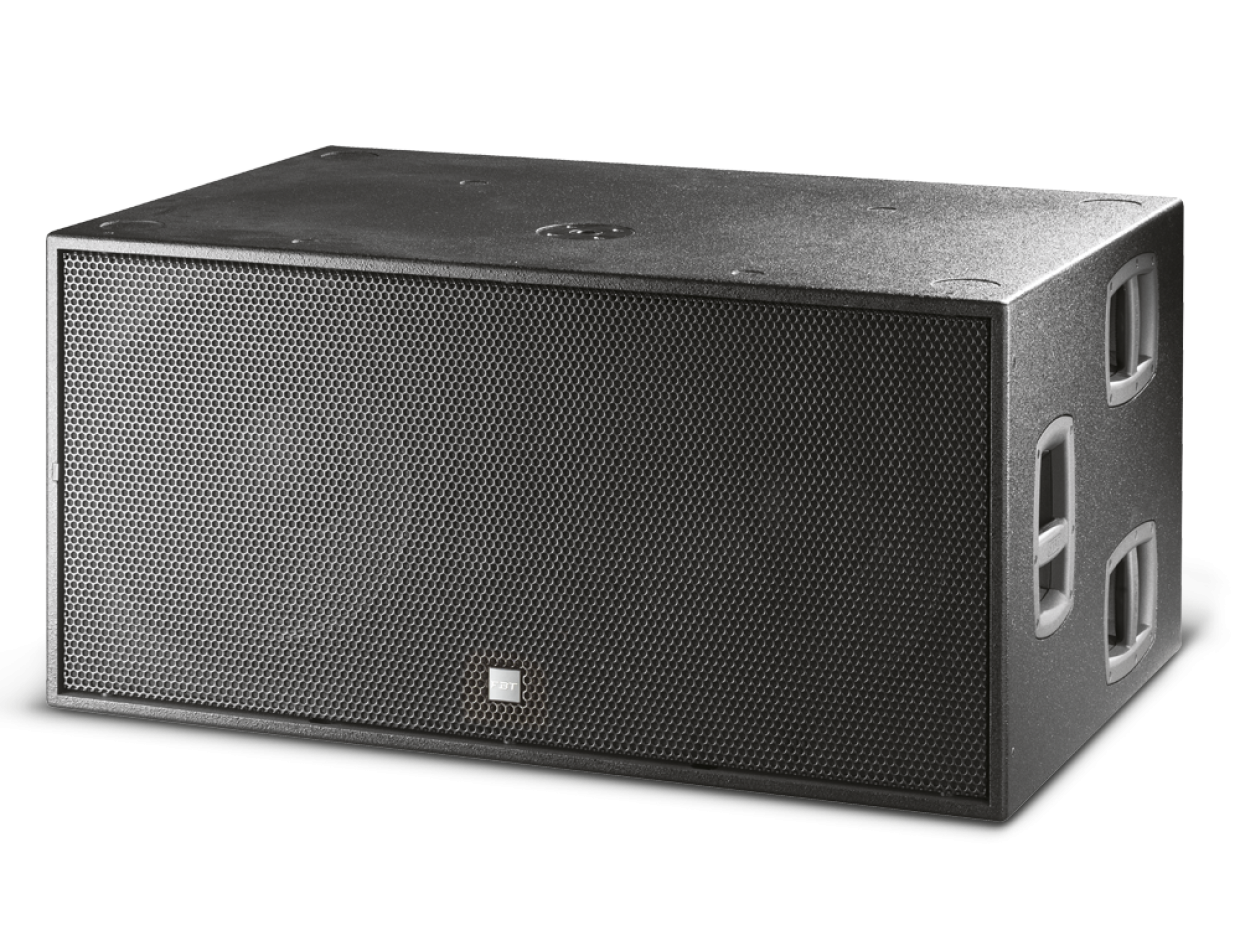

MUSE 218SND is a direct radiation ground subwoofer, has two B&C 460mm long excursion speakers with 100mm voice coil and 4000W class D amplification, capable of 148.5dB SPL. The bass-reflex cabinet offers substantial energy up to 30Hz and is ideal for extending and reinforcing the low frequencies of the MUSE 210LND line array in ground-stack configuration.

It has presets to create various configurations with cardioid directivity, where some subwoofers face rearwards from the audience to acoustically cancel the sound pressure behind the cluster, obtaining a reduction of the SPL on the back by over 15dB.

The enclosure, optimized with BEM-type acoustic simulations to reduce resonance and turbulence of the ducts, is built with 18mm birch plywood with six handles and scratch-resistant paint. Reinforced front mesh with protective fabric and provision for optional four swivel-mount 4 ‘’ (100mm) casters in the rear panel.

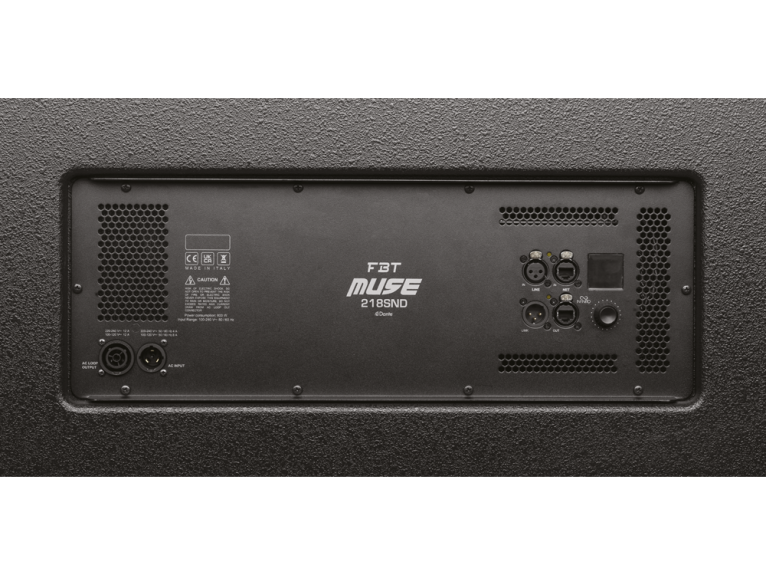

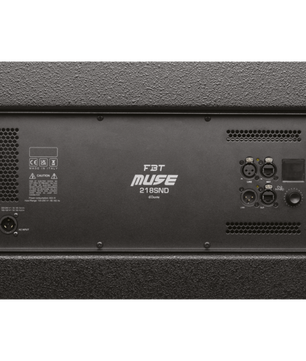

The summit of the entire project is the new 4000W amplification module with built-in TCP / IP network interface. Based on the OCA ALLIANCE AES70 standard, the new MUSE family receives 24-bit 48-96Khz digital audio streaming from all devices compatible with the DANTE standard and communicates with the INFINITO System Management Suite remote control software. The module is contained in an aluminium chassis with intelligent forced ventilation and is equipped with an OLED display with encoder for parameter setting and a high-brightness blue front LED allows remote identification of the device, also in daylight. Fully developed in house by the FBT R&D team, INFINITO is the revolution that enhances the user experience, reaching new heights in terms of performance and simplicity.

FEATURES:

Ground stack direct load subwoofer
Very large area reflex port to ensure no power compression and very low port turbulence
Double 18’’ (460mm) B&C very high excursion woofer with 4’’ (100mm) voice coil
Frequency Response from 30Hz @-6dB
Class D amplifier delivering 4000W RMS with switch mode power supply
Network interface TCP/IP – OCA70 compatible
EtherCon RJ45 input and output for daisy-chain
OLED DISPLAY and ENCODER with PUSH for easy onboard control
DANTE audio streaming with 24bit at 48-96KHz on TCP/IP network
0.7’’ (18mm) birch plywood enclosure, scratch resistant black paint, 6 handles and heavy duty metal grille with synthetic protection cloth
M20 top mount stand socket • Optional 4 swivel-mount 4’’ (100mm) casters
Low frequency extension cabinet for the MUSE 210LND line array for ground stacked configurations

SPECIFICATIONS:

CODE:44364
CONFIGURATION:1 Reflex
BUILT-IN AMPLIFIER LF/HF:4000
BUILT-IN AMPLIFIER PEAK LF/HF:8000
FREQUENCY RESPONSE:30Hz preset dependant
LOW FREQUENCY WOOFER:2x18’’ - 4 coil
MAXIMUM SPL CONT/PEAK:142.5 / 148.5 half-space
DISPERSION:omnidirectional
INPUT IMPEDANCE:22
CROSSOVER FREQUENCY:preset dependant
AC POWER REQUIREMENTS:800
INPUT CONNECTOR:XLR IN / OUT
POWER CORD:16.4ft / 5mt
NET DIMENSION (WXHXD):44,88 x 28,13 x 21,85 inch / 1140 x 740 x 555 mm
NET WEIGHT:218,25 lb / 99 kg
TRANSPORT DIMENSION (WXHXD):47,24 x 31,49 x 28,74 inch / 1200 x 800 x 730 mm
TRANSPORT WEIGHT:238 lb with pallet / 108 kg with pallet
