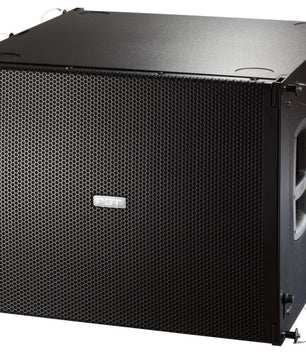

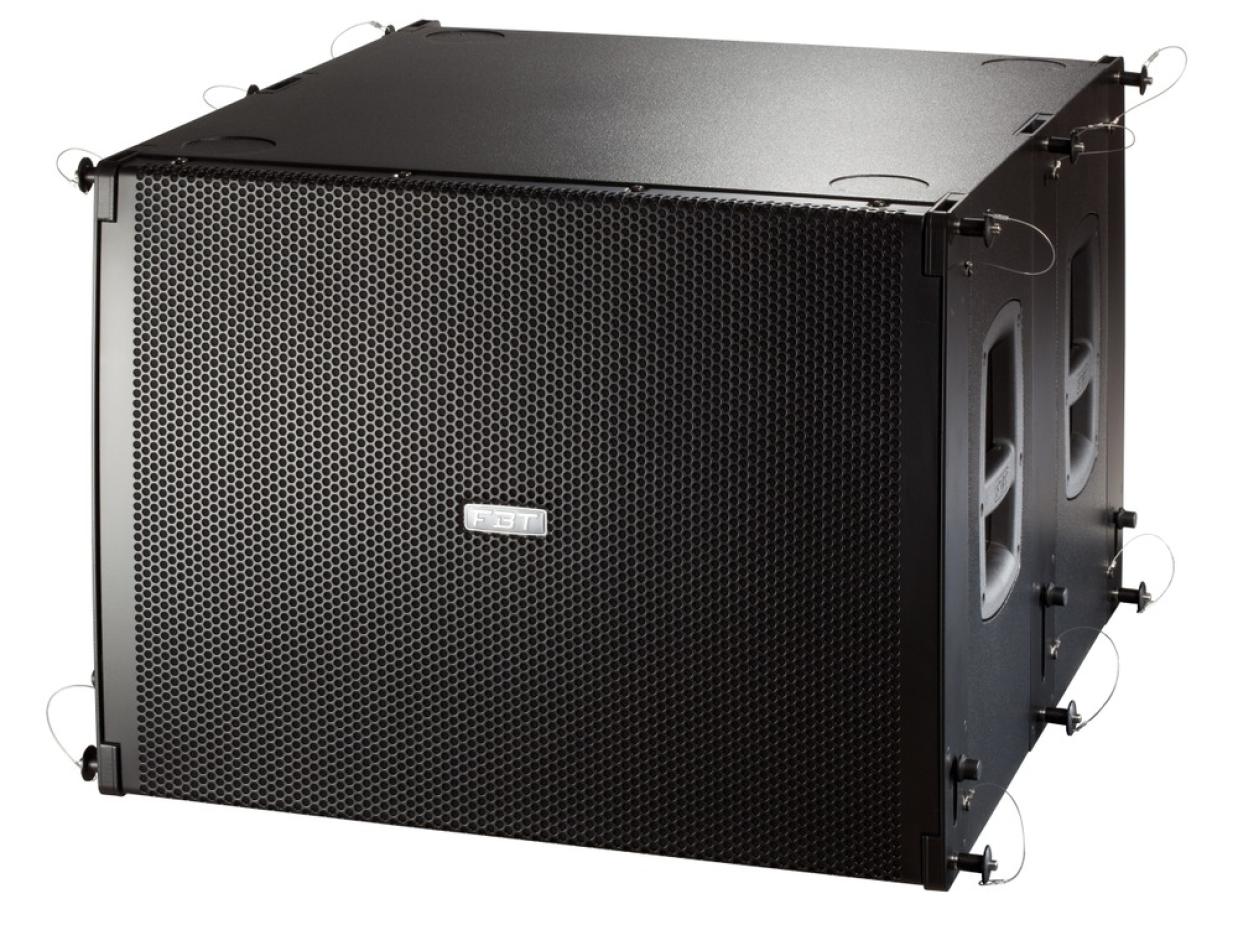

FBT Muse 118FSA | 18in - 139dB

MUSE 118FSA
The Muse 118FSA/FSCA is a B&C loaded 18" true reversible flyable Active subwoofer. Built in amplifier of 1200Wrms / 8ohm 139dB SPL Black Finish

PROCESSED CARDIOID-FLYABLE ACTIVE SUBWOOFER

1200W RMS - 139dB SPL



The Muse 118FSA is a true reversible flyable subwoofer.
Designed and manufactured by FBT’s renowned engineers and artisans, the Muse 118FSA is a prime example of audio perfection with ergonomic innovations.

The Muse 118FSA is a hybrid loaded 18’’ neodymium subwoofer designed to suspend from the Muse flybar either facing forward or rearward.  When flown facing rearward, the sub’s user removable grille can be moved by the user to the new “front” of the enclosure and the amplifier module can be moved to the new ‘rear’ of the enclosure, thus obtaining aesthetic consistency when flown with additional forward facing Muse 118FSA’s.  Thus, when creating a cardioid sub package, no additional hardware is needed to easily achieve sleek visual continuity.
The model MUSE 118FSCA is already factory preconfigured as rear facing for cardioid applications.

KEY FEATURES
Compact Hybrid band pass cardioid-arrayable subwoofer.
Hybrid configuration permit to obtain extension and speed of vented with high SPL and acoustic filtering of band pass
Suspension hardware fully compatible with MUSE210La allowing the enclosure to be suspended front or rear-firing for easy cardioid configurations.
Subwoofer can be suspended facing forward or rearward and user-configurable with capability of front or rear mounting the grille and amp module for aesthetic uniformity in cardioid configuration
Very large area laminar-flow port to ensure no power compression and very low port turbulence
For cardioid configurations with one SUB rear-firing and two sub front-firing, more than 15db SPL rejection can be obtained behind the array
18" (460mm) custom B&C neodymium magnet high excursion woofer with 3"(75mm) voice coil
Frequency Response from 33Hz to 100Hz
Class D amplifier delivering 1200WRMS
135dB / 139dB SPL
Switch mode power supply

Configuration: Bandpass
Frequency response: 33Hz to 100Hz
Low frequency woofer: 18
Maximum SPL cont/peak: 135dB/139dB Half-space SPL
Dispersion: Omnidirectional
Input impedance: 22 Kohm
Crossover frequency: Preset dependant
Input connector: XLR with Loop
Net Dimension (WxHxD): 652 x 500 x 750 mm / 25.66 x 19.68 x 29.52 in
Net Weight: 67kg / 147.70 lb
Transport Dimension (WxHxD): 700 x 650 x 800 mm / 27.55 x 25.59 x 31.49 in
Transport Weight: 77 kg / 169.75 lb
AC Power requirements: 640VA
Built-in amplifier LF/HF: 1200W RMS
Built-in amplifier peak LF/HF: 2400W
Power cord: 5m / 16.4ft - Powercon True1
