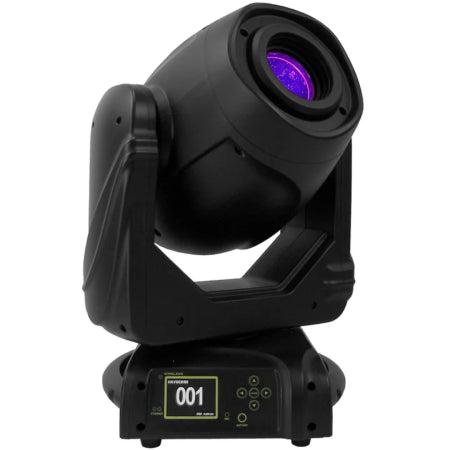

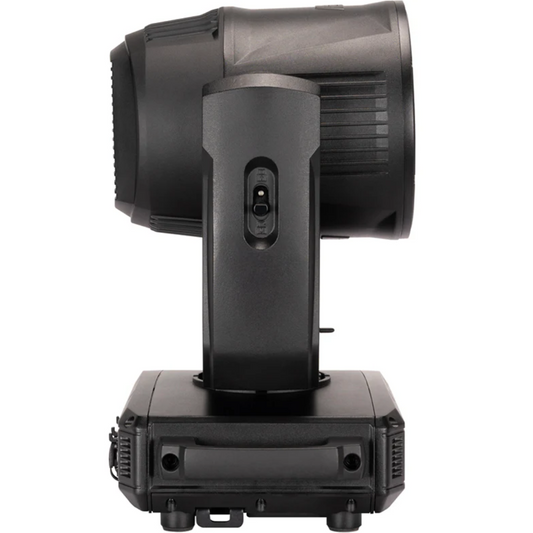

Event Lighting HAVOCS150 | 150W LED Spot Moving Head with Zoom, Prism & Frost

LED Spot Moving Head with Zoom and Professional Effects

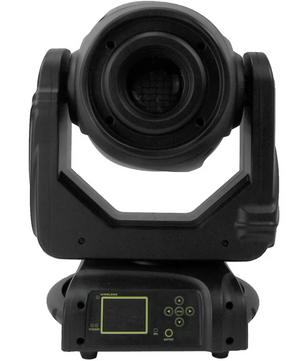

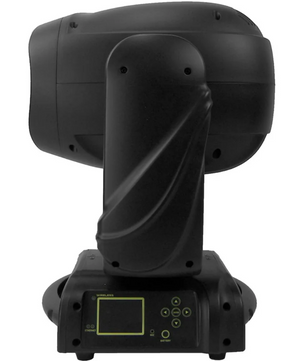

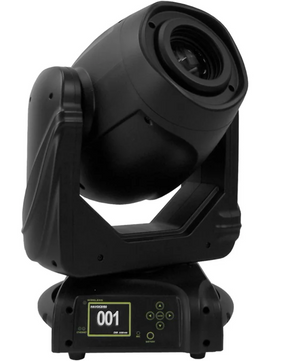

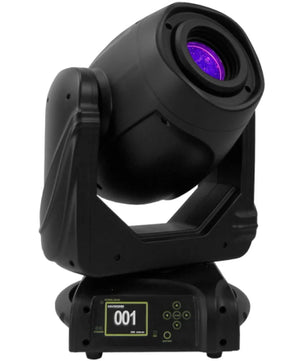

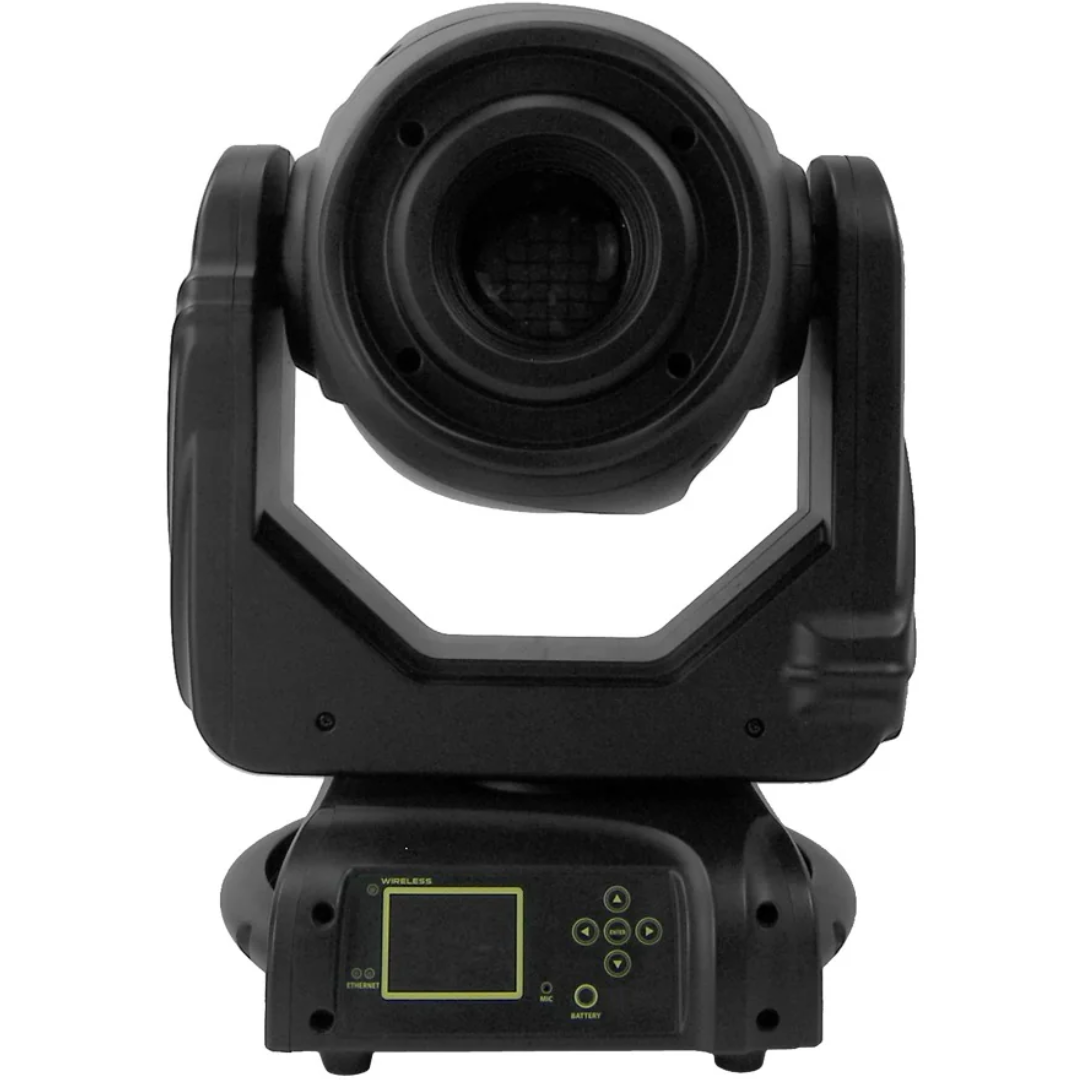

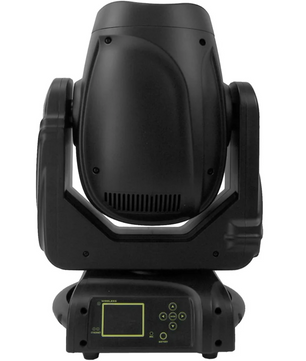

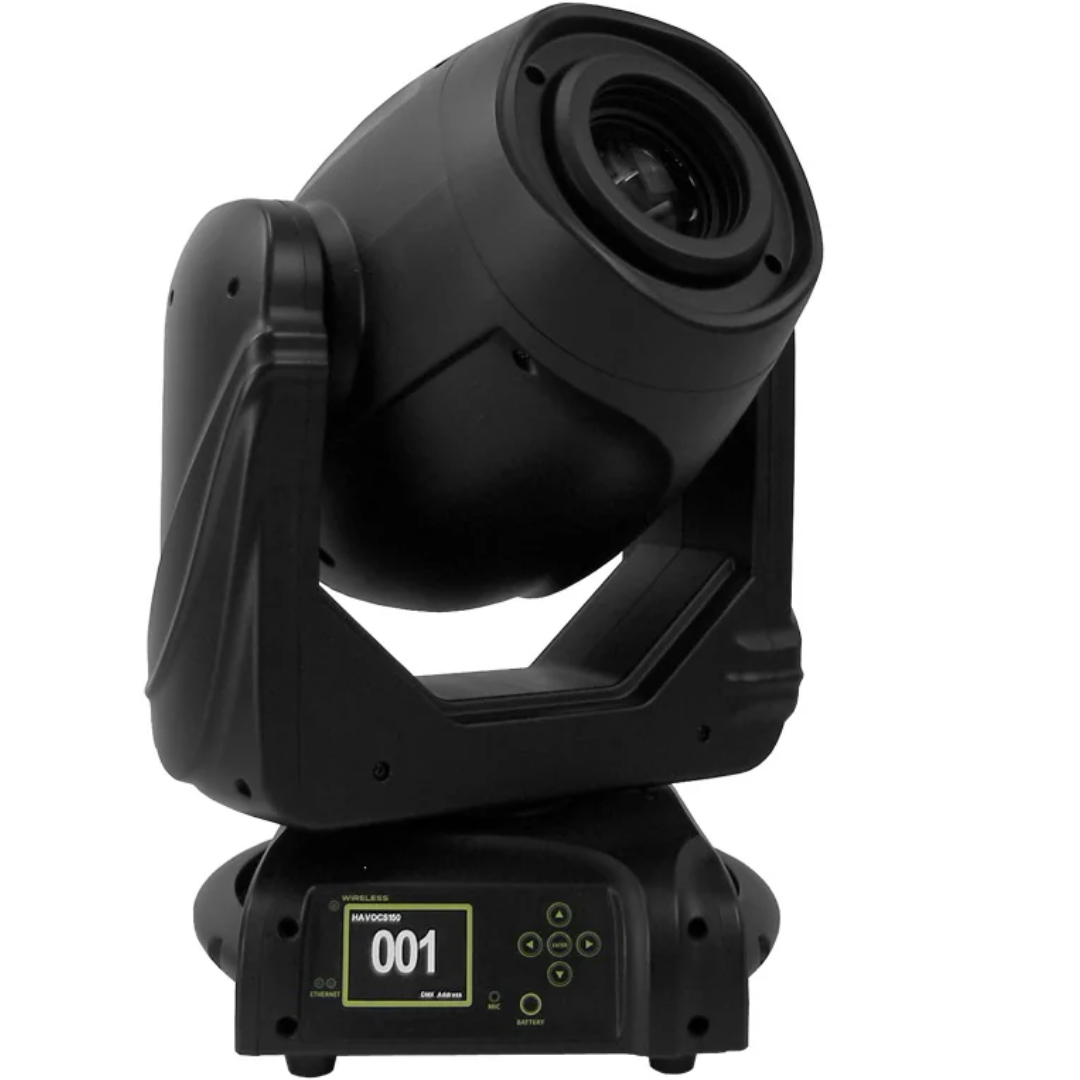

The Event Lighting HAVOCS150 is a compact and powerful 150W LED spot moving head designed for professional stage, event, and production applications. With motorized zoom, frost, and focus, plus a wide range of gobo and color options, it delivers creative flexibility in a lightweight yet durable fixture.

Event Lighting HAVOCS150 Competitive Differences

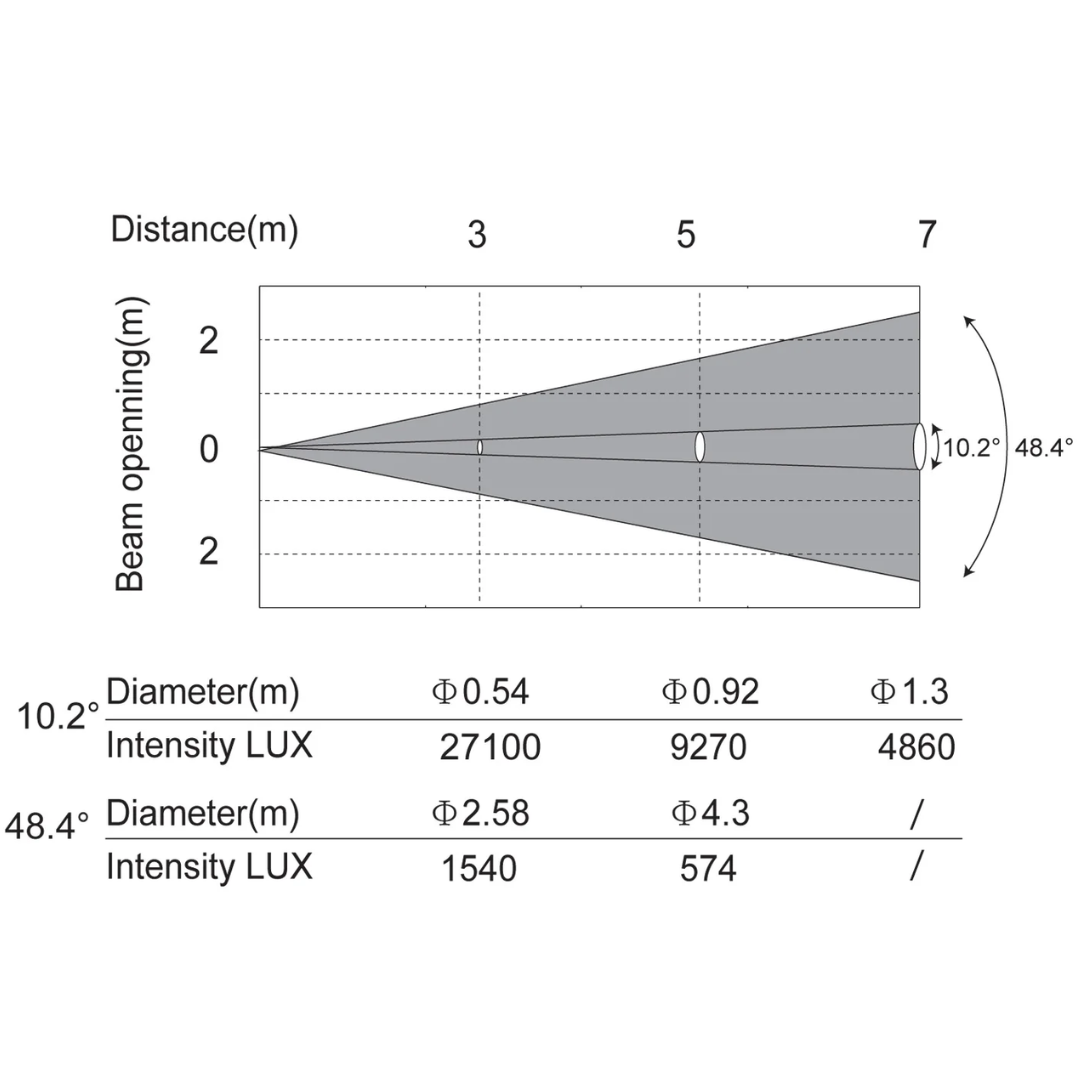

• 150W LED light engine with up to 9,270 lux at 5m (10.2° beam angle)
• Wide motorized zoom range from 10.2° to 48.4°
• Dual gobo wheels with fixed and rotating gobos
• Motorized focus and frost for versatile beam shaping
• 3-facet prism with shake effect for aerial visuals
• Fast, precise 540° pan and 263° tilt movement with auto repositioning
• RDM support for remote addressing and settings adjustment
• True1 power in/out connectors for professional daisy-chaining

Event Lighting HAVOCS150 Description

The HAVOCS150 is engineered to provide lighting designers with versatile creative tools in a compact fixture. Its 150W white LED engine produces crisp beams with exceptional clarity, projecting up to 9,270 lux at 5 meters. A motorized zoom (10.2°–48.4°) makes it suitable for both tight beams and broad washes, while the motorized focus and frost filter expand its usability for different stage looks.

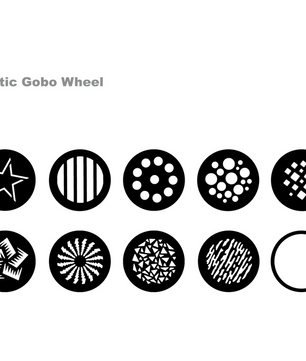

This fixture features two gobo wheels: one with 10 fixed gobos plus open, and one with 7 rotating gobos plus open. Combined with a 3-facet prism, shake effects, and vibrant colors from the 8-slot color wheel, the HAVOCS150 produces dynamic mid-air and projection effects. Smooth 0–100% dimming, variable strobing, and quick movement add to its versatility.

With DMX512 and RDM compatibility (21 or 17 channel modes), plus optional wireless DMX, the HAVOCS150 integrates easily into professional rigs. A 2.4" color LCD control panel provides intuitive access, while software updates via DMX or USB ensure long-term reliability. Housed in durable ABS and steel with intelligent fan cooling, it’s built to perform consistently in demanding environments.

HAVOCS150 Features

• 150W white LED light source
• Beam angle: 10.2°–48.4° motorized zoom

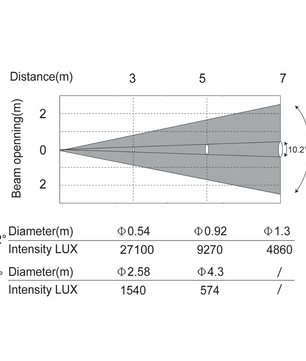

• Output: 9,270 lux @ 5m (10.2°)
• LED lifespan: 50,000 hours

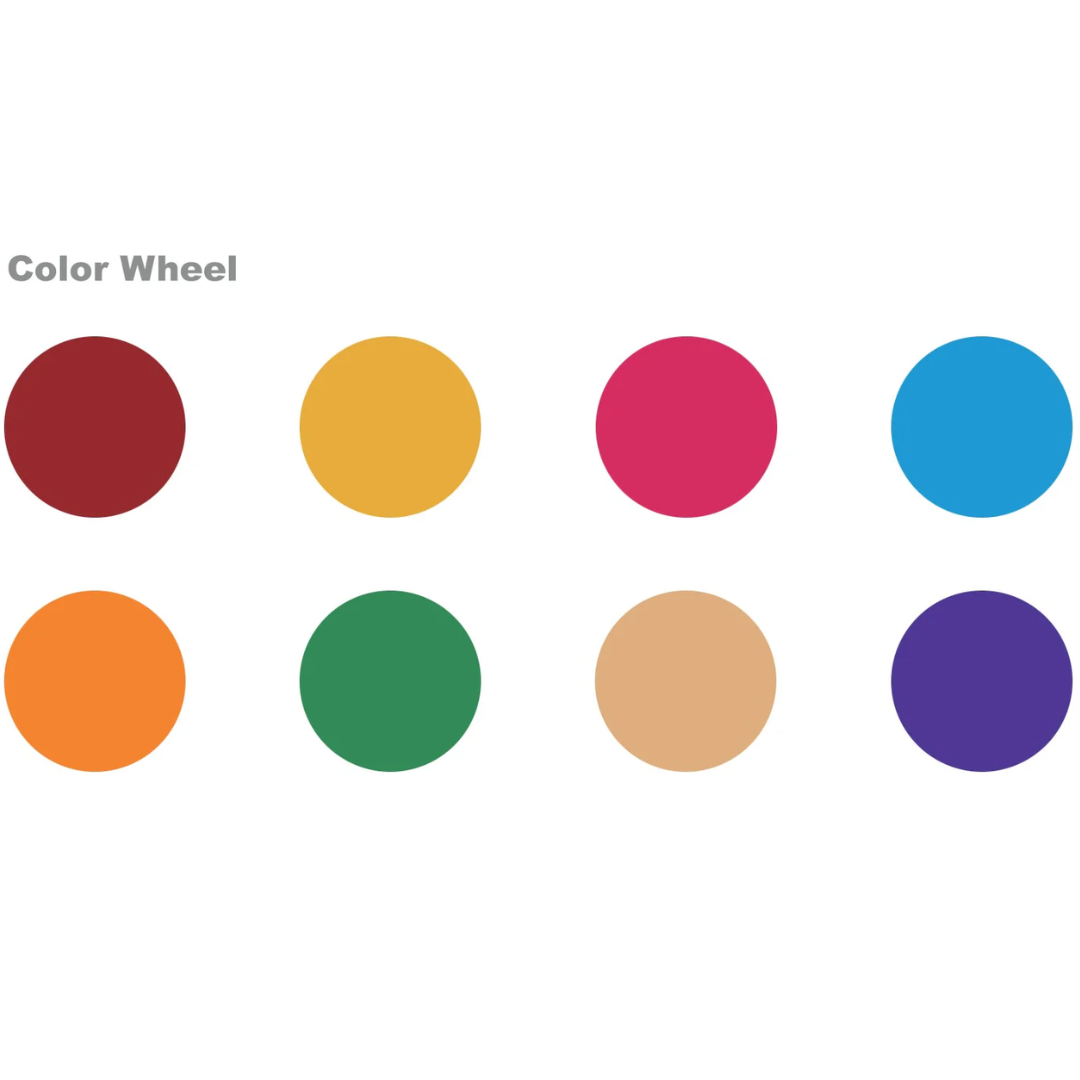

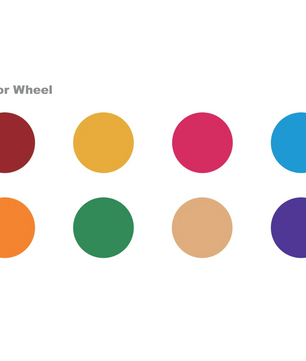

• Color wheel: 8 colors + open

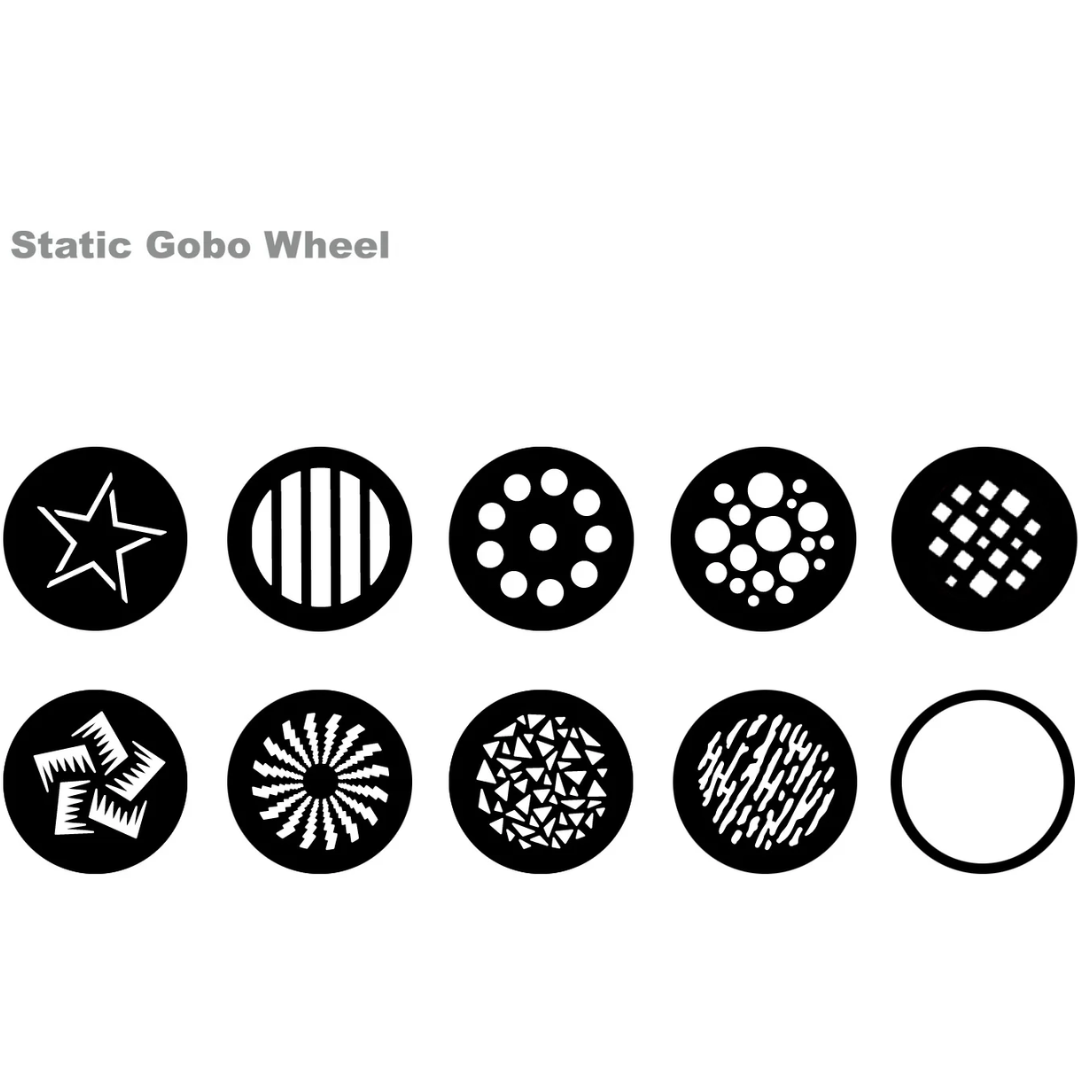

• Fixed gobo wheel: 10 gobos + open

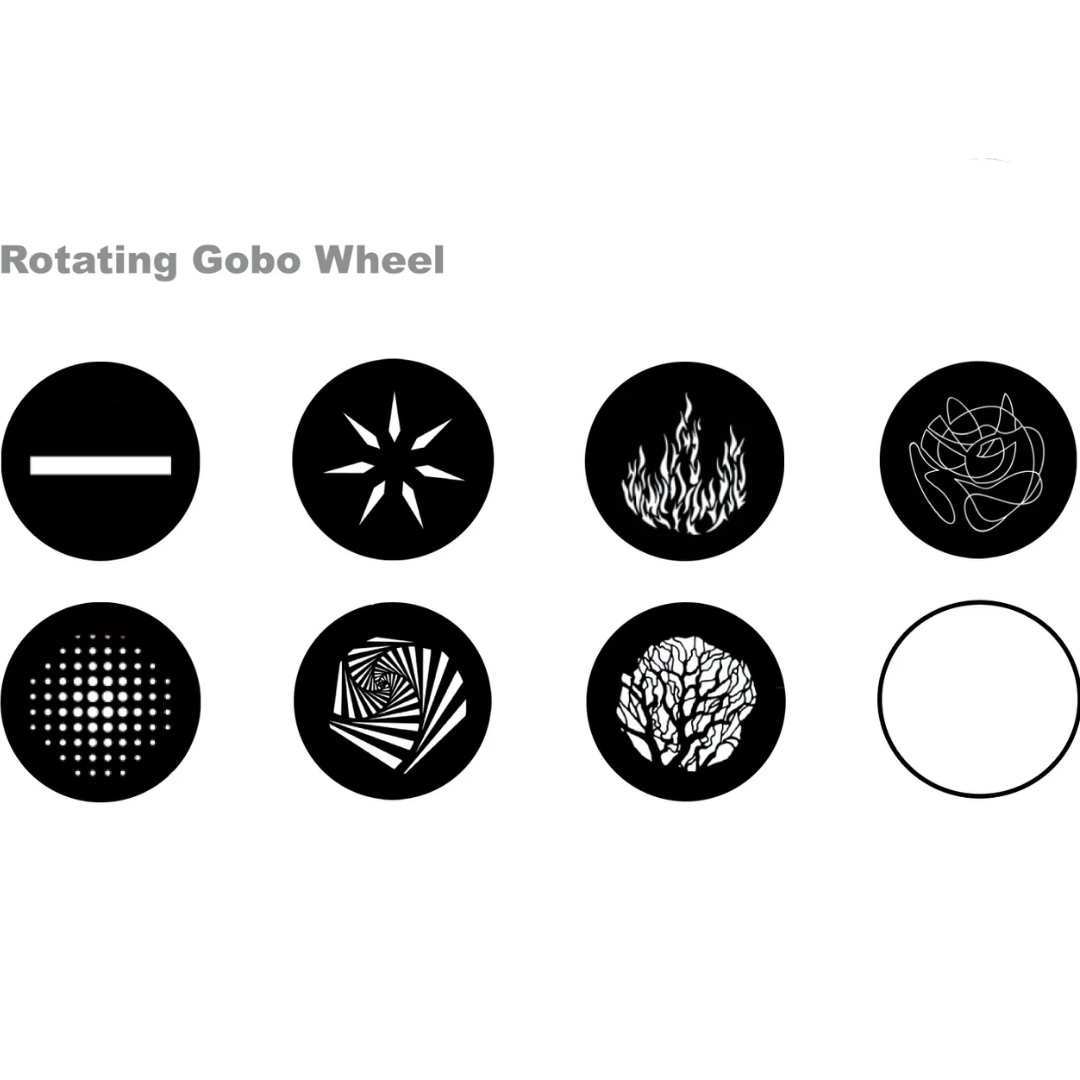

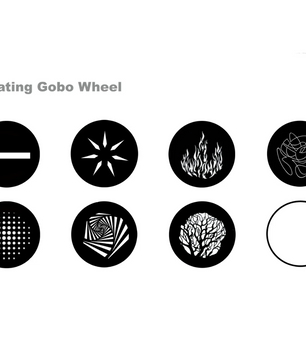

• Rotating gobo wheel: 7 gobos + open
• Motorized focus and frost filter
• 3-facet prism with shake effect
• 0–100% dimming and strobe effect
• Pan: 540° (2.4 sec), Tilt: 263° (1.3 sec)
• 16-bit movement resolution with auto repositioning
• Control: DMX512, RDM, optional wireless
• DMX Channels: 21 / 17

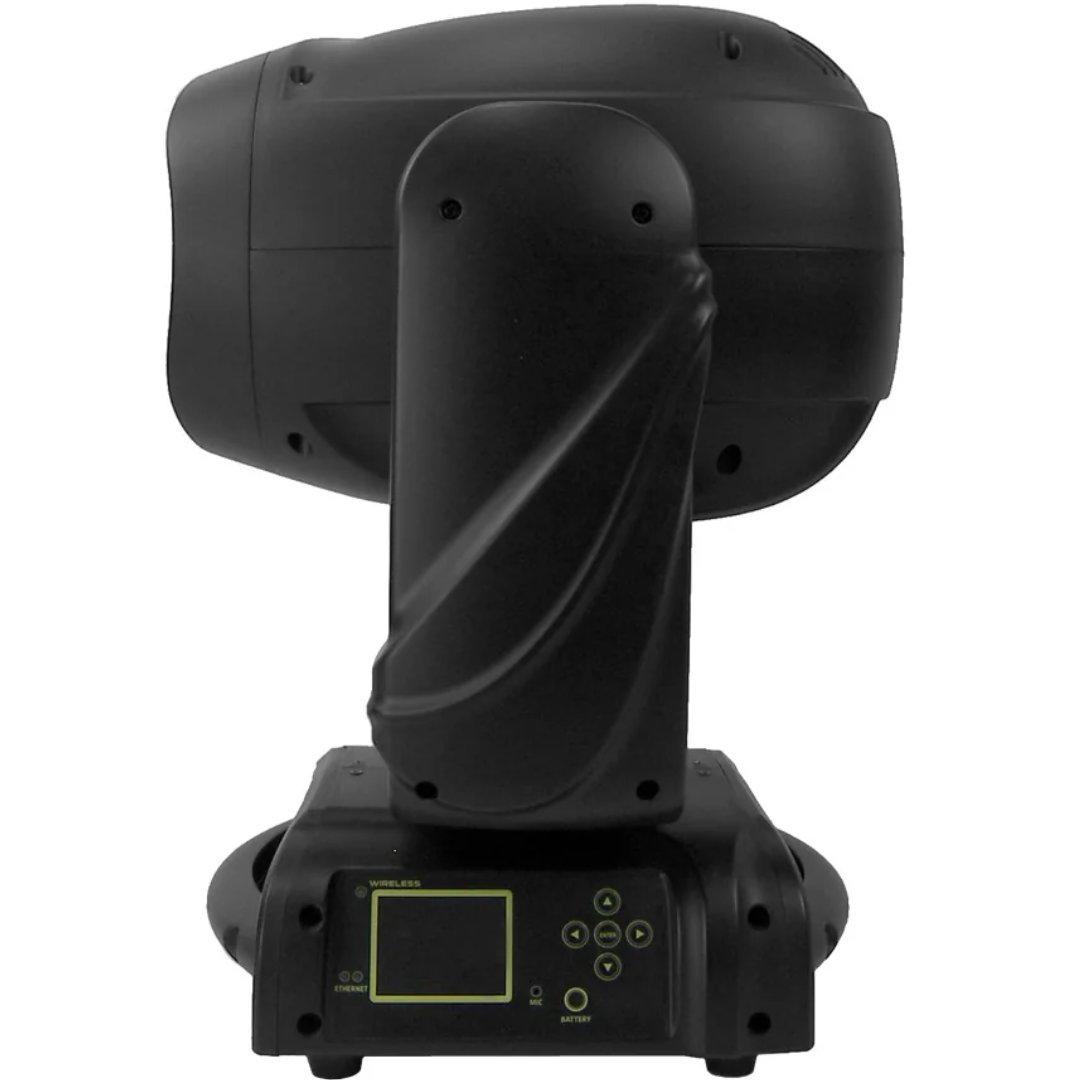

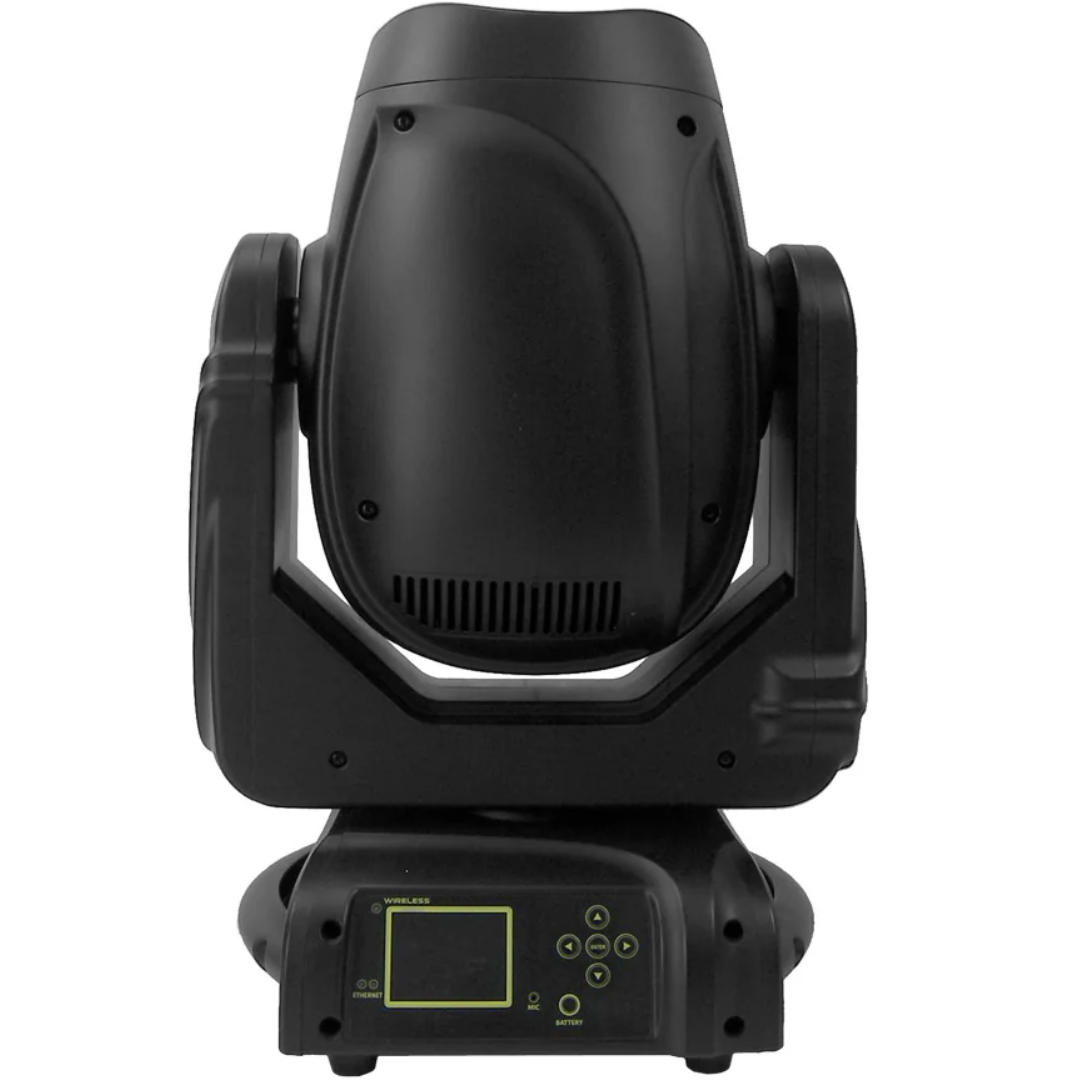

• 2.4″ color LCD display with menu navigation
• Software upgrade via DMX or USB
• True1 power in/out connectors

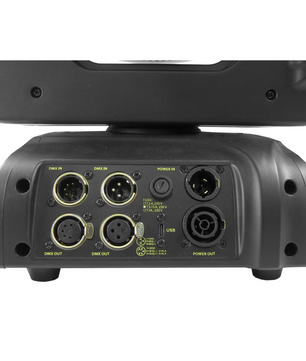

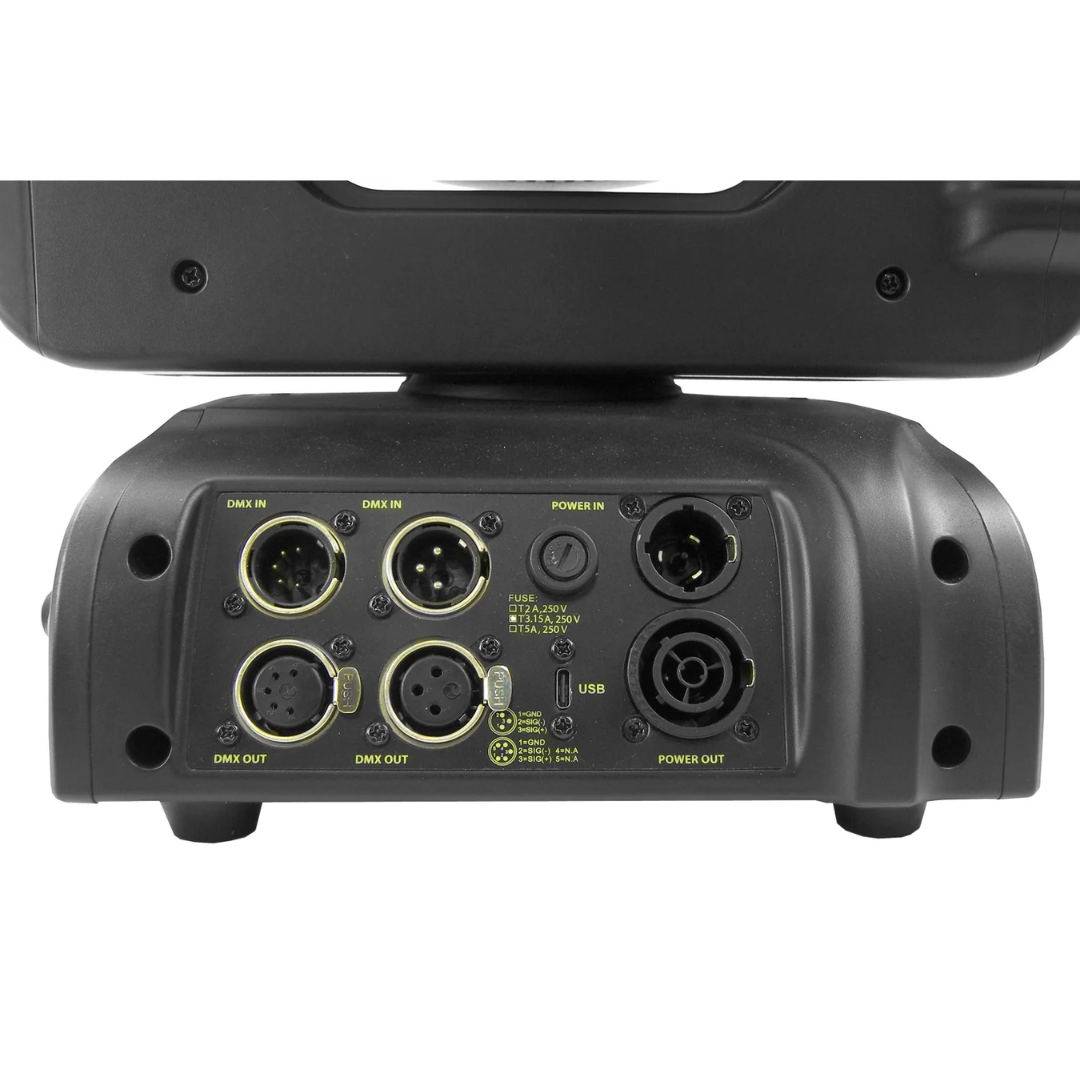

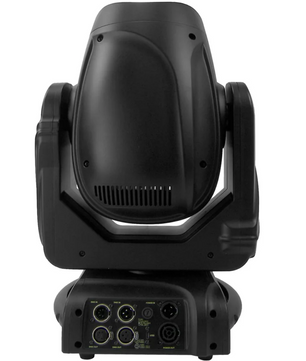

• 3-pin and 5-pin DMX in/out
• Cooling: Intelligent fan speed control

HAVOCS150 Specifications

• Light Source: 150W white LED
• Beam Angle: 10.2°–48.4° (motorized zoom)
• Output: 9,270 lux @ 5m (10.2°)
• LED Lifespan: 50,000 hours
• Pan: 540°; Tilt: 263°
• Control Protocols: DMX512, RDM (wireless optional)
• DMX Channels: 17 / 21
• Display: 2.4″ color LCD
• Max Power Consumption: 206W
• Input Voltage: 100–240V AC, 50/60 Hz

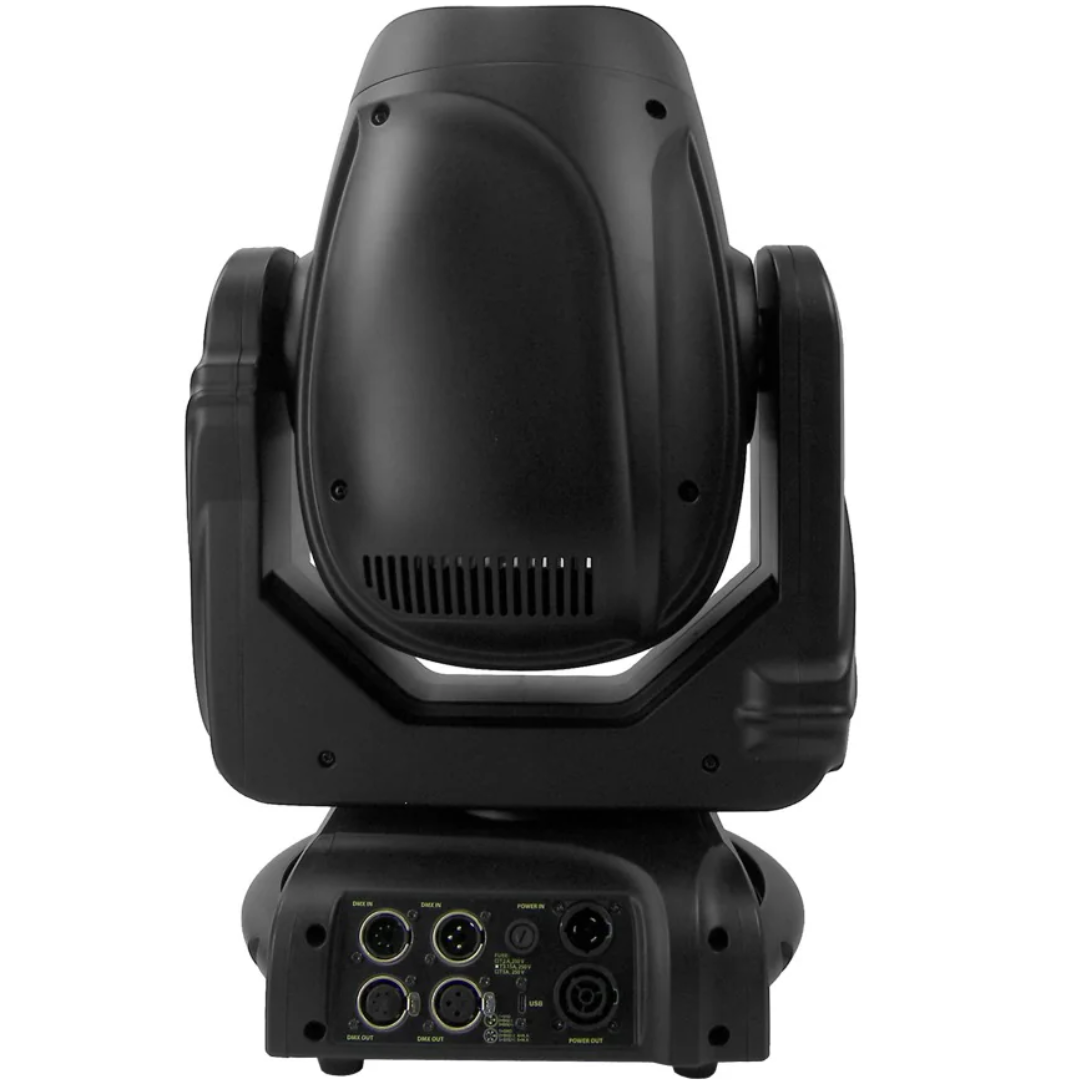

• Power Connections: True1 in/out
• Data Connections: 3-pin & 5-pin XLR in/out
• Housing Material: ABS & steel, matte black finish

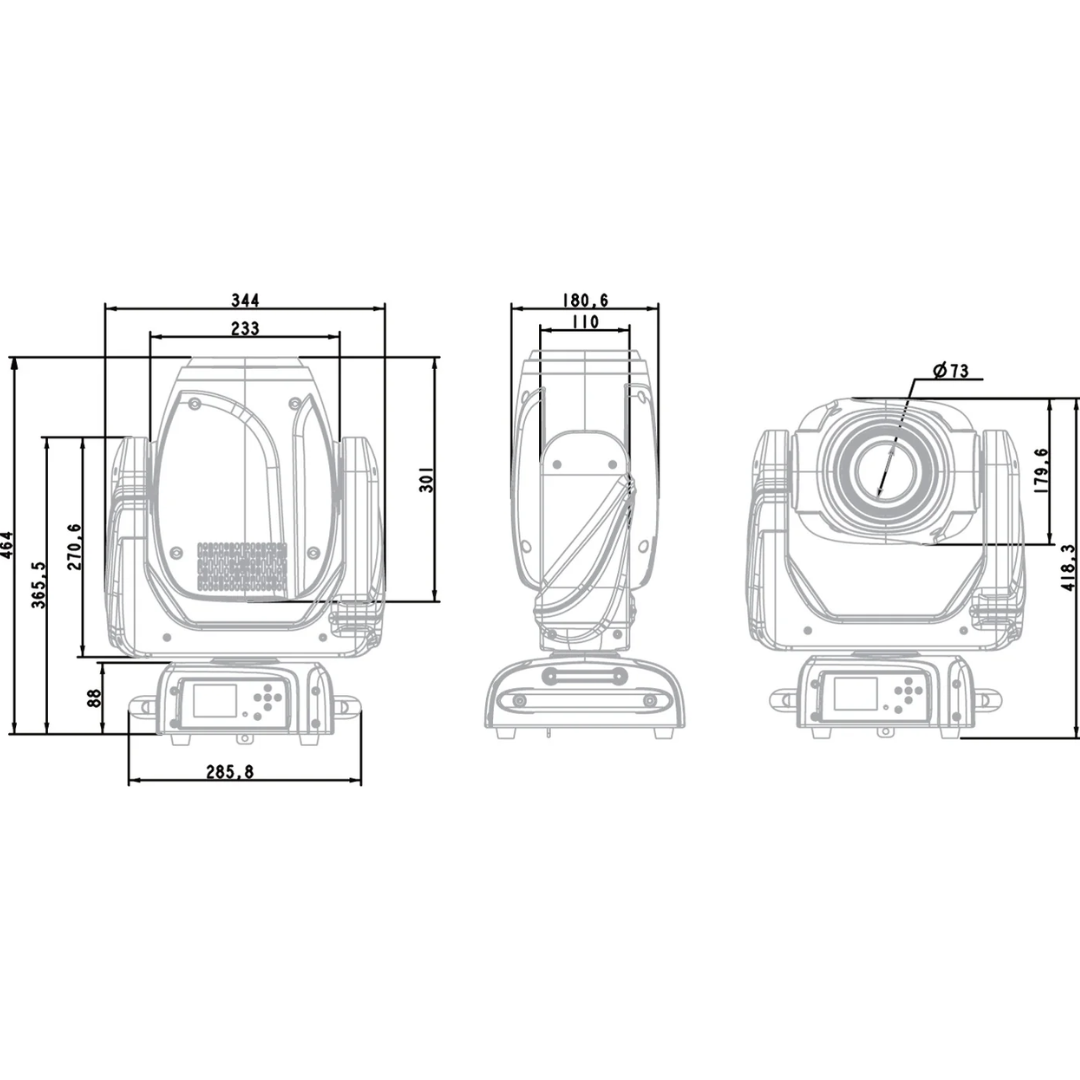

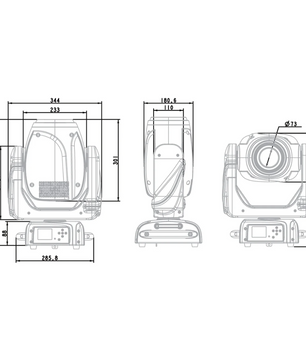

• Dimensions: 18.3″ x 13.1″ x 7.1″ (464 × 334 × 181 mm)
• Weight: 30.9 lbs (14 kg)
• Cooling: Auto fan speed adjustment
• IP Rating: IP20 (indoor use)
