Event Lighting BLITZBARFX | LED Pixel Strobe & Wash Bar with Frost and 64-Zone Control

LED Pixel Strobe and Wash Bar with Electronic Frost

The Event Lighting BLITZBARFX is a powerful LED strobe and wash bar designed for high-impact visual effects in concerts, events, and productions. Combining 384 white LEDs for intense strobe effects and 384 RGB LEDs for vibrant washes, this versatile fixture delivers dynamic visuals with pixel-level control and built-in chase patterns.

Event Lighting BLITZBARFX Competitive Differences

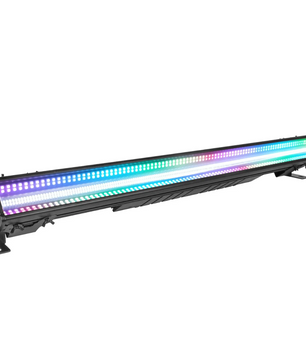

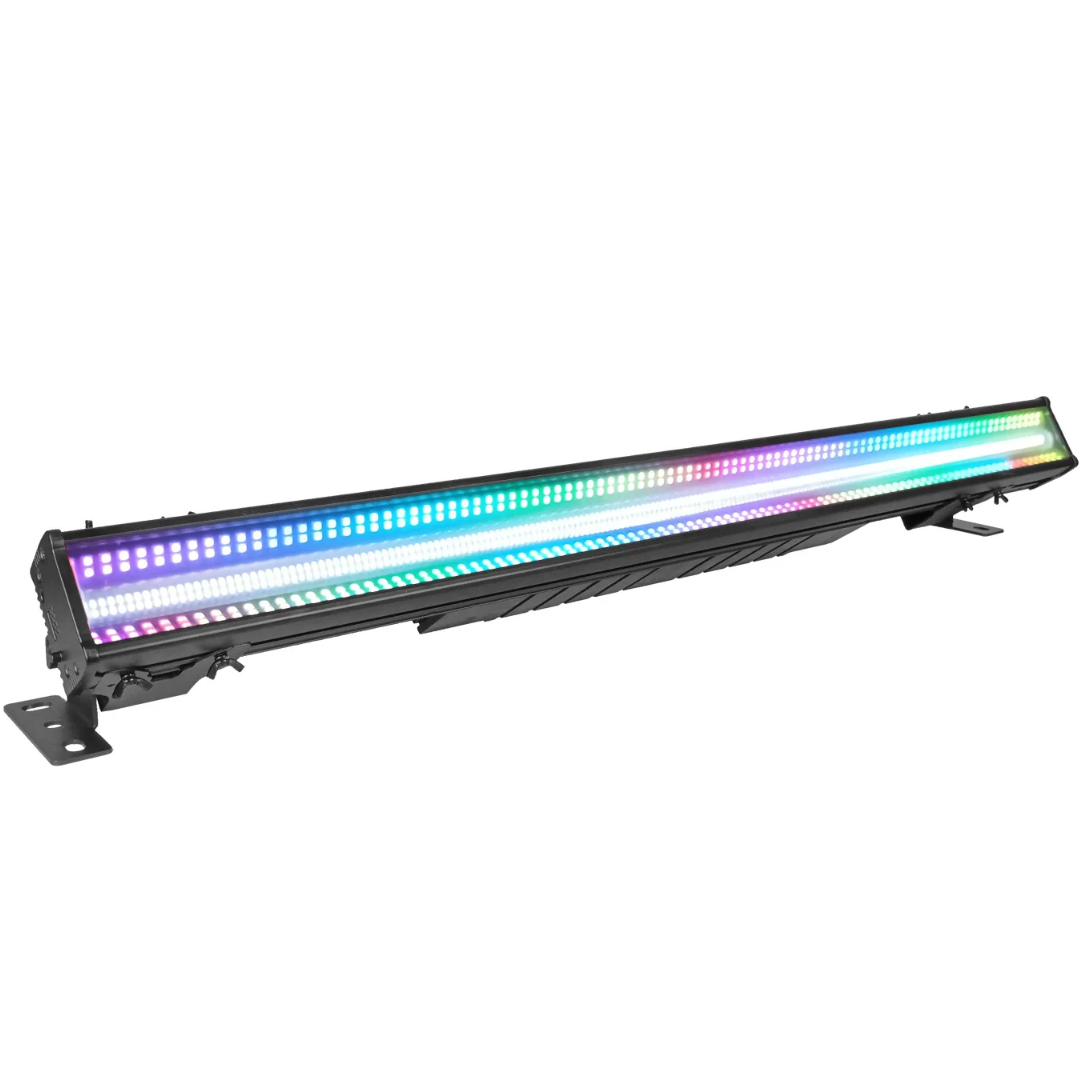

• Dual light sources: 384 white LEDs for strobes + 384 RGB LEDs for color washes
• Electronic frost effect for smooth diffusion

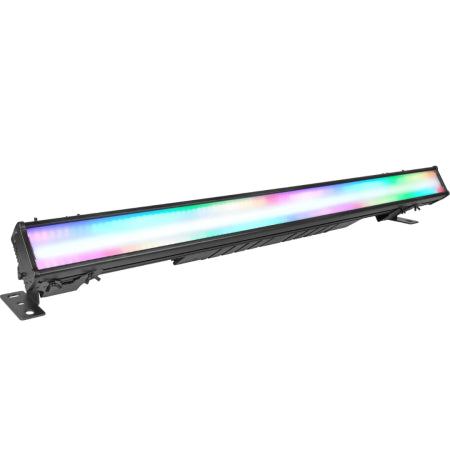

• 64-segment pixel control for advanced chases and effects
• Multiple DMX channel modes (7 to 269) for both simple and detailed programming
• Built-in chase patterns for plug-and-play operation
• High 10,000Hz PWM refresh rate for flicker-free camera performance
• Lightweight design with adjustable bracket positions for flexible mounting
• True1 power in/out and 5-pin DMX connections for professional use

Event Lighting BLITZBARFX Description

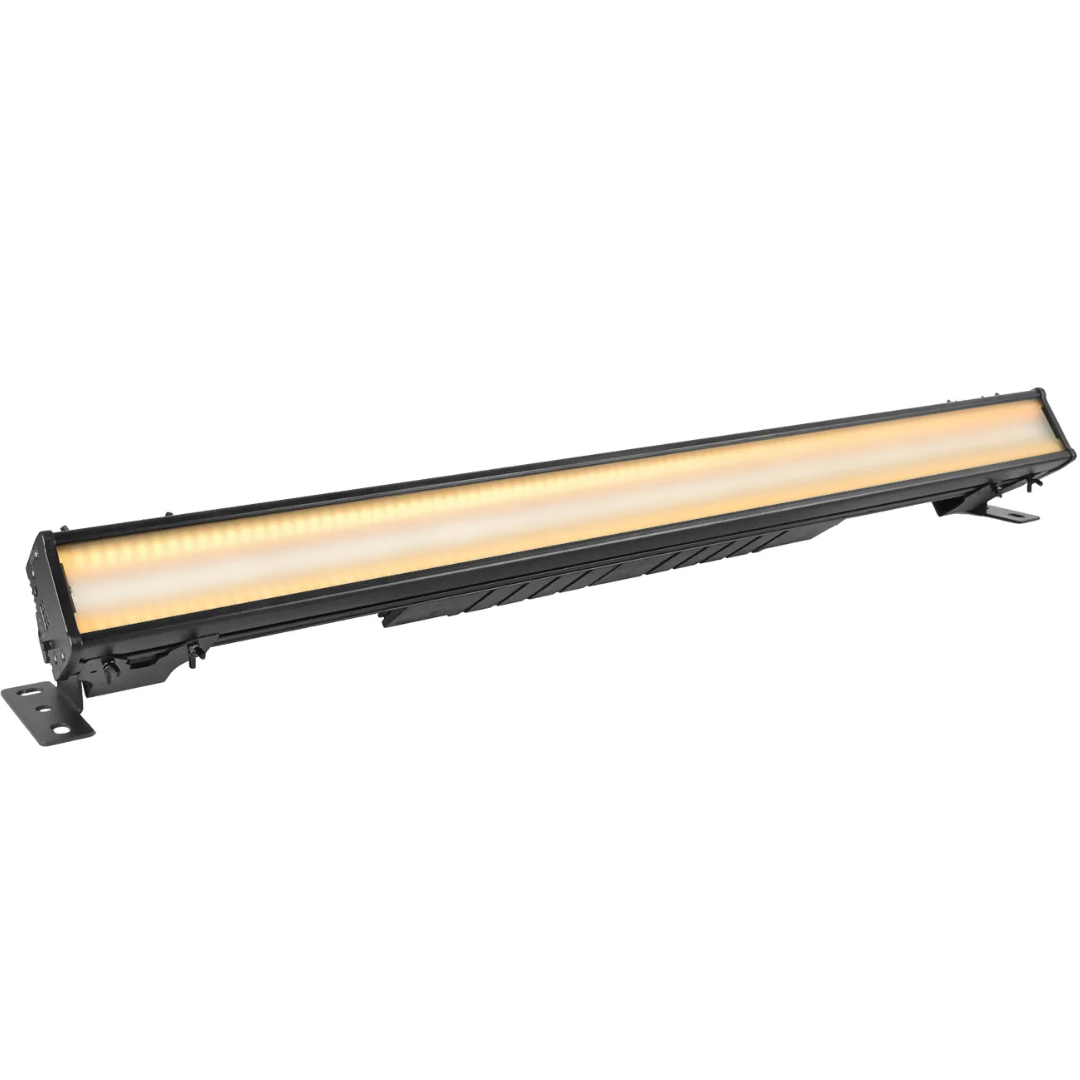

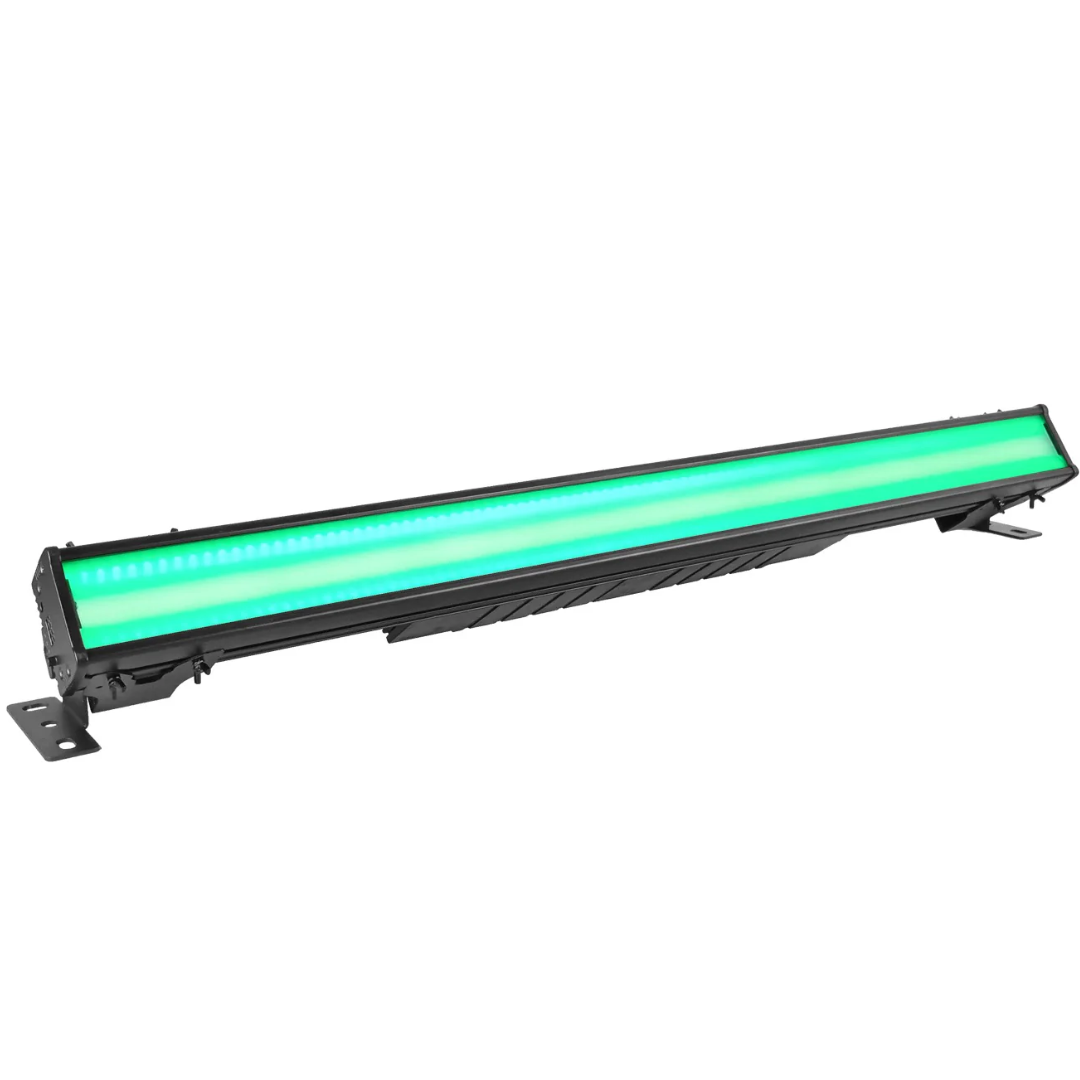

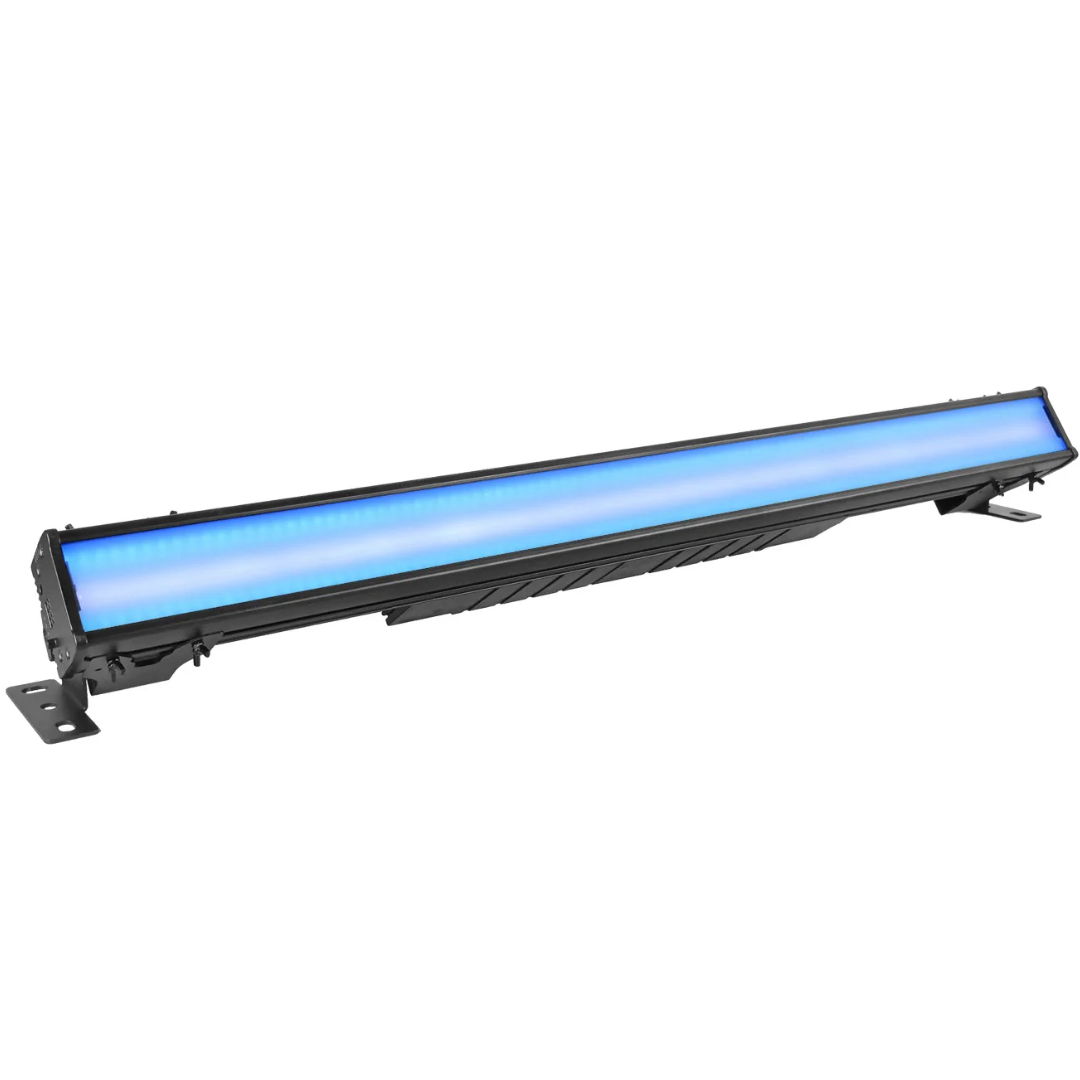

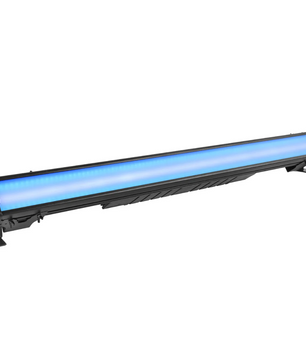

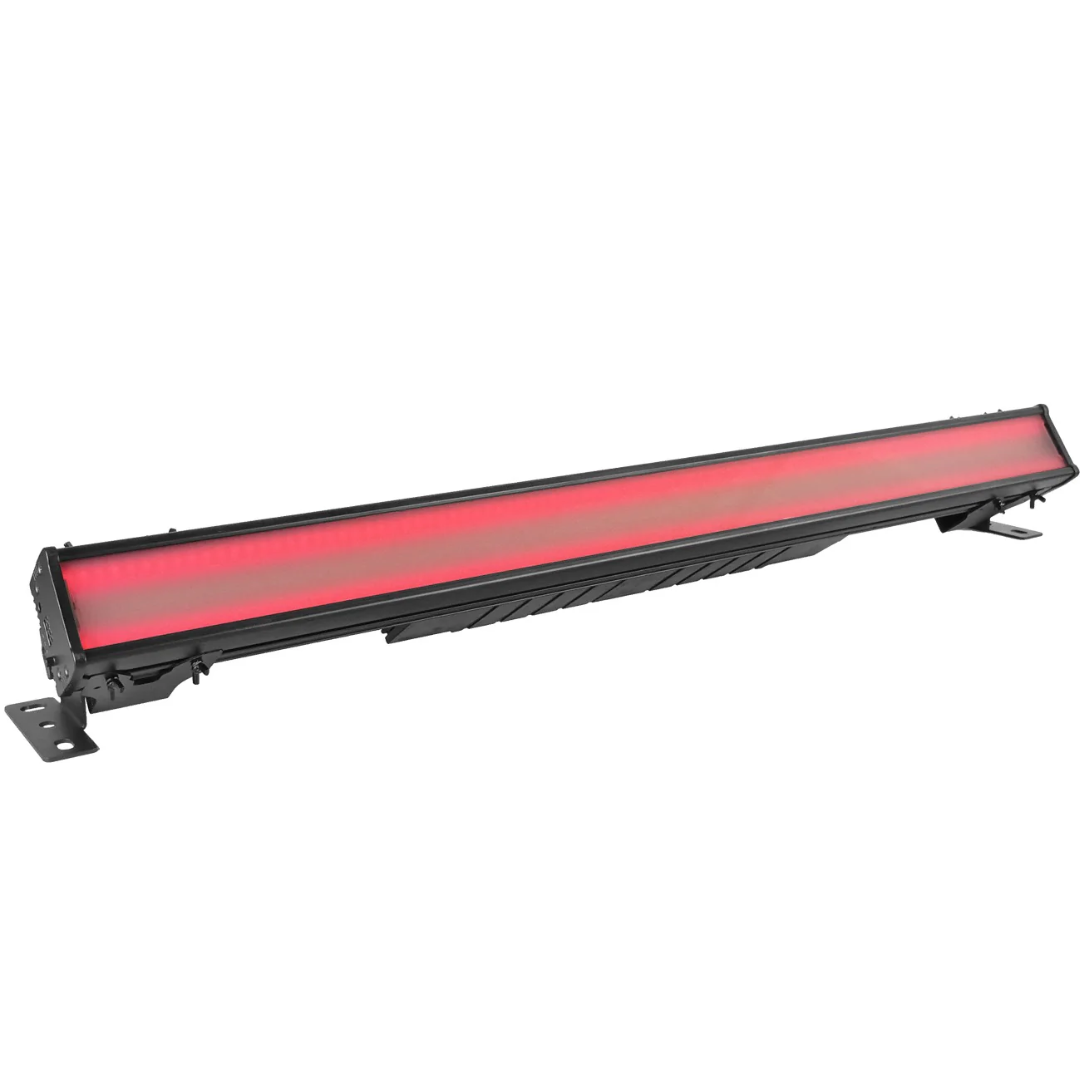

The BLITZBARFX is a hybrid LED bar that combines the power of a strobe and the creativity of pixel-mapped washes. Its 384 white LEDs deliver intense bursts of strobe light (1–30Hz), while 384 RGB LEDs provide smooth color mixing and vibrant washes across a wide 80° beam angle. With electronic frost control, the fixture can instantly shift from sharp strobe effects to softer atmospheric washes.

Designed for maximum flexibility, the BLITZBARFX offers 64 pixel segments, allowing advanced mapping and creative chase patterns via DMX. Multiple DMX modes (from as few as 7 channels up to 269 channels) make it suitable for both quick setup and complex lighting designs. A 10,000Hz PWM refresh rate ensures flicker-free output, making it ideal for live broadcast and video recording.

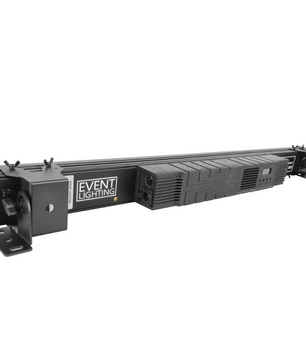

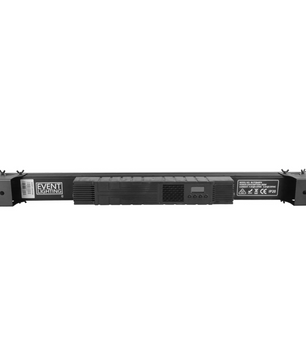

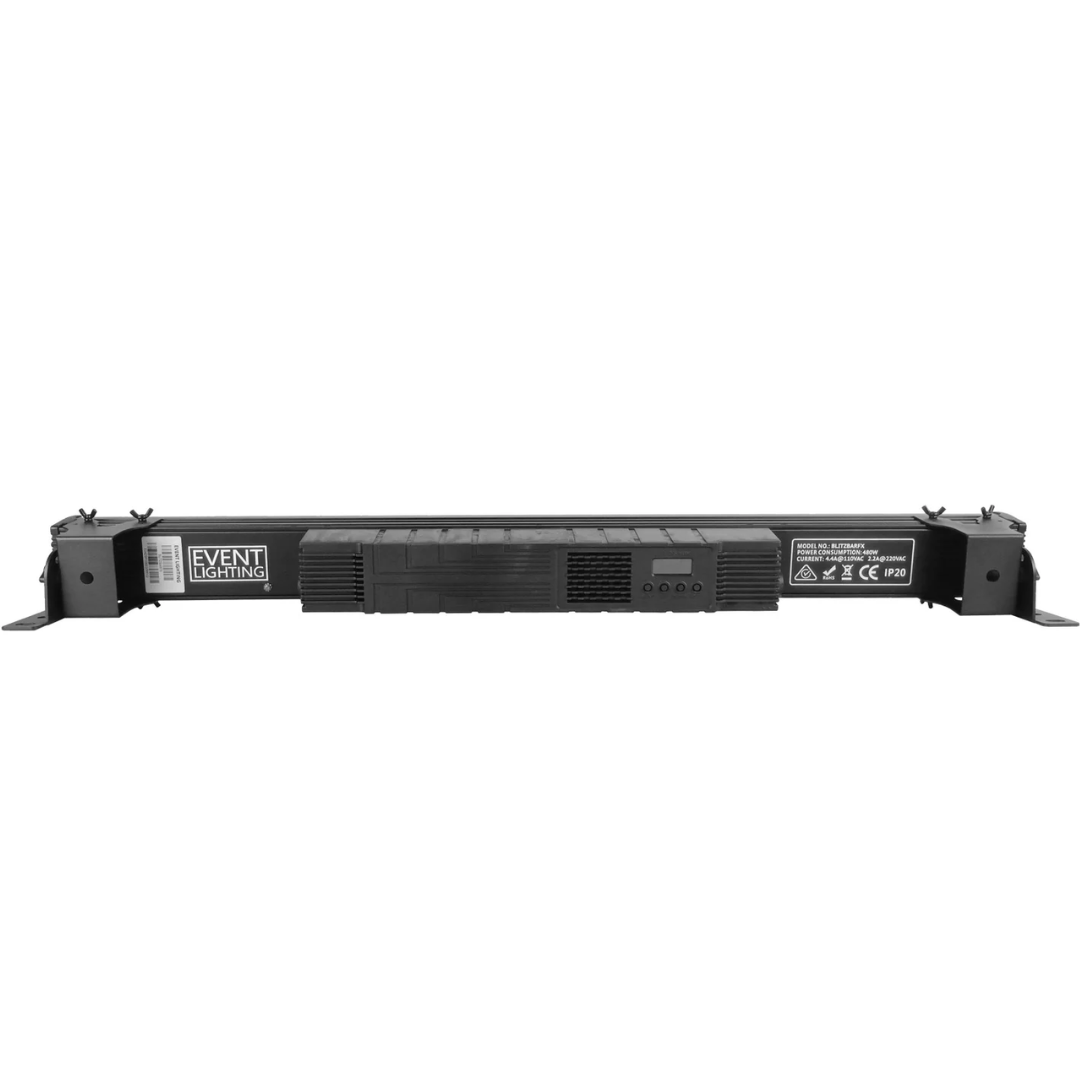

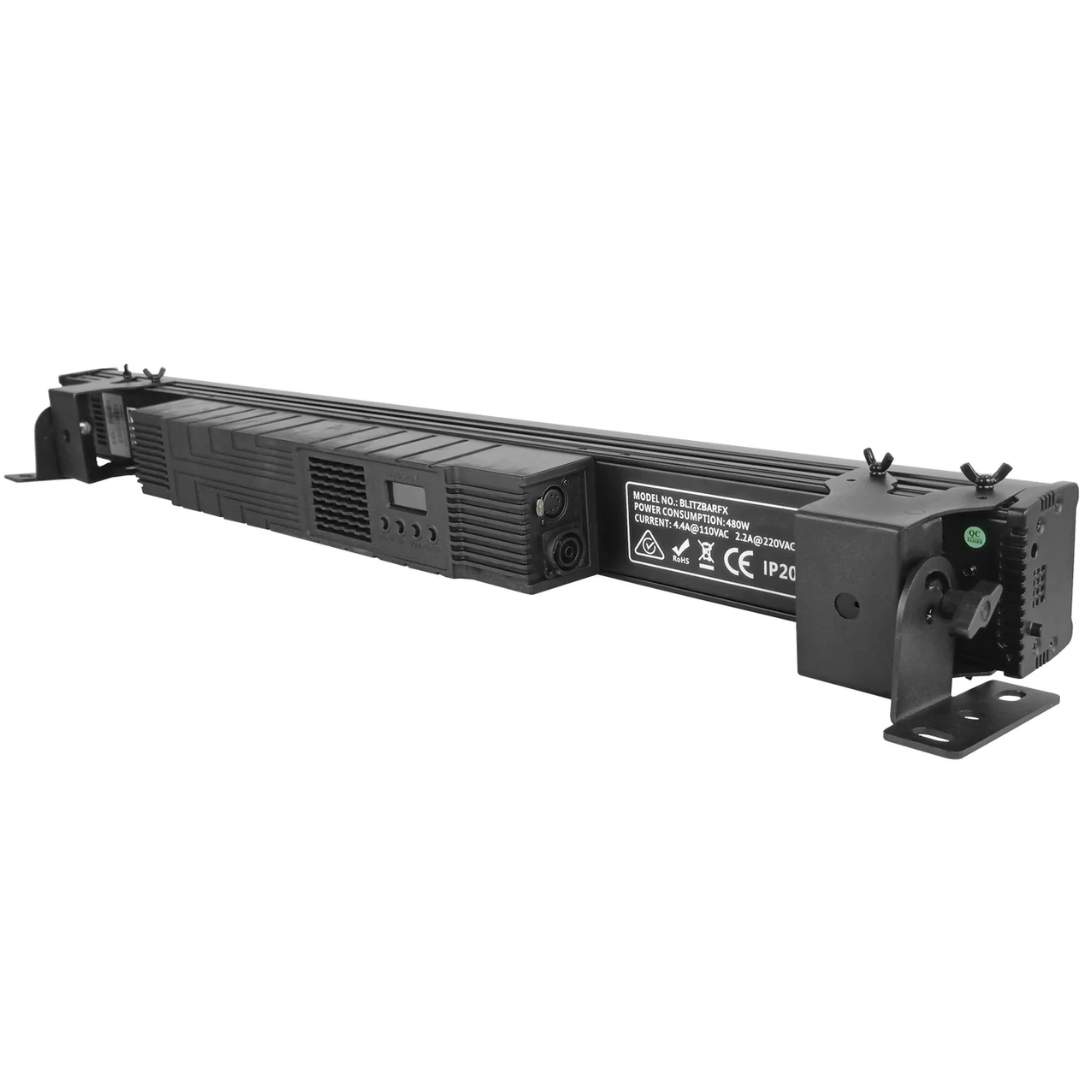

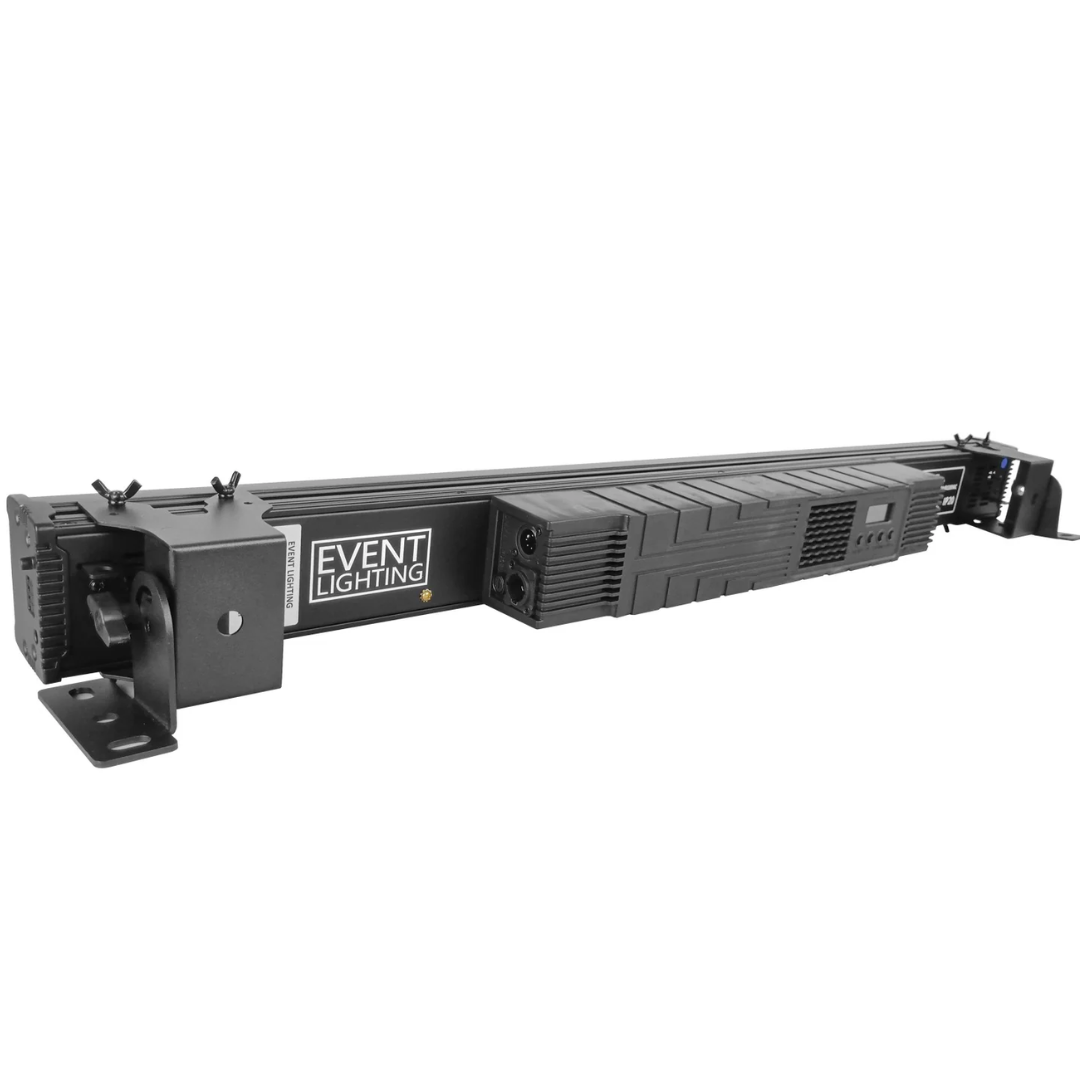

Housed in durable matte black aluminum, the fixture is equipped with adjustable mounting brackets for width and angle customization. With True1 in/out power linking, 5-pin DMX connections, and an LCD control interface, the BLITZBARFX is built for professional stage and event environments.

BLITZBARFX Features

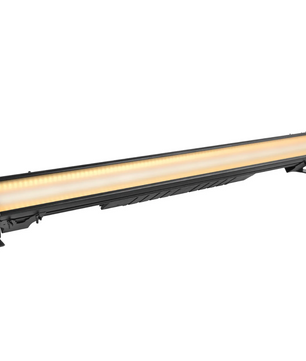

• 384 white LEDs dedicated to strobe effects

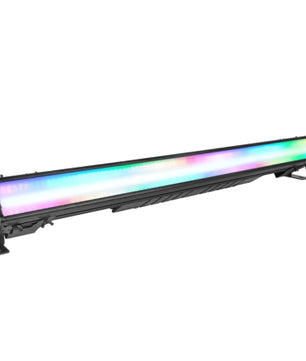

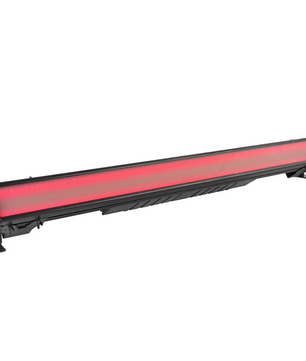

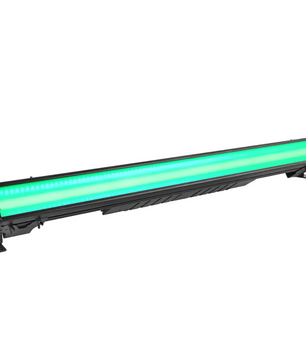

• 384 RGB LEDs for vibrant color washes
• Electronic frost effect for beam softening
• 1–30Hz strobe rate
• 64-segment pixel control for mapping and effects
• Built-in chase patterns
• 0–100% linear dimming
• High-frequency PWM: 10,000Hz (flicker-free)
• Operation modes: DMX, manual, auto, master/slave
• Multiple DMX channel modes: 7 / 18 / 21 / 22 / 256 / 269

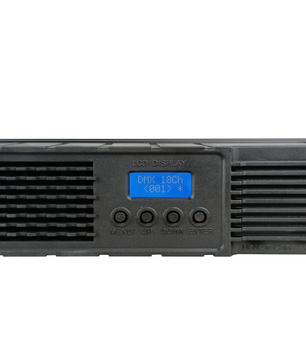

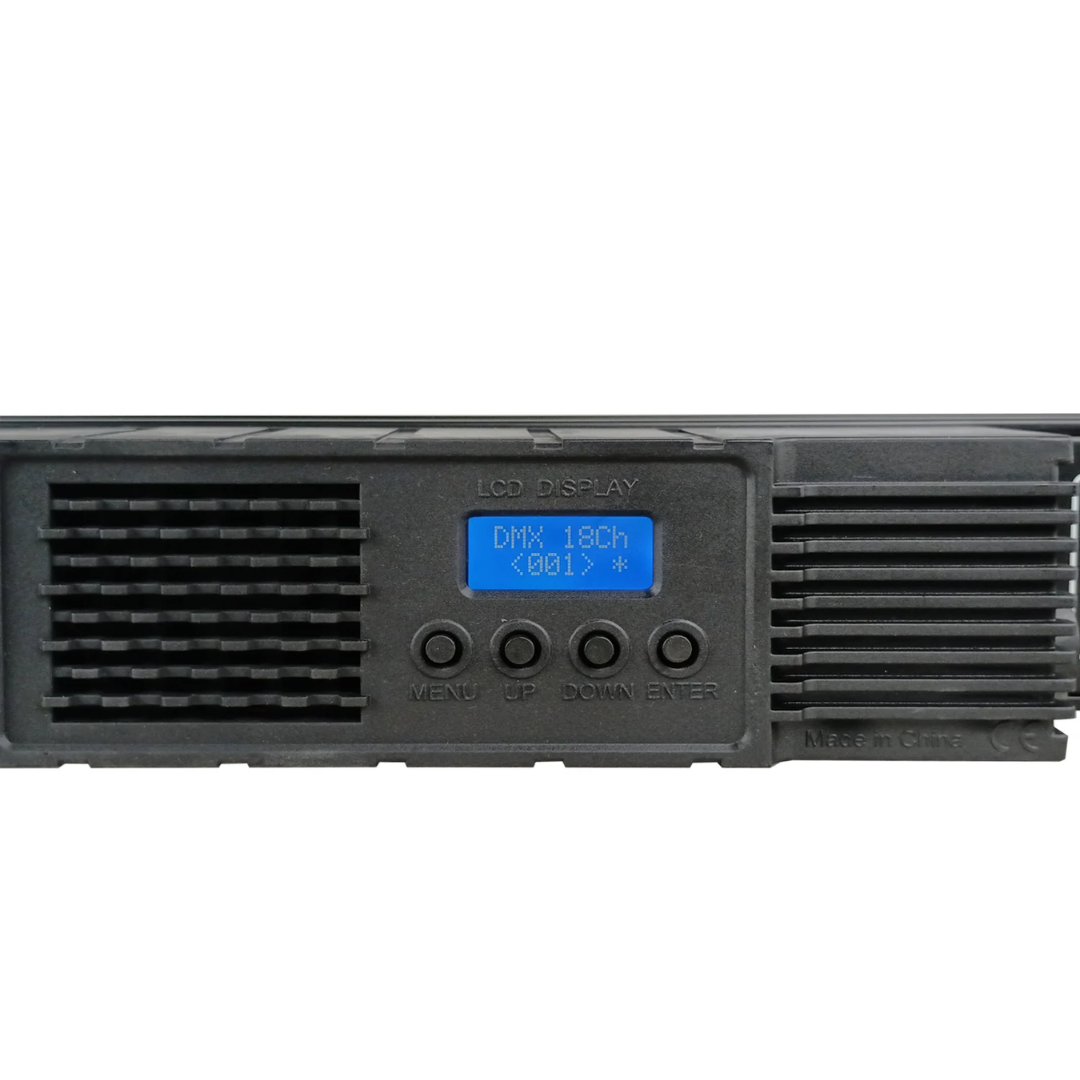

• 4-button LCD control interface

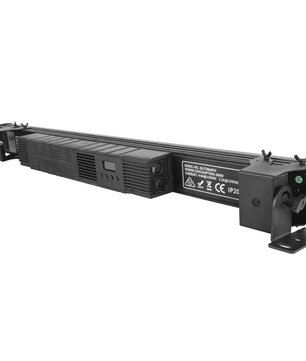

• True1 power in/out
• 5-pin DMX in/out

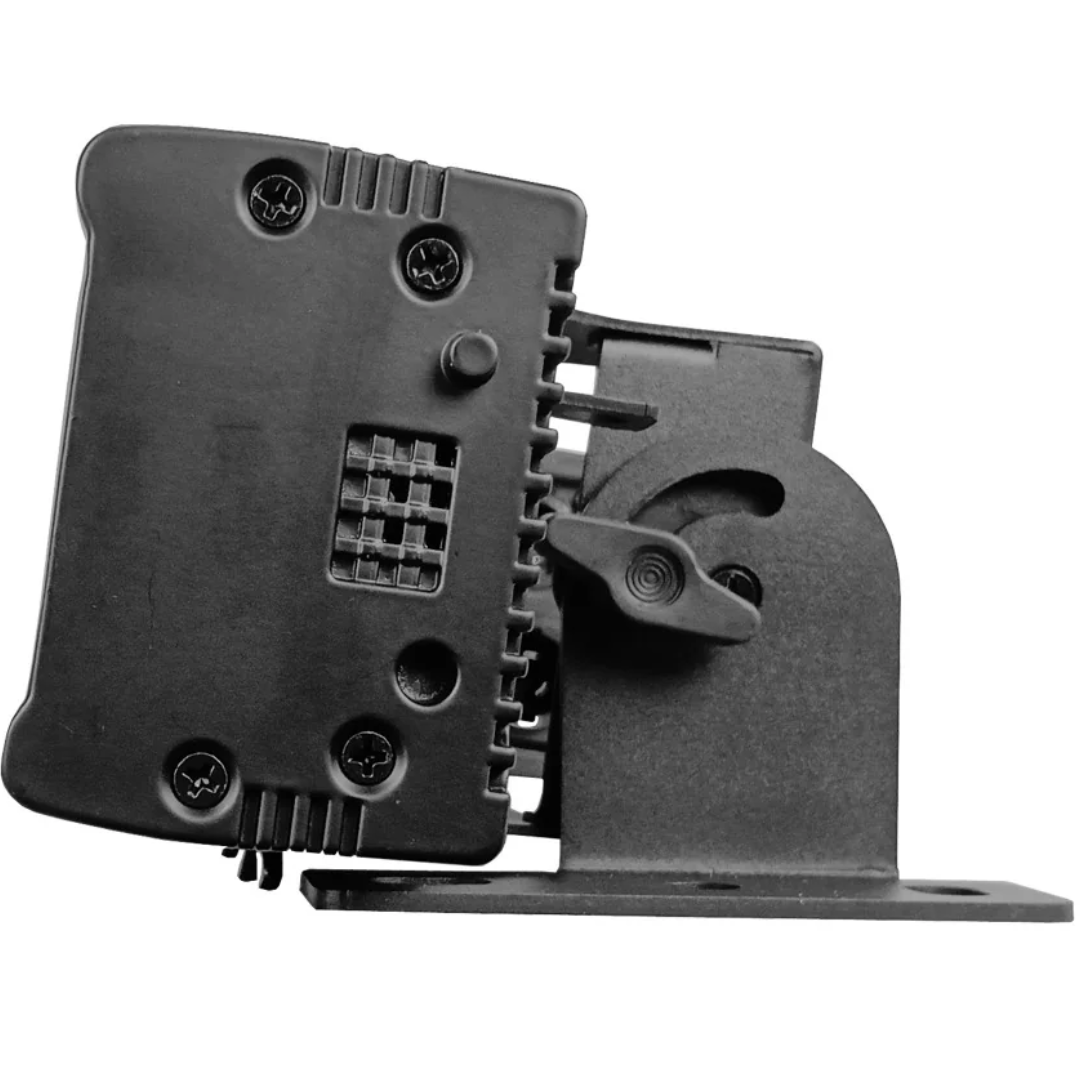

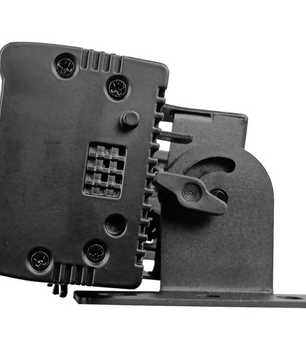

• Adjustable mounting brackets (width & angle)

BLITZBARFX Specifications

• Light Source: 384 white LEDs + 384 RGB LEDs
• Beam Angle: 80°
• LED Lifespan: 50,000 hours
• Dimming: 0–100% linear
• Strobe Rate: 1–30Hz
• Pixel Segments: 64
• PWM: 10,000Hz
• Max Power Consumption: 450W
• Input Voltage: 100–240V AC, 50/60Hz
• Power Connections: True1 in/out
• Control: DMX512, manual, auto, master/slave
• DMX Channels: 7 / 18 / 21 / 22 / 256 / 269
• DMX Connections: 5-pin XLR in/out
• Display: 4-button LCD
• Housing: Aluminum, matte black finish
• Dimensions: 39.3" x 5.3" x 5.7" (1000 × 135 × 145 mm)
• Weight: 15 lbs (6.8 kg)
• IP Rating: IP20 (indoor use only)
