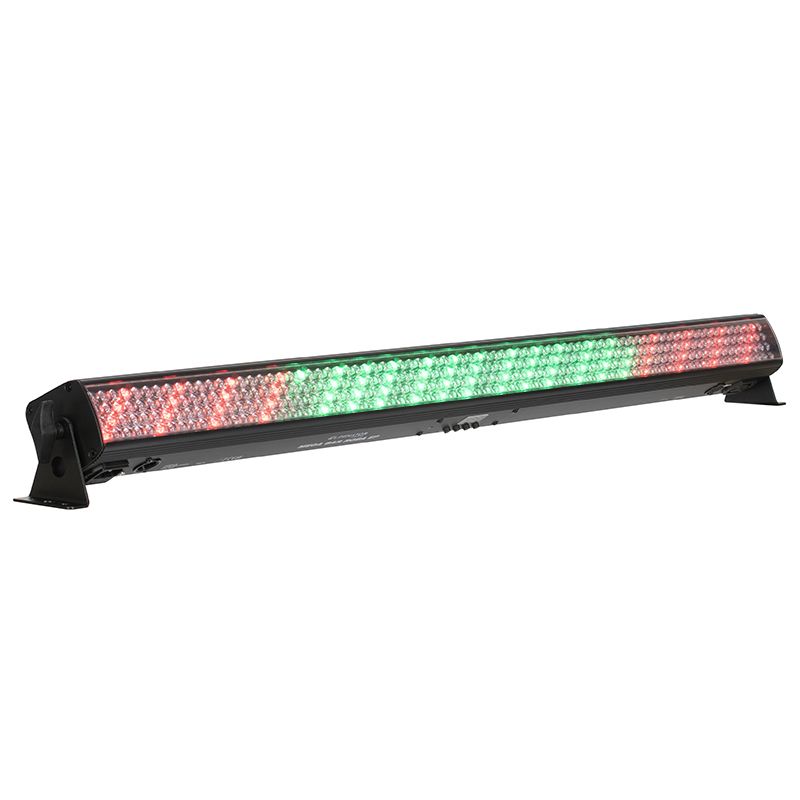

Eliminator Mega Bar RGBA EP

Versatile RGBA LED Bar for Stage and Wall Wash Lighting

The Eliminator Lighting Mega Bar RGBA EP is a robust and efficient 42-inch RGBA LED linear fixture, designed to deliver vibrant and seamless color mixing for stage and wall wash applications. With its wide beam angle and multiple control modes, it offers flexibility and precision in a compact design, making it ideal for both professional and amateur lighting setups.

Eliminator Lighting Mega Bar RGBA EP Competitive Differences

• Equipped with 320 RGBA LEDs for rich, saturated colors and smooth blending.
• 30-degree beam angle for effective coverage in stage and wall wash applications.
• Flicker-free operation with a 410Hz refresh rate, suitable for live performances and broadcast.
• 7 DMX channel modes for precise control, from simple to advanced setups.
• Supports a range of operational modes, including Auto, Sound Active, and DMX-512.
• Magnetic end caps for easy alignment when connecting multiple units, ensuring a seamless look.
• Low power consumption with a maximum draw of just 32W, allowing up to 20 units to be daisy-chained together.
• Long-lasting LEDs with a rated lifespan of 50,000 hours, minimizing maintenance.

Eliminator Lighting Mega Bar RGBA EP Description

The Eliminator Lighting Mega Bar RGBA EP offers outstanding color mixing capabilities with 320 10mm RGBA LEDs, delivering brilliant light output with 650 LUX at 2 meters. Its 30-degree beam angle makes it perfect for both stage and wall washing, providing smooth, even coverage. Designed for flexibility, the Mega Bar RGBA EP includes 48 built-in color macros, LED pulse and strobe effects, and a refresh rate of 410Hz for flicker-free operation. Control options include manual, auto, and DMX modes, making it adaptable to any lighting scenario. Additionally, its magnetic end caps ensure precise alignment when using multiple fixtures, providing a streamlined appearance.

Mega Bar RGBA EP Features

• 42-inch indoor linear fixture with 320 RGBA 10mm LEDs (64 Red, 96 Green, 96 Blue, 64 Amber).
• Variable RGBA color mixing for an extensive palette, perfect for creating dynamic lighting effects.
• 48 built-in color macros for quick access to popular color settings.
• Electronic dimming from 0 to 100% for precise brightness control.
• LED pulse and strobe effects for added visual impact.
• Refresh rate of 410Hz, ensuring flicker-free performance.

Mega Bar RGBA EP Specifications

• Light Source: 320 10mm RGBA LEDs, rated at 50,000 hours life expectancy.
• Beam Angle: 30 degrees.
• Light Output: 650 LUX @ 2M, 275 LUX @ 4M (30-degree beam).
• Control Protocol: DMX-512 with 7 channel modes (4, 6, 7, 9, 10, 18, 34 channels).
• Operational Modes: Manual Color Mode, Static Color Change Mode, Auto Mode, Sound Active Mode, RGBA Manual Control Mode, and DMX-512 Mode.
• Power Supply: Multi-voltage 100-240V, 50/60Hz.
• Power Draw: 32W max.
• Connections: 3-pin DMX Input/Output, IEC In/Out AC outlets for power daisy chaining (up to 20 units).
• Dimensions: 41.75” x 3” x 5.75” (1060 x 73 x 145mm).
• Weight: 6 lbs. (2.7 kg).

What's In The Box

• Eliminator Lighting Mega Bar RGBA EP
• Mounting brackets for wall or ground installation
• 1.8-meter power cable (IEC)
