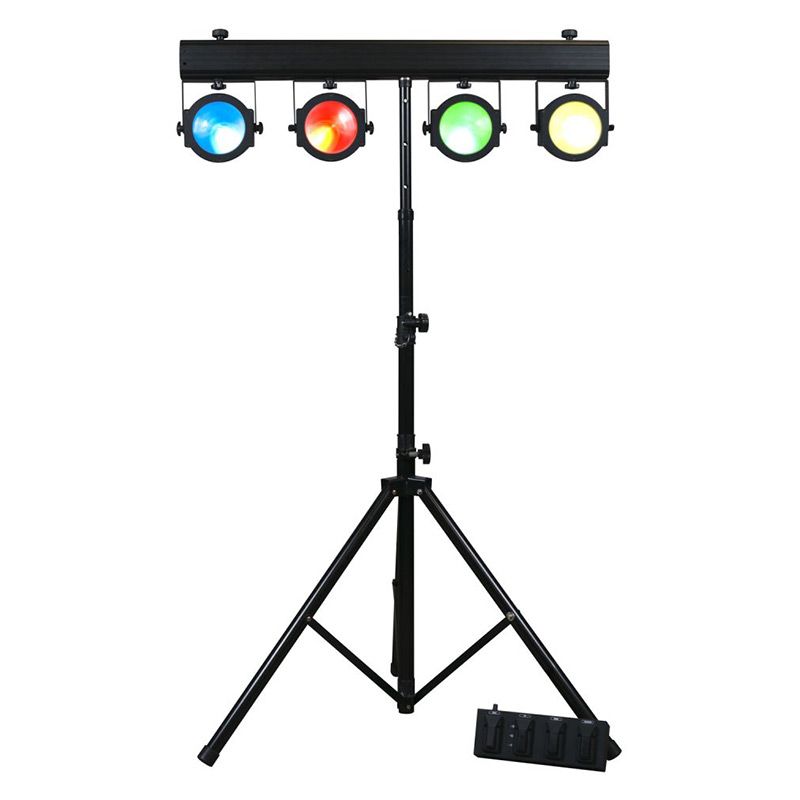

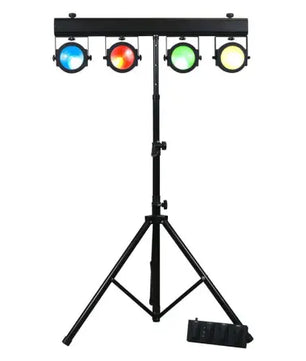

Eliminator Lighting Dotz TPar Sys Plus | COB Technology, Portable Stage Wash
The Eliminator Lighting Dotz TPar Sys Plus is a versatile and portable stage lighting wash system perfect for smaller live stages, nightclubs, and events. This all-in-one system includes four adjustable LED pars, a lighting stand, a foot controller, an RF remote control, and convenient transport bags, making it easy to set up and operate wherever you need vibrant lighting effects.
Key Features:
- COB Technology for powerful, smooth RGB color mixing without shadows
- Ideal for stage lighting, bands, nightclubs, and mobile entertainers
- Emits less heat compared to conventional stage lighting
- RF remote control with up to 25-meter range
- Refresh rate: 3.6KHz
Specifications:
System Includes:
- 4x COB LED Par Wash Fixtures

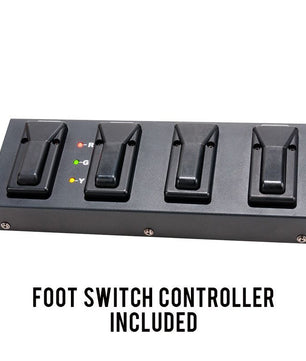

- 1x Foot Controller
- 1x Lighting Stand

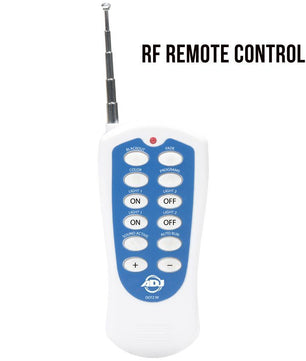

- 1x RF Remote Control
- 1x Stand Bag
- 1x Soft case for lighting system
Source:
- Light Source: Each fixture has 1x 30-Watt TRI Color COB LEDs
- LUX @ 3M: 1345
- LED life span: Approximately 50,000 hours
- Beam angle: 90-degree
Control:
- Digital DMX Display with 4-button menu
- 4 Operational modes: Sound Active, Auto Run, Built-In Programs, DMX-512
- Stand Alone or Primary/Secondary Configuration
- Pixel Flip option changes pixel orientation
- 14 Built-in Programs
- 5 DMX Channel modes: 3, 5, 9, 12, 18 channels
- Strobe & Pulse LED Effect
- Electronic Dimming: 0-100%
- 5 selectable Dim Curves
- Foot Controller features Mode, Black Out, and Program Change
Connections:
- 3-Pin DMX In/Out
- IEC In and IEC out to daisy chain power
- 2x power plugs on rear for additional fixtures (120V = Edison, 230V = Shuko)
- 5-pin DMX In for foot controller connection
Electrical:
- Multi-voltage operation: AC 100V-240V 50/60Hz
- Power Draw: 144W Max (entire system)
Dimensions & Weight:
- Dimensions (LxWxH): 39.5” x 12.75”x 3.25” / 1000 x 320 x 82mm
- Weight: 35 lbs. / 16 kg (Fixture Bar, Stand & Controller)
- Maximum stand height: 9 feet
What’s Included:
- Includes 25-degree beam angle lens kit
- Hardware to mount two lighting fixtures on top of the light bar
- 5-pin DMX cable to connect the foot controller to the light bar
- Power Cord
Approvals / Ratings:
