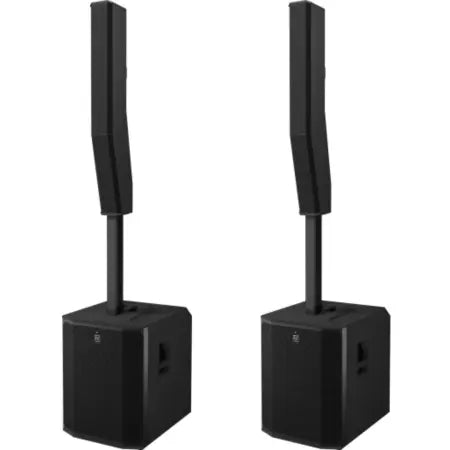

Electro‑Voice EVOLVE 90 (Pair) | Dual 2 000 W Column PA Systems – 134 dB SPL, 18″ Subs, Bluetooth & App Control

High-Power Dual Column PA System for Professional Events

Electro‑Voice EVOLVE 90 (Pair) delivers premium audio performance with dual column-style powered speakers, each capable of producing 134 dB SPL with extended low-end response down to 28 Hz. Designed for DJs, bands, production companies, and event professionals, this system combines power, precision, and portability in a compact, elegant black finish.

EVOLVE 90 (Pair) Competitive Differences

• Massive output: 2 000 W per unit (total 4 000 W) delivers clean, room-filling sound with 134 dB max SPL per speaker.
• Unmatched low-end: 18″ subwoofers with 4″ voice coils extend bass down to 28 Hz—ideal for EDM and bass-heavy content.
• Wide coverage: 120° horizontal × 25° vertical dispersion per unit, driven by eight 4.7″ neodymium drivers.
• Next-level control: Integrated QuickSmart Mobile App enables wireless configuration and system tuning via Bluetooth.
• Advanced DSP: FIR filters ensure linear frequency response and phase alignment for high-fidelity sound reproduction.
• Comprehensive I/O: XLR/TRS combo, stereo RCA, AES/EBU digital, Bluetooth stereo, QuickSmart Link, and PowerCON® per speaker.
• Quick deployment: Patented 3‑2‑1 click-to-assemble hardware system for fast setup and teardown.
• Professional portability: Lightweight for its class at 98.1 lb (44.5 kg) per unit with included carry bags and optional dolly.

EVOLVE 90 (Pair) Description

The Electro‑Voice EVOLVE 90 (Pair) is a flagship portable PA solution designed for maximum output and clarity without compromising ease of transport. Each unit includes a tall column array and a large 18″ powered subwoofer, offering stunning clarity and powerful low-frequency reinforcement for professional-grade performances.

The wide dispersion pattern and asymmetrical vertical array ensure consistent coverage from front to back, while Bluetooth connectivity and the QuickSmart Mobile App enable convenient system tuning and control in real time. These capabilities, combined with industry-standard analog and digital inputs, allow the EVOLVE 90 pair to seamlessly integrate into any professional setup.

Whether you're producing large-scale events, DJing for high-energy crowds, or managing corporate sound reinforcement, the EVOLVE 90’s dual system ensures unmatched power, precision, and reliability—backed by Electro‑Voice's legacy of quality engineering.

EVOLVE 90 (Pair) Features

• Two complete EVOLVE 90 column PA systems in black finish
• 8 × 4.7″ neodymium drivers per column with proprietary waveguides
• 18″ subwoofers with 4″ voice coils and laminar-flow venting
• 2 000 W Class-D amplification per unit (1 000 W LF + 1 000 W HF)
• Advanced FIR DSP and array-formed asymmetrical vertical coverage
• Bluetooth® stereo streaming and app-based QuickSmart control
• Input options: 2 × XLR/TRS combo, stereo XLR/RCA, AES/EBU digital I/O
• QuickSmart Link and PowerCON® power connectors
• Fast setup with patented 3‑2‑1 assembly design
• Lightweight design with ergonomic features for transport and storage

EVOLVE 90 (Pair) Specifications

• Drivers (each): Column – 8 × 4.7″ neodymium; Sub – 18″ with 4″ voice coil
• Frequency Response: 35 Hz – 18 kHz; Extended Range: 28 Hz – 20 kHz
• Maximum SPL: 134 dB per speaker
• Coverage: 120° horizontal × 25° vertical
• Amplifier Power: 2 000 W per unit (total 4 000 W)
• Inputs (each): 2 × XLR/TRS, 1 × stereo XLR/RCA, AES/EBU, Bluetooth stereo
• Power Connector: PowerCON® per speaker
• Total Weight (pair): 196.2 lb (89 kg)
• Finish: Black
• UPC (each): 800549762977

EVOLVE 90 (Pair) What’s In The Box

• 2 × EVOLVE 90 column loudspeaker systems (sub + column + pole)
• 2 × aluminum distance poles
• 2 × carry bags for column arrays and poles
• 2 × PowerCON® power cables

EVOLVE 90 Manual

• EVOLVE 90 Official Product Manual
• Engineering Datasheet & Downloads
