Electro-Voice ZLX8 G2 | Passive 8in 2-way - 127dB

$399.00

Order within [hour] to get by [date_end]

Quantity

Pickup available at NJ Warehouse.

Usually ready in 1 hour

Electro-Voice ZLX8 G2 | Passive 8in 2-way - 127dB

NJ Warehouse

Pickup available, usually ready in 1 hour

238 U.S. 206
Byram Township NJ 07821
United States

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

ZLX-G2 loudspeakers are offered in 8, 12, and 15-inch
woofer sizes.
Building on the tried and tested ZLX series, ZLX-G2
loudspeakers feature an improved angled cabinet
design allowing for a 55-degree monitor angle. 12 and
15-inch models additionally include a “kickback” 25-
degree monitor angle.
ZLX-G2 loudspeakers offer the best-in-class acoustic
output. Electro-Voice patented SST baffle design
ensures improved bass, small size, and even coverage
across all frequencies.

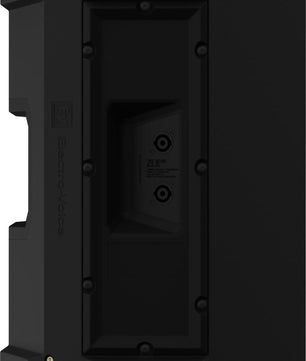

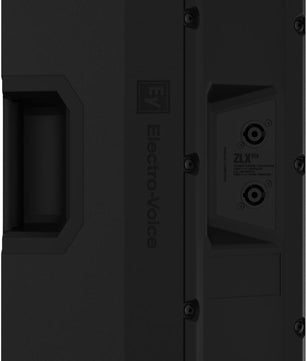

ZLX-8-G2 uses industry standard NL4 connections. The
two NL4 connectors are in parallel and pass through all
pins.
For optimal acoustics and performance, ZLX-8-G2 is
recommended to be used with a Dynacord DSP power
amplifier programmed with the appropriate speaker
settings included in the ZLX-G2 Database for SONICUE.

ZLX-G2 family accessories such as padded covers, a U-
bracket for wall mounting 12- and 15-inch models, and

short and long wall mount brackets for use with the
speaker pole mounts are available.

FEATURES:

Includes 55-degree monitor angle plus 23-
degree kickback angle.
Recommended to use with Dynacord DSP
power amplifiers.
SONICUE integration - optimized speaker
settings for best performance.
Connections easily accessible even in monitor
position.

SPECIFICATIONS:

Frequency response (-3 dB) (Hz) 1

67 Hz – 20,000 Hz

Frequency range (-10 dB) (Hz) 1

55 Hz – 20,000 Hz
Axial sensitivity (dB SPL 1W/1m) 90 dBspl 1W/1m
Maximum sound pressure level at a
distance of 1 m (dB) 1

127 dB
High pass frequency (Hz) 60 Hz
Crossover frequency (kHz) 2 kHz
Coverage angle HxV (°) 90° x 60°
Power handling (continuous) (W) 250 W
Power handling (peak) (W) 1,000 W
Nominal impedance (Ω) 8 Ω
LF transducer WECA2088
LF transducer size (in) 8 in
LF transducer magnet material Ferrite
HF transducer DH-1K
HF transducer type Compression driver
HF transducer size (in) 1.5 in
HF transducer diaphragm material Titanium
Dimensions (H x W x D) (mm) 459.6 mm x 289.9 mm x 280.5 mm
Dimensions (H x W x D) (in) 18.09 in x 11.41 in x 11.04 in
Shipping dimensions (H x W x D)
(mm)

500 mm x 390 mm x 350 mm
