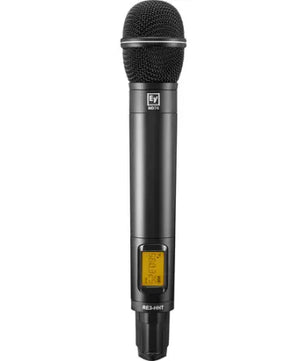

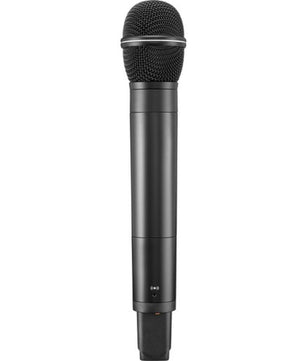

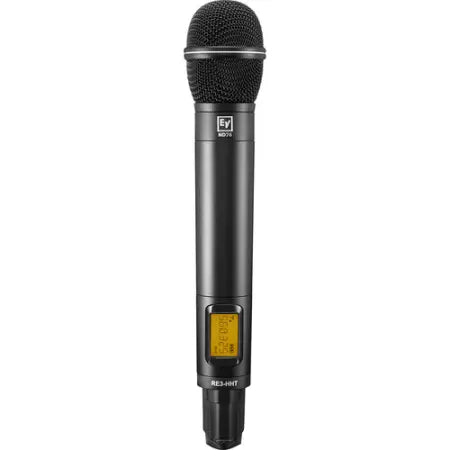

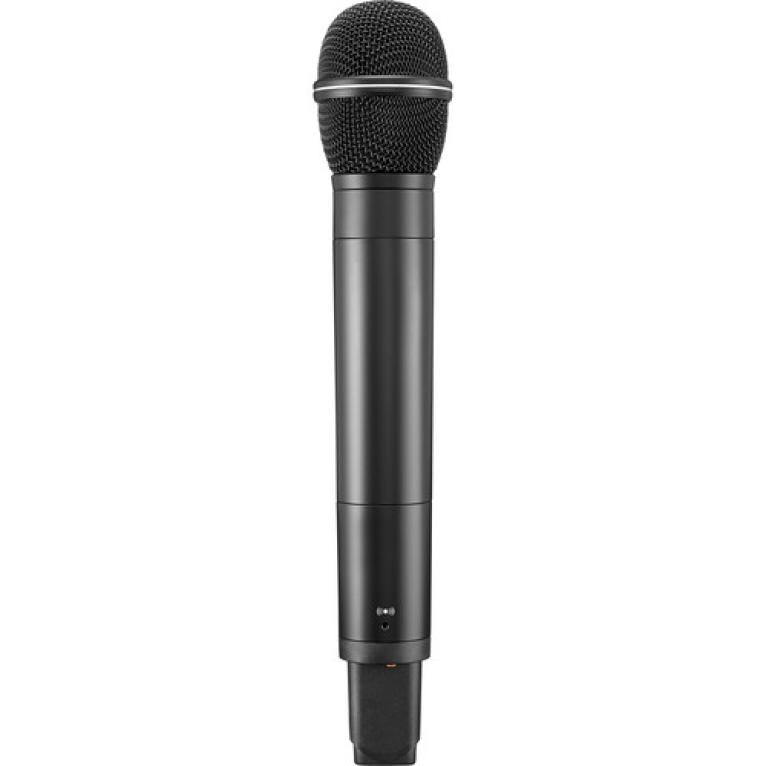

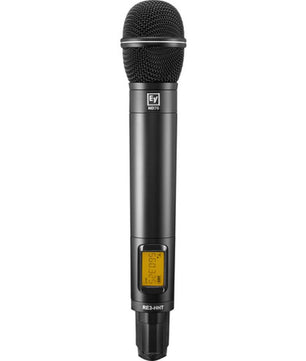

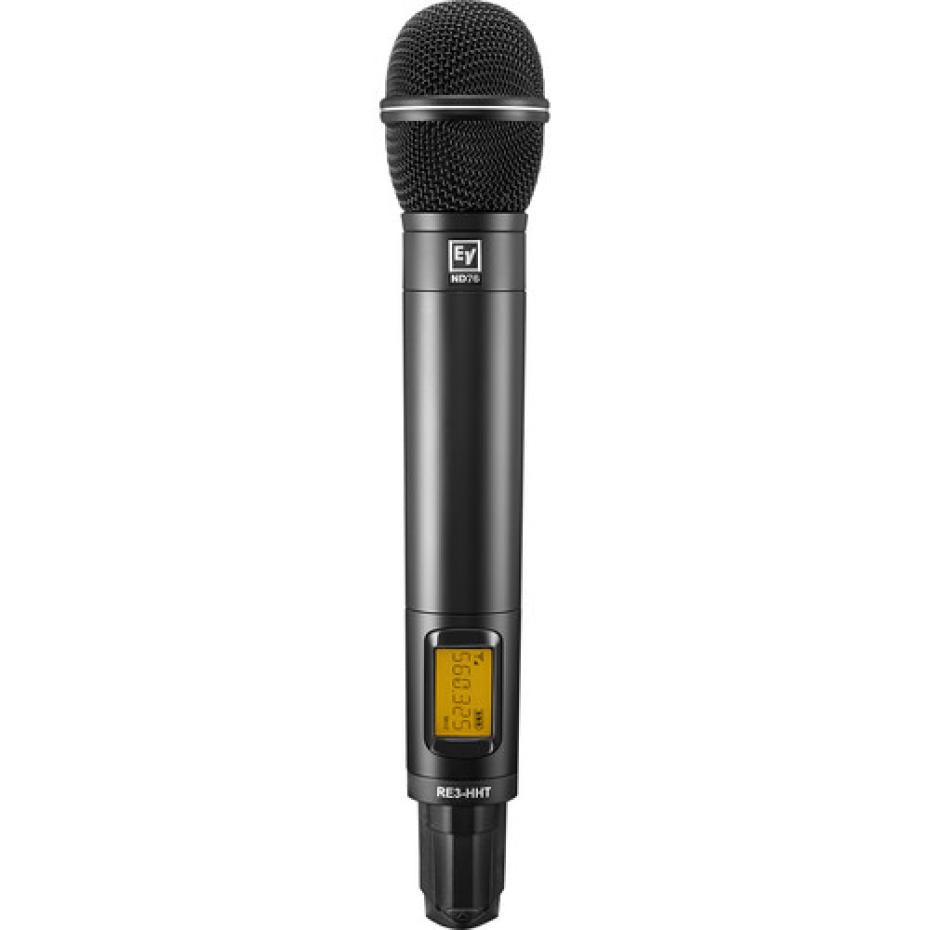

The RE3-HHT765H UHF Wireless Transmitter with ND76 Cardioid Capsule from Electro-Voice is a lightweight, yet robust UHF handheld transmitter body with a dynamic cardioid microphone head for vocal performance and presentations. It can be used when paired with the RE3-RX diversity receiver (sold separately) to capture audio for all-around voice applications.

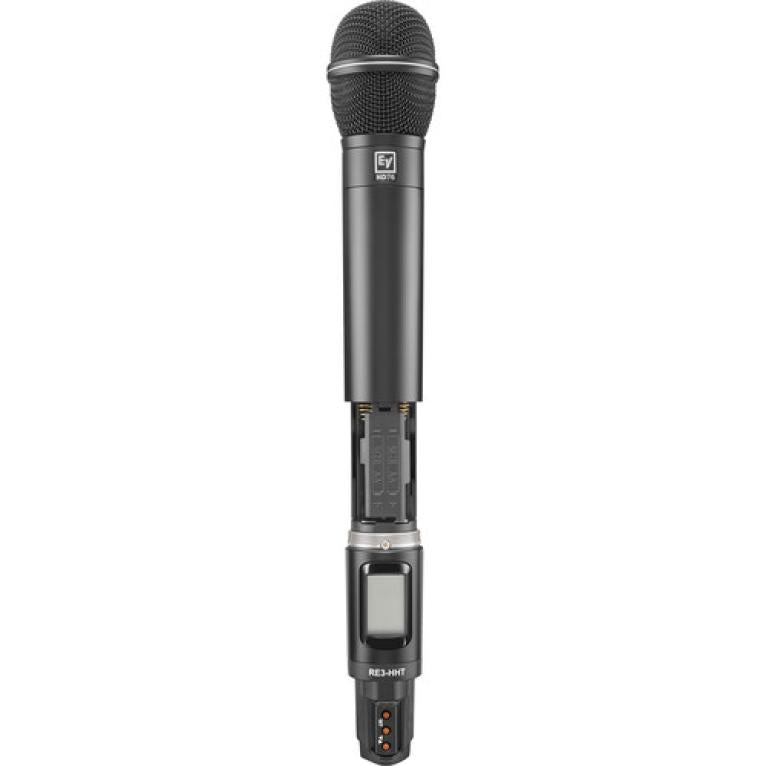

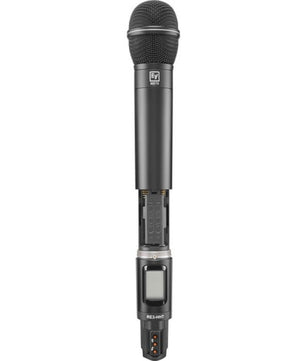

The handheld transmitter setup is quick and simple using the RE3 clear frequency scan and sync functions. It features 1440 selectable frequencies, switchable low- and high-output power, and up to 36 MHz tuning bandwidth. Additionally, recharging contacts provide for functional use with the optional BC2 charging station (sold separately) allowing the NiMH rechargeable cells to be charged without removal from the transmitter.

FEATURES:

1440 Selectable Frequencies
36 MHz Tuning Bandwidth
Robust Metal Body
Sync Function for Easy Frequency Setup
Selectable Low- and High-Output Power
Threaded, Interchangeable Heads
Runs on 2 x AA Batteries or Rechargeable
Charging Contacts

SPECIFICATIONS:

Wireless Technology
Analog UHF
Transmitter Type
Handheld
Audio I/O
No
Microphone Type
Handheld Capsule
Polar Pattern
Cardioid
RF Frequency Band
560 to 596 MHz
RF Bandwidth
Up to 36 MHz
Encryption
Yes
Modulation
Wideband FM
Transmitter
Transmitter Type
Handheld
RF Output Power
10 mW (50 mW Peak, Switchable)
Audio I/O
No
Muting
Mute Switch
Frequency Response
30 Hz to 17 kHz (Dependent on Mic)
70 Hz to 17 kHz (Dependent on Mic)
Sync Method
IR
Power Requirements
Battery
Battery Type
2x AA (Included, Replaceable)
Display & Indicators
LCD (Channel, Group, Mute, Power, RF Output Power)
Housing
Metal
Dimensions
1.5 x 7.5" / 3.8 x 19.1 cm
Microphone
Microphone Type
Handheld Capsule
Sound Field
Mono
Polar Pattern
Cardioid
Frequency Range
30 Hz to 17 kHz
Maximum SPL
135.5 dB SPL Peak
Impedance
1000 Ohms
Operating Voltage
4 to 8 V
Length
3.6" / 9.14 cm
Diameter
2.0" / 50.80 mm
Weight
6.5 oz / 0.18 kg
Packaging Info
Package Weight
1.67 lb
Box Dimensions (LxWxH)
10.6 x 6 x 3.2"
