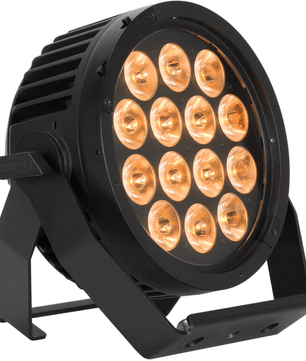

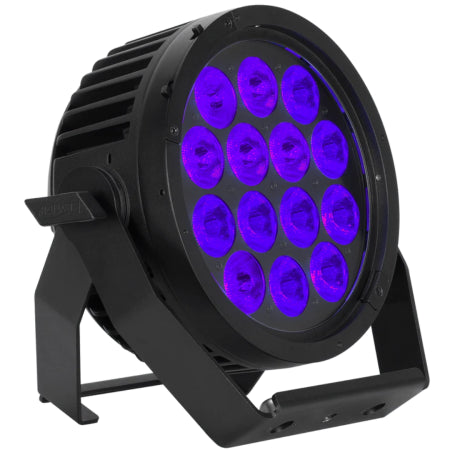

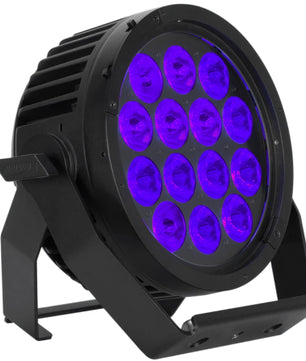

Elation SIX+ PAR L | 14x 20W RGBLA+UV LED - 7300 Lumens | IP65 Outdoor-Rated Fixture with Silent Operation

RGBLA+UV Outdoor LED Par

The Elation SIX+ PAR L is a high-output, IP65-rated LED par fixture designed for professional use in demanding environments. Equipped with fourteen 20W RGBLA+UV LEDs and delivering up to 7300 lumens, it offers an exceptionally wide color gamut, high color rendering, and flexible control—all in a compact, marine-grade housing. Ideal for both indoor and outdoor applications, the SIX+ PAR L sets a new standard for versatile, flicker-free lighting in touring, broadcast, and installation environments.

Elation SIX+ PAR L Competitive Differences

• 14x 20W RGBLA+UV LEDs with 7300 lumens and 91.7 CRI
• Fanless, silent cooling with IP65 and marine-grade C4-M coating

Elation SIX+ PAR L Description

The Elation SIX+ PAR L is engineered to deliver consistent, high-quality lighting in any environment—from outdoor stages to indoor theaters and broadcast studios. The six-color LED engine includes red, green, blue, lime, amber, and UV for precise color mixing and exceptional white rendering with a CRI of 91.7. A 12° native beam angle is complemented by an included MFL (20°) lens, with wider lens options available for added flexibility. Designed for silent operation, the fixture’s fanless cooling system makes it ideal for noise-sensitive applications such as film, television, or worship venues. The fixture also includes variable LED refresh rate settings for flicker-free use on camera. Additional pro-level features include a CMY emulation mode, dedicated CCT control (2400K–8500K), and an onboard virtual gel library for fast color matching. Control is easy via 9 DMX modes or 4 SixPar emulation modes, ensuring compatibility with existing rigs. RDM, 5-pin DMX, and IP65 locking power in/out connectors ensure reliable, daisy-chainable power and data. The fixture supports Elation’s Aria x2 wireless device management system for remote monitoring and configuration. Built to withstand harsh environments, the fixture’s IP65 rating and C4-M marine-grade coating make it safe for coastal or wet-area installations. The dual yoke design allows for floor or rig-mounted use with an included omega bracket receiver.

Model Features

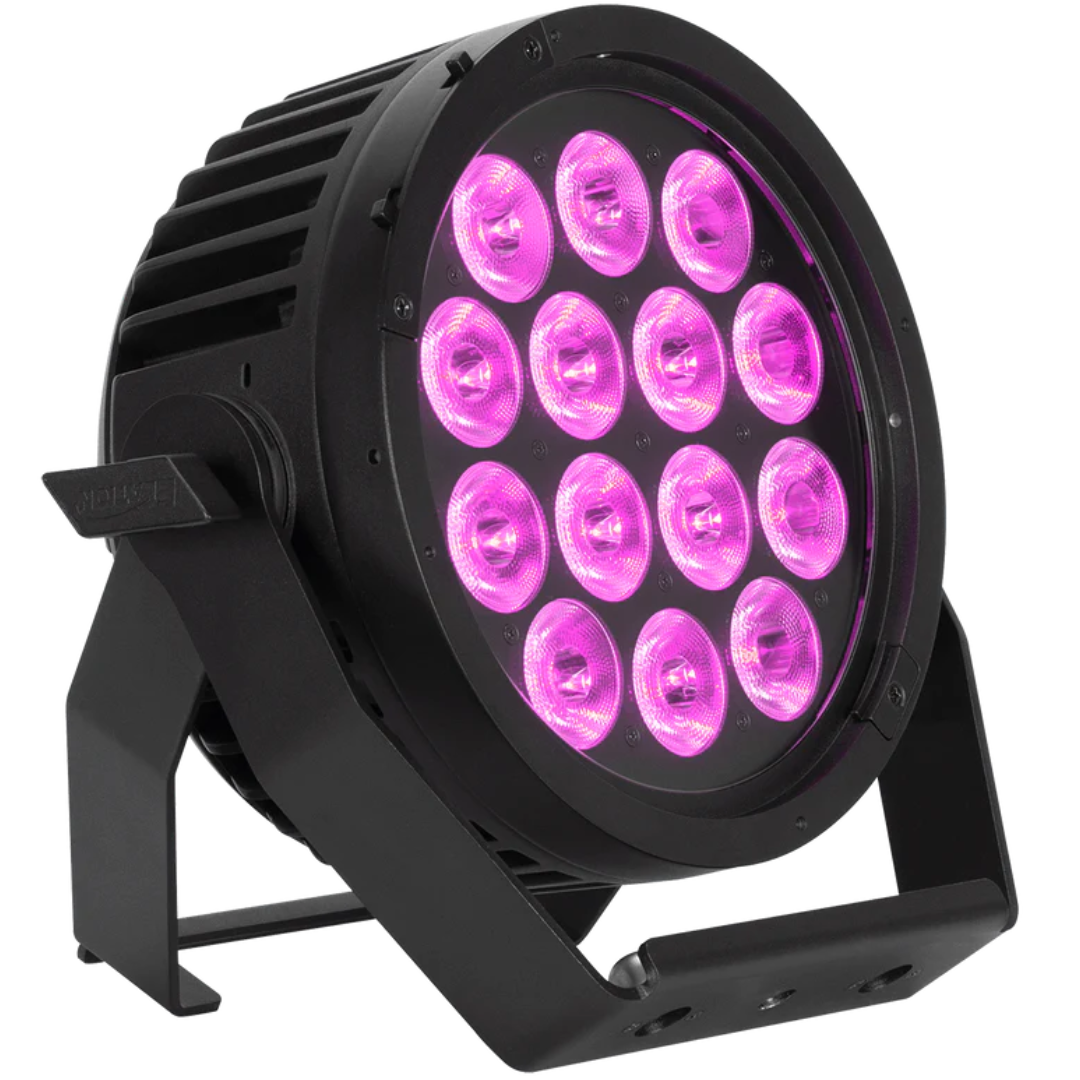

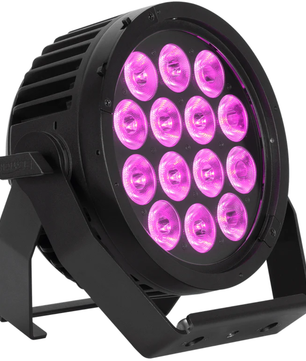

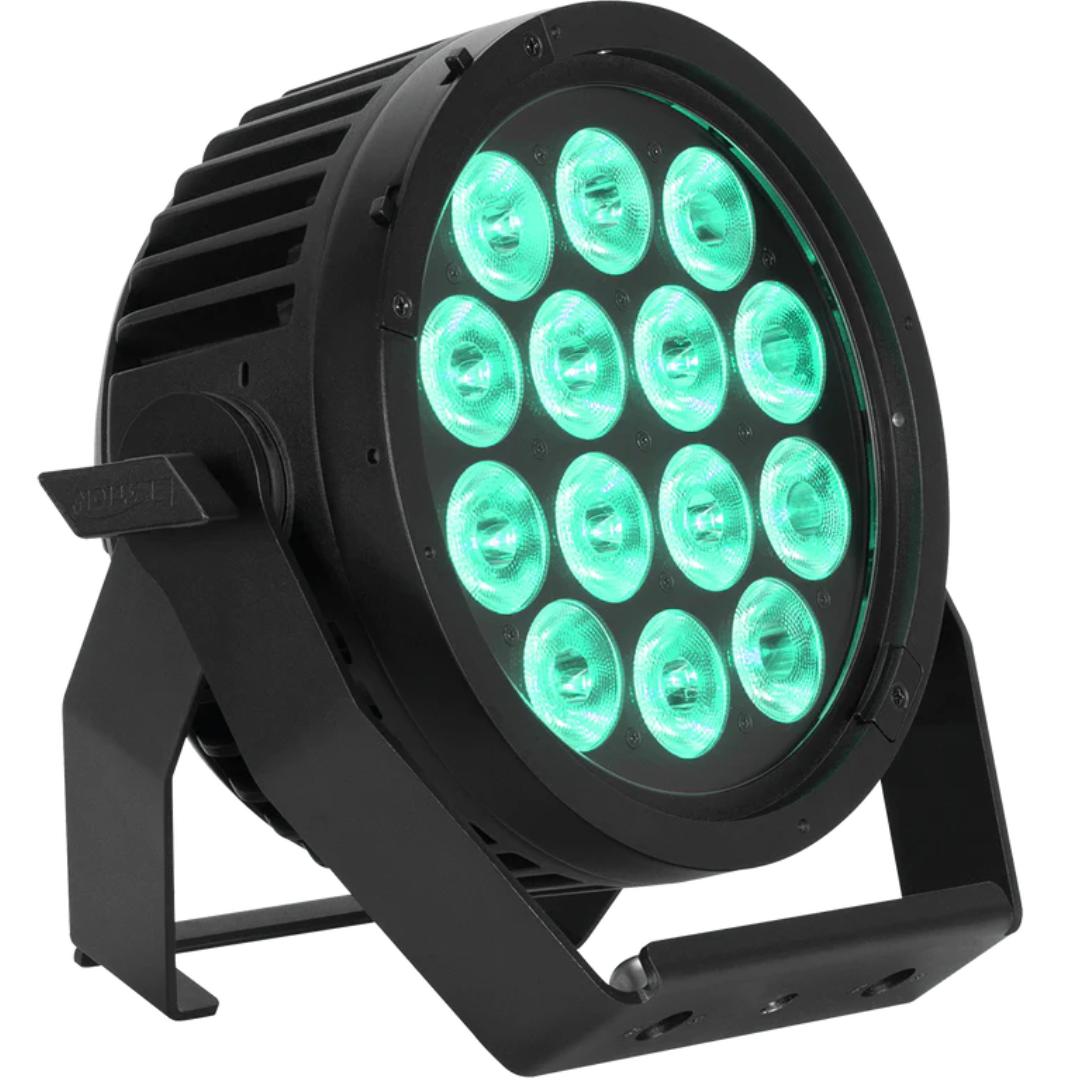

• 14x 20W RGBLA+UV LED array with up to 7300 lumens
• 12° beam angle with included 20° MFL lens
• CMY emulation, virtual gel swatch book, and CCT control (2400K–8500K)

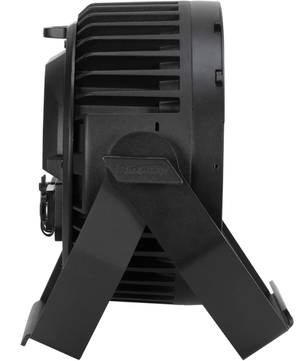

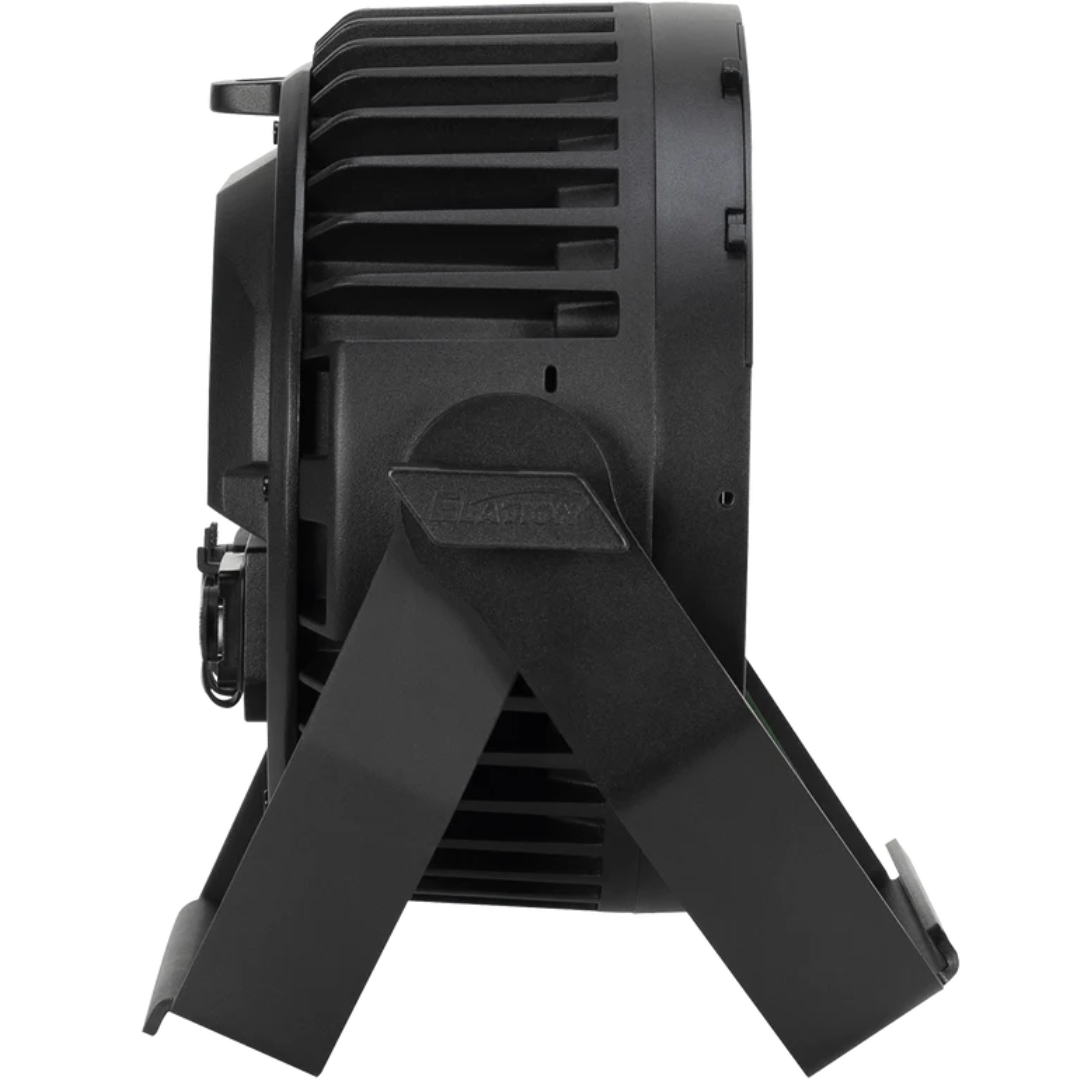

• Silent, fanless cooling for noise-sensitive environments
• Flicker-free operation with adjustable LED refresh rate
• IP65 rated with marine-grade C4-M coating for outdoor use
• Aria x2 wireless device management and RDM support
• Multiple DMX and SixPar emulation modes for flexible control

Model Specifications

• Light Source: 14x 20W RGBLA+UV LEDs
• Lumen Output: 7300 lumens
• CRI: 91.7
• Beam Angle: 12° native (20° lens included)
• Dimming: 16-bit selectable curves
• CCT Range: 2400K – 8500K
• Control: 9 DMX modes + 4 SixPar emulation modes

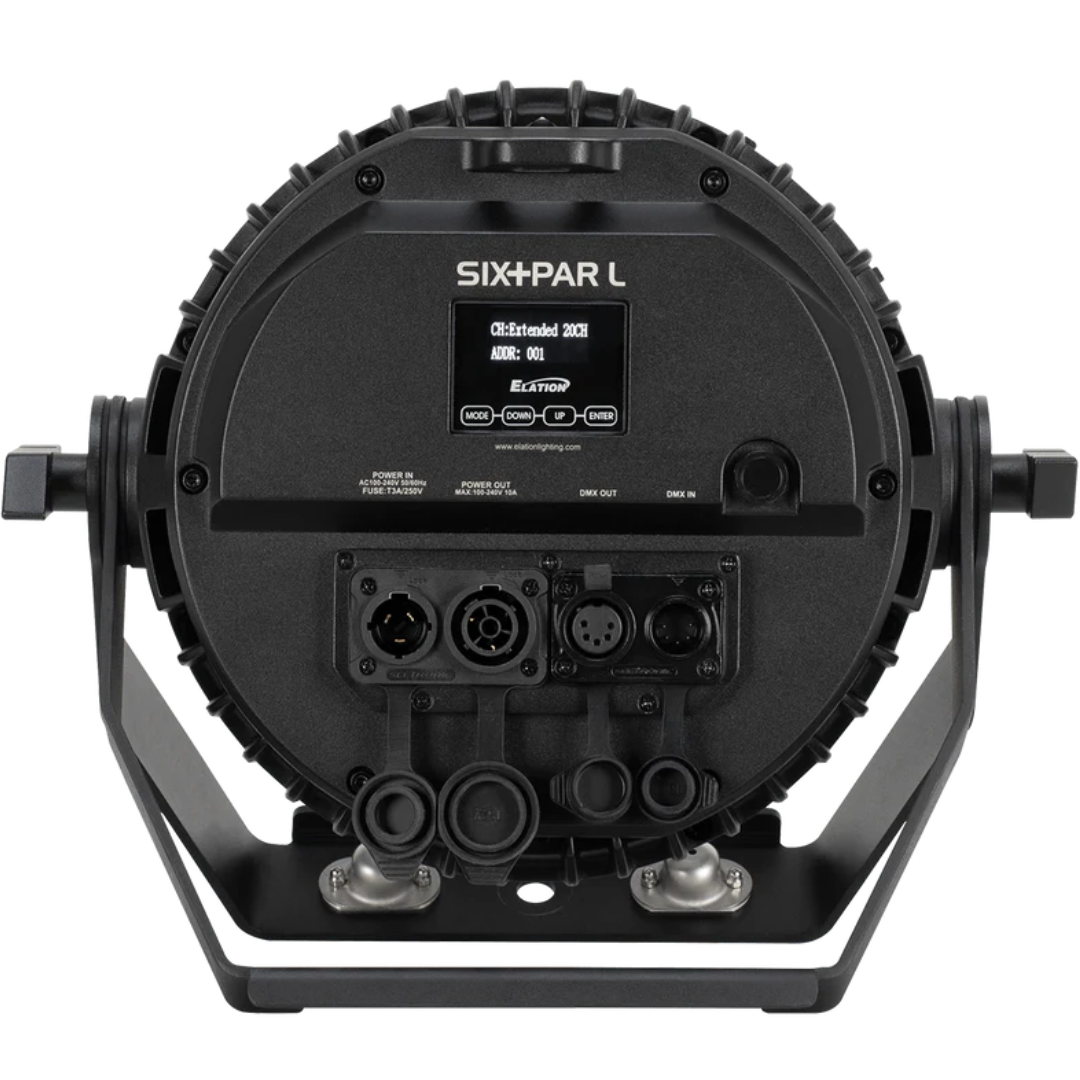

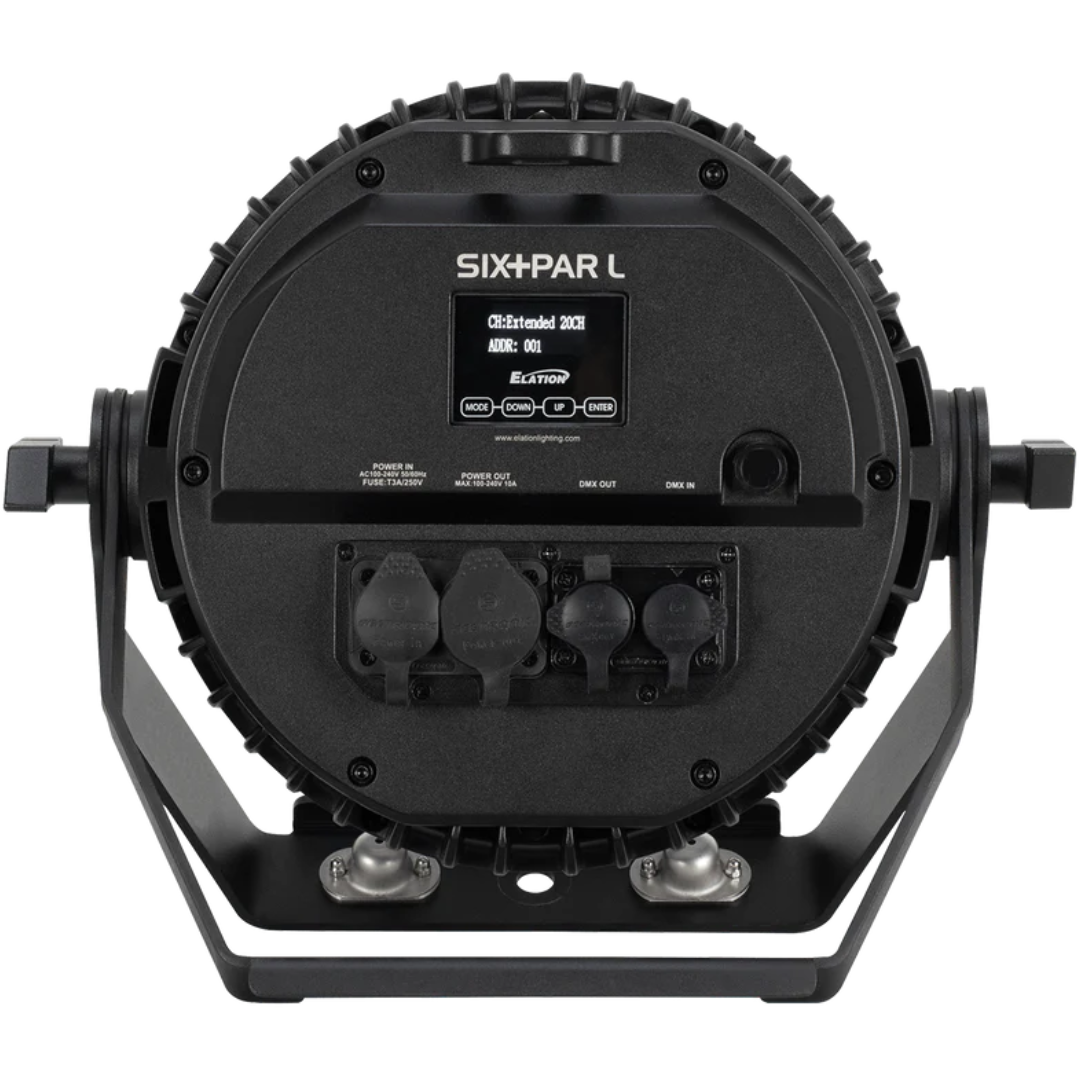

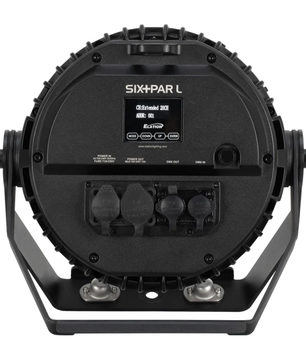

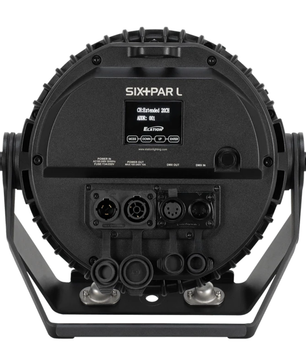

• Connections: 5-pin DMX, IP65 locking power in/out
• Display: 4-button interface with LED screen
• Dimensions: 13.5 x 10.2 x 9.7 in (342 x 260 x 246.5 mm)
• Weight: 15.7 lb (7.1 kg)
• Power: AC 100–240V, 50/60Hz, 165W max
• BTU/hr: Approx. 563
• Operating Temp: 5°F to 113°F (-15°C to 45°C)
• Certifications: CE, cETLus, FCC, UKCA

What's In The Box

• Elation SIX+ PAR L fixture
• MFL (20°) lens
• Safety cable
• IP65 locking power cable
