Elation SEVEN BATTEN 14

$1,584.00

Order within [hour] to get by [date_end]

Quantity

Call For More Details

Call us at 123-456-7890

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

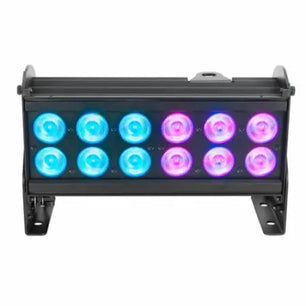

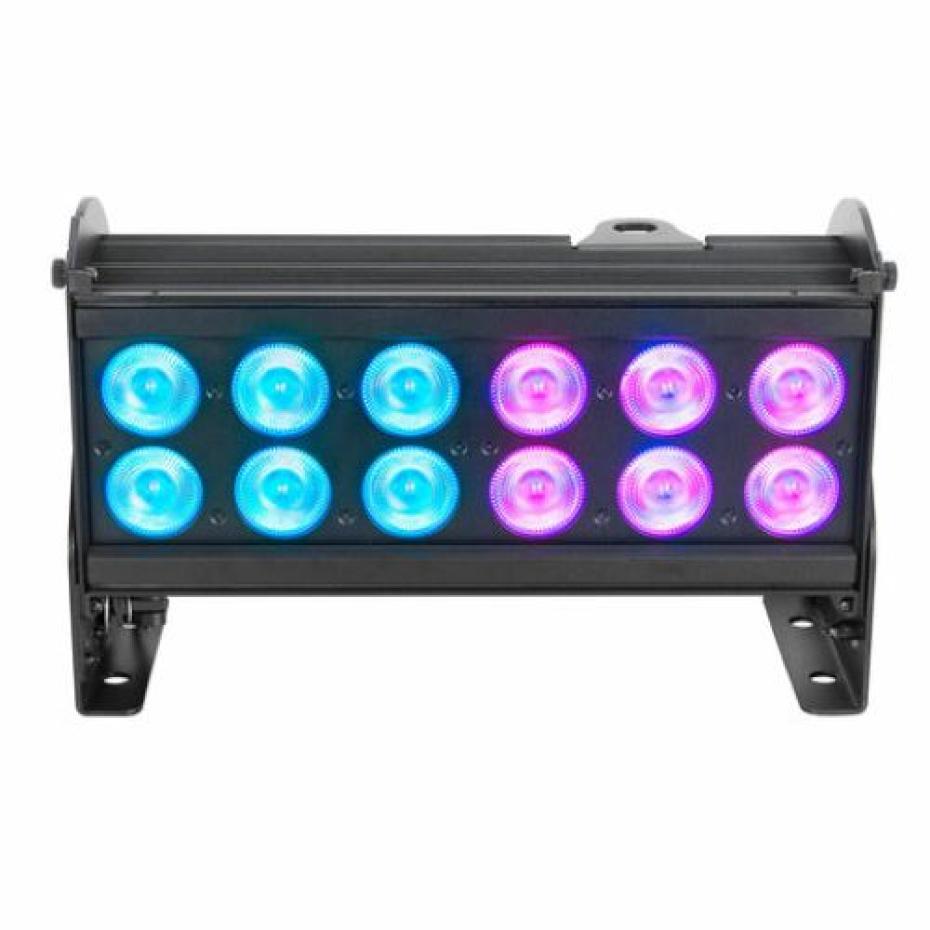

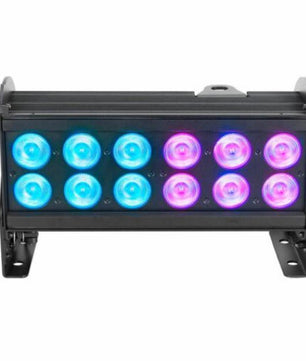

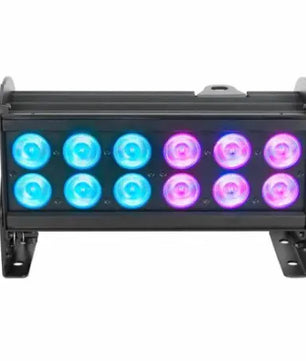

The SEVEN Batten 14™ from Elation is a seven color 1.2 foot (0.4m) long batten wash luminaire with (12) 25W 7-in-1 RGBAW + Lime + UV (395nm) LEDs. Some of the features include individual hue, saturation, and intensity control, special RGB SEVEN 3 channel mode (RGB + dynamic white, amber, lime, and UV), 2 pixel mapping zones with pixel flip mode, smooth color mixing, 12 internal programs with speed and fade control, 64 unique 7-color macros, selectable dimming curve modes.

The SEVEN Batten 14 comes with an adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM. Connections on this fixture include 3/5pin DMX, RJ45 etherCON, and power in/out connections. With a rugged powder coated die-cast aluminum exterior, and an integrated gel / frost filter slot. Other highlights include a 220° manual tilt adjustable mounting bracket, OLED menu display with a 4-button control panel, and a multi-voltage universal auto switching power supply (100-240v).

Features:
Individual Hue, Saturation, and Intensity Control
Special RGB SEVEN 3 Channel Mode (RGB + Dynamic White, Amber, Lime, UV)
Smooth Color Mixing, Internal Programs with Speed and Fade Control
64 Unique 7-Color Macros
Selectable 16-bit Dimming Curve Modes
Adjustable LED Refresh Rate + Gamma Brightness
Flicker Free Operation for TV and FILM
Art-Net, Kling-Net, and RDM Protocol Support
220° Manual Tilt Adjustable Mounting Bracket
Rugged Powder Coated Die-Cast Aluminum Exterior
Integrated Gel / Frost Filter Slot

Specifications:
12 25W 7-in-1 RGBAW + Lime +UV LEDs
50,000 Hour Average LED Life
Effects:
2 Pixel Mapping Zones with Pixel Flip Mode
Special RGB + Channel Mode with Dynamic White, Amber, Lime, UV Added Automatically
Smooth Color Mixing, Internal Programs and 64 Color Macros
High Speed Electronic Shutter and Strobe
16Bit Dimming and Variable Dimming Curve Modes
Control / Connections:
10 DMX Channel Modes (50 total channels)
Adjustable Refresh Rate (900-1500, 25,000 Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
4 Button Control Panel / LCD Menu Display
DMX, RDM, Kling-NET, and Art-NET Protocol Support
5pin DMX and RJ45 etherCON In/Out
Seetronic Powerkon In/Out
Electrical / Thermal:
AC 100-240V - 50/60Hz
201W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
Approvals / Ratings: CE | IP20
Dimensions: 14" x 4.5" x 9"
Weight: 17.0 lbs.
